cannot deliver message

roy 0 Reputation points
2023-04-05T09:31:35.8233333+00:00

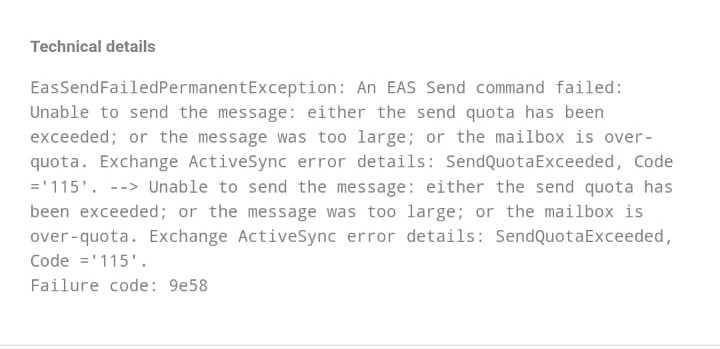

Image cannot deliver message

Exchange Server
Exchange Server
A family of Microsoft client/server messaging and collaboration software.
1,109 questions
Microsoft Exchange
Microsoft Exchange
Microsoft messaging and collaboration software.
410 questions
0 comments No comments
{count} votes

1 answer

Sort by: Most helpful
  1. Xuyan Ding - MSFT 7,561 Reputation points
    2023-04-06T06:49:37.4666667+00:00

    Hi @roy

    The following information needs to be confirmed with you:

    1.Are you having trouble sending emails from your mobile device?

    2.Are you able to send emails from Outlook and OWA successfully?

    3.What is the size of the mail you send? The maximum size for a message sent by Exchange ActiveSync client is 10 MB by default.

    If the attachment size of the message exceeds 10MB, then you need to configure the web.config file on the Mailbox server to modify the limit of Exchange ActiveSync.

    a.Edited the web.config file in %ExchangeInstallPath%FrontEnd\HttpProxy\Sync and %ExchangeInstallPath%FrontEnd\HttpProxy\Sync to change the maxRequestLength.

    b.Edited the web.config file in %ExchangeInstallPath%FrontEnd\HttpProxy\Sync to change the MaxDocumentDataSize. User's image

    c.Restart IIS using iisreset command.

    For reference: Configure client-specific message size limits in Exchange Server.
