SCCM DP pxe deployment fails with generic 4005 errors

Question

SCCM DP pxe deployment fails with generic 4005 errors

Jensen, Thomas 21

Migrated to a new site system that is currently on 2211 site version 5.0.9096.1000 Site system and DP's are running Server 2019. Running only Http on on systems. Migrated Distribution points over and tried to pxe. We started to receive 0xc000000f when the device attempts to load/launch pxe boot. Checked the WDS log files on the DP and seen this. The PXE server processed a request from a client of architecture x64uefi. However there were no boot images installed for this architecture. PXE clients of this architecture will not be able to complete the boot process successfully. To resolve this problem, add at least one boot image for this architecture. Steps Taken so far:

removed DP and re-added
1. removed pxe and re-added while removing remote install folder
Built new DP/Server, the errors mirror each other on all DP's
removed MP and re-added
Opened case with MS, so far no help!!!!
built new boot images and distributed

pxe log on DP:

InstallBootFilesForImage failed. 0x80004005 SMSPXE 4/6/2023 2:48:52 PM 3048 (0x0BE8) Warning: Failed to copy the needed boot binaries from the boot image F:\RemoteInstall\SMSImages\DR200002\boot.DR200002.wim. The operation completed successfully. (Error: 00000000; Source: Windows) SMSPXE 4/6/2023 2:48:52 PM 3048 (0x0BE8) Failed adding image F:\RemoteInstall\SMSImages\DR200002\boot.DR200002.wim. Will Retry.. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 4/6/2023 2:48:52 PM 3048 (0x0BE8) RequestMPKeyInformation: Send() failed. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) Unsuccessful in getting MP key information. 80004005. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) PXE::MP_LookupDevice failed; 0x80070490 SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) Using values from 'AllowedMPs' key. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) Using Management Point: dcwinfp079.datarecognitoncorp.com SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) Not in SSL. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) RequestMPKeyInformation: Send() failed. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) Unsuccessful in getting MP key information. 80004005. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) PXE::MP_ReportStatus failed; 0x80070490 SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) PXE Provider failed to process message. Element not found. (Error: 80070490; Source: Windows) SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC) CC:96:E5:7C:AF:1F, 4C4C4544-0048-4D10-804A-B1C04F325433: Not serviced. SMSPXE 4/7/2023 10:34:24 AM 5580 (0x15CC)

Jensen, Thomas 21 Reputation points

2023-04-11T21:22:28.4033333+00:00

So I switched imaging to the Main Site server since I kept getting mp key errors on the DP and that works via Pxe using WDS. This is not ideal since its our main site system. I am still working through the same errors above on the DP's but seems to be a start. I have found two problems one was the Task sequence from our old SCCM server seems like its corrupt. Created a new TS with a boot image we already had for testing and Pxe loaded. I thought that was the full problem, so I moved imaging back to the DP and it fails still with the same 0x0000000f error. Not a solution but a work around for the moment since we have had imaging down for 2 weeks now.

6 answers

Your answer

Jensen, Thomas 21 Reputation points

2023-04-11T21:22:28.4033333+00:00

So I switched imaging to the Main Site server since I kept getting mp key errors on the DP and that works via Pxe using WDS. This is not ideal since its our main site system. I am still working through the same errors above on the DP's but seems to be a start. I have found two problems one was the Task sequence from our old SCCM server seems like its corrupt. Created a new TS with a boot image we already had for testing and Pxe loaded. I thought that was the full problem, so I moved imaging back to the DP and it fails still with the same 0x0000000f error. Not a solution but a work around for the moment since we have had imaging down for 2 weeks now.

Answer 1

CherryZhang-MSFT 6,511

Hi @Jensen, Thomas,

1, Have you configured your WDS server? Please help check if it is running? If so, please disable it.

2, What is the image path you are specified?

3, Please help update distribution points with the boot image and select Reload this boot image with the current Window PE version from the Windows ADK.

4, Besides, we are no longer recommend using the DHCP option, we recommend that you use IP Helper instead of it.

The related article for your reference:

You want to PXE Boot? Don't use DHCP Options. - Microsoft Community Hub

Looking forward to your reply.

Best regards,
Cherry

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

CherryZhang-MSFT 6,511 Reputation points

2023-04-28T04:15:17.3433333+00:00

Hi,

Hope everything goes well. Do you need any further assistance about this issue? If yes, please feel free to let us know, we will do our best to help you.

If the response is helpful, it's appreciated that you could click "Accept Answer" and upvote it, this will help other users to search for useful information more quickly.

Thanks for your time.

Best regards,
Cherry

Answer 2

Pavel yannara Mirochnitchenko 13,451 MVP

Try also to re-assign TS to Unknown collection that policies will get refreshed.

0 comments

Answer 3

Pavel yannara Mirochnitchenko 13,451 MVP

Update ADK and re-create boot image inside CM, and ensure you are inserting certs. In a past, you had an option to insert certificate directly in boot image, but nowadays I recall it happends automatically, but you still need to create certificate for boot image. Also, updating ADK will refresh boot images as well.

Jensen, Thomas 21 Reputation points

2023-04-11T14:44:20.5866667+00:00

Currently using ADK version https://go.microsoft.com/fwlink/?linkid=2120254 I reinstalled ADK and then redeployed boot images after updating. I did not see any difference in logs for Pxe. No errors in mpcontrol also. When I try to pxe now I see this message flash very quickly SCCM PXE "PXE-E16: No offer received
Pavel yannara Mirochnitchenko 13,451 Reputation points MVP

2023-04-11T18:05:21.61+00:00

No offer received could mean, that boot image + Task Sequence is not assigned to Unknown Computers, or pxe helper does not point to correct location.
Jensen, Thomas 21 Reputation points

2023-04-11T19:30:50.1866667+00:00

Hmm just redeployed to unknown computers and Now I don't get that error flash but the log errors are the same. Start SCCM PXE as a service. SCCMPXE 4/11/2023 2:04:41 PM 2516 (0x09D4) ServiceMain() SCCMPXE 4/11/2023 2:04:41 PM 3220 (0x0C94) Sleeping for 105 second(s) SCCMPXE 4/11/2023 2:04:41 PM 3220 (0x0C94) Starting sccmpxe.exe version 5.0.9096.1000 from location 'F:\SMS_DP$\sms\bin\sccmpxe.exe' SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) Firewall service is already running. SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) Module folder: F:\SMS_DP$\sms\bin SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) PXE: MGWINFP003, MGWINFP003.DataRecognitionCorp.com SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) PXE: Not listening to DHCP port. SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) --- Starting PXE on 00:50:56:B7:A8:8F, 10.1.98.2, 4011. SCCMPXE 4/11/2023 2:06:28 PM 3220 (0x0C94) --- Starting TFTP on 10.1.98.2. SCCMPXE 4/11/2023 2:06:28 PM 4072 (0x0FE8) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 08057501, BootTime: 0, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:09:31 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:09:31 PM 4076 (0x0FEC) PXE: Checking DP certificate. SCCMPXE 4/11/2023 2:09:31 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:09:31 PM 3232 (0x0CA0) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:09:31 PM 3232 (0x0CA0) Cannot read the registry value of MACIgnoreListFile. Not using MAC ignore list. SCCMPXE 4/11/2023 2:09:31 PM 3232 (0x0CA0) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:09:31 PM 3232 (0x0CA0) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:09:31 PM 3232 (0x0CA0) Client is set to use HTTPS when available. The current state is 1216. SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) Not in SSL. SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:09:32 PM 3232 (0x0CA0) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 08057501, BootTime: 1, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:09:32 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:09:32 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) Not in SSL. SCCMPXE 4/11/2023 2:09:32 PM 3724 (0x0E8C) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:09:33 PM 3724 (0x0E8C) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:09:33 PM 3724 (0x0E8C) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:09:33 PM 3724 (0x0E8C) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:09:33 PM 3724 (0x0E8C) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 08057501, BootTime: 2, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:09:34 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:09:34 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) Not in SSL. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:09:35 PM 4736 (0x1280) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 08057501, BootTime: 3, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:09:37 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:09:37 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:09:37 PM 5064 (0x13C8) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:09:37 PM 5064 (0x13C8) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:09:37 PM 5064 (0x13C8) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:09:37 PM 5064 (0x13C8) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) Not in SSL. SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:09:38 PM 5064 (0x13C8) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 914772ab, BootTime: 0, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:14:45 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:14:45 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) Not in SSL. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:14:45 PM 1432 (0x0598) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 914772ab, BootTime: 1, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:14:46 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:14:46 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) Not in SSL. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:14:46 PM 1148 (0x047C) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 914772ab, BootTime: 2, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:14:48 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:14:48 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) Not in SSL. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:14:48 PM 2200 (0x0898) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 914772ab, BootTime: 3, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 2:14:51 PM 4076 (0x0FEC) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 2:14:51 PM 4076 (0x0FEC) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) Not in SSL. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 2:14:51 PM 564 (0x0234)
Pavel yannara Mirochnitchenko 13,451 Reputation points MVP

2023-04-12T06:36:25.23+00:00

My quick judgment will be, that your MP does not accept certificate or something like that.
Jensen, Thomas 21 Reputation points

2023-04-12T14:34:31.0233333+00:00

seems to be related for sure. waiting to see what I can get from Microsoft.
Pavel yannara Mirochnitchenko 13,451 Reputation points MVP

2023-04-12T15:19:22.24+00:00

I remember that for PXE, you had to create additional certificate template. Try to go through MS docs and re-do that step.
Jensen, Thomas 21 Reputation points

2023-04-12T15:27:59.45+00:00

I thought that is for Pki/ssl Deployments ? I am using self signed certs only from the PXE deployments now. If you checked my other comments to Cherry I was able to get this working on the MP site for Pxe boot. This is only a work around for now since I can't keep the DP/pxe on my main site server. I just added the pxe option using WDS to the site system and tested and that works so the MP cert issue is my problem still.

Answer 4

CherryZhang-MSFT 6,511

Hi @Jensen, Thomas,

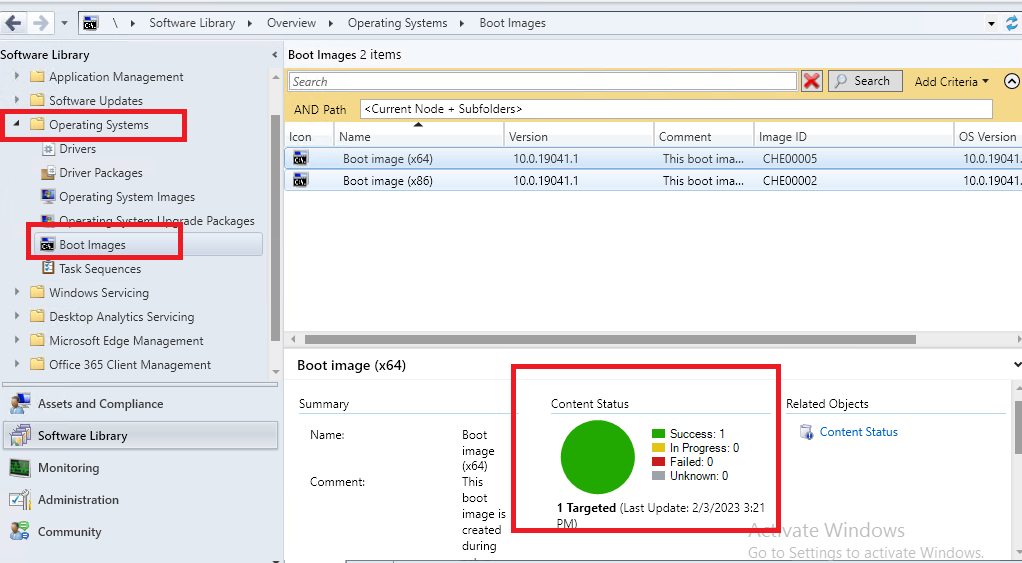

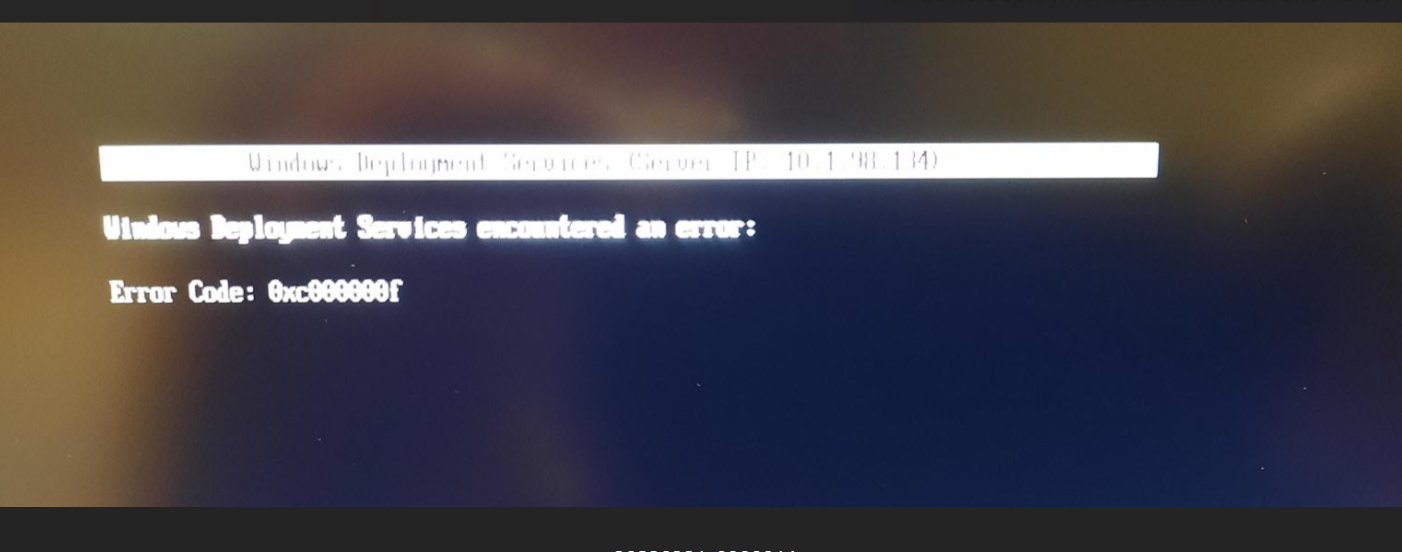

1, Please help upload a screenshot about error 0xc000000f for our reference.

2, What is the ADK version you are using? Please help check if the boot image was distributed successfully?

3, We may try to enable a PXE responder to see if the problem is resolved.

4, Your environment is using http without https, right? Are the clients you are deploying on the same network as the SCCM server? Can client get the right IP before load the boot image? Have you configured IP option 66,67 or IP helper for PXE?

Looking forward to your feedback.

Best regards

Cherry

Jensen, Thomas 21 Reputation points

2023-04-11T14:39:56.2633333+00:00

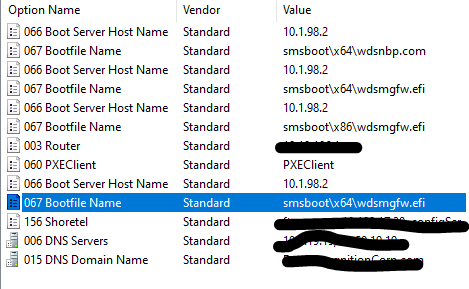

HI Cherry, So I was curious about this option and actually tried it yesterday. I am getting this in the pxe logs now after removing WDS and using the that option: Also We don't have any PKI/SSL setup and are only using the SCCM self signed certs. DHCP Scope options looks like this atm:

RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 9:28:57 AM 1480 (0x05C8) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 9:28:57 AM 1480 (0x05C8) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 9:28:57 AM 1480 (0x05C8) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 9:28:57 AM 1480 (0x05C8) This looks weird to me but I have not used the pxe forwarder in the past either: Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 3dddf6ab, BootTime: 1, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 9:28:57 AM 3700 (0x0E74) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 9:28:57 AM 3700 (0x0E74) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) Not in SSL. SCCMPXE 4/11/2023 9:28:57 AM 7448 (0x1D18) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 9:28:58 AM 7448 (0x1D18) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 9:28:58 AM 7448 (0x1D18) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 9:28:58 AM 7448 (0x1D18) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 9:28:58 AM 7448 (0x1D18) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 3dddf6ab, BootTime: 2, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 9:28:59 AM 3700 (0x0E74) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 9:28:59 AM 3700 (0x0E74) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 9:28:59 AM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 9:28:59 AM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 9:28:59 AM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 9:28:59 AM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 9:28:59 AM 4736 (0x1280) Not in SSL. SCCMPXE 4/11/2023 9:29:00 AM 4736 (0x1280) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 9:29:00 AM 4736 (0x1280) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 9:29:00 AM 4736 (0x1280) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 9:29:00 AM 4736 (0x1280) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 9:29:00 AM 4736 (0x1280) Packet: Operation: 1 (request), AdrType: 1, AdrLen: 6, HopCount: 0, TransactID: 3dddf6ab, BootTime: 3, Addr: cc:96:e5:7c:af:1f:00:00:00:00:00:00:00:00:00:00, HostName: , BootFile: , ClientIP: 10.10.106.10, HostIP: 0.0.0.0, ServerIP: 0.0.0.0, RelayIP: 0.0.0.0 Options: 53, 1, MsgType: 03, request 55, 35, ParamRequestList: 01 02 03 04 05 06 0c 0d 0f 11 12 16 17 1c 28 29 2a 2b 32 33 36 3a 3b 3c 42 43 61 80 81 82 83 84 85 86 87 57, 2, MsgMaxSize: 05 c0 60, 32, ClassID: PXEClient:Arch:00007:UNDI:003016 93, 2, Arch: 00 07 94, 3, UNDI: 01 03 10 97, 17, UUID: 00 44 45 4c 4c 48 00 10 4d 80 4a b1 c0 4f 32 54 33 SCCMPXE 4/11/2023 9:29:02 AM 3700 (0x0E74) PXE: Packet from 10.10.106.10 (PXE, 00:50:56:B7:A8:8F, 10.1.98.2). SCCMPXE 4/11/2023 9:29:02 AM 3700 (0x0E74) PXE: CC:96:E5:7C:AF:1F: Operation=1, MessageType=3, Architecture=7, Continuation=0 SCCMPXE 4/11/2023 9:29:02 AM 5924 (0x1724) PXE: CC:96:E5:7C:AF:1F: Parsed a request packet. SCCMPXE 4/11/2023 9:29:02 AM 5924 (0x1724) PXE: CC:96:E5:7C:AF:1F: 4C4C4544-0048-4D10-804A-B1C04F325433: Client is 64-bit, UEFI, Firmware. SCCMPXE 4/11/2023 9:29:02 AM 5924 (0x1724) PXE: CC:96:E5:7C:AF:1F: Using values from 'AllowedMPs' key. SCCMPXE 4/11/2023 9:29:02 AM 5924 (0x1724) PXE: CC:96:E5:7C:AF:1F: Using Management Point: dcwinfp079.datarecognitoncorp.com SCCMPXE 4/11/2023 9:29:02 AM 5924 (0x1724) Not in SSL. SCCMPXE 4/11/2023 9:29:03 AM 5924 (0x1724) RequestMPKeyInformation: Send() failed. SCCMPXE 4/11/2023 9:29:03 AM 5924 (0x1724) PXE: CC:96:E5:7C:AF:1F: Unsuccessful in getting MP key information. 0x80004005. SCCMPXE 4/11/2023 9:29:03 AM 5924 (0x1724) PXE::MP::InitializeTransport failed; 0x80004005 SCCMPXE 4/11/2023 9:29:03 AM 5924 (0x1724) PXE::MP::IsKnownMachine failed; 0x80070490 SCCMPXE 4/11/2023 9:29:03 AM 5924 (0x1724)

ADK is version 2004 from here: https://go.microsoft.com/fwlink/?linkid=2120254 Right now when I try to pxe I see this error SCCM PXE "PXE-E16: No offer received

Answer 5

Pavel yannara Mirochnitchenko 13,451 MVP

Since you did a migration, first question is - are other roles functional? Can you install apps from Software Center? I also think certifications and https-only is now mandatory, so you need to have certs.

Jensen, Thomas 21 Reputation points

2023-04-10T18:20:14.11+00:00

Everything else is fully functional. I have valid ssl role cert for port 443 in IIS. Software center, patching all other service/functions are working as expected. Pxe/OSD is the only thing not working atm. I am able to replicate those same errors on every systems I have tested OSD/pxe on as well. The only warning I am getting at the moment via MP_control is MP has discarded a report when processing Ddr. Nothing is in critical status though. Are you saying that using https is requirement now?
