WPF: Entity Framework MVVM Walk Through 2 Andy ONeills example

Question

I have learnt a lot from Andy O'Neill's WPF: Entity Framework MVVM Walk Through 2 example as I learn WPF and MVVM etc. Generally though I always seem to struggle on comboboxes and getting the ItemsSource, SelectedValue and SelectedValuePath set up correctly to successfully show data in the combobox. The Binding is really tricky in combination with the particular comboxbox control design. In Andys example I was trying to put a combobox inside an ItemsControl thats inside a ContentControl (Popup) thats inside a grid on a UserControl. I cannot get the data from MyObservableCollection to show in the ItemsSource. I have tried all manner of versions of comboc control construction and Binding including {Binding DataContext.MyObservableCollection, Mode=TwoWay, RelativeSource={RelativeSource AncestorType=UserControl} , RelativeSource={RelativeSource AncestorType={x:Type local:UserControl}} and replacing UserControl with the ViewModels , and using FindAncestor etc. The DataContext is set to the ViewModel where the observable collection is and its got data in it, but seems cant get binding to work.

Any tips to look at for this type of situation would be greatly appreciated or even an answer from the great man himself Mr Andy O'Neill (anonymous userONeill) . wow imagine that

thanks
Scott

Answer 1

Hi Scott,
in following demo you can see how to bind ComboBoxColumn in DataGrid in UserControl.

XAML MainWindow:

<Window x:Class="Window064"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp1.WpfApp064"
        xmlns:uc="clr-namespace:WpfControlLibrary1;assembly=WpfControlLibrary1"
        mc:Ignorable="d"
        Title="Demo ComboBox in UserControl" Height="450" Width="800">
  <Window.DataContext>
    <local:ViewModel/>
  </Window.DataContext>
  <Grid>
    <uc:Window064UC1/>
  </Grid>
</Window>

ViewModel as DataContext in MainWindow (and UserControl), View property for rows in DataGrid, MasterList as Lookup values for ItemsSource in DataGridComboBoxColumn, LoadDemoData for loading data (e.g. EF).

Imports System.Collections.ObjectModel
Imports System.ComponentModel

Namespace WpfApp064

  Public Class ViewModel

    Public Sub New()
      LoadDemoData
    End Sub

    Private cvsChild As New CollectionViewSource
    Private colChild As New ObservableCollection(Of Data)
    Public ReadOnly Property View As ICollectionView
      Get
        Return cvsChild.View
      End Get
    End Property

    Private colMaster As New ObservableCollection(Of Master)
    Public ReadOnly Property MasterList As ObservableCollection(Of Master)
      Get
        Return colMaster
      End Get
    End Property

    Private Sub LoadDemoData()
      Dim rnd As New Random
      For i = 1 To 10
        colMaster.Add(New Master With {.ID = i, .MasterInfo = $"Master {i}"})
      Next
      For i = 1 To 100
        colChild.Add(New Data With {.ID = i, .Info = $"Row {i}", .FKMaster = rnd.Next(1, 11)})
      Next
      cvsChild.Source = colChild
    End Sub
  End Class

  Public Class Data
    Public Property ID As Integer
    Public Property FKMaster As Integer
    Public Property Info As String
  End Class

  Public Class Master
    Public Property ID As Integer
    Public Property MasterInfo As String
  End Class

End Namespace

XAML UserControl (no CodeBehind)

<UserControl x:Class="Window064UC1"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WpfControlLibrary1"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
  <Grid>
    <Grid.Resources>
      <CollectionViewSource x:Key="ItemsCVS" Source="{Binding MasterList}" />
    </Grid.Resources>
    <DataGrid ItemsSource="{Binding View}" AutoGenerateColumns="False">
      <DataGrid.Columns>
        <DataGridTextColumn Header="ID" Binding="{Binding ID}"/>
        <DataGridTextColumn Header="Info" Binding="{Binding Info}"/>
        <DataGridComboBoxColumn Header="Lookup"
                                ItemsSource="{Binding Source={StaticResource ItemsCVS}}"
                                DisplayMemberPath="MasterInfo"
                                SelectedValuePath="ID"
                                SelectedValueBinding="{Binding FKMaster}"/>
      </DataGrid.Columns>
    </DataGrid>
  </Grid>
</UserControl>

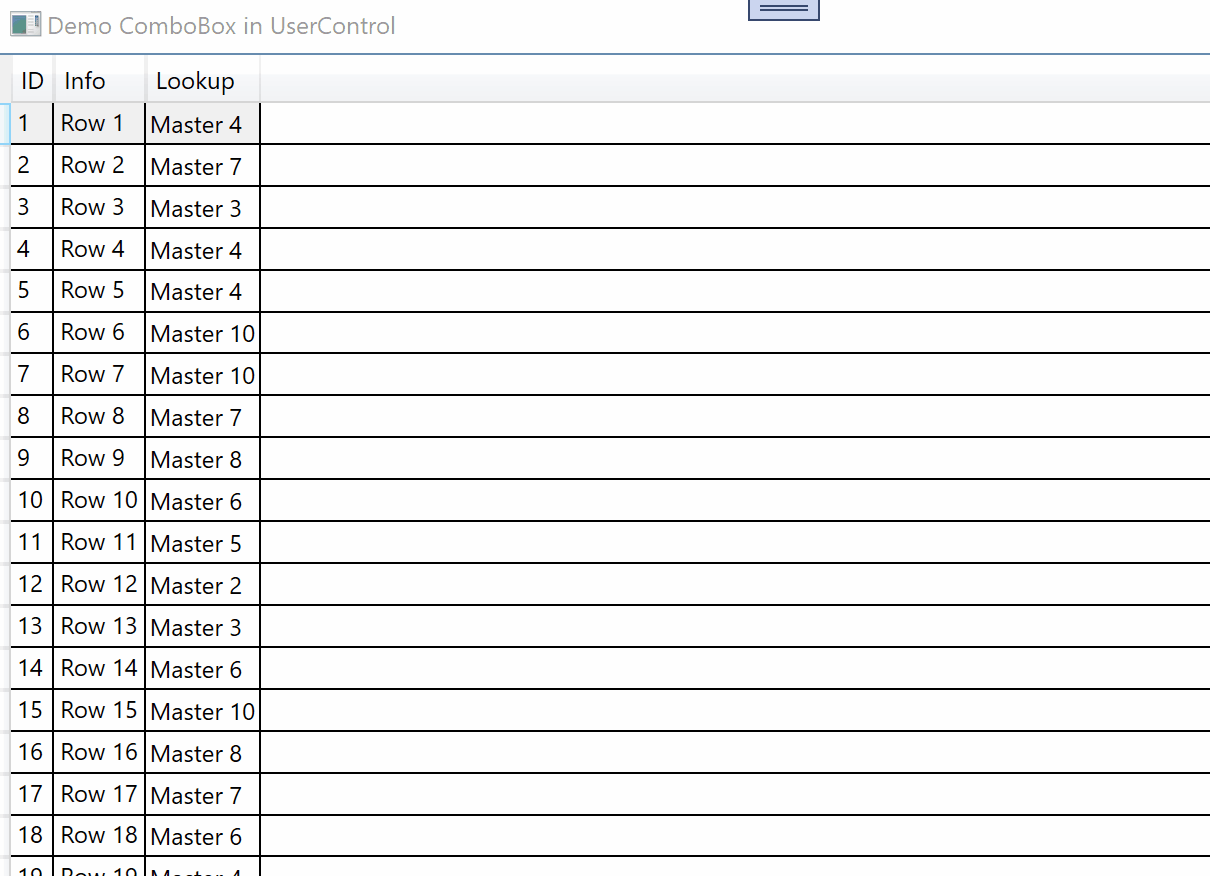

Result:

Answer 2

Hi Scott,
I cannot reproduce your code because I don't know yours additional classes.

I reduce your code and this code works fine:

XAML MainWindow:

<Window x:Class="WpfApp1.Window90"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp90"
        xmlns:uc="clr-namespace:WpfControlLibrary1;assembly=WpfControlLibrary1"
        mc:Ignorable="d"
        Title="Window90" Height="450" Width="800">
  <Window.DataContext>
    <local:TypeListViewModel/>
  </Window.DataContext>
  <Grid>
    <uc:Window90UC1/>
  </Grid>
</Window>

XAML UserControl:

<UserControl x:Class="WpfControlLibrary1.Window90UC1"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WpfControlLibrary1"
             mc:Ignorable="d"
             d:DesignHeight="180" d:DesignWidth="660">
  <Grid>
    <Grid.RowDefinitions>
      <RowDefinition Height="auto"/>
      <RowDefinition/>
    </Grid.RowDefinitions>
    <DataGrid Grid.Row="1"
              AutoGenerateColumns="False"
              ItemsSource="{Binding Types}"
              HeadersVisibility="Column"
              SelectedItem="{Binding SelectedType, Mode=TwoWay}"
              SelectionMode="Single"
              CanUserAddRows="False"
              CanUserDeleteRows="False"
              Background="Transparent">
      <DataGrid.Columns>
        <DataGridTemplateColumn Header="Contract Type Description">
          <DataGridTemplateColumn.CellTemplate >
            <DataTemplate >
              <TextBox x:Name="FocusTextBox"
                       Text="{Binding TheEntity.Type1, Mode=TwoWay}"
                       Width="460"
                       IsReadOnly="True"
                       BorderBrush="Transparent"/>
            </DataTemplate>
          </DataGridTemplateColumn.CellTemplate>
        </DataGridTemplateColumn>
        <DataGridTemplateColumn Header="Retention Type">
          <DataGridTemplateColumn.CellTemplate >
            <DataTemplate >
              <TextBox Text="{Binding TheEntity.IDRetention, Mode=TwoWay}"
                       Width="60"
                       IsReadOnly="True"
                       BorderBrush="Transparent"/>
            </DataTemplate>
          </DataGridTemplateColumn.CellTemplate>
        </DataGridTemplateColumn>
      </DataGrid.Columns>
    </DataGrid>
    <ContentControl Margin="0,0,0,0" >
      <ScrollViewer VerticalScrollBarVisibility="Auto">
        <ItemsControl Width="300" >
          <ComboBox ItemsSource="{Binding Retentions}"/>
        </ItemsControl>
      </ScrollViewer>
    </ContentControl>
    <TextBlock Text="{Binding ErrorMessage}"
               HorizontalAlignment="Right"
               VerticalAlignment="Center"/>
  </Grid>
</UserControl>

And classes:

using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Windows;

namespace WpfApp90
{
  public class TypeListViewModel : CrudVMBase
  {
    public TypeListViewModel()
    : base()
    {
      Types = new ObservableCollection<TypeVM>();
      for (int i = 1; i < 50; i++)
        Types.Add(new TypeVM() { TheEntity = new Ent() { Type1 = $"Type {i}", IDRetention = $"IDRet {i}" } });
      Retentions = new List<string>();
      for (int i = 1; i < 10; i++) Retentions.Add($"Ret {i}");
    }

    public ObservableCollection<TypeVM> Types { get; set; }

    public object SelectedType { get; set; }

    public string ErrorMessage { get; set; } = "no error";

    public List<string> Retentions { get; set; }
  }

  public class CrudVMBase : INotifyPropertyChanged
  {
    public event PropertyChangedEventHandler PropertyChanged;
    internal void OnPropertyChanged([CallerMemberName] string propName = "") =>
      PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
  }

  public class TypeVM
  {
    public Ent TheEntity { get; set; }
  }

  public class Ent
  {
    public string Type1 { get; set; }
    public string IDRetention { get; set; }
  }
}

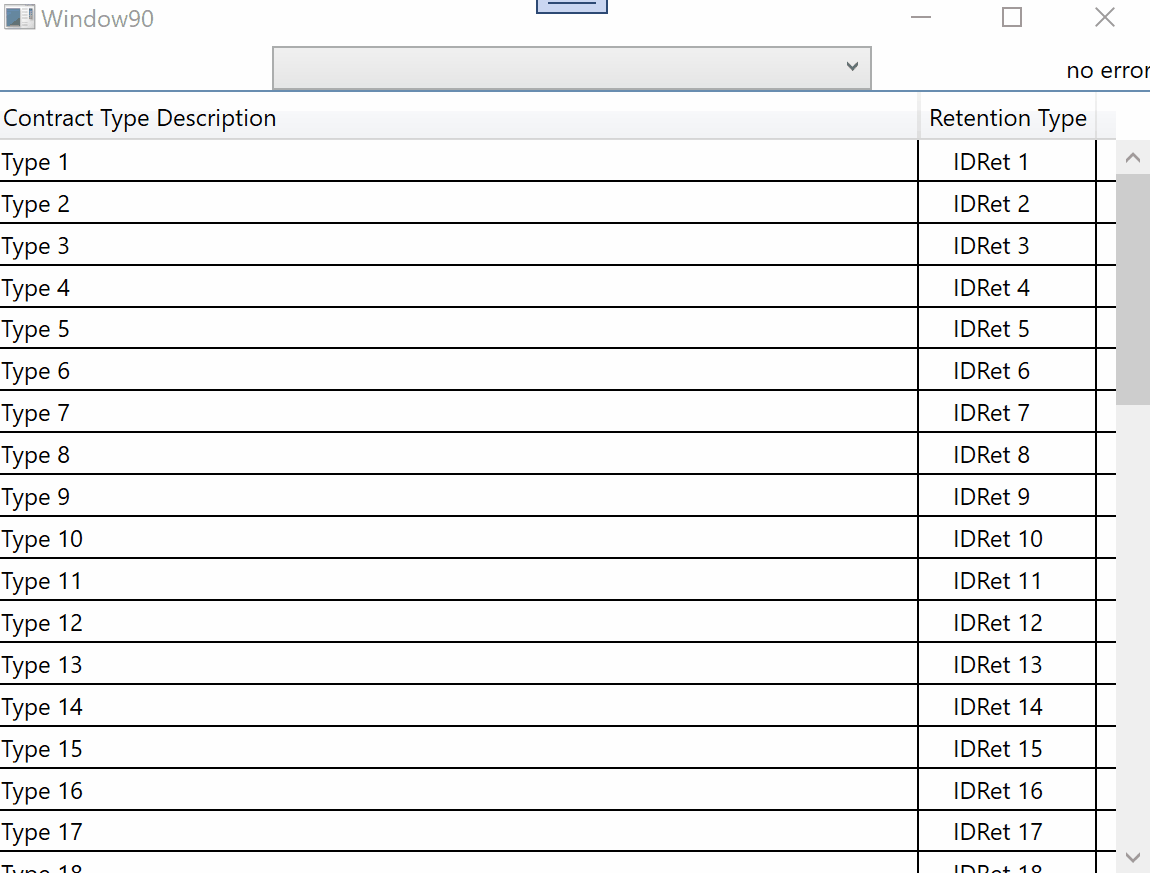

Result:

Answer 3

31565-scott-usercontrol.txt

Answer 4

31496-scott-viewmodel.txt

Answer 5

31631-scott-view-code-behind.txt
