How can I confirm which Encryption Algorithm I'm using on my Azure VPN Gateway and VPN Client?

Question

Hello, I'm preparing for a CMMC audit and need to know where to look to in Azure to verify if im using DES or AES-256 on my VPN client.
I'm have the VpnGw2AZ -SKU which supports AES 256 and DES algorithms. I just need to know how and where to look to visually confirm which algorithm I'm currently running. Thank You

Answer 1

@Anonymous

You can use the P2SDiagnosticLog Make sure you Enable Diagnostic Logs for VPN Gateway It might take upto 15 minutes for the logs to start generating

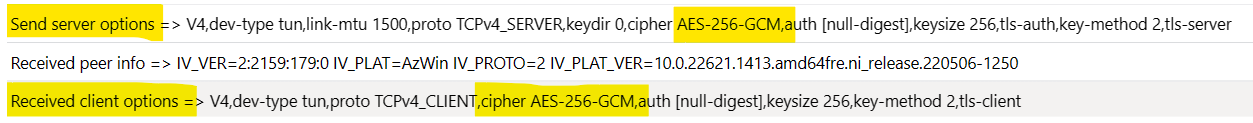

Post which, you can use P2SDiagnosticLogs to check what is the cipher used.

This should be available under Message Column.

Kindly let us know if this helps or you need further assistance on this issue.

Thanks, Kapil

---
