How to peek dead letter queues from Azure Service Bus using Data Factory External Call transformation

Anonymous
2023-04-17T02:16:11.7233333+00:00

I have an Azure Data Factory Data Flow. I am trying to use the External Call GET to peek the Dead Letter queue items. I have authorised the Data Factory as an "Azure Service Bus Data Owner" in the role assignments of the Service bus. I have setup the linked service in Data Factory so that I can pass in the Service Bus queue name URL and this works OK for other transformations.
I have set the Relative URL to the following setting in the External call:

concat($QueueName,"/$DeadLetterQueue/messages/head")

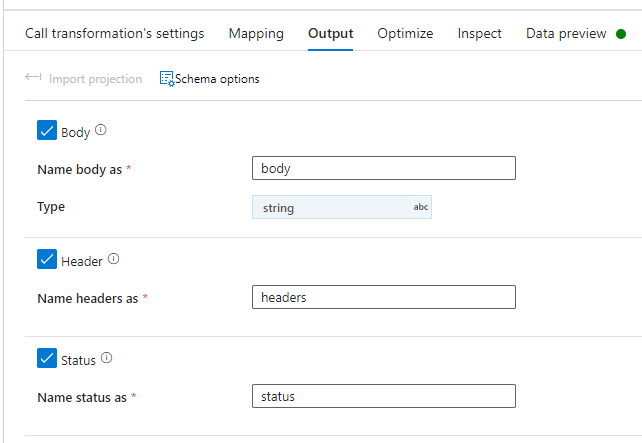

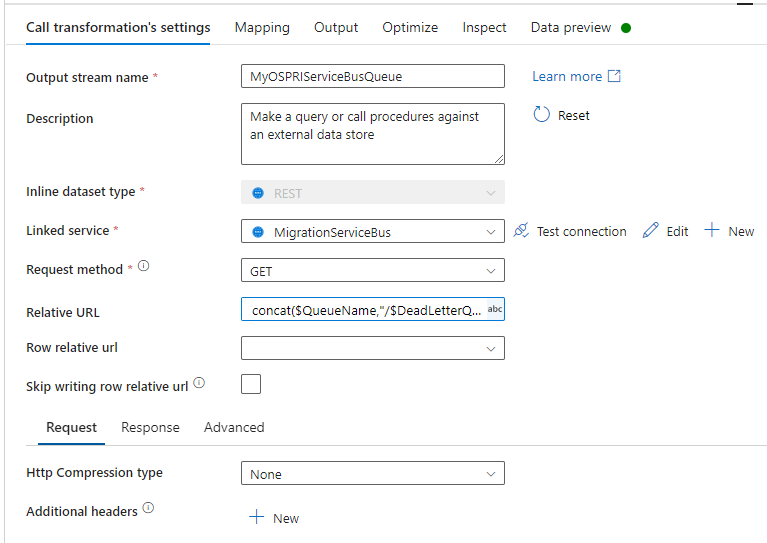

Currently I have it with the settings as following: User's image

User's image

User's image

However I keep getting the error "Failed to fetch data preview due to operation timeout." This makes little sense to me, I definitely have access to the Service Bus, though I expect I am doing something else wrong. Can we not use the GET part of the External Call yet??

Azure Service Bus
Azure Service Bus
An Azure service that provides cloud messaging as a service and hybrid integration.
704 questions
Azure Data Factory
Azure Data Factory
An Azure service for ingesting, preparing, and transforming data at scale.
11,657 questions
{count} votes

1 answer

Sort by: Most helpful
  1. HimanshuSinha-msft 19,491 Reputation points Microsoft Employee Moderator
    2023-04-17T22:27:27.4733333+00:00

    Hello @Brent Leslie , Thanks for the question and using MS Q&A platform. If you try the below dynamic expression does that help ?

    concat($QueueName,"/",$DeadLetter,"Queue/messages/head")


    Thanks
    Himanshu

    Please accept as "Yes" if the answer provided is useful , so that you can help others in the community looking for remediation for similar issues.
