Email error with sending buttons, texts and logo in mail body

Donald Symmons 2,856 Reputation points
2023-04-17T14:14:21.26+00:00

I revisited a question I asked about adding image logo to an email. I got method on how to do this but I could not add my HTML buttons and texts to the email. In my code, I have an HTML button with some texts, and on the button click, there is a URL redirection to activation page where new user account will be activated. Please I need help on this. Thank you Here is my Code that sends mail to new user upon signing up

private void SendActivationEmail(int Uid)
    {
        string activationCode = Guid.NewGuid().ToString();
        using (SqlConnection con = new SqlConnection("Data Source = (LocalDB)\\MSSQLLocalDB;AttachDbFilename=|DataDirectory|\\JosmadeLocal_DB.mdf;Integrated Security = True"))
        {
            using (SqlCommand cmd = new SqlCommand("INSERT INTO ActivationTable VALUES(@Uid, @ActivationCode)"))
            {
                using (SqlDataAdapter sda = new SqlDataAdapter())
                {
                    cmd.CommandType = CommandType.Text;
                    cmd.Parameters.AddWithValue("@Uid", Uid);
                    cmd.Parameters.AddWithValue("@ActivationCode", activationCode);
                    cmd.Connection = con;
                    con.Open();
                    cmd.ExecuteNonQuery();
                    con.Close();
                }
            }
        }
        using (MailMessage mm = new MailMessage("support@outlook.com", mailtxtbx.Text))
        {
            mm.Subject = "Account Activation";

            mm.AlternateViews.Add(Mail_Body());
            string body = "Hello " + txtname.Text.Trim() + ",";
            body += "<br /><br />Welcome!";
            body += "<br /><br />Please click the Button below to confirm your email";
            body += "<br /><br /><a style='display: block; width: 170px; height: 27px; background: #32CD32;padding: 7px;font-family: Nunito; text-align:center; border-radius: 5px;color: white;font-weight: 600;text-decoration: none;' href = '"
            + Request.Url.AbsoluteUri.Replace("signup", "Activation.aspx?ActivationCode=" + activationCode) + "'>Activate Account</a>";
            body += "<br /><br />Thanks";
            body += "<br /><br />Admin";
            mm.Body = body;
            mm.IsBodyHtml = true;

            SmtpClient SMTP = new SmtpClient("myhosting.secureserver.net", 25);
            SMTP.UseDefaultCredentials = false;
            SMTP.Credentials = new NetworkCredential()
            {
                UserName = "support@outlook.com",
                Password = "XXXXXXXXXXXXXXX"
            };
            SMTP.EnableSsl = false;
            SMTP.Send(mm);
        }
    }

But when I did this below, I get an error on the line. Mail Error

Here is how I tried to change the code; adding image logo to it

    private void SendActivationEmail(int Uid)
    {
        string activationCode = Guid.NewGuid().ToString();
        using (SqlConnection con = new SqlConnection("Data Source = (LocalDB)\\MSSQLLocalDB;AttachDbFilename=|DataDirectory|\\JosmadeLocal_DB.mdf;Integrated Security = True"))
        {
            using (SqlCommand cmd = new SqlCommand("INSERT INTO ActivationTable VALUES(@Uid, @ActivationCode)"))
            {
                using (SqlDataAdapter sda = new SqlDataAdapter())
                {
                    cmd.CommandType = CommandType.Text;
                    cmd.Parameters.AddWithValue("@Uid", Uid);
                    cmd.Parameters.AddWithValue("@ActivationCode", activationCode);
                    cmd.Connection = con;
                    con.Open();
                    cmd.ExecuteNonQuery();
                    con.Close();
                }
            }
        }
        using (MailMessage mm = new MailMessage("support@outlook.com", mailtxtbx.Text))
        {
            mm.Subject = "Account Activation";
            mm.AlternateViews.Add(Mail_Body());
            mm.IsBodyHtml = true;

            SmtpClient SMTP = new SmtpClient("myhosting.secureserver.net", 25);
            SMTP.UseDefaultCredentials = false;
            SMTP.Credentials = new NetworkCredential()
            {
                UserName = "support@outlook.com",
                Password = "XXXXXXXXXXXXXXX"
            };
            SMTP.EnableSsl = false;
            SMTP.Send(mm);
        }
    }
    private AlternateView Mail_Body()
    {
        string path = Server.MapPath(@"~/images/myImage.png");
        string user = txtname.Text;
        LinkedResource Img = new LinkedResource(path, MediaTypeNames.Image.Jpeg);
        LinkedResource Lbl = new LinkedResource(path, MediaTypeNames.Text.Html);
        Img.ContentId = "MyImage";
        Lbl.ContentId = "myuser";
        string str = @"
            <table>
                <tr>
                    <td>
                      <img src=cid:MyImage  id='img' alt='' width='100px' height='60px'/>
                    </td>
                </tr>
                 <tr>
                    <td>
                           'Hello' <label Text=cid:myuser id='lbl' font-size='10pt'/>
                    </td>
                </tr>
                <tr>
                    <td>
                           'Welcome !'
                    </td>
                </tr>
                <tr>
                    <td>
                         'Please click the Button below to confirm your email'
                    </td>
                </tr>
                <tr>
                    <td>
                          <a style='display: block; width: 170px; height: 27px; background: #32CD32;padding: 7px;font-family: Nunito; text-align:center; border-radius: 5px;color: white;font-weight: 600;text-decoration: none;' href = '"
            + Request.Url.AbsoluteUri.Replace("signup", "Activation.aspx?ActivationCode=" + activationCode) + "'>Activate Account</a>
                    </td>
                </tr>
                <tr>
                    <td>
                           'Thanks'
                    </td>
                </tr>
                <tr>
                    <td>
                        '- The Admin'
                    </td>
                </tr>
            </table>
            ";
        AlternateView AV =
        AlternateView.CreateAlternateViewFromString(str, null, MediaTypeNames.Text.Html);
        AV.LinkedResources.Add(Img);
        return AV;
    }
.NET
.NET
Microsoft Technologies based on the .NET software framework.
3,446 questions
ASP.NET
ASP.NET
A set of technologies in the .NET Framework for building web applications and XML web services.
3,303 questions
C#
C#
An object-oriented and type-safe programming language that has its roots in the C family of languages and includes support for component-oriented programming.
10,363 questions
{count} votes

Accepted answer
  1. QiYou-MSFT 4,306 Reputation points Microsoft Vendor
    2023-04-20T09:27:34.26+00:00

    Hi @Donald Symmons

    In fact, you can do this:

    <body>
        <form id="form1" runat="server">
            <div id="div1" runat="server">
                <img src="image/img28.jpg" width="100" height="100"/>
            </div>
            <asp:Button ID="Button1" runat="server" OnClick="Button1_Click" Text="Button"  />
        </form>
    </body>

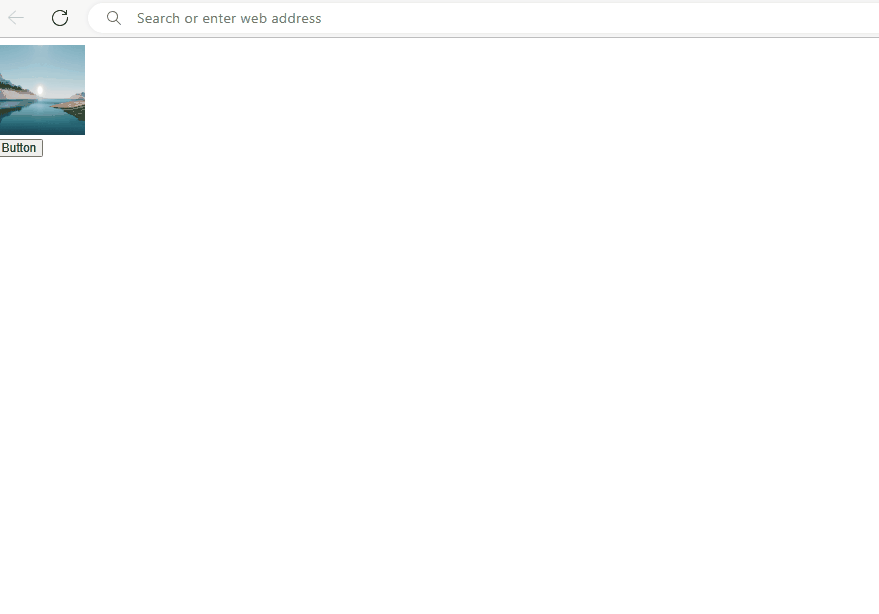

    This way your image also has a URL link: Test3

    One step of your project is to get the username, and the URL of this image can be generated on this web page.

    Best Regards

    Qi You
