Azure VPN Connections Resource Health Alert is Not working

Question

Azure VPN Connections Resource Health Alert is Not working

최 규호 91

hello I Test the VPN Connections Resource Health Alert. but It doesn't work. when the issue will be solved? I find the issue "https://learn.microsoft.com/en-us/answers/questions/960691/alert-rule-for-vpn-connection-not-triggering" but it still not solved. I wanna know the issue can solve and what's the reson. thank you.

Monalla-MSFT 13,071 Reputation points Moderator

2023-04-25T15:27:16.3266667+00:00
@최 규호 -Thank you for reaching out to us and for being patient.

Looks like we need to troubleshoot this further, we would like to put you in touch with a support engineer so you can receive 1:1 support for a deeper investigation on this.

We would need you to send us an email at AzCommunity@Microsoft.com by providing below details.

Subject : ATTN:Monika

Subscription ID

A link to this thread.

Please email us these details and we will work with you closely to get this issue taken care of and also post any findings here in the thread so the community can benefit from it.

Thanks in advance. Looking forward for your email.
최 규호 91 Reputation points

2023-04-26T04:05:22.9866667+00:00

I sent mail this morning. Subject : ATTN:Monika to AzCommunity@Microsoft.com from ******@cloocus.com. Thank you.

2 answers

Your answer

Monalla-MSFT 13,071 Reputation points Moderator

2023-04-25T15:27:16.3266667+00:00

@최 규호 -Thank you for reaching out to us and for being patient.

Looks like we need to troubleshoot this further, we would like to put you in touch with a support engineer so you can receive 1:1 support for a deeper investigation on this.

We would need you to send us an email at AzCommunity@Microsoft.com by providing below details.

Subject : ATTN:Monika

Subscription ID

A link to this thread.

Please email us these details and we will work with you closely to get this issue taken care of and also post any findings here in the thread so the community can benefit from it.

Thanks in advance. Looking forward for your email.
최 규호 91 Reputation points

2023-04-26T04:05:22.9866667+00:00

I sent mail this morning. Subject : ATTN:Monika to AzCommunity@Microsoft.com from ******@cloocus.com. Thank you.

Answer 1

risolis 8,741

Hello @최 규호 Thank you for your heads up. Thank you for posting this concern on this community. I would like to suggest setting it up from the following health blade below: https://learn.microsoft.com/en-us/azure/service-health/overview Looking forward to hearing from you Cheers, Please "Accept the answer" if the information helped you. This will help us and others in the community as well.

최 규호 91 Reputation points

2023-04-19T06:00:44.8466667+00:00

Hello @risolis My Qestion do not relate service health. You can see "https://learn.microsoft.com/en-us/answers/questions/960691/alert-rule-for-vpn-connection-not-triggering". It asks the Resource Health Alert Not Working in Azure VPN Connection Resources. Please Check About It.
risolis 8,741 Reputation points

2023-04-19T16:02:28.0966667+00:00

Many thanks for that response. I just want to double check one setting... Did you set it up at the connection blade or at the VPN gateway blade level? Regards
최 규호 91 Reputation points

2023-04-19T22:56:41.0733333+00:00

connection resources' Resource health.
risolis 8,741 Reputation points

2023-04-20T05:26:11.31+00:00
Ok understood.

Could you please consider to reset your VPN Gateway and test it again? If possible this step... Looking forward to your answer. Regards!
최 규호 91 Reputation points

2023-04-20T06:20:40.1766667+00:00

Hi @risolis . I think It is not useful step. I wanna get the alert of vpn connection's resource health, not the VPN gateway resource health alert. my resources are deleted yesterday so I need much more times to test it. if you want to you can make the vpn connections for azure vnet to vnet and make alert of resource health. and than you can change some vpn Connection settings. then the connection's resource health is notavailable. but the alert not working. this link(before I attached) "https://learn.microsoft.com/en-us/answers/questions/960691/alert-rule-for-vpn-connection-not-triggering" has all of the issues. I think the issue occured by activity logs. because the vpn connection's resource health status not reported in activity logs. I think microsoft Azrue engineering team needs update to add the logs of azure vpn connection's resource health to activity logs. thank you.
risolis 8,741 Reputation points

2023-04-20T14:00:21.2933333+00:00

Let me recreate it and get back to you shortly. Many thanks!
risolis 8,741 Reputation points

2023-04-21T17:52:25.5666667+00:00
Understood. I have a question for you...

Was this a S2S/P2S VPN connection? Because I do not know why I read that it was a Vnet Peering... Now this can be reported via the GitHub website. Regards,
최 규호 91 Reputation points

2023-04-22T02:40:14.58+00:00

No, It is a s to s vpn. first of all The P2S VPN is not making connection resources. thank you.
risolis 8,741 Reputation points

2023-04-23T04:00:53.06+00:00
Thanks for answering me.

I wonder if you can try to do the following step below:

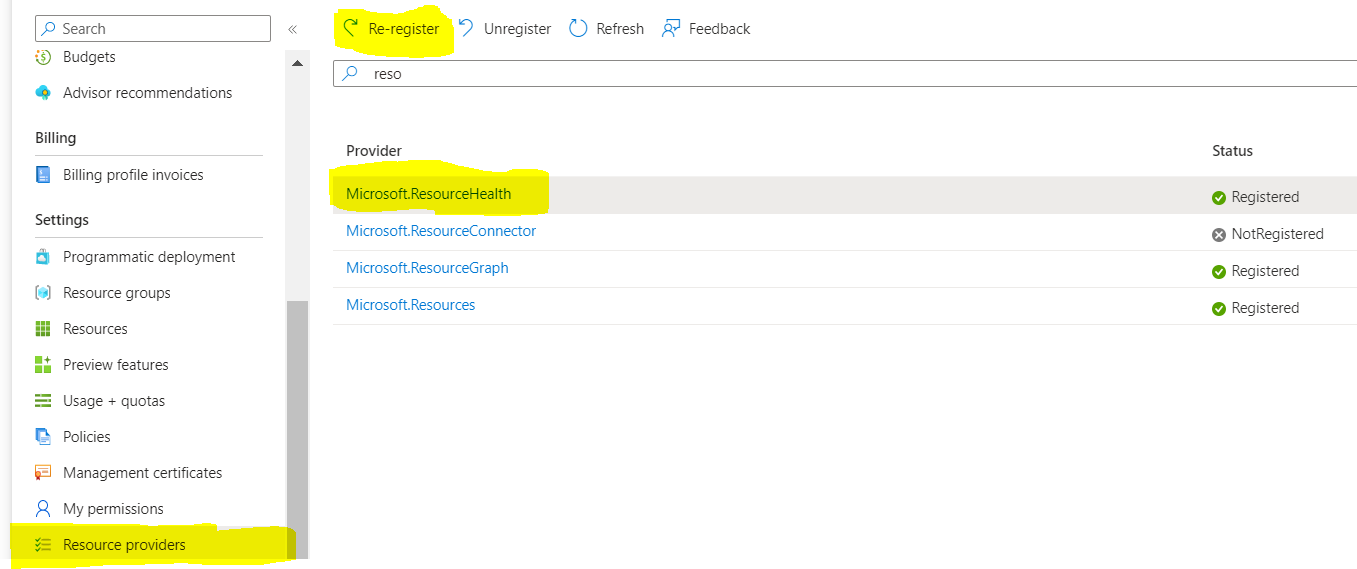

You can either re-register or unregister and register again the resource provider at the Subscription level.

Once you have done that, test it one more time. Looking forward to hearing from you Cheers, Please "Accept the answer" if the information helped you. This will help us and others in the community as well.
최 규호 91 Reputation points

2023-04-24T01:12:48.12+00:00

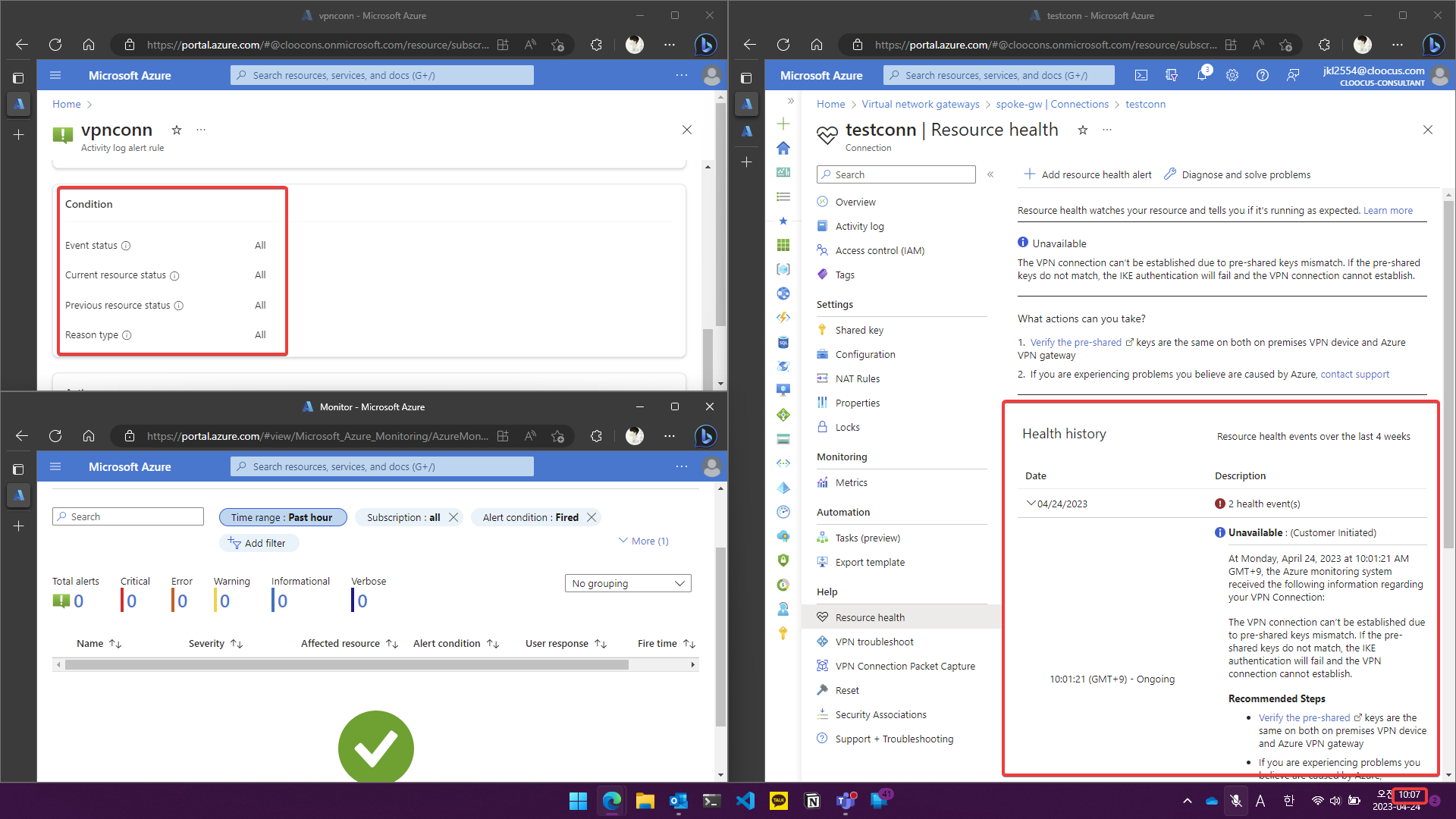

The woks were not working. I attech the test capture.

In this capture. I can konw the alert is not working. the condition is the all of the connections' resource health. and you can see the time and alert history does not show at all.
risolis 8,741 Reputation points

2023-04-26T02:23:43.6233333+00:00
Many thanks for that detail given.

You are fully right about it. I do have 2 more questions which are below:

Do you have network watcher running on your Vnet?

Did you configure an email group for alert notifications?

Regards.

Answer 2

I answer Myself. It is not supported the vpn connections' resorce health alert. It just developing now. It doesn't have any plans of add the function.

I think it is because the connections' reousrce health doesn't report any activity logs.

https://learn.microsoft.com/en-us/azure/service-health/resource-health-alert-monitor-guide

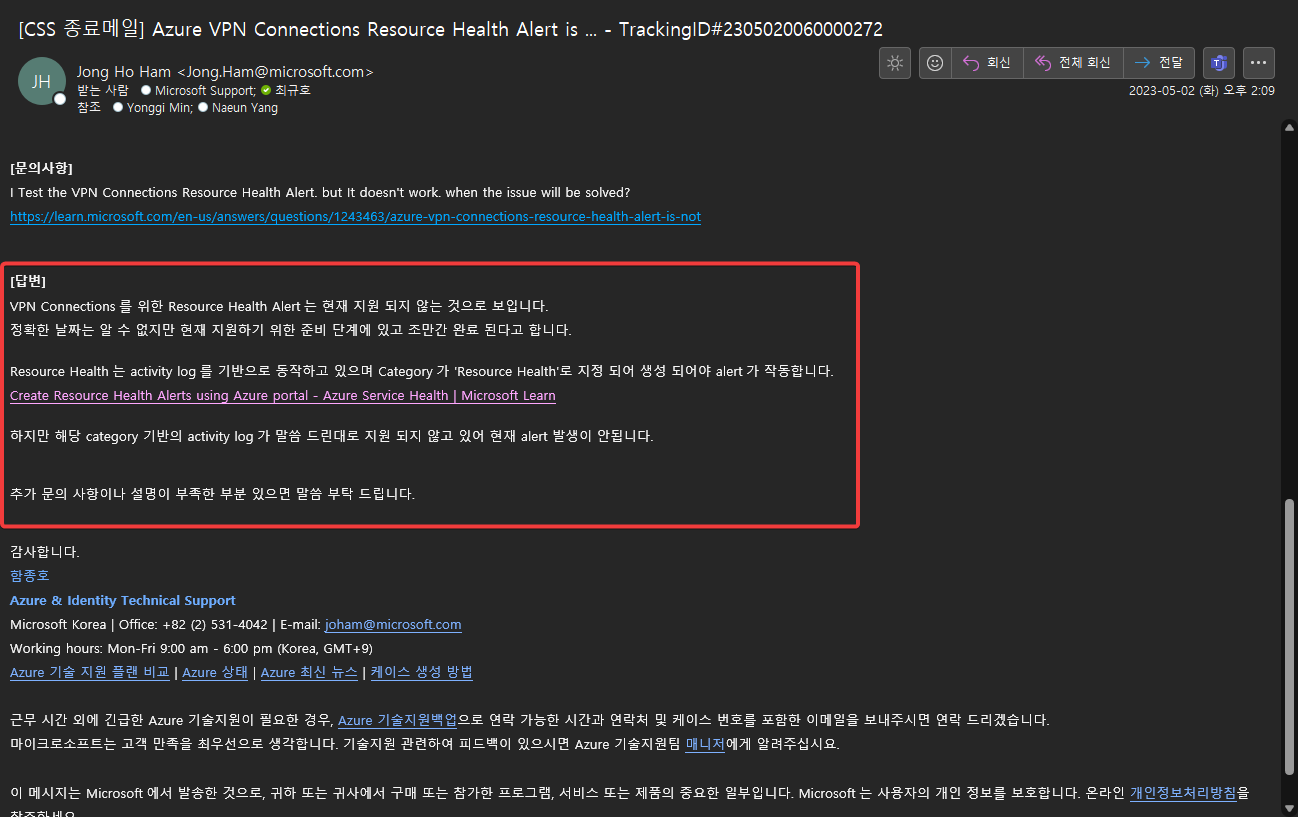

I attach the answer but It is korean.

User's image

it is the translated one.

Resource Health Alerts for VPN Connections do not appear to be supported at this time.
I don't know the exact date, but they are currently preparing to apply and will be completed soon.

Resource Health operates on the activity log and alerts must be generated with a category designated as 'Resource Health'.
Create Resource Health Alerts using Azure portal - Azure Service Health | Microsoft Learn

However, the activity log based on the category is not supported as I said, so the alert cannot be generated at this time.

Please let me know if you have any additional inquiries or lack of explanation.

Thank you.

Monalla-MSFT 13,071 Reputation points Moderator

2023-05-09T22:37:48.8366667+00:00

glad that solution worked for you. Thanks for providing the solution that worked for you.
