Authentication - Migration - The name 'CreateIdentitySchema' is used by an existing migration.

Question

Authentication - Migration - The name 'CreateIdentitySchema' is used by an existing migration.

Dean Everhart 1,541

Getting the following results during the Migration step of the Authentication Tutorial.

Add-Migration CreateIdentitySchema -Context ApplicationDbContext The first result is an error

The name 'CreateIdentitySchema' is used by an existing migration.

...when I've done this (once) successfully and it didn't give me this error.

PM> Add-Migration CreateIdentitySchema  -Context ApplicationDbContext
Build started...
Build succeeded.
Microsoft.EntityFrameworkCore.Infrastructure[10403]
      Entity Framework Core 6.0.15 initialized 'ApplicationDbContext' using provider 'Microsoft.EntityFrameworkCore.SqlServer:6.0.15' with options: None
The name 'CreateIdentitySchema' is used by an existing migration.
PM> Add-Migration CreateIdentitySchema2  -Context ApplicationDbContext
Build started...
Build succeeded.
Microsoft.EntityFrameworkCore.Infrastructure[10403]
      Entity Framework Core 6.0.15 initialized 'ApplicationDbContext' using provider 'Microsoft.EntityFrameworkCore.SqlServer:6.0.15' with options: None
To undo this action, use Remove-Migration.
PM>

...the second result shouldn't even come into play, if the first error is resolved, but as a workaround I renamed the migration. The result wan an empty migration file (below).

using Microsoft.EntityFrameworkCore.Migrations;

#nullable disable

namespace AuthenticationTutorial.Data.Migrations
{
    public partial class CreateIdentitySchema2 : Migration
    {
        protected override void Up(MigrationBuilder migrationBuilder)
        {

        }

        protected override void Down(MigrationBuilder migrationBuilder)
        {

        }
    }
}

When what I would expect to see base on the (single) successful time I've performed this migration is the following...

using Microsoft.EntityFrameworkCore.Metadata;
using Microsoft.EntityFrameworkCore.Migrations;
using System;

namespace AuthenticationTutorial.Data.Migrations
{
    public partial class CreateIdentitySchema : Migration
    {
        protected override void Up(MigrationBuilder migrationBuilder)
        {
            migrationBuilder.CreateTable(
                name: "AspNetRoles",
                columns: table => new
                {
                    Id = table.Column<string>(nullable: false),
                    Name = table.Column<string>(maxLength: 256, nullable: true),
                    NormalizedName = table.Column<string>(maxLength: 256, nullable: true),
                    ConcurrencyStamp = table.Column<string>(nullable: true)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetRoles", x => x.Id);
                });

            migrationBuilder.CreateTable(
                name: "AspNetUsers",
                columns: table => new
                {
                    Id = table.Column<string>(nullable: false),
                    UserName = table.Column<string>(maxLength: 256, nullable: true),
                    NormalizedUserName = table.Column<string>(maxLength: 256, nullable: true),
                    Email = table.Column<string>(maxLength: 256, nullable: true),
                    NormalizedEmail = table.Column<string>(maxLength: 256, nullable: true),
                    EmailConfirmed = table.Column<bool>(nullable: false),
                    PasswordHash = table.Column<string>(nullable: true),
                    SecurityStamp = table.Column<string>(nullable: true),
                    ConcurrencyStamp = table.Column<string>(nullable: true),
                    PhoneNumber = table.Column<string>(nullable: true),
                    PhoneNumberConfirmed = table.Column<bool>(nullable: false),
                    TwoFactorEnabled = table.Column<bool>(nullable: false),
                    LockoutEnd = table.Column<DateTimeOffset>(nullable: true),
                    LockoutEnabled = table.Column<bool>(nullable: false),
                    AccessFailedCount = table.Column<int>(nullable: false)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetUsers", x => x.Id);
                });

            migrationBuilder.CreateTable(
                name: "AspNetRoleClaims",
                columns: table => new
                {
                    Id = table.Column<int>(nullable: false)
                        .Annotation("SqlServer:ValueGenerationStrategy", SqlServerValueGenerationStrategy.IdentityColumn),
                    RoleId = table.Column<string>(nullable: false),
                    ClaimType = table.Column<string>(nullable: true),
                    ClaimValue = table.Column<string>(nullable: true)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetRoleClaims", x => x.Id);
                    table.ForeignKey(
                        name: "FK_AspNetRoleClaims_AspNetRoles_RoleId",
                        column: x => x.RoleId,
                        principalTable: "AspNetRoles",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                });

            migrationBuilder.CreateTable(
                name: "AspNetUserClaims",
                columns: table => new
                {
                    Id = table.Column<int>(nullable: false)
                        .Annotation("SqlServer:ValueGenerationStrategy", SqlServerValueGenerationStrategy.IdentityColumn),
                    UserId = table.Column<string>(nullable: false),
                    ClaimType = table.Column<string>(nullable: true),
                    ClaimValue = table.Column<string>(nullable: true)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetUserClaims", x => x.Id);
                    table.ForeignKey(
                        name: "FK_AspNetUserClaims_AspNetUsers_UserId",
                        column: x => x.UserId,
                        principalTable: "AspNetUsers",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                });

            migrationBuilder.CreateTable(
                name: "AspNetUserLogins",
                columns: table => new
                {
                    LoginProvider = table.Column<string>(maxLength: 128, nullable: false),
                    ProviderKey = table.Column<string>(maxLength: 128, nullable: false),
                    ProviderDisplayName = table.Column<string>(nullable: true),
                    UserId = table.Column<string>(nullable: false)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetUserLogins", x => new { x.LoginProvider, x.ProviderKey });
                    table.ForeignKey(
                        name: "FK_AspNetUserLogins_AspNetUsers_UserId",
                        column: x => x.UserId,
                        principalTable: "AspNetUsers",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                });

            migrationBuilder.CreateTable(
                name: "AspNetUserRoles",
                columns: table => new
                {
                    UserId = table.Column<string>(nullable: false),
                    RoleId = table.Column<string>(nullable: false)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetUserRoles", x => new { x.UserId, x.RoleId });
                    table.ForeignKey(
                        name: "FK_AspNetUserRoles_AspNetRoles_RoleId",
                        column: x => x.RoleId,
                        principalTable: "AspNetRoles",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                    table.ForeignKey(
                        name: "FK_AspNetUserRoles_AspNetUsers_UserId",
                        column: x => x.UserId,
                        principalTable: "AspNetUsers",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                });

            migrationBuilder.CreateTable(
                name: "AspNetUserTokens",
                columns: table => new
                {
                    UserId = table.Column<string>(nullable: false),
                    LoginProvider = table.Column<string>(maxLength: 128, nullable: false),
                    Name = table.Column<string>(maxLength: 128, nullable: false),
                    Value = table.Column<string>(nullable: true)
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_AspNetUserTokens", x => new { x.UserId, x.LoginProvider, x.Name });
                    table.ForeignKey(
                        name: "FK_AspNetUserTokens_AspNetUsers_UserId",
                        column: x => x.UserId,
                        principalTable: "AspNetUsers",
                        principalColumn: "Id",
                        onDelete: ReferentialAction.Cascade);
                });

            migrationBuilder.CreateIndex(
                name: "IX_AspNetRoleClaims_RoleId",
                table: "AspNetRoleClaims",
                column: "RoleId");

            migrationBuilder.CreateIndex(
                name: "RoleNameIndex",
                table: "AspNetRoles",
                column: "NormalizedName",
                unique: true,
                filter: "[NormalizedName] IS NOT NULL");

            migrationBuilder.CreateIndex(
                name: "IX_AspNetUserClaims_UserId",
                table: "AspNetUserClaims",
                column: "UserId");

            migrationBuilder.CreateIndex(
                name: "IX_AspNetUserLogins_UserId",
                table: "AspNetUserLogins",
                column: "UserId");

            migrationBuilder.CreateIndex(
                name: "IX_AspNetUserRoles_RoleId",
                table: "AspNetUserRoles",
                column: "RoleId");

            migrationBuilder.CreateIndex(
                name: "EmailIndex",
                table: "AspNetUsers",
                column: "NormalizedEmail");

            migrationBuilder.CreateIndex(
                name: "UserNameIndex",
                table: "AspNetUsers",
                column: "NormalizedUserName",
                unique: true,
                filter: "[NormalizedUserName] IS NOT NULL");
        }

        protected override void Down(MigrationBuilder migrationBuilder)
        {
            migrationBuilder.DropTable(
                name: "AspNetRoleClaims");

            migrationBuilder.DropTable(
                name: "AspNetUserClaims");

            migrationBuilder.DropTable(
                name: "AspNetUserLogins");

            migrationBuilder.DropTable(
                name: "AspNetUserRoles");

            migrationBuilder.DropTable(
                name: "AspNetUserTokens");

            migrationBuilder.DropTable(
                name: "AspNetRoles");

            migrationBuilder.DropTable(
                name: "AspNetUsers");
        }
    }
}

Project on GitHub: AuthenticationTutorial Tutorial: Introduction to Identity on ASP.NET Core / Migrations Notes: Authentication Steps Environment

Framework: Net Core 6 / MVC Visual Studio: Community 2022

Windows: 11 (64 bit)

Accepted answer

0 additional answers

Your answer

Answer 1

AgaveJoe 30,126

The error means you already created a migration with the name CreateIdentitySchema. You must use a unique name for each migration. If you are trying to replace a CreateIdentitySchema then you must rollback the migration. When a migration is created and there are no model changes then an empty migration file is created. This is handy for creating custom migrations for example creating stored procedures, seeding data, migrating data. This way a separate SQL deployment script is not needed when deploying to staging and production environments. The migration cli is working as documented in the official docs.. Managing Migrations

Dean Everhart 1,541 Reputation points

2023-04-18T18:29:11.7533333+00:00

I had one successful project that worked with the Authentication directions as is, including...

create-migration CreateIdentitySchema -Context ApplicationDbContext as the sixth step: Migrations I've tried to re-create it on a half-dozen or more Identical Authentication Tutorial projects from scratch and there is already the CreateIdentitySchema Migration in the Data folder preventing the migration from being run as it is named. If I alter the name of the migration, it runs a blank migration.

I just created another new Authentication Tutorial project to see, at what point the CreateIdentitySchema.cs item appears in the Data folder and found it is there since the very first step...

Questions:

Is it suppose to be there following the very first step? I'm thinking the answer is "no."
And if it is suppose to be there at the very first step...

why have Create-Migration CreateIdentitySchema in the sixth step (my notes): Migrations?

And why was I able to run CreateIdentitySchema once successfully as the sixth step: Migrations, but can't recreate it in every brand new identical project created from scratch?

Thanks as always.
AgaveJoe 30,126 Reputation points

2023-04-18T19:27:08.8533333+00:00

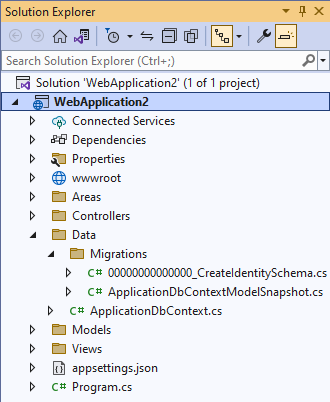

The CreateIdentitySchema is name of the migration in the Visual Studio "Individual Account" template. Executing update-database generates the migration file. It seem you are combining two different tutorials or not following the instructions.

Dean Everhart 1,541

I was following (combining) the Introduction to Identity on ASP.NET Core to the Scaffold Register, Login, LogOut, and RegisterConfirmation step.

The directions as written, if you follow them verbatim throw the error "The name 'CreateIdentitySchema' is used by an existing migration" Your suggestion to change the name of the migration was very helpful

My next concern was that the renamed migration appeared to be blank - nothing appeared in the up and down methods (pictured above). However, the update-database step showed the following, so...perhaps the migration did do something?

PM> update-database
Build started...
Build succeeded.
Microsoft.EntityFrameworkCore.Infrastructure[10403]
      Entity Framework Core 6.0.15 initialized 'ApplicationDbContext' using provider 'Microsoft.EntityFrameworkCore.SqlServer:6.0.15' with options: None
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (14ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT 1
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (9ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT OBJECT_ID(N'[__EFMigrationsHistory]');
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT 1
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (0ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT OBJECT_ID(N'[__EFMigrationsHistory]');
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (2ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT [MigrationId], [ProductVersion]
      FROM [__EFMigrationsHistory]
      ORDER BY [MigrationId];
Microsoft.EntityFrameworkCore.Migrations[20402]
      Applying migration '20230419140600_ScaffoldIdentity'.
Applying migration '20230419140600_ScaffoldIdentity'.
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      INSERT INTO [__EFMigrationsHistory] ([MigrationId], [ProductVersion])
      VALUES (N'20230419140600_ScaffoldIdentity', N'6.0.15');
Done.

AgaveJoe 30,126 Reputation points

2023-04-19T17:52:33.7966667+00:00

My next concern was that the renamed migration appeared to be blank - nothing appeared in the up and down methods (pictured above). However, the update-database step showed the following, so...perhaps the migration did do something?

There were no changes to the EF Models therefore nothing to update resulting in empty up and down methods which I already explained. Invoking update-database registers the empty migration with the database. Creating an empty migration does no harm but at the same time makes little sense.
