Unable to set managed Virtual Network while creating Azure integration runtime for ADF using Azure CLI

Dibakar Metla 1

Our infra is behind the private endpoint in Azure. I want to create an Azure integration runtime for ADF to access our blob storage using Azure CLI. I got the below command from Azure documents. az datafactory integration-runtime managed create --factory-name --integration-runtime-name --resource-group [--compute-properties] [--description] [--if-match] [--ssis-properties] But the problem is that I cannot set the managed Virtual network using that command. But while using the Azure portal, we can easily set up the managed Virtual network. I share both JSON documents below. You can easily find that the managedVirtualNetwork option not showing in the JSON file of the IR which was created by Azure CLI. Using Azure CLI: { "name": "abp-mdm-qal-uks-sql-ir01", "properties": { "type": "Managed", "typeProperties": { "computeProperties": { "location": "UK South", "dataFlowProperties": { "computeType": "General", "coreCount": 8, "timeToLive": 10, "cleanup": false } } } } } Using Azure Portal: { "name": "integrationRuntimePvtendSql", "properties": { "type": "Managed", "typeProperties": { "computeProperties": { "location": "UK South", "dataFlowProperties": { "computeType": "General", "coreCount": 8, "timeToLive": 10, "cleanup": false, "customProperties": [] }, "pipelineExternalComputeScaleProperties": { "timeToLive": 60 } } }, "managedVirtualNetwork": { "type": "ManagedVirtualNetworkReference", "referenceName": "default" } } } Is there any other Azure CLI command available to set the managedVirtualNetwork?

Konstantinos Passadis 17,456 Reputation points MVP

2023-04-25T19:22:24.56+00:00
Hello @Dibakar Metla! Yes, there is another Azure CLI command available to set the managedVirtualNetwork for an Azure integration runtime. You can use the "az datafactory integration-runtime managed update" command to update the integration runtime properties, including the managedVirtualNetwork. The syntax for the command is as follows:

az datafactory integration-runtime managed update --factory-name <factory-name> --name <integration-runtime-name> --resource-group <resource-group-name> [--managed-virtual-network <managed-virtual-network-id>] [--type-properties <type-properties>]

You can specify the ID of the managed virtual network using the "--managed-virtual-network" parameter. For example:

az datafactory integration-runtime managed update --factory-name MyFactory --name MyIR --resource-group MyResourceGroup --managed-virtual-network "/subscriptions/{subscription-id}/resourceGroups/{resource-group-name}/providers/Microsoft.Network/virtualNetworks/{virtual-network-name}"

Make sure to replace the placeholders ({subscription-id}, {resource-group-name}, and {virtual-network-name}) with the appropriate values for your environment. You can also use the "--type-properties" parameter to specify the computeProperties of the integration runtime, including the dataFlowProperties and pipelineExternalComputeScaleProperties. Kindly mark the answer as Accepted in case it helped you ! BR
Dibakar Metla 1 Reputation point

2023-04-26T11:01:25.0066667+00:00

Hi, I got the following error while running that update command. 'update' is misspelled or not recognized by the system.
Konstantinos Passadis 17,456 Reputation points MVP

2023-04-26T17:10:07.8533333+00:00

Hello

Please remove the managed and see if it works!

OR

Try

az datafactory managed-virtual-network create --factory-name "exampleFactoryName" --name "exampleManagedVirtualNetworkName" --resource-group "exampleResourceGroup"

Please reference here to syntax

https://learn.microsoft.com/en-us/cli/azure/datafactory/managed-virtual-network?view=azure-cli-latest#az-datafactory-managed-virtual-network-update

BR
Dibakar Metla 1 Reputation point

2023-04-27T08:11:01.3+00:00

Hi, @KonstantinosPOfficeLine-9007,

That update command does not work.

I got the below error, unrecognized arguments: --managed-virtual-network.

And for your second suggestion, it will not work for me since I had one default managed virtual network, and I want to add it with IR.
Konstantinos Passadis 17,456 Reputation points MVP

2023-04-27T09:03:52.4366667+00:00

Hello !

So to summarize you want to have control over the VNET creation once the IR is created ?

It is a managed network , the purpose of it is to be created and managed by Azure

Why dont you create a new Private Endpoint ?

az datafactory managed-private-endpoint create --factory-name "exampleFactoryName" --group-id "blob" --private-link-resource-id "/subscriptions/12345678-1234-1234-1234-12345678abc/resourceGroups/exampleResourceGroup/providers/Microsoft.Storage/storageAccounts/exampleBlobStorage" --name "exampleManagedPrivateEndpointName" --managed-virtual-network-name "exampleManagedVirtualNetworkName" --resource-group "exampleResourceGroup"

i wull try to recreate the issue just verify i am getting it right

Control over the VNET when we create the IR right ?
Dibakar Metla 1 Reputation point

2023-04-27T11:37:31.8066667+00:00
Hi,

Whatever Microsoft documents show, to connect ADF with Storage or SQL using a private endpoint three services are required.

IR,

Managed private Endpoint,

Linked Services.

To create the Linked services it is required IR and the Managed Private endpoint.

I am not facing any issues to create Managed Private endpoint.

Now IR;

The second IR I created using the Azure portal, and the 3rd one I created using Azure CLI using the below command.

az datafactory integration-runtime managed create --factory-name $dataFactoryName --integration-runtime-name $SqlIrName --resource-group $resourceGroupName --compute-properties .\sql.json

If you check the IR Sub-type, you can find the difference. The second IR shows Managed virtual network and The last IR is shown public.

Also using the portal we get the Virtual network tab for IR:

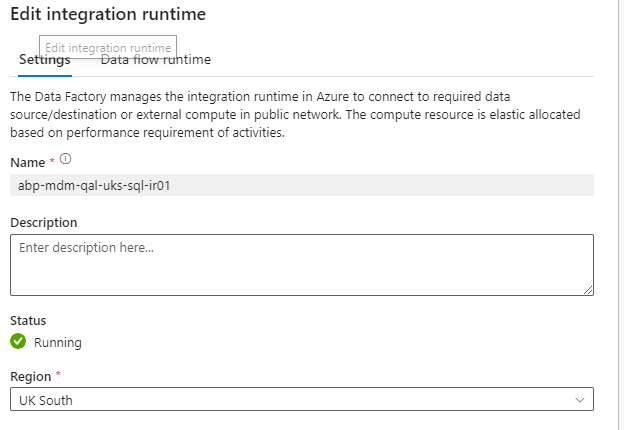

But the CLI we don't have the virtual network tab:

I just want the command to add the virtual network option in IR. Because when we test the link service we have to enable the Interactive authoring which is available in the 2nd tab of IR.

I hope you got my point.
PRADEEPCHEEKATLA-MSFT 85,586 Reputation points Microsoft Employee

2023-05-02T06:33:07.78+00:00

@Dibakar Metla - Thanks for the question and using MS Q&A platform.

Yes, there is no commad to add the virtual network option in IR.

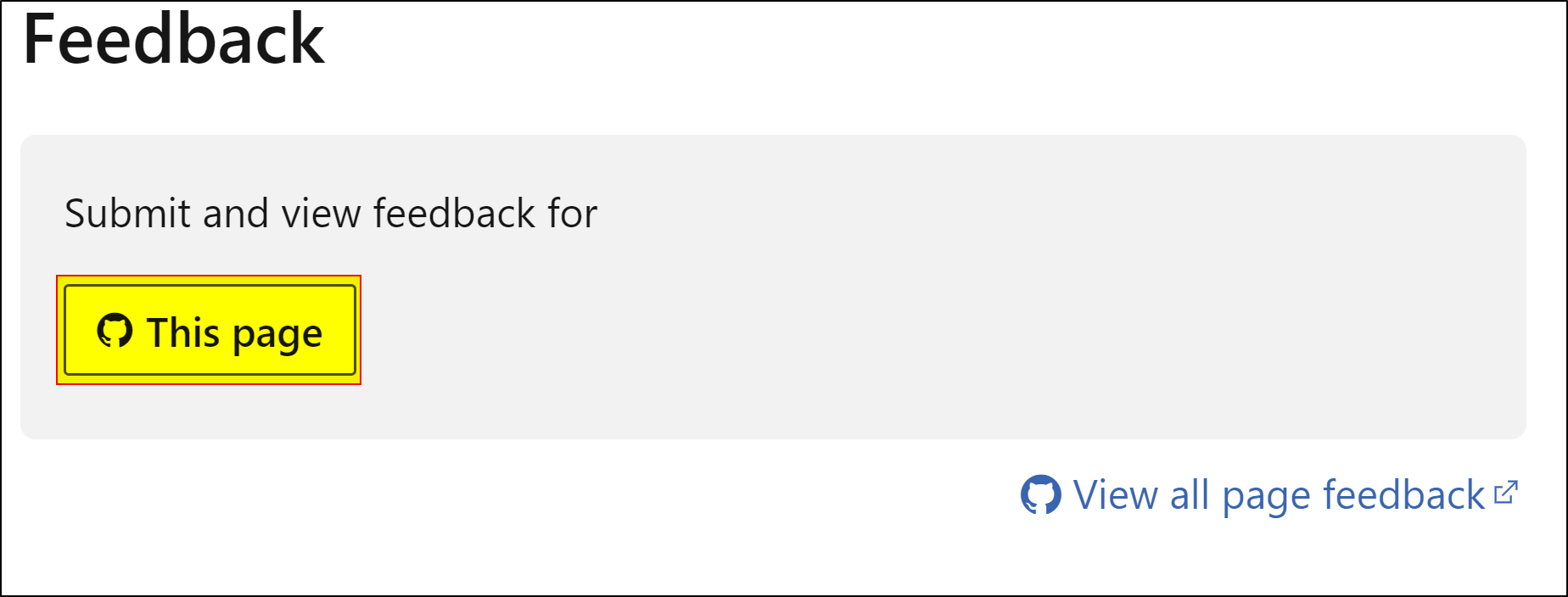

You can leave this feedback at the end of the document: https://learn.microsoft.com/en-us/cli/azure/datafactory/integration-runtime/managed?view=azure-cli-latest#az-datafactory-integration-runtime-managed-create
