How could I show more external codes when I use performance profiler to analyze CPU usage

Question

How could I show more external codes when I use performance profiler to analyze CPU usage

Taotao Sun 20 Microsoft Employee

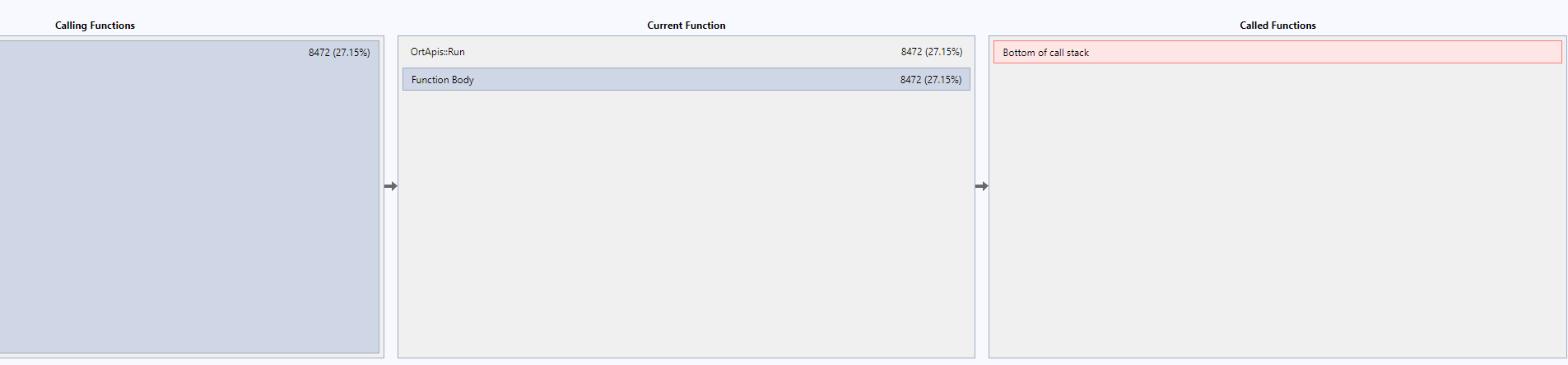

I want to do a performance profiler using visual studio. And after I get a diagsession. I clicked the most cpu cost functions repeated. After a few times, I get a stack when I could not click again. The stack is show in the picture. User's image

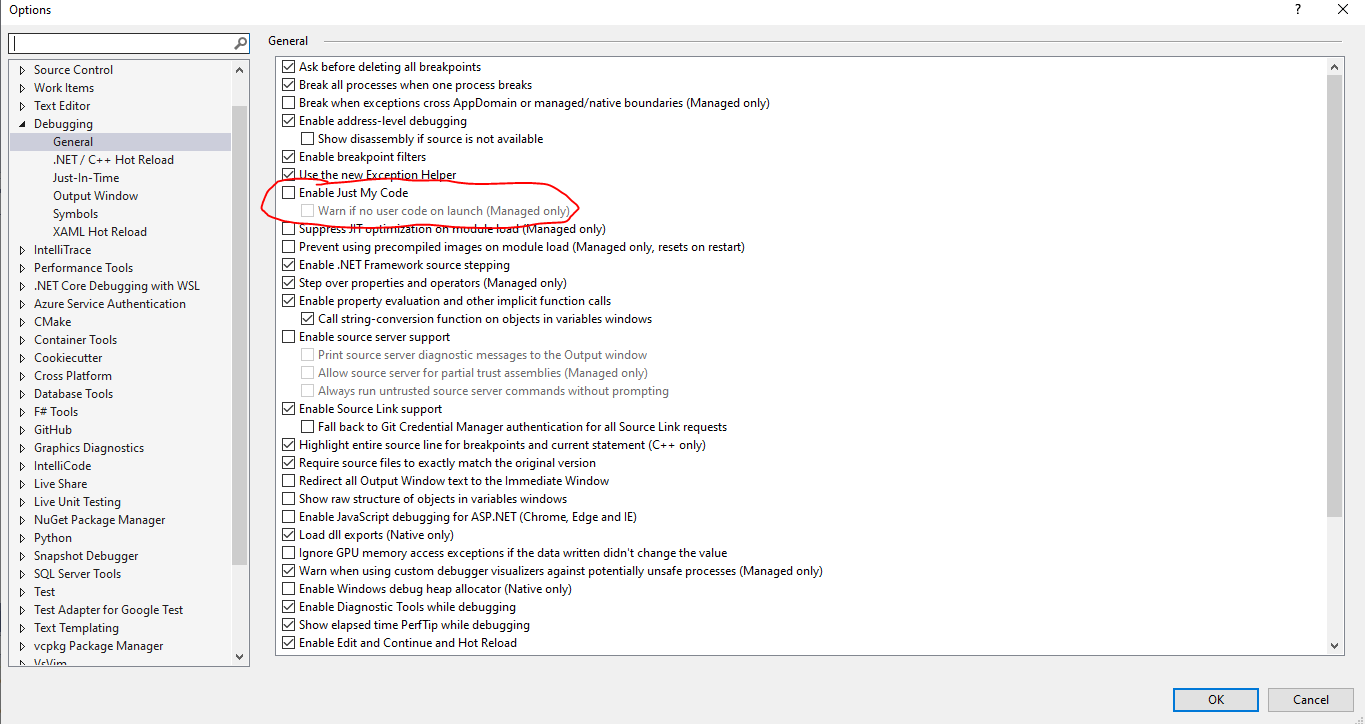

And as the picture showed, I have unchecked the "Enable just my code".
User's image

Could you tell me how to show the code stack for the external code instead of "Bottom of call stack"? Thank you very much.

Anna Xiu-MSFT 20,656 Reputation points Microsoft Vendor

2023-04-26T13:48:48.4666667+00:00

Hello, which version of Visual Studio are you using? You can try to uncheck “Show Just My Code” from Settings drop down.
Taotao Sun 20 Reputation points Microsoft Employee

2023-04-27T07:38:42.8566667+00:00

The version of Visual Studio I am using is VS2019. I have unchecked "Show Just My Code" from Settings drop down, the performance profiler did not show more codes in the Caller/Callee mode, and in the Caller Tree mode.
Taotao Sun 20 Reputation points Microsoft Employee

2023-05-17T14:46:53.8+00:00

Is there someone who knows how to solve it?
Quanmao LIU 0 Reputation points Microsoft Employee

2023-05-18T09:39:04.62+00:00

Was it build without optimization? If not, try to remove the optimization from UI or project settings, to keep debugging info.
Taotao Sun 20 Reputation points Microsoft Employee

2023-05-18T13:23:58.9866667+00:00

I used the onnxruntime dll with debug info, and pdb. I think whether it is related to the stack count limitation.

Anna Xiu-MSFT 20,656 Reputation points Microsoft Vendor

2023-04-26T13:48:48.4666667+00:00

Hello, which version of Visual Studio are you using? You can try to uncheck “Show Just My Code” from Settings drop down.
Taotao Sun 20 Reputation points Microsoft Employee

2023-04-27T07:38:42.8566667+00:00

The version of Visual Studio I am using is VS2019. I have unchecked "Show Just My Code" from Settings drop down, the performance profiler did not show more codes in the Caller/Callee mode, and in the Caller Tree mode.
Taotao Sun 20 Reputation points Microsoft Employee

2023-05-17T14:46:53.8+00:00

Is there someone who knows how to solve it?
Quanmao LIU 0 Reputation points Microsoft Employee

2023-05-18T09:39:04.62+00:00

Was it build without optimization? If not, try to remove the optimization from UI or project settings, to keep debugging info.
Taotao Sun 20 Reputation points Microsoft Employee

2023-05-18T13:23:58.9866667+00:00

I used the onnxruntime dll with debug info, and pdb. I think whether it is related to the stack count limitation.

Answer 1

Quanmao LIU 0 Microsoft Employee

Was it build with debugging info? - should not use optimization to avoid removing source code and symbol info.
