create a button to delete the selected tab

Question

I used the following code to create a button to delete the selected tab.

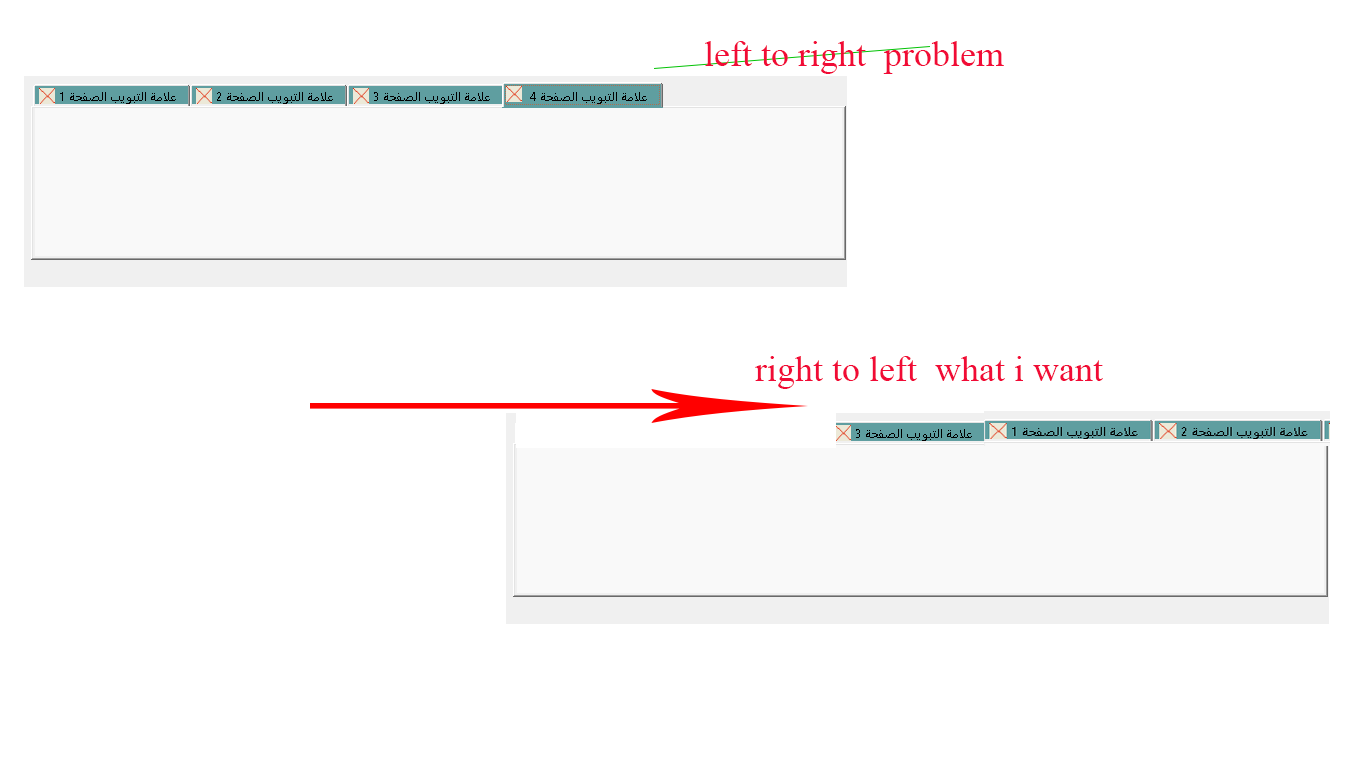

The problem is that if the tab is changed to be Arabic from right to left, a design problem occurs.

How to change the color of the tab cover header + how to add the delete button when adjusting the control from right to left

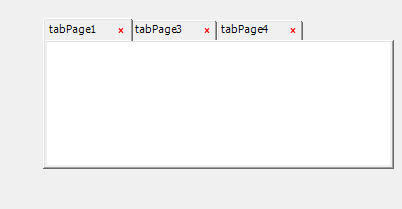

left Button

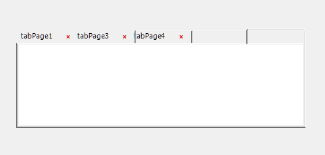

right button

 Point _imageLocation = new Point(20, 4);
        Point _imgHitArea = new Point(20, 4);
        Image closeImage;

        private void Form1_Load(object sender, EventArgs e)
        {
            closeImage = Properties.Resources.close;
            tabControl1.Padding = new Point(20, 4);
        }

        private void tabControl1_DrawItem(object sender, DrawItemEventArgs e)
        {
            Image img = new Bitmap(closeImage);
            Rectangle r = e.Bounds;
            r = this.tabControl1.GetTabRect(e.Index);
            r.Offset(2, 2);
            Brush TitleBrush = new SolidBrush(Color.Black);
            Font f = this.Font;
            string title = this.tabControl1.TabPages[e.Index].Text;
            e.Graphics.DrawString(title, f, TitleBrush, new PointF(r.X, r.Y));
            e.Graphics.DrawImage(img, new Point(r.X + (this.tabControl1.GetTabRect(e.Index).Width - _imageLocation.X), _imageLocation.Y));
        }

        private void tabControl1_MouseClick(object sender, MouseEventArgs e)
        {
            TabControl tabControl = (TabControl)sender;
            Point p = e.Location;
            int _tabWidth = 0;
            _tabWidth = this.tabControl1.GetTabRect(tabControl.SelectedIndex).Width - (_imgHitArea.X);
            Rectangle r = this.tabControl1.GetTabRect(tabControl.SelectedIndex);
            r.Offset(_tabWidth, _imgHitArea.Y);
            r.Width = 16;
            r.Height = 16;
            if (tabControl1.SelectedIndex >= 1)
            {
                if (r.Contains(p))
                {
                    TabPage tabPage = (TabPage)tabControl.TabPages[tabControl.SelectedIndex];
                    tabControl.TabPages.Remove(tabPage);
                }
            }
        }

Answer 1

Hi,

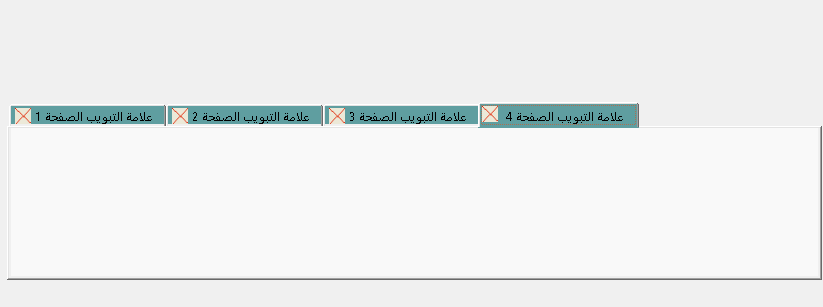

Use Rectangle imageRect = new Rectangle(e.Bounds.X + 4, e.Bounds.Y + 4, 16, 16) to modify the image position

  tabControl1_DrawItem:



                TabPage tabPage = tabControl1.TabPages[e.Index];
                // Get the current tab page's text
                string title = this.tabControl1.TabPages[e.Index].Text;
                // Get the current tab page's image
                Image image = closeImage;

                Rectangle r = e.Bounds;
                r = this.tabControl1.GetTabRect(e.Index);
                r.Offset(2, 2);
                // Set the bounds for the image
                Rectangle imageRect = new Rectangle(e.Bounds.X + 4, e.Bounds.Y + 4, 16, 16);
                Brush TitleBrush = new SolidBrush(Color.Black);
                e.Graphics.FillRectangle(new SolidBrush(Color.CadetBlue),e.Bounds );
                // Draw the image and text
                if (image != null)
                    e.Graphics.DrawImage(image, imageRect);

                e.Graphics.DrawString(title, this.Font, TitleBrush, new PointF(r.X + 22, r.Y + 2));





        private void tabControl1_MouseClick(object sender, MouseEventArgs e)
        {
            tabControl1.TabPages.Remove(tabControl1.SelectedTab);
        }

change the color of the tab cover header

Do you mean the color of tabpage? e.Graphics.FillRectangle(new SolidBrush(Color.CadetBlue),e.Bounds );

Best regards,

Minxin Yu

---
