Synapse linked service access control based on security group

Question

I have a requirement to limit access to linked service based on security group.

I have tried below approach,

• created two user managed identity and created credentials in synapse(managedidentity_project1, managedidentity_project2)
• created two credentials in synapse based on user managed identity
  • credential_project1->managedidentity_project1_
  • credential_project2->managedidentity_project2_
• Assigned secret get, secret list access on key Vault to user managed identity
  • managedidentity_project1 - secret get & secret list access_
  • _managedidentity_project2) - secret get & secret list access
• Created two Azure Key Vault linked service based on user managed identity authentication.
  • ls_keyvault_project1 ->_ managedidentity_project1_
  • ls_keyvault_project2 ->_ managedidentity_project2_
• Created two blob storage linked service based on account key authentication and used key Vault linked service to fetch account key.
  • lsstorage_project1 ->ls_keyvault_project1 ->_ managedidentity_project1_
  • lsstorage_project2 ->ls_keyvault_project2 ->_ managedidentity_project2_
  • Created two blob storage dataset based on above two linked service.
  • ds_project1->lsstorage_project1 ->ls_keyvault_project1 ->_ managedidentity_project1_
  • ds_project2->lsstorage_project2 ->ls_keyvault_project2 ->_ managedidentity_project2_
  • create two security group and assigned user members
  • securitygroup_project1 ->user_project1_
  • securitygroup_project2_->user_project2_
  • Assigned Synapse artifact publisher role to both security groups
  • Assigned workspace item level access to credentials to security group
  • credential_project1->synapse Credential user->securitygroup_project1
  • credential_project2->synapse Credential user->securitygroup_project2
  • for debugging, assigned managedidentity credential access to two security groups, without this I was getting error
  • workspacesystemidentity->synapse Credential user->securitygroup_project1
  • workspacesystemidentity->synapse Credential user->securitygroup_project2
  When I logged with user user_project1, I could able to test connection and preview data using both datasets((ds_project1 & ds_project2). I am expecting workspace item level access will enforce access control by preventing data access using dataset(ds_project2). Also I tried setting workspace item level access to specific linked service but i don't see any difference in access. Any advice on implementing access control at linked service level will help.
  • Created two blob storage dataset based on above two linked service.
  • create two security group and assigned user members
  • Assigned Synapse artifact publisher role to both security groups
  • Assigned workspace item level access to credentials to security group
• for debugging, assigned managedidentity credential access to two security groups, without this I was getting error
  • lsstorage_project1 ->ls_keyvault_project1 ->_ managedidentity_project1_
  • lsstorage_project2 ->ls_keyvault_project2 ->_ managedidentity_project2_
  • Created two blob storage dataset based on above two linked service.
  • ds_project1->lsstorage_project1 ->ls_keyvault_project1 ->_ managedidentity_project1_
  • ds_project2->lsstorage_project2 ->ls_keyvault_project2 ->_ managedidentity_project2_
  • create two security group and assigned user members
  • securitygroup_project1 ->user_project1_
  • securitygroup_project2_->user_project2_
  • Assigned Synapse artifact publisher role to both security groups
  • Assigned workspace item level access to credentials to security group
  • credential_project1->synapse Credential user->securitygroup_project1
  • credential_project2->synapse Credential user->securitygroup_project2
  • for debugging, assigned managedidentity credential access to two security groups, without this I was getting error
  • workspacesystemidentity->synapse Credential user->securitygroup_project1
  • workspacesystemidentity->synapse Credential user->securitygroup_project2

When I logged with user user_project1, I could able to test connection and preview data using both datasets((ds_project1 & ds_project2). I am expecting workspace item level access will enforce access control by preventing data access using dataset(ds_project2). Also I tried setting workspace item level access to specific linked service but i don't see any difference in access.

Any advice on implementing access control at linked service level will help.

Answer 1

Hi Mohamed Faisal ,

Welcome to Microsoft Q&A platform and thanks for posting your question here.

As I understand your question here, you are trying to restrict the access of a user or a group to create/delete the linked service . Please let me know if that is not the requirement.

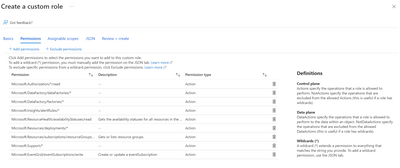

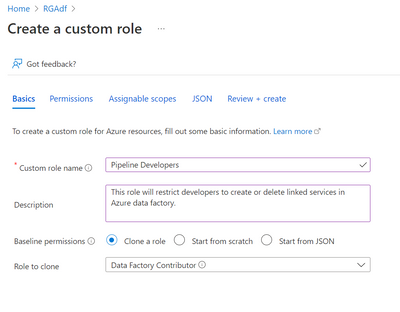

Restrictions on ADF pipeline developers to create connection using linked services can be applied by creating Custom roles.

When there is a requirement that the Azure Data Factory pipeline developers should not create or delete linked services to connect to the data sources that they have access to, the built-in role (Data Factory Contributor) will not restrict them. This calls for the creation of custom roles. However, you need to be cognizant about the number of role assignments that you can have depending on your subscription. This can be verified by choosing your resource group and selection the Role assignments under Access Control (IAM).

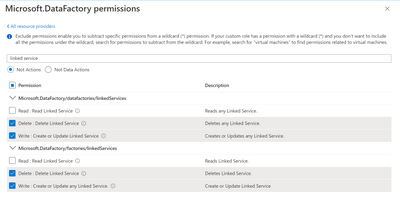

You can exclude permissions by selecting the Delete: Delete Linked Service and Write: Create or Update any Linked service

Note: Once the custom role is created, you can assign a user or group to this role. You can login with this user to Azure Data Factory. You will still be able to create a linked service but will not be able to save/publish.

For more information, kindly check out the below documentation: Custom role to restrict Azure Data Factory pipeline developers to create/delete linked services

Hope it helps. Kindly accept the answer by clicking on Accept answer button.
