multiple express route circuits question

Van Campenhout, Carl 0 Reputation points
2023-05-04T06:39:14.1066667+00:00

I have a customer who uses an express route (ER Gateways & provider circuit) to connect his on-prem to Azure. The ER is backed by a VPN solution (on VPN gatways), that kicks in when the circuit fails (BGP). The traffic is routed into a hub&spoke design, and full access is given to the spoke vnets via vnet peering and gateway route propagation. So far, so good .

Now, we would like to connect a partner of this customer via another express route circuit. However, we want to screen the partner traffic via a firewall instance in our azure hub (NVA). The question is how I can force the traffic from this circuit into the NVA. Am I able to do this and how, without altering the flow from on-prem? Can/must I install a second set of ER gateways in order to control this flow (and is this supported)? can I transit from on-prem to this partner via the Azure hub? (ER - azure - ER)? I couldn't find such a use case :(

thanks,

Carl.

Azure ExpressRoute
Azure ExpressRoute
An Azure service that provides private connections between Azure datacenters and infrastructure, either on premises or in a colocation environment.
320 questions
{count} votes

1 answer

Sort by: Most helpful
  1. KapilAnanth-MSFT 34,591 Reputation points Microsoft Employee
    2023-05-04T09:48:32.6966667+00:00

    @Van Campenhout, Carl

    Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

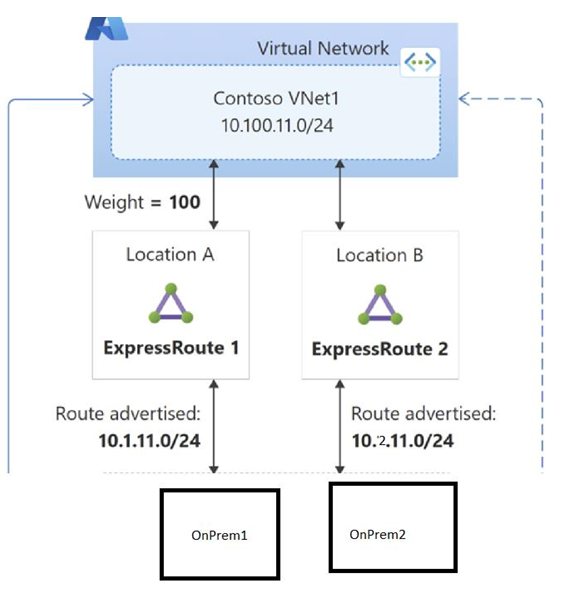

    I understand that you have a single ExpressRoute circuit and a VNet connected to this.

    Now, You want to connect this VNet to a different ExpressRoute circuit (of partner's)

    Let me know if my understanding is incorrect

    Wrt your questions,

    1.we would like to connect a partner of this customer via another express route circuit

    • A single VNet can be connected to different Circuits. So this is technically feasible.
      • Provided the SKU of ExR Gateway and ExR circuit support it
      • Check Gateway Support here
      • Check Circuit support here

    2.Can/must I install a second set of ER gateways in order to control this flow

    • Since you can connect a single gateway to multiple circuits, You do not have to install a second set of ER gateway.
    • A Vnet can only have one ExR Gateway at any given instant.

    3.can I transit from on-prem to this partner via the Azure hub?

    • Generally, this requirement is met by using ExpressRoute Global Reach
    • The above works for configurations having two different gateways and respective Vnets.
    • For a single gateway connected to multiple expressRoute circuits, - I will be required to check internally if BGP propagation would happen or not.
    • However, even in your scenario, you should be able to use Global Reach for OnPrem --- Partner transit

    4.we want to screen the partner traffic via a firewall instance in our azure hub (NVA)

    • You will be able to do this.
    • But again, since we have only one Gateway, all the traffic (OnPREM and Partner ) needs to be sent to the Firewall NVA.
    • For Partner to Azure
      • Attach a Route table on the Gateway Subnet and forward the traffic with Vnet's range as destination to the Firewall.
      • In the firewall, if the source is from Customer ---> Allow, and if the source is from Partner ---> Validate and the Allow or Deny traffic
      • Similarly, for Azure to Partner
      • Attach a Route table on the VMs and forward the traffic with both Customer's and Partner's range as destination to the Firewall.
      • NOTE : Having only Partner's range as destination would result in asymmetric routing. However, it might work even though it's not recommended.
      • From Firewall, traffic would flow to the Gateway subnet because of system routes.
      I hope I was able to address your queries. These documents may come handy: ExpressRoute Routing Kindly let us know if this helps or you need further assistance on this issue. Thanks, Kapil
