Status = VPN Platform did not trigger connection.

Question

Status = VPN Platform did not trigger connection.

Chase Kim 5

Hi,

I'm unable to connect to Azure VPN.

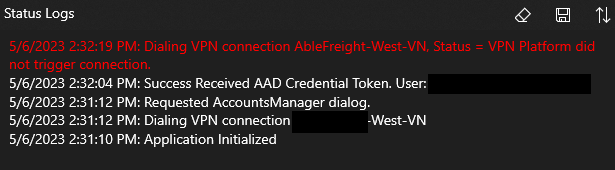

When I try connecting to it, I get "Status = VPN Platform did not trigger connection" and it just goes back to Disconnect status.

I tried killing and re-starting RasMan service (Remote Access Connection Manager) but it didn't help at all.

Please advise.

msrini-MSFT 9,291 Reputation points Microsoft Employee

2023-05-06T18:08:28.8033333+00:00

Hi,

Can you try re-starting the RASMan service and try connecting again?

Reference: https://stackoverflow.com/questions/69061012/azure-vpn-client-status-vpn-platform-did-not-trigger-connection

Regards,

Karthik Srinivas
Chase Kim 5 Reputation points

2023-05-06T21:37:08.37+00:00

Hi Karthik,

I just tried, but it still gives the same error message.

GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-05-08T10:52:43.2066667+00:00
Hello @Chase Kim ,

Welcome to Microsoft Q&A Platform. Thank you for reaching out & hope you are doing well.

I understand that you are encountering the following error "Status = VPN Platform did not trigger connection" when trying to connect to Azure VPN client.

The error "Status = VPN Platform did not trigger connection" is generally a client-side issue or most likely a bug in the Windows VPN platform. But mostly this error appears when the Azure VPN Client does not have the "Background apps" App Permission enabled in App Settings for Windows.

Could you please make sure that the Azure VPN Client has permission to run in the background.

In Windows, select Start, then select Settings > Apps > Apps & features or Installed Apps.

Scroll to the Azure VPN client, select More options on the right edge of the window, then select Advanced options.

In the Background apps permissions section, under Let this app run in the background, select "Always".

Refer: https://learn.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-troubleshoot-vpn-point-to-site-connection-problems#vpn-client-error-dialing-vpn-connection-vpn-connection-name-status--vpn-platform-did-not-trigger-connection

https://learn.microsoft.com/en-us/azure/vpn-gateway/openvpn-azure-ad-client#download

https://support.microsoft.com/en-gb/windows/windows-background-apps-and-your-privacy-83f2de44-d2d9-2b29-4649-2afe0913360a#ID0EBD=Windows_11

https://github.com/MicrosoftDocs/azure-docs/issues/50613

Additionally, try the below steps:

Make sure that your Windows OS has all the required updates/hotfixes installed.

Delete/Uninstall all WAN miniport network adapters from Device manager, and then click on Action > Scan for hardware changes or perform a machine restart.

Check if any 3rd party software and/or firewall blocking these P2S connections from the client-side upstream towards Azure.

If the above steps don't help, we would need to collect logs for further troubleshooting.

Regards,

Gita
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-05-10T13:59:55.3966667+00:00

@Chase Kim , could you please provide an update on this post? Did you make any further progress?
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-05-12T11:28:02.2+00:00

@Chase Kim , do you have any new updates on this issue?
Emes | IT Support 0 Reputation points

2023-06-10T12:02:13.5566667+00:00

Hi MS Support team,

I have the same issue with a stand alone Windows Server 2019, cannot use Azure VPN client to connect using AD authentication. Do you have any suggest?

Thanks,
Olikara, Jovin 0 Reputation points

2023-11-19T15:47:58.4966667+00:00

What is the most recent update on this? I am facing the exact same issue
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-11-21T14:16:48.6666667+00:00

Hello @Emes | IT Support ,

Apologies for the delay in response, as I missed your comment.

Azure AD authentication with P2S VPN is not supported on Windows Server 2019.

Microsoft Entra authentication allows users to connect to Azure using their Microsoft Entra credentials. Native Microsoft Entra authentication is only supported for OpenVPN protocol and also requires the use of the Azure VPN Client. The supported client operation systems are Windows 10 or later and macOS.

Refer: https://learn.microsoft.com/en-us/azure/vpn-gateway/point-to-site-about#microsoft-entra-authentication

So, it will not work.

Regards,

Gita
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-11-21T14:18:50.1633333+00:00

Hello @Olikara, Jovin , could you please share some details regarding you setup? Which protocol and authentication are you using for P2S VPN and which OS client are you using to connect to Azure VPN?
Subhash Subramaniyan 0 Reputation points

2023-11-30T06:43:07.0366667+00:00

Hi MS Support team,

I have the same issue with windows devices.

please find attached logs

1 answer

Your answer

msrini-MSFT 9,291 Reputation points Microsoft Employee

2023-05-06T18:08:28.8033333+00:00

Hi,

Can you try re-starting the RASMan service and try connecting again?

Reference: https://stackoverflow.com/questions/69061012/azure-vpn-client-status-vpn-platform-did-not-trigger-connection

Regards,

Karthik Srinivas
Chase Kim 5 Reputation points

2023-05-06T21:37:08.37+00:00

Hi Karthik,

I just tried, but it still gives the same error message.

GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-05-10T13:59:55.3966667+00:00

@Chase Kim , could you please provide an update on this post? Did you make any further progress?
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-05-12T11:28:02.2+00:00

@Chase Kim , do you have any new updates on this issue?
Emes | IT Support 0 Reputation points

2023-06-10T12:02:13.5566667+00:00

Hi MS Support team,

I have the same issue with a stand alone Windows Server 2019, cannot use Azure VPN client to connect using AD authentication. Do you have any suggest?

Thanks,
Olikara, Jovin 0 Reputation points

2023-11-19T15:47:58.4966667+00:00

What is the most recent update on this? I am facing the exact same issue
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-11-21T14:16:48.6666667+00:00

Hello @Emes | IT Support ,

Apologies for the delay in response, as I missed your comment.

Azure AD authentication with P2S VPN is not supported on Windows Server 2019.

Microsoft Entra authentication allows users to connect to Azure using their Microsoft Entra credentials. Native Microsoft Entra authentication is only supported for OpenVPN protocol and also requires the use of the Azure VPN Client. The supported client operation systems are Windows 10 or later and macOS.

Refer: https://learn.microsoft.com/en-us/azure/vpn-gateway/point-to-site-about#microsoft-entra-authentication

So, it will not work.

Regards,

Gita
GitaraniSharma-MSFT 50,176 Reputation points Microsoft Employee Moderator

2023-11-21T14:18:50.1633333+00:00

Hello @Olikara, Jovin , could you please share some details regarding you setup? Which protocol and authentication are you using for P2S VPN and which OS client are you using to connect to Azure VPN?
Subhash Subramaniyan 0 Reputation points

2023-11-30T06:43:07.0366667+00:00

Hi MS Support team,

I have the same issue with windows devices.

please find attached logs

Answer 1

Faruk Celik 10 Microsoft Employee

In Windows 11, following steps below fixed my problem :

Go to Settings/Apps/Installed Apps/
Scroll down to find "Azure VPN Client", select "Advanced options"
Click "Repair" button under "Reset" part

adq 0 Reputation points

2024-10-17T12:36:38.6033333+00:00

I can confirm this works. Thanks.
