Unable to delete my all Azure RSV in my subscription.

Question

Unable to delete my all Azure RSV in my subscription.

Ananay Ojha 91

Hi Experts,

I am Unable to delete my all Azure RSV in my subscription.

HAVE TRIED MANUALLY ALL THE STEPS
HAVE RUN THE POWERSHELL SCRIPT GIVEN IN PORTAL TO DELETE THE RSV
AFTER ALL THIS EVEN TRIED TO RUN THE BELOW COMMAND

az group list --query "[?(name !='cloud-shell-storage-centralindia')].name" -o tsv | xargs -otl az group delete --no-wait --yes -n

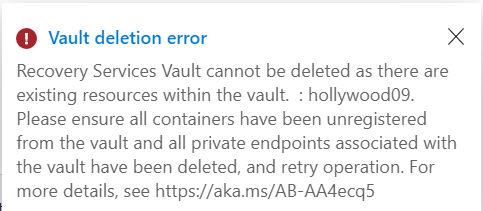

But My resource Groups with a RSV aren't deleted:

User's image

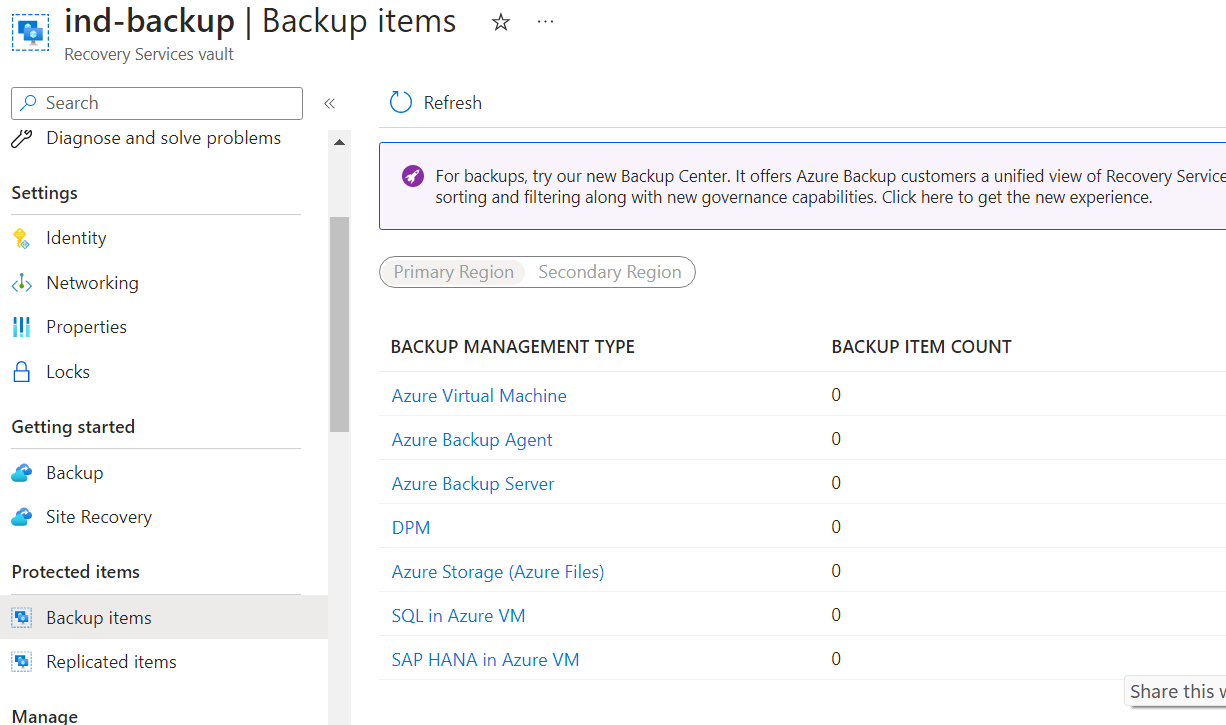

Even Though it has 0 items (and no soft delete), still shows a storage account name which is deleted months ago:

User's image

MY END GOAL: TO DELETE ALL RESOURCES IN MY SUBSCRIPTION

Please help me here,

I can't even request MS to intervene - they ask $23 to purchase a support plan :)

SadiqhAhmed-MSFT 49,326 Microsoft Employee Moderator

@Ananay Ojha Sorry for the inconvenience this must have caused you.

Could you please try this script?

# Get the Recovery Services Vault

$vaultName = "yourvaultName"
$vault = Get-AzureRmRecoveryServicesVault -Name $vaultName
Set-AzureRmRecoveryServicesASRVaultContext -Vault $vault


# Get the Fabrics
$fabrics = Get-ASRFabric

foreach ($fabric in $fabrics)
{

   # Get the Network Mappings
   $netMaps = Get-ASRNetworkMapping -PrimaryFabric $fabric


    # Remove Network Mappings
    if ($netMaps -ne $null)
    {
       if ($netMaps[0] -ne $null) { Remove-ASRNetworkMapping -InputObject $netMaps[0] }
        if ($netMaps[1] -ne $null) { Remove-ASRNetworkMapping -InputObject $netMaps[1] }
        Write-Host "Network Unpairing done"
    }



    # Get the Protection Container and Protection Container Mapping
    $pcList = Get-ASRProtectionContainer -Fabric $fabric
    $pc = Get-ASRProtectionContainer -Name $pcList[0].Name -Fabric $fabric
    $pcMaps = Get-ASRProtectionContainerMapping -ProtectionContainer $pc



    # Remove Protection Container Mappings
    if ($pcMaps -ne $null)
    {
        if ($pcMaps[0] -ne $null) { Remove-ASRProtectionContainerMapping -InputObject $pcMaps[0] }
        if ($pcMaps[1] -ne $null) { Remove-ASRProtectionContainerMapping -InputObject $pcMaps[1] }
        Write-Host "Protection Container Unpairing done"
    }

    # Get the Policy
    $policy = Get-ASRPolicy
    # Remove the Policy
    if ($policy -ne $null)
    {
        Remove-ASRPolicy -InputObject $policy
        Write-Host "Policy removed"
    }
}

Hope this helps!

Ananay Ojha 91 Reputation points

2023-05-09T15:35:42.46+00:00

Thanks for the script @SadiqhAhmed-MSFT

But unfortunately, it didn't worked.

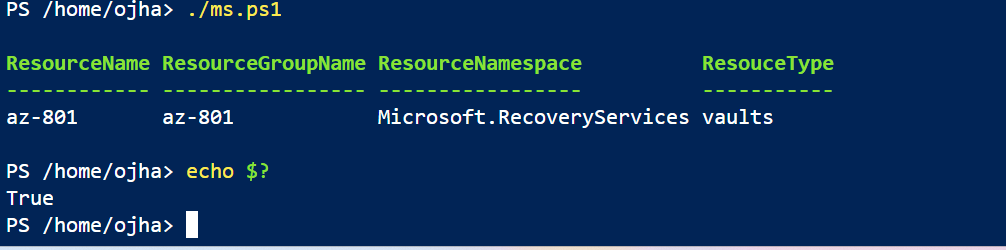

I had saved the script as a file named ms.ps1 in my Azure PowerShell

but The vault is still visible (even after running the script 3 times in 15 min)

However, the script had successfully exited.

Please help me
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-09T17:22:16.3+00:00

The script only works if there are no items left. If you are still seeing the vault, then it could be a portal refresh issue or an intermittent issue. Could you please logout of the portal and log back in?

If possible, try with a different browser.
Ananay Ojha 91 Reputation points

2023-05-09T18:05:05.83+00:00

@SadiqhAhmed-MSFT

Exactly this is my concern, the vault was created 3 months ago. Since then I have logged in / out several times and also tried using different browser and also tried Azure CLI and PowerShell for deleting it.

You can see in the screenshot of original Question - Vault items are 0

still vault can't be deleted as it shows name of a Storage account as backup item (FYI: This storage account is already deleted)

Is there any free method to raise a support ticket to MS for solving this bug.??
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-11T11:22:19.0433333+00:00

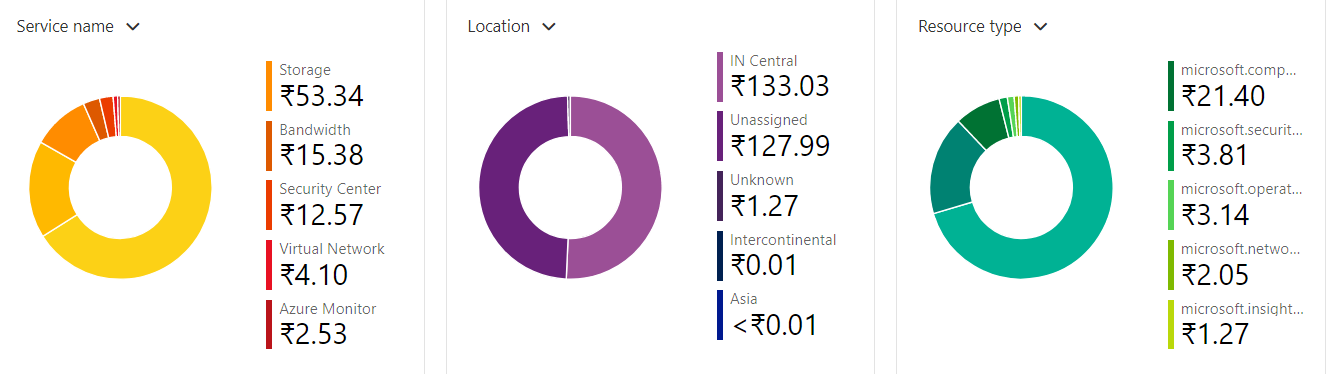

@Ananay Ojha Are you incurring any charges for the vault in question?
Ananay Ojha 91 Reputation points

2023-05-12T03:43:27.98+00:00

@SadiqhAhmed-MSFT Seems like NO
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-12T05:41:32.3133333+00:00

@Ananay Ojha If you are not being billed, then I don't think its a matter of concern. But if you want the vaults to disappear from portal then that can be done from backend by support professionals. IMO, it could be a portal bug or backend UI refresh issue. If you want to get in touch support team, Please send us an email at AzCommunity @ Microsoft dot com with subject: Attn: Sadiqh Ahmed with your subscription ID and a link to this forum thread for context. I shall put you through support.
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-15T06:12:41.7366667+00:00

@Ananay Ojha We haven't heard back from you. In case you already found a solution, would you please share it here with the community? Otherwise, let us know and we will continue to engage with you on the issue.

2 answers

Your answer

SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-08T19:12:38.44+00:00

@Ananay Ojha Sorry for the inconvenience this must have caused you.

Could you please try this script?

# Get the Recovery Services Vault $vaultName = "yourvaultName" $vault = Get-AzureRmRecoveryServicesVault -Name $vaultName Set-AzureRmRecoveryServicesASRVaultContext -Vault $vault # Get the Fabrics $fabrics = Get-ASRFabric foreach ($fabric in $fabrics) { # Get the Network Mappings $netMaps = Get-ASRNetworkMapping -PrimaryFabric $fabric # Remove Network Mappings if ($netMaps -ne $null) { if ($netMaps[0] -ne $null) { Remove-ASRNetworkMapping -InputObject $netMaps[0] } if ($netMaps[1] -ne $null) { Remove-ASRNetworkMapping -InputObject $netMaps[1] } Write-Host "Network Unpairing done" } # Get the Protection Container and Protection Container Mapping $pcList = Get-ASRProtectionContainer -Fabric $fabric $pc = Get-ASRProtectionContainer -Name $pcList[0].Name -Fabric $fabric $pcMaps = Get-ASRProtectionContainerMapping -ProtectionContainer $pc # Remove Protection Container Mappings if ($pcMaps -ne $null) { if ($pcMaps[0] -ne $null) { Remove-ASRProtectionContainerMapping -InputObject $pcMaps[0] } if ($pcMaps[1] -ne $null) { Remove-ASRProtectionContainerMapping -InputObject $pcMaps[1] } Write-Host "Protection Container Unpairing done" } # Get the Policy $policy = Get-ASRPolicy # Remove the Policy if ($policy -ne $null) { Remove-ASRPolicy -InputObject $policy Write-Host "Policy removed" } }

Hope this helps!
Ananay Ojha 91 Reputation points

2023-05-09T15:35:42.46+00:00

Thanks for the script @SadiqhAhmed-MSFT

But unfortunately, it didn't worked.

I had saved the script as a file named ms.ps1 in my Azure PowerShell

but The vault is still visible (even after running the script 3 times in 15 min)

However, the script had successfully exited.

Please help me
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-09T17:22:16.3+00:00

The script only works if there are no items left. If you are still seeing the vault, then it could be a portal refresh issue or an intermittent issue. Could you please logout of the portal and log back in?

If possible, try with a different browser.
Ananay Ojha 91 Reputation points

2023-05-09T18:05:05.83+00:00

@SadiqhAhmed-MSFT

Exactly this is my concern, the vault was created 3 months ago. Since then I have logged in / out several times and also tried using different browser and also tried Azure CLI and PowerShell for deleting it.

You can see in the screenshot of original Question - Vault items are 0

still vault can't be deleted as it shows name of a Storage account as backup item (FYI: This storage account is already deleted)

Is there any free method to raise a support ticket to MS for solving this bug.??
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-11T11:22:19.0433333+00:00

@Ananay Ojha Are you incurring any charges for the vault in question?
Ananay Ojha 91 Reputation points

2023-05-12T03:43:27.98+00:00

@SadiqhAhmed-MSFT Seems like NO
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-12T05:41:32.3133333+00:00

@Ananay Ojha If you are not being billed, then I don't think its a matter of concern. But if you want the vaults to disappear from portal then that can be done from backend by support professionals. IMO, it could be a portal bug or backend UI refresh issue. If you want to get in touch support team, Please send us an email at AzCommunity @ Microsoft dot com with subject: Attn: Sadiqh Ahmed with your subscription ID and a link to this forum thread for context. I shall put you through support.
SadiqhAhmed-MSFT 49,326 Reputation points Microsoft Employee Moderator

2023-05-15T06:12:41.7366667+00:00

@Ananay Ojha We haven't heard back from you. In case you already found a solution, would you please share it here with the community? Otherwise, let us know and we will continue to engage with you on the issue.

Answer 1

Hello @Ananay Ojha

I see you have been facing issue with deleting a vault from azure backup service. If it complaints about the storage account still being associated with the vault, you need unregister the storage accounts from the vault->backup infrastructure blade->Azure Storage accounts -> Unregister storage account.

You can see the steps on this document https://learn.microsoft.com/en-us/azure/backup/manage-afs-backup#unregister-a-storage-account

Post unregistering the storage account from vault, you should be able to delete the vault.

Let me know once you perform these steps.

(If the response is helpful, please accept the answer for the benefit of other users in the community)

Answer 2

Deleted

This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
