Exchange 2016 Unable to add database copy server

lalajee 1,821 Reputation points
2023-05-09T22:26:33.87+00:00

Hi,

We have 2 exchange 2016 STD servers

I have an database (its around 1TB at the moment) when I try to add Database copy I keep getting this error message "Server "Server01" has reached the maximum databases limit of 5."

User's image

On Server01 I can only see 3 database mounted

User's image

Exchange | Exchange Server | Other
Exchange | Exchange Server | Other
A robust email, calendaring, and collaboration platform developed by Microsoft, designed for enterprise-level communication and data management.Miscellaneous topics that do not fit into specific categories.
Exchange | Hybrid management
Exchange | Hybrid management
The administration of a hybrid deployment that connects on-premises Exchange Server with Exchange Online, enabling seamless integration and centralized control.
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2023-05-10T07:36:55.1633333+00:00

    Hi @lalajee ,

    You may be misunderstanding the counting. The database Copy will also occupy a place. The "5 databases" is a limitation on "active database" + "database copy". Database copies also count towards the database count.



    Please refer the following.

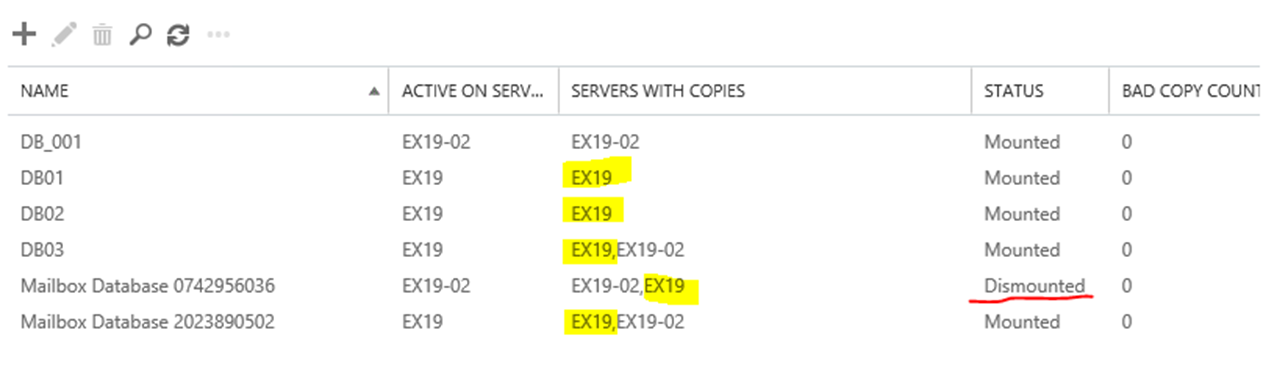

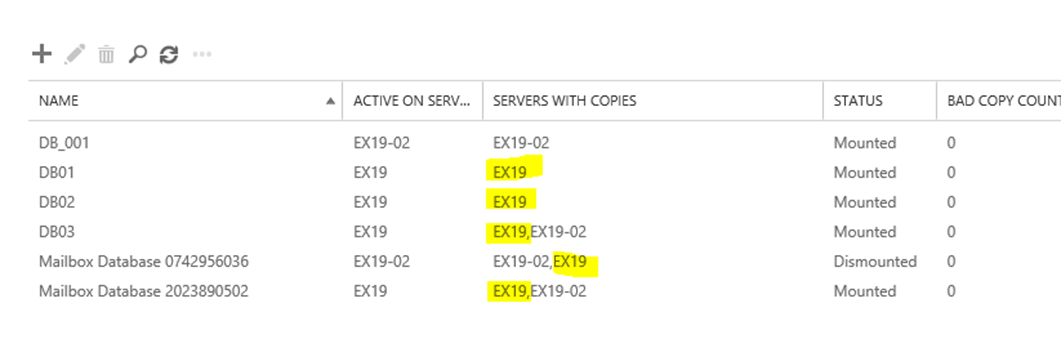

    User's image

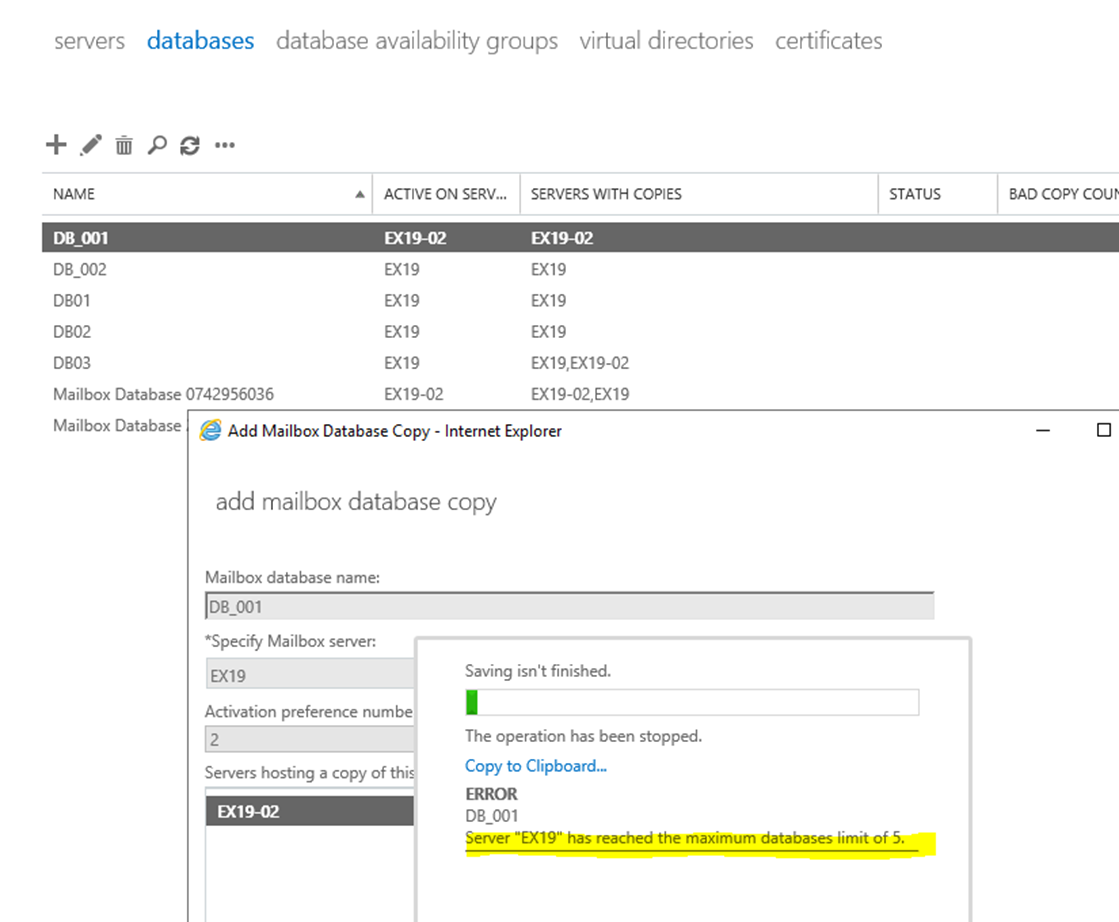

    If you try to add a database copy on EX19 based on the above picture, your issue will be reproduced.



    User's image



    Best regards,

    Shaofan Lv

    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
