Is there a viable AKS configuration using b1s VM size?

Radek Hromadka 20 Reputation points
2023-05-10T17:05:10.61+00:00

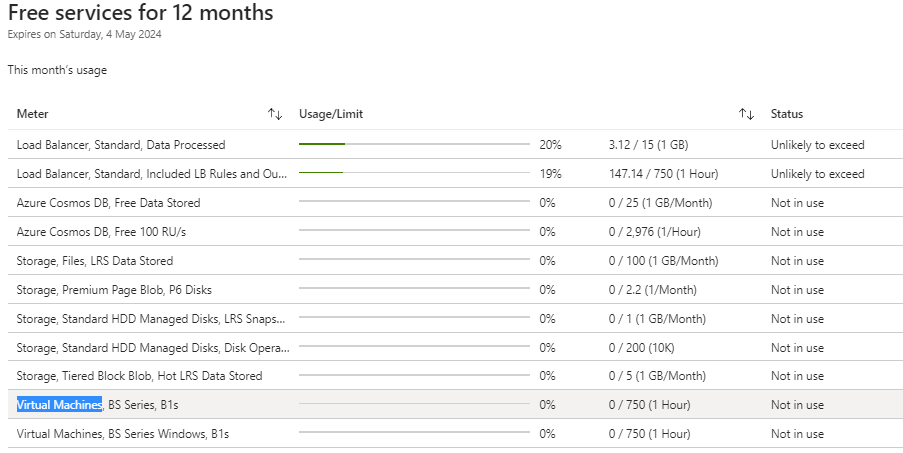

I'm trying to use the free B1s series VM size when deploying AKS clusters but it seems impossible to use the B1s node size due to ram limitations - User's image

Changing node number doesn't affect this so I assume the requirement is now 4GiB per node.

Azure Kubernetes Service (AKS)
Azure Kubernetes Service (AKS)
An Azure service that provides serverless Kubernetes, an integrated continuous integration and continuous delivery experience, and enterprise-grade security and governance.
1,939 questions
0 comments No comments
{count} votes

Accepted answer
  1. KarishmaTiwari-MSFT 18,667 Reputation points Microsoft Employee
    2023-05-10T20:55:50.2133333+00:00

    @Radek Hromadka Thanks for posting your query on Microsoft Q&A.

    The B1s VM size has only 1 GiB of memory, which is not sufficient to run the Kubernetes system pods and your application pods. AKS requires nodes to use VM sizes with at least 2 vCPUs and 4 GiB of memory(RAM) to ensure that the required kube-system pods and your applications can be reliably scheduled. Therefore, you cannot use the B1s VM size for AKS clusters.

    You need to select an instance with at least 4 GiB of memory as also shared in the error message.

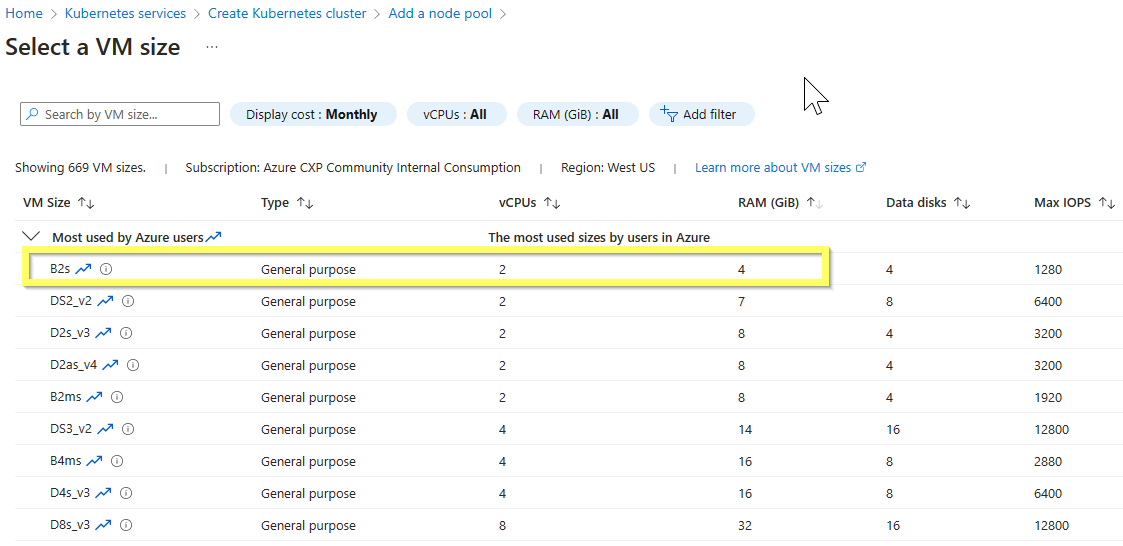

    Currently, the cheapest is Standard_B2s with 4 GiB RAM. You can also sort it directly in the Azure portal.

    User's image

    If you still have questions, please let us know in the "comments" and we would be happy to help you. Comment is the fastest way of notifying the experts.

    Please don’t forget to Accept Answer and hit Yes for "was this answer helpful" wherever the information provided helps you, this can be beneficial to other community members for remediation for similar issues.

    1 person found this answer helpful.
