Hi Expert, My infra on azure have watchguard for our firewall and i have a plan for implematation WAF Azure,can i combinate the watchguard and WAF Azure? if it can, how to setup these? thanks

Hello @Tomy Alfida Thanks for reaching out to Microsoft Q and A platform. At this time WAF could be used along with these three Azure Resources: · Application Gateway: What is Azure Web Application Firewall on Azure Application Gateway? - Azure Web Application Firewall | Microsoft Learn · Azure Front Door: What is Azure web application firewall on Azure Front Door? | Microsoft Learn · CDN: What is Azure web application firewall on Azure CDN? | Microsoft Learn If you would like to use it along with Watchguard, then you must design the Infra as such we include the above resource as the multiple layers. Regards, Priya Kumar

Watchguard and WAF Azure

Accepted answer

Priya Kumar 1,096 Reputation points Microsoft Employee

2023-05-11T03:51:01.5733333+00:00

Hello @Tomy Alfida

Thanks for reaching out to Microsoft Q and A platform.

At this time WAF could be used along with these three Azure Resources:

·       Application Gateway: What is Azure Web Application Firewall on Azure Application Gateway? - Azure Web Application Firewall | Microsoft Learn

·       Azure Front Door: What is Azure web application firewall on Azure Front Door? | Microsoft Learn

·       CDN: What is Azure web application firewall on Azure CDN? | Microsoft Learn

If you would like to use it along with Watchguard, then you must design the Infra as such we include the above resource as the multiple layers.

Regards,

Priya Kumar
Please sign in to rate this answer.
Tomy Alfida 25 Reputation points

2023-05-11T04:07:22.0133333+00:00

Hi Priya Kumar,

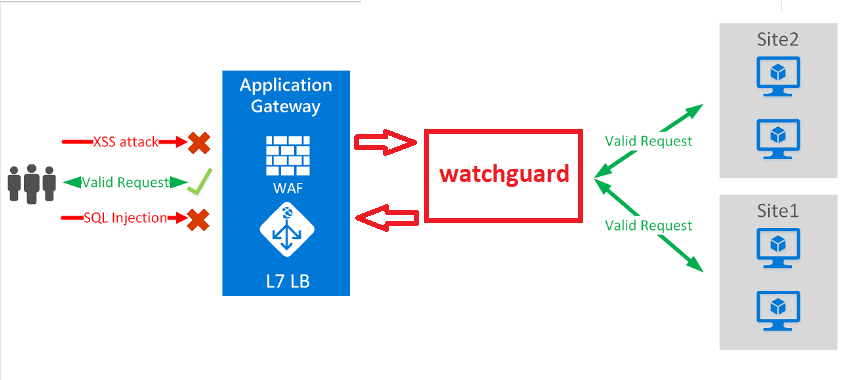

Thanks for your answer, so that is possible combinate Watchguard and WAF Azure? but i must design my infra with multiple layers, do you mean like this?

Thanks.

Tomy Alfida 25 Reputation points

2023-05-11T04:11:08.8133333+00:00

Hi Priya Kumar,

Thanks for your answer, so that is possible for combinate Watchguard and WAF Azure? but i must design my infra with multiple layers. Do you mean like this?

Thanks

Priya Kumar 1,096 Reputation points Microsoft Employee

2023-05-11T04:14:07.1933333+00:00

@Tomy Alfida Yes, you are right. This adds the additional layers of protection.

But the Application Gateway Backends could be following:

https://learn.microsoft.com/en-us/azure/application-gateway/application-gateway-components#backend-pools

Tomy Alfida 25 Reputation points

2023-05-11T04:42:26.82+00:00

Hi Priya Kumar,

Okay, how to setup my subnet application gateway? must i create a new virtual network or new subnet on my vnet?
i tried to create application gateway but i found error.

thanks

Priya Kumar 1,096 Reputation points Microsoft Employee

2023-05-11T05:04:10.3933333+00:00

@Tomy Alfida Within the Vnet you have to create a New Subnet dedicated to Application gateway. The new Subnet should not have any other resource other than Application gateway.
Sign in to comment

Share via

Watchguard and WAF Azure

0 additional answers
