XAML island : How to customize title bar

Harshithraj1871 1,496

Hi,

I'm working on a window desktop application in win32(C++ desktop (Win32) app) and I'm Hosting a standard WinRT XAML control in it.

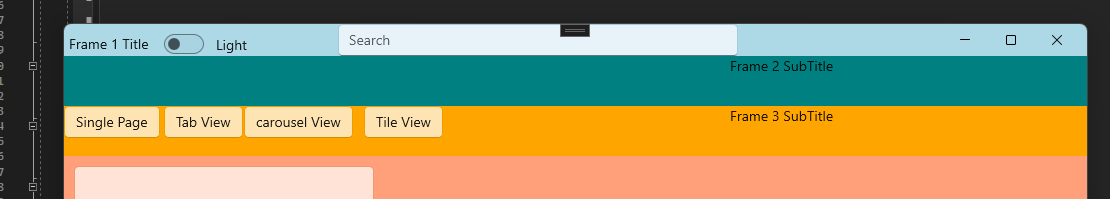

As I understood, we can use xaml island on particular area of the window. But can we use it customize the title bar? I wanted to make a custom title bar like this, this example in done using WinUI3 title bar customization .

User's image

can we do this in Win32 desktop application with xaml island? Or should i use Win32 Title bar customization?

Thank You

1 answer

Castorix31 81,461 Reputation points

2023-05-13T05:06:24.6666667+00:00

In Win32 Desktop apps, it is done with DWM : Custom Window Frame Using DWM
Please sign in to rate this answer.
Harshithraj1871 1,496 Reputation points

2023-05-22T11:01:11.7333333+00:00

Thank you for the response @Castorix31 , I tried this with xaml island but facing some issues. Custom Window Frame Using DWM extends the client area to whole window. And i want to set xaml island to the whole window like this(below example used winui3) -

When we set xaml island to the whole window, Xaml island will be placed on top of win32 controls (min, max close also) like this -

and we cant capture WM_NCHITTEST also.

How to solve title bar customization in this case?

Harshithraj1871 1,496 Reputation points

2023-05-25T08:22:36.94+00:00

@Castorix31 , when we follow this should we handle Min, Max and close button ourself? because after removing the standard frame Min, Max and close buttons are not working

Junjie Zhu - MSFT 14,366 Reputation points Microsoft Vendor

2023-06-06T09:50:45.37+00:00

Can you get WM_SIZE message in WindowProc?

Harshithraj1871 1,496 Reputation points

2023-06-06T09:52:38.7633333+00:00

@Junjie Zhu - MSFT Yes we can get WM_SIZE

Junjie Zhu - MSFT 14,366 Reputation points Microsoft Vendor

2023-06-06T09:59:44.5233333+00:00

You can try to handle this WM_SIZE message by yourself.
Sign in to comment
