Please teach me how to view the metrics of Azure SQL Database.

S.D 35 Reputation points
2023-05-16T08:11:41.7033333+00:00

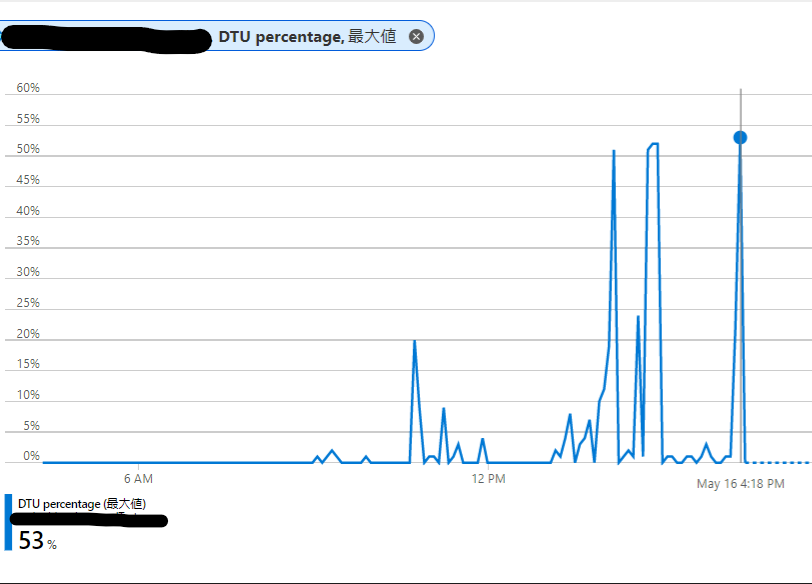

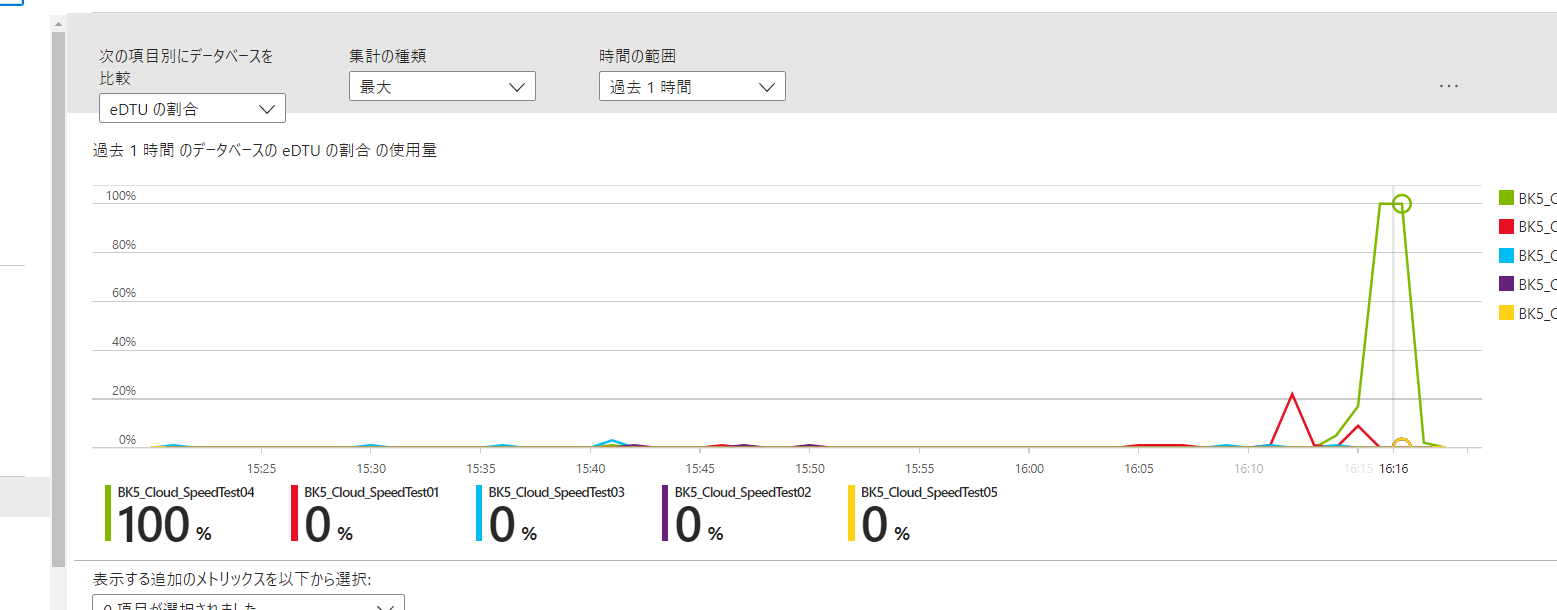

Please explain how to view the metrics of Azure SQL Database. When checking the resource utilization of each database, one specific database showed 100% utilization. However, when looking at the maximum value of the DTU percentage from the metrics, it showed 53%. What could be the reason for this difference?

Azure SQL Database
{count} votes

Accepted answer
  1. ShaktiSingh-MSFT 13,271 Reputation points Microsoft Employee
    2023-05-22T09:04:43.65+00:00

    Hi S.D •,

    To determine the average percentage of DTU/eDTU utilization relative to the DTU/eDTU limit of a database or an elastic pool, use the following formula:

    avg_dtu_percent = MAX(avg_cpu_percent, avg_data_io_percent, avg_log_write_percent)

    The input values for this formula can be obtained from sys.dm_db_resource_stats, sys.resource_stats, and sys.elastic_pool_resource_stats DMVs. In other words, to determine the percentage of DTU/eDTU utilization toward the DTU/eDTU limit of a database or an elastic pool, pick the largest percentage value from the following: avg_cpu_percent, avg_data_io_percent, and avg_log_write_percent at a given point in time.

    The resource limits of individual databases in elastic pools are generally the same as for single databases outside of pools based on DTUs and the service tier. For example, the max concurrent workers for an S2 database is 120 workers. So, the max concurrent workers for a database in a Standard pool is also 120 workers if the max DTU per database in the pool is 50 DTUs (which is equivalent to S2).

    For the same number of DTUs, resources provided to an elastic pool may exceed the resources provided to a single database outside of an elastic pool. This means it is possible for the eDTU utilization of an elastic pool to be less than the summation of DTU utilization across databases within the pool, depending on workload patterns. For example, in an extreme case with only one database in an elastic pool where database DTU utilization is 100%, it is possible for pool eDTU utilization to be 50% for certain workload patterns. This can happen even if max DTU per database remains at the maximum supported value for the given pool size.

    For each elastic pool, you can optionally specify per database minimum and maximum DTUs to modify resource consumption patterns within the pool. Specified min and max values apply to all databases in the pool. Customizing min and max DTUs for individual databases in the pool is not supported.

    You can also set maximum storage per database, for example to prevent a database from consuming all pool storage. This setting can be configured independently for each database.

    The following table describes per database properties for pooled databases.

    Max DTUs per database The maximum number of DTUs that any database in the pool may use, if available based on utilization by other databases in the pool. Max DTUs per database is not a resource guarantee for a database. If the workload in each database does not need all available pool resources to perform adequately, consider setting max DTUs per database to prevent a single database from monopolizing pool resources. Some degree of over-committing is expected since the pool generally assumes hot and cold usage patterns for databases, where all databases are not simultaneously peaking.
    Min DTUs per database The minimum number of DTUs reserved for any database in the pool. Consider setting a min DTUs per database when you want to guarantee resource availability for each database regardless of resource consumption by other databases in the pool. The min DTUs per database may be set to 0, and is also the default value. This property is set to anywhere between 0 and the average DTUs utilization per database.
    Max storage per database The maximum database size set by the user for a database in a pool. Pooled databases share allocated pool storage, so the size a database can reach is limited to the smaller of remaining pool storage and maximum database size. Maximum database size refers to the maximum size of the data files and does not include the space used by the log file.

    Important:

    Because resources in an elastic pool are finite, setting min DTUs per database to a value greater than 0 implicitly limits resource utilization by each database. If, at a point in time, most databases in a pool are idle, resources reserved to satisfy the min DTUs guarantee are not available to databases active at that point in time.

    Additionally, setting min DTUs per database to a value greater than 0 implicitly limits the number of databases that can be added to the pool. For example, if you set the min DTUs to 100 in a 400 DTU pool, it means that you will not be able to add more than 4 databases to the pool, because 100 DTUs are reserved for each database.

    While the per database properties are expressed in DTUs, they also govern consumption of other resource types, such as data IO, log IO, buffer pool memory, and worker threads. As you adjust min and max per database DTUs values, reservations and limits for all resource types are adjusted proportionally.

    Min and max per database DTU values apply to resource consumption by user workloads, but not to resource consumption by internal processes. For example, for a database with a per database max DTU set to half of the pool eDTU, user workload cannot consume more than one half of the buffer pool memory. However, this database can still take advantage of pages in the buffer pool that were loaded by internal processes. For more information, see Resource consumption by user workloads and internal processes.

    Hope this helps. If you have further questions, please let us know so that we can assist you further.

    Thank you.

    1 person found this answer helpful.
