IP Address is not received after PXE Boot

Question

IP Address is not received after PXE Boot

Boopathi S 3,866

Hello,

Device is boot from PXE and it loads the boot image

Then it has to connect the deployment workbench.

But device receives below IP address

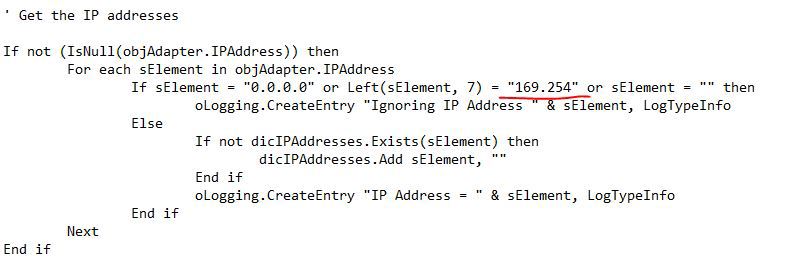

Ignoring IP Address 169.254.100.207 ZTIGather

IP Address = fe80::d159:2125:425d:64cf ZTIGather

apipa

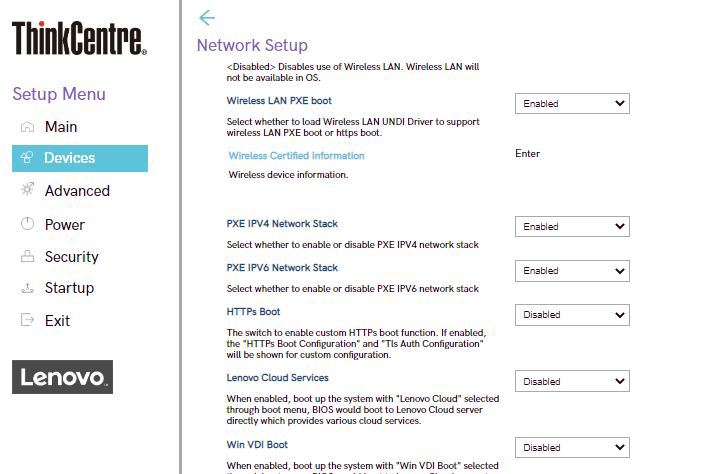

m80sgen3

used ipconfig in the F8 command prompt and it returns correct IP address like 10.*.

Please let me know how to fix this issue.

Any thing to be changed in BIOS settings?

How to execute the LITETOUCH.wsf in the command prompt? so that the device connects to Deployment share and continue the OSD process

1 answer

Your answer

Answer 1

AllenLiu-MSFT 49,436 Microsoft External Staff

Hi, @Boopathi S

Thank you for posting in Microsoft Q&A forum.

It's recommended to check your DHCP configuration, it seems the device cannot get a correct IP address from your DHCP.

We may also try to add the WinPE NIC driver to the boot image for the device.

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Add comment".

Boopathi S 3,866 Reputation points

2023-05-22T14:50:24.6533333+00:00

@AllenLiu-MSFT

Thanks for the reply.

I have imported the network driver into boot image and has the same behavior.

Compared DHCP scope between other sites. Everything looks fine.

how to make delay in the boot image to wait for some time to receive IP address?

so that device will connect to deployment share path
Boopathi S 3,866 Reputation points

2023-05-31T13:13:53.1566667+00:00

@AllenLiu-MSFT

Kindly check my reply and help
AllenLiu-MSFT 49,436 Reputation points Microsoft External Staff

2023-06-02T07:10:12.1+00:00
Hi, @Boopathi S

Regarding your question on executing the LITETOUCH.wsf in the command prompt, you can do so using the following steps:

Open the F8 command prompt on the device after it boots from PXE.

Navigate to the folder containing LITETOUCH.wsf using the command prompt.

Run the command 'cscript LITETOUCH.wsf' to execute the script.

This should start the LiteTouch Wizard, which will connect to the deployment share to continue the OSD process.
Boopathi S 3,866 Reputation points

2023-06-15T09:15:25.4833333+00:00

@AllenLiu-MSFT

Thanks for the reply. I just seeing the reply.

Is there any wait time in the LITETOUCH.wsf that I can increase to wait for more time. so that device will get IP address

I see the function is in ZTIGather.wsf. I do not see to give wait time here in the ZTIGather.wsf
AllenLiu-MSFT 49,436 Reputation points Microsoft External Staff

2023-06-16T08:09:23.7433333+00:00
Hi, @Boopathi Subramaniam

To increase the wait time for the device to receive an IP address in LiteTouch Installation on a device that needs to be PXE booted, you may try to add or modify PXEBootDelay in the customsettings.ini file and specify the PXEBootDelay value.

Open the deployment share on the deployment server from where you are running the deployment.

Navigate to the MDT deployment share's Control folder, and open the customsettings.ini file for editing.

In the [Settings] section of the file, add or modify PXEBootDelay to specify the time to wait in seconds. For example, PXEBootDelay=30

Save and close the customsettings.ini file.

This should increase the wait time for the device to receive an IP address after PXE boot.
Boopathi S 3,866 Reputation points

2023-06-16T10:21:00.8+00:00

@AllenLiu-MSFT

Thanks for the reply.

It happens after PXE boot. I do not see customsettings.ini in the boot image. it has only bootstart.ini.

I searched like PXEBootDelay in google and it does not return anything. It seems PXEBootDelay variable is not exist
AllenLiu-MSFT 49,436 Reputation points Microsoft External Staff

2023-06-19T09:06:24.1733333+00:00

Hi, @Boopathi S

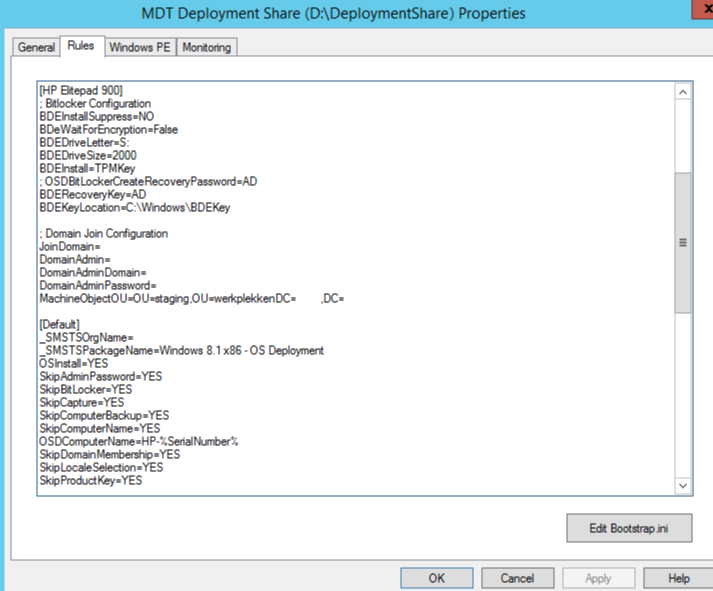

The rules of the deployment share properties is the customsettings.ini file.
