P2S VPN Cannot Connect To Peered Virtual Network Which Uses Another Virtual Networks Gateway

devopsfj 196 Reputation points
2023-05-30T12:09:19.22+00:00

Is there anyway I can achieve the below without using a NVA in VNET 2 or putting the P2S VPN in VNET 1?

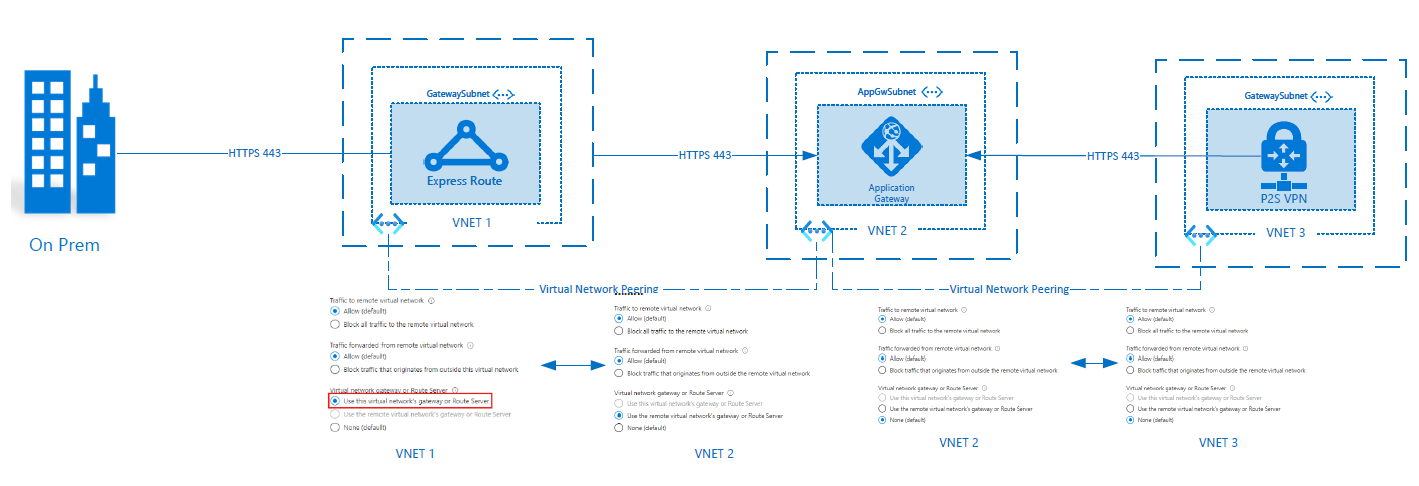

User's image

I need two methods of access to our Application Gateway, both private.

Users on Prem can currently access via the Express Route, however users using the P2S VPN are unable to do so due VNET 2 using the Remote Gateway of VNET 1. I have included the peering settings for info.

It is not only an Application Gateway in VNET 2 but I have only included this for simplicity.
