SCCM failed to install the client agent

Question

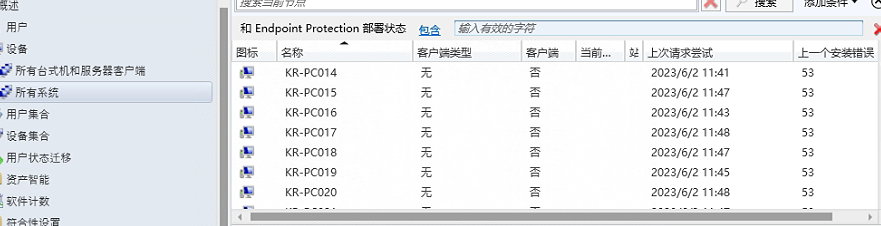

Two months ago, I set up a SCCM server and found the devices in the domain control. Then I asked for the installation of windows client through the SCCM server. A total of about 3000 devices were found on the server, but only about 100 devices were successfully installed on the client in two months. I don't know how to solve this problem. Please help me, thank you!

Answer 1

Hi,

Thanks for your reply.

1,It seems that the clients fail to get MP from AD. Have you extended AD schema successfully?

2,Please make sure your MPs are working well. The firewall ports used are opened and clients can communicate with the MPs, you can also try to disable firewall or anti-virus software to have a try.

Thanks for your time. Have a nice day!

Best regards,

Simon

---

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

Hello,

If you are using Client Push installation, you have to make sure that all necessary prerequisites are set from server & client sides, such as network communication ports, firewall settings, client push account that is member of local administrators group etc.

You will find more details in my following articles:

• How to Configure Boundaries and Boundary Groups on SCCM
• Step by Step Guide - SCCM Client Push installation

******There is an option in the top right of the blog to let you choose your prefered language.

Also, I would suggest to you to check ccm.log file in your ConfigMgr server to see more details.

Regards,

Youssef Saad | Blog: https://youssef-saad.blogspot.com/ | LinkedIn

Answer 3

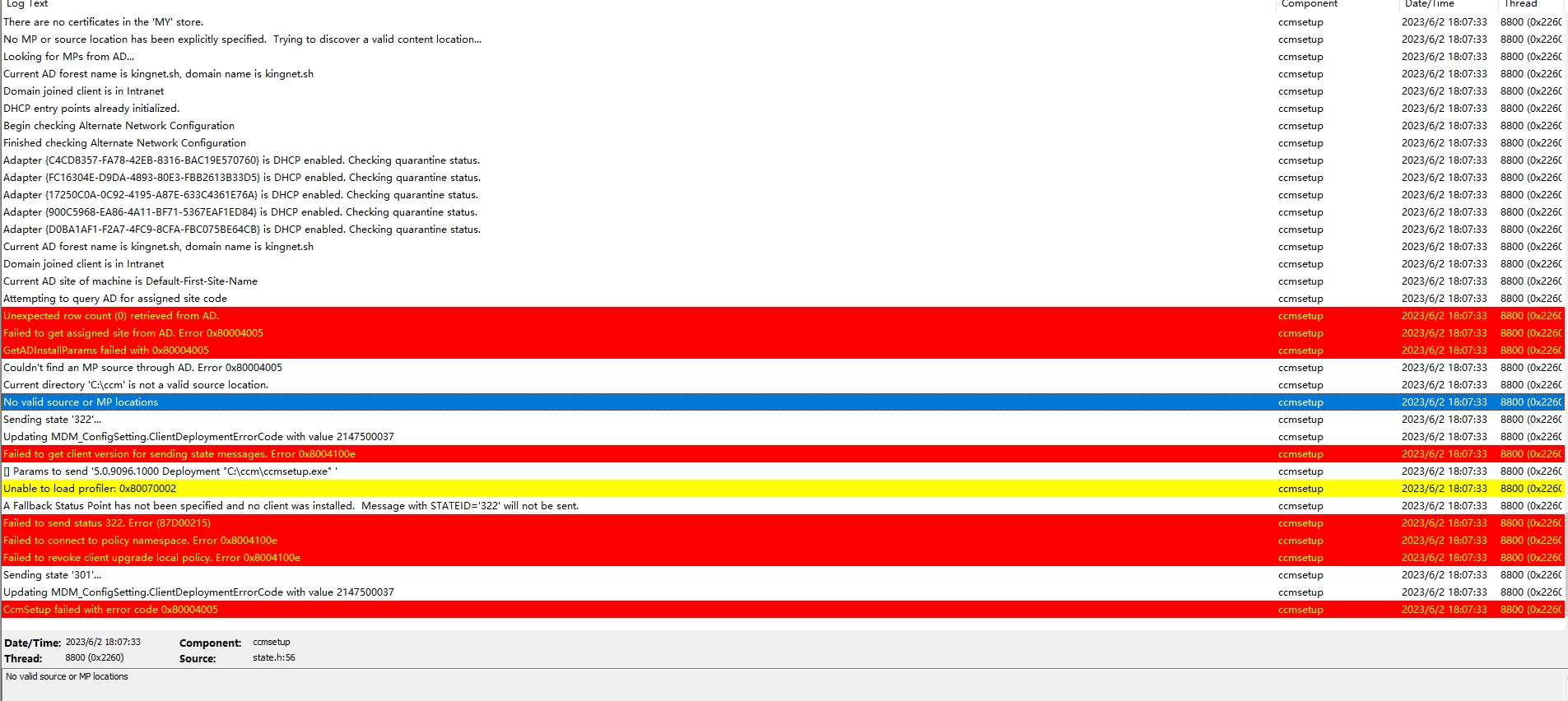

No valid source or MP location.

Make sure that your management point and distriubtion point are healthy from Monitoring node > System Status > Site Status.

And as I said, you have to setup the boundaries & boundary group with assigning a site & system servers related. You will find more details in the following articles.

• How to Configure Boundaries and Boundary Groups on SCCM
• Step by Step Guide - SCCM Client Push installation

Also, give a try with the manual installation using the following command line and double check ccmsetup.log file:

CCMSetup.exe /mp:YourSCCM-server.domain.local /logon SMSSITECODE=PS1

Regards,

Youssef Saad | Blog: https://youssef-saad.blogspot.com/ | LinkedIn

Answer 4

Hi,

Thanks for posting in Microsoft MECM Q&A forum.

1,Which method you are using to install SCCM client, client push installation or another method?

2,If you are using client push installation method, please make sure at least one Client Push Installation account has been defined in the Accounts tab of the Client Push Installation Properties dialog box. And this account must be a member of the local Administrators group.

3,Please check your boundaries and boundary groups configurations, and associate your MPs and DPs to the boundary groups. Make sure the devices can communicate with the MPs and DPs.

4,Please help check the ccm.log and ccmsetup.log to see if there is any further information. For more detailed troubleshooting steps, please refer to the helpful article:

Troubleshooting SCCM ..Part I (Client Push Installation )

Thanks for your time. Have a nice day!

Best regards,

Simon

---

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 5

There is nothing, just a typo in the wrong place
