Azure Egress Traffic

Handian Sudianto 5,486

hello,

Can we query how much Bytes egress traffic for one day or one month for all azure resources?

KapilAnanth-MSFT 47,481 Reputation points Microsoft Employee

2023-06-06T09:26:22.7866667+00:00

@Handian Sudianto

Welcome to the Microsoft Q&A Platform. Thank you for reaching out & I hope you are doing well.

I am afraid your question is very generic.

Azure has various services and each have their own metric.

To get a total egress bytes of all the services in a subscription won't be feasible.

If you have a specific service for which you'd like to know the egress traffic , please do let me know and I shall check if such a metric is available for that service/resource.

Cheers,

Kapil
Handian Sudianto 5,486 Reputation points

2023-06-06T09:28:22.17+00:00

Hi @KapilAnanth-MSFT

Example i want to know how much egress traffic from VM and App Service.
VenkateshDodda-MSFT 22,156 Reputation points Microsoft Employee

2023-06-06T11:16:42.3833333+00:00
@Handian Sudianto Thanks for reaching out to Microsoft Q&A, apologize for any inconvenience caused on this. We don't have any hard limits about egress traffic.

Virtual Machines:

Azure offers a variety of VM sizes and types, each with a different mix of performance capabilities, including network throughput which is measured in Mbps.

The network bandwidth allocated to each virtual machine is metered on egress (outbound) traffic from the virtual machine, and all network traffic leaving the virtual machine is counted toward the allocated limit, regardless of destination. Ingress is not metered or limited directly, but other factors such as CPU and storage limits can impact a virtual machine's ability to process incoming data.

For more information, you can refer to this virtual machine network throughput documentation.

App Service: As per the documented limits of app service, app service has unlimited bandwidth and the data transfer rates apply as per the bandwidth pricing as mentioned here.

Feel free to reach back to me if you have any further questions on this.
Handian Sudianto 5,486 Reputation points

2023-06-07T02:08:58.32+00:00

So, what calculation on the invoice, i can see we pay some amount for bandwith? Azure offer free 100GB/month and i want to know how much my egress traffic for one month period.
VenkateshDodda-MSFT 22,156 Reputation points Microsoft Employee

2023-06-07T10:45:19.3833333+00:00

@Handian Sudianto Thanks for your response, this would need Azure billing experts SME help I would suggest you raise a support ticket.

In case if you don't have the support plan then please send an email with your SubscriptionID and link to this thread to AzCommunity@microsoft.com with subject line as "ATTN: Venkatesh" so I can enable one-time free support on your subscription to assist you further.
Handian Sudianto 5,486 Reputation points

2023-06-08T01:07:36.02+00:00

Hello @VenkateshDodda-MSFT

Yes i already open ticket, and i will share to this thread after my question answered by microsoft support.

1 answer

VenkateshDodda-MSFT 22,156 Reputation points Microsoft Employee

2023-06-06T11:49:16.6066667+00:00

@Handian Sudianto Thanks for reaching out to Microsoft Q&A.

In the above, I was taking about the egress traffic limits for Azure Virtual machines and Azure App service.

As I understand that you want to know the amount of traffic that is being served by particular service.

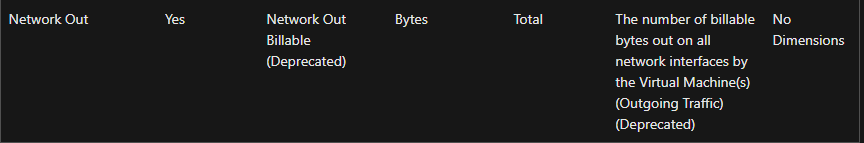

For Virtual Machines, you can make use of Network Out azure monitor metric to calculate the outbound traffic in bytes. You can refer to this documentation for supported metrics in azure monitor.

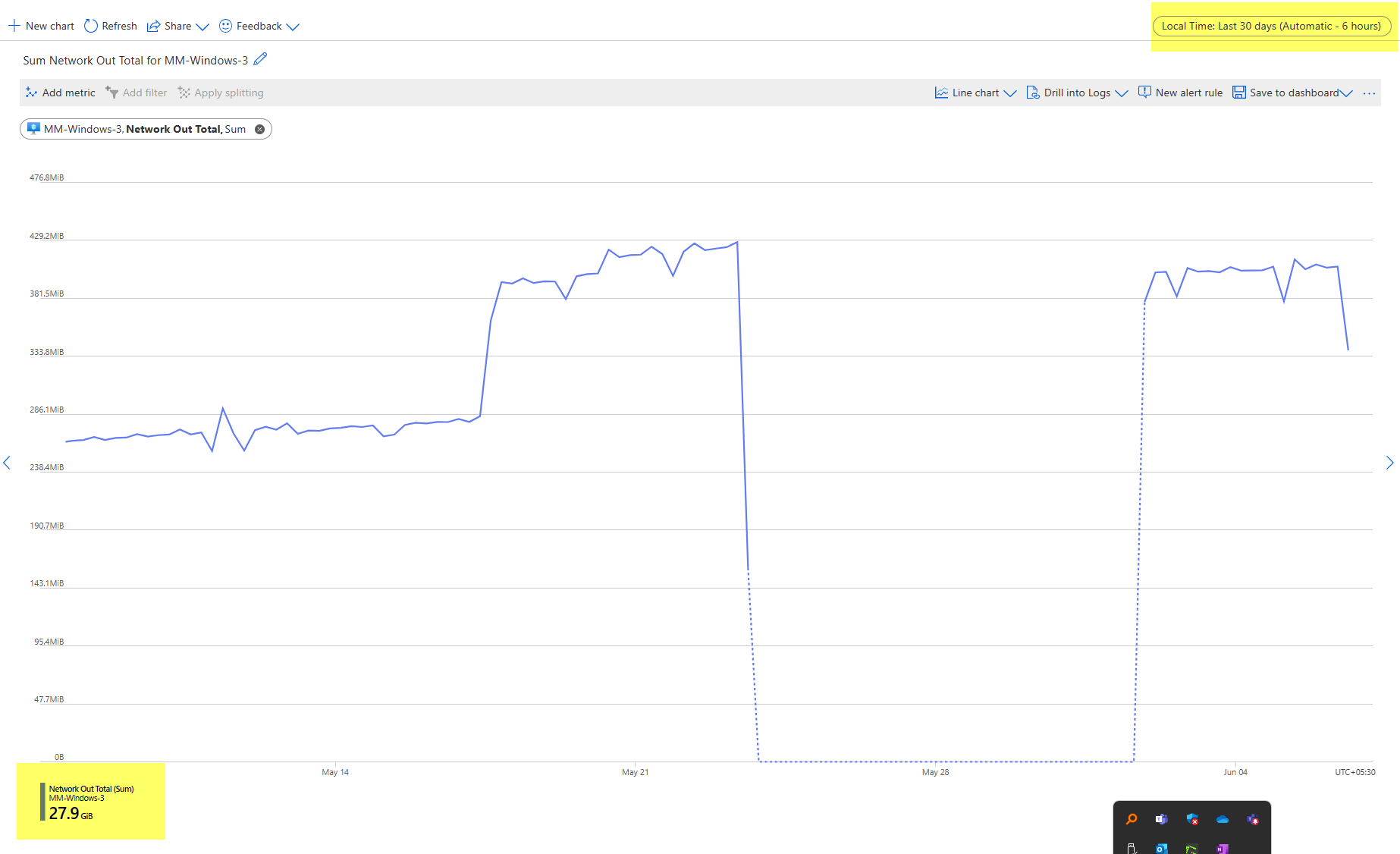

Here is the sample image for your reference, In the below image we have calculated the total amount of network out by a single virtual machine in the last 30days span.

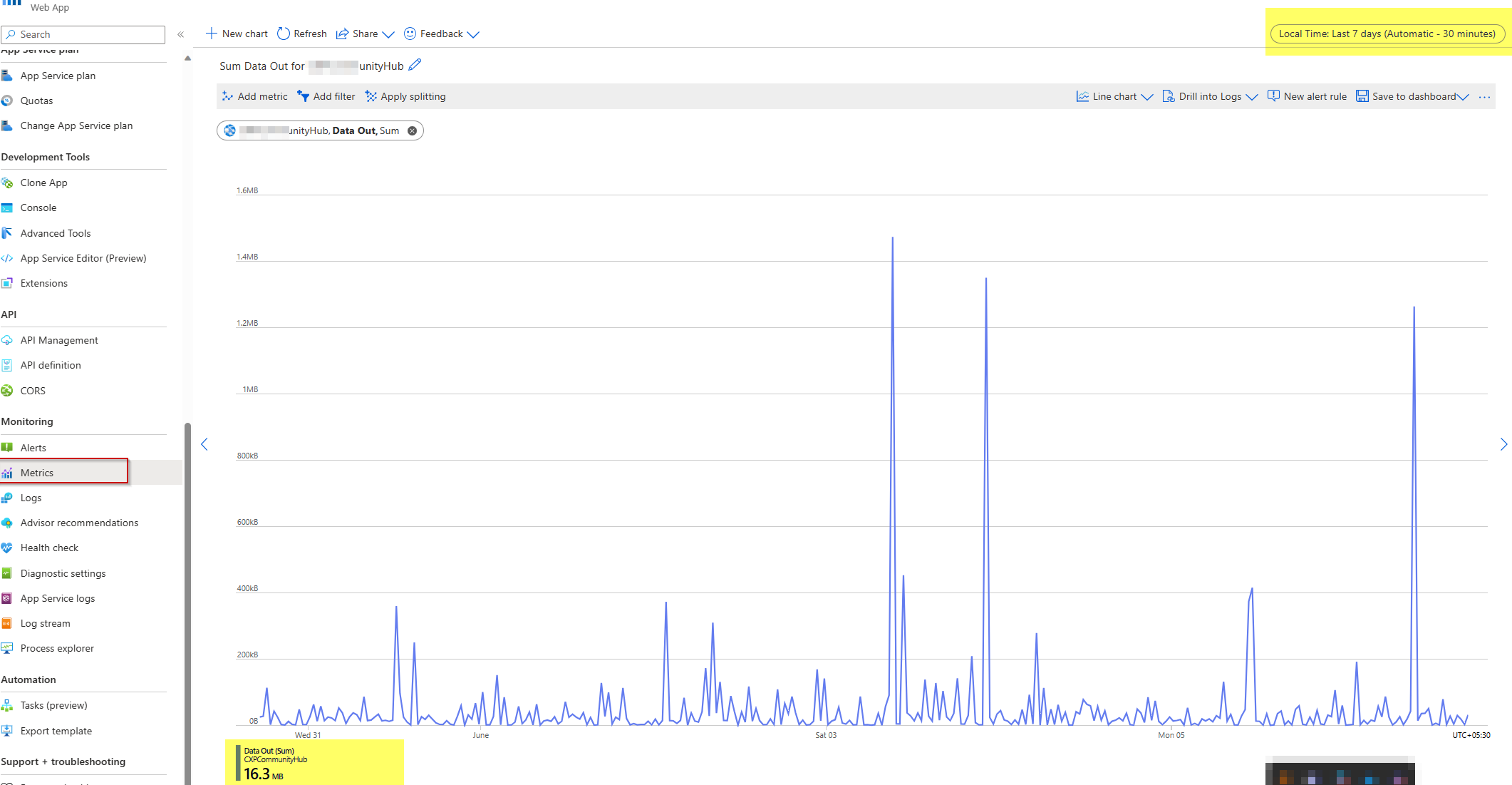

For Azure App service, you can refer to the BytesSent Azure Monitor metric to understand more on outgoing bandwidth used across all the instances.

Here is the sample screenshot, for your reference :

Feel free to reach back to me if you have any further questions on this.
