Can a child element pass validation issues up to the <DataAnnotationsValidator> in the parent

Question

I'm reducing this down to the essentials. If I reduced too much, please ask for detail.

I have a razor page as follows:

<EditForm>
  <DataAnnotationsValidator />
  <AddressForm @ref="_addressElement"
       Value="@Model.AddressForm"
       ValueChanged="OnAddressSelected">
  </AddressForm>
  <ValidationSummary />
</EditForm>

And here is AddressForm.razor

<DxTextBox @bind-Text="@Model.StreetNumberAndName" ShowValidationIcon="true" />

And here is it's model property

[Required(ErrorMessage = "Your street address is required")]
public string? StreetNumberAndName
{
    get => _streetNumberAndName;
    set => _streetNumberAndName = value?.Trim();
}

Here's my question. How can I get the [Required] validation messages up/out of <AddressForm> and to the <DataAnnotationsValidator> in the parent razor/component?

thanks - dave

Answer 1

Hi @David Thielen

  <AddressForm @ref="_addressElement"
       Value="@Model.AddressForm"
       ValueChanged="OnAddressSelected">
  </AddressForm>

Form your code, you are using Nested models/complex types. But the DataAnnotationsValidator only validates top-level properties of the model bound to the form that aren't collection- or complex-type properties.

To validate the bound model's entire object graph, including collection- and complex-type properties, use the ObjectGraphDataAnnotationsValidator provided by the experimental Microsoft.AspNetCore.Components.DataAnnotations.Validation package (Note: you need to checked the "include prerelease" option if you want to install this package via "Manage Nuget Package..." ).

Refer to the following sample:

Model: Note: we are using the ValidateComplexType attribute for the navigation property.

    public class TestModel
    {
        [Required (ErrorMessage ="Please enter the Name")]
        public string Name { get; set; }
        [ValidateComplexType]
        public AddressViewModel AddressForm { get; set; }
    }
    public class AddressViewModel
    {
        private string _streetNumberAndName;
        [Required(ErrorMessage = "Your street address is required")]
        public string? StreetNumberAndName
        {
            get => _streetNumberAndName;
            set => _streetNumberAndName = value?.Trim();
        }
    }

Parent component: using ObjectGraphDataAnnotationsValidator instead of DataAnnotationsValidator.

@page "/testpage"
@using BlazorServerApp3.Data

<EditForm Model="Model">
    <ObjectGraphDataAnnotationsValidator />
    <AddressForm @ref="_addressElement" testModel="Model"></AddressForm>
    <ValidationSummary />

    <div class="mt-n2">
        <button type="submit" class="btn btn-primary mr-2">Save</button>
    </div>
</EditForm>

@code{
    TestModel Model = new TestModel() { AddressForm= new AddressViewModel()};
    AddressForm _addressElement;
}

Child Component:

@using BlazorServerApp3.Data;
<h3>AddressForm</h3>

<input type="text" @bind="testModel.Name" />
<input type="text" @bind="testModel.AddressForm.StreetNumberAndName" />
@code {
    [Parameter]
    public TestModel testModel { get; set; }
}

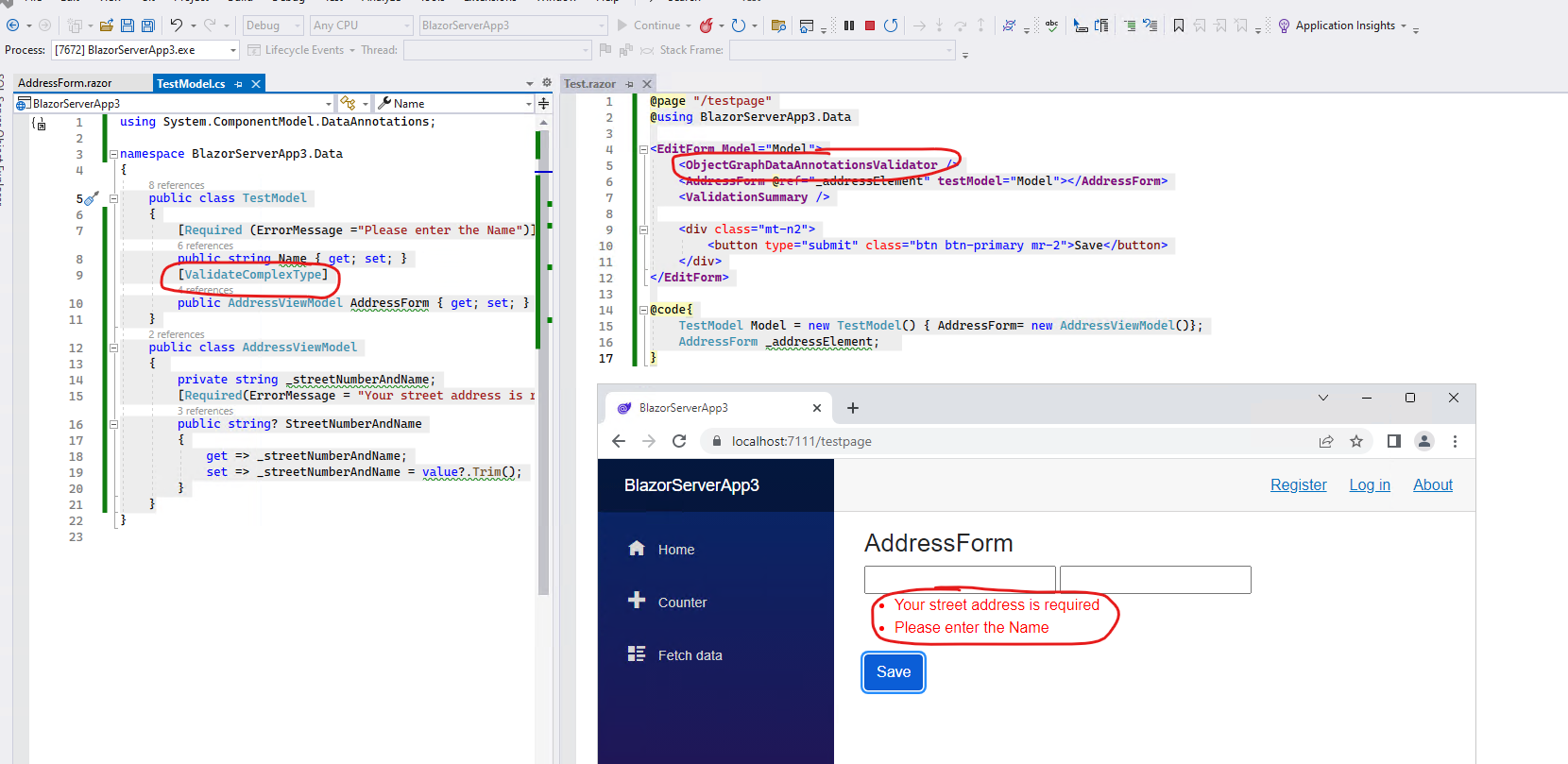

The output like this:

More detail information, see ASP.NET Core Blazor forms and input components(#Nested models, collection types, and complex types)

Finally, it seems that you might using third-party components (such as: DxTextBox), I'm not sure whether it effect the above validate result. If it not working, you could try to use the html elements or build-in components, instead of the third-party components.

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Best regards,

Dillion
