head blocker - delete statement

Question

Hi All,

Need some help in finding out of what is the problem in the query and how can we make the query faster.

On one of the production environment, a DELETE statement was running over 50 mins and blocked more than 100 sessions.

I wasn't able to get the actual plan. However, including estimated plan in the attached zip file.

Below is the SQL statement.

DELETE FROM c_repos_applied_lock
WHERE  rowid_lock IN (SELECT c_repos_applied_lock.rowid_lock
                      FROM   c_repos_applied_lock,
                             c_repos_table
                      WHERE  ( c_repos_applied_lock.job_type_str = 'A' )
                             AND ( c_repos_table.rowid_table =
                                   c_repos_applied_lock.rowid_table )
                             AND ( (
              Datediff (second, c_repos_applied_lock.create_date,
              CURRENT_TIMESTAMP) ) > (
                c_repos_table.batch_lock_wait_seconds * 3 ) ))

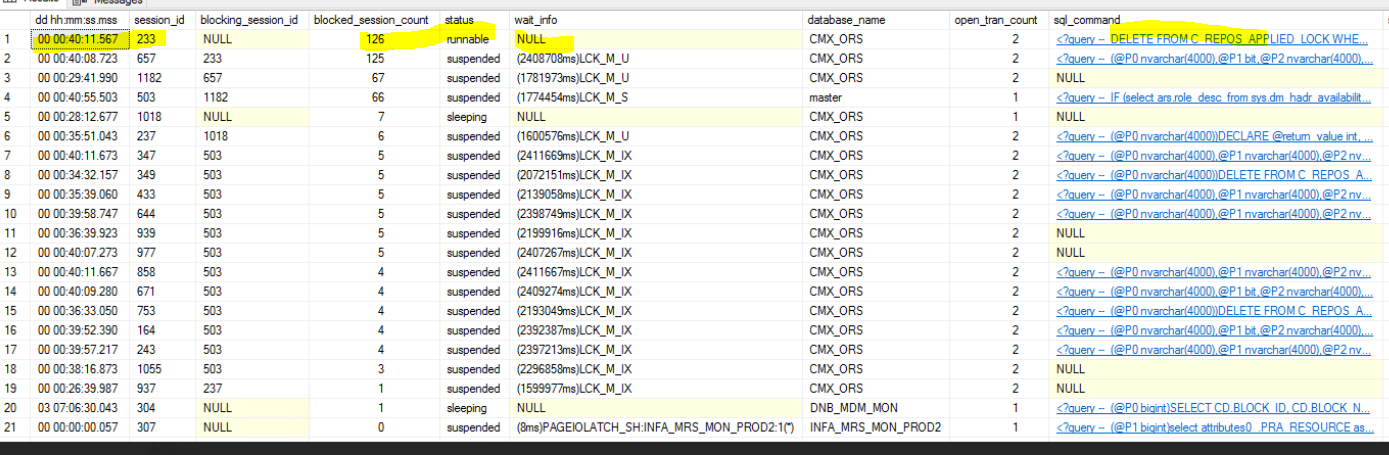

ran sp_whoisactive during the time of issue and collected some info.

spid 233

<--sql text -->

<?query --DELETE FROM C_REPOS_APPLIED_LOCK WHERE ROWID_LOCK IN (SELECT C_REPOS_APPLIED_LOCK.ROWID_LOCK FROM C_REPOS_APPLIED_LOCK, C_REPOS_TABLE WHERE (C_REPOS_APPLIED_LOCK.JOB_TYPE_STR = 'A') AND (C_REPOS_TABLE.ROWID_TABLE = C_REPOS_APPLIED_LOCK.ROWID_TABLE) AND ((DATEDIFF (second, C_REPOS_APPLIED_LOCK.CREATE_DATE, CURRENT_TIMESTAMP )) > (C_REPOS_TABLE.BATCH_LOCK_WAIT_SECONDS * 3)))--?>

<--lock info>

<Database name="CMX_ORS">

spid = 657 update (victim)

sql text :

<?query --

<--lock info>

<Database name="CMX_ORS">



Questions:

1. Why DELETE is slow? It took more than 50 mins and as per app team confirmation, we had to KILL the spid eventually. was it is reads more data? usually, we don't see more than 10-15 rows in this table at any moment of time. I don't know why I see a lot of reads at that time frame. please refer above screenshot.
2. From sp_wia output I was expecting 'X' locks on the table as it is a DELETE operation, but I see UPDATE locks. Any reason why update locks for delete operation?
3. Any ways we can re-write of optimize this query. this query is there been for a while.. I don't know why they are doing co-related query/sub query instead of direct where condition. not sure why?

Is there away to decrease the execution time of this query? can it be done in smaller chunks for the locks to held for shorter duration? I don't know, I am just doing my brain dump of what to ask.

4. The applied lock is kind of a table which used to hold some lock info. this is very dynamic table. A lots of inserts and deletes happen before acquiring and release this lock. Was the load on the table was more I don't know,

how to build a narrative at that time frame?

Please provide some guidance and reasoning on how can we make it faster. if there any specific questions to be asked to the app team, or if more information is needed pls let me know.

Thanks,

Sam

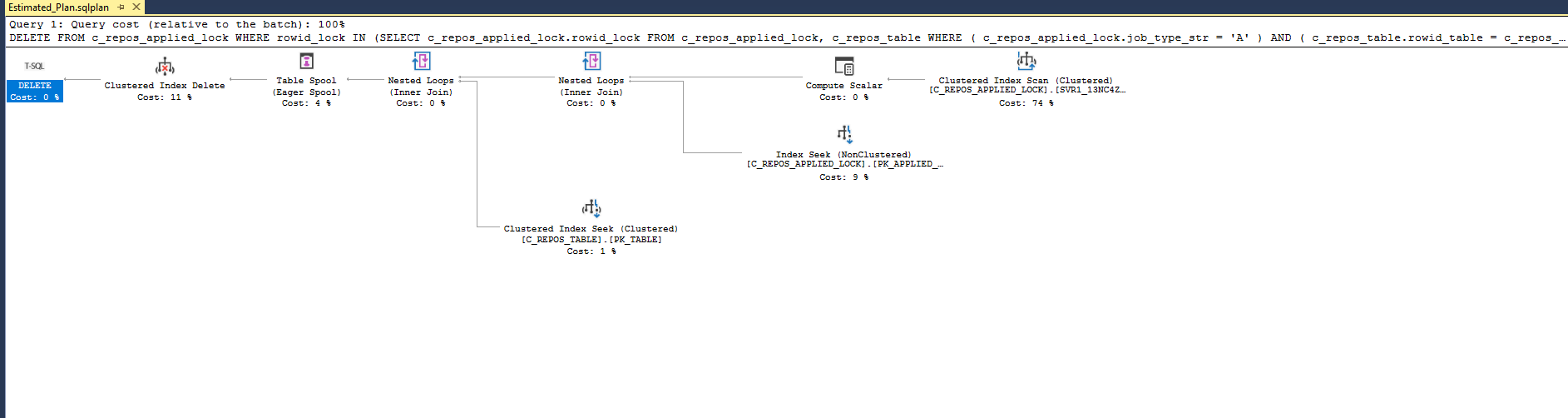

estimated plan

Estimated plan url :

https://www.brentozar.com/pastetheplan/?id=B1uqt4_P3

table structure and indexes

3-table structure and index definitions.txt

Thanks,

Sam

​

Answer 1

The reason you see U locks, is that SQL Server takes these locks while locating the rows. In this case, it scans c_repos_applied_lock and as it finds rows to delete, it takes a U lock which prevents other processes from changing the rows. Readers are not blocked, though.

You should rewrite this condition:

 Datediff (second, c_repos_applied_lock.create_date,
              CURRENT_TIMESTAMP) ) > (
                c_repos_table.batch_lock_wait_seconds * 3 ) ))

so that it reads:

c_repos_applied_lock.create_date < xxx

Where I leave it to you to figure out the logic for xxx. The key is that when you entangle a column in an expression, SQL Server cannot figure out how to use any index on the column.

Then again, since there is a column from the other table in the expression I am not sure how much this will help. And there has to be an index on create_date for it to be worth trying.

Maybe it is better to select the rows to delete into a temp table and then write the DELETE against the temp table. This will reduce the blocking. Although, the rows will be read with shared locks that are released, so other processes could go and do something with the rows. Then again, if they are to be deleted, this may not be an issue.

Answer 2

Hi @Samantha r

Any reason why update locks for delete operation?

In a repeatable read or serializable transaction, a modification requires reading the data first, acquiring a shared lock (S lock) on the resource (page or row), and then modifying the data [this operation requires the lock to be converted to an exclusive lock (X lock)]. If two transactions acquire S lock on the same resource and then attempt to update the data at the same time, the transaction converts the shared lock to X lock. A deadlock occurs because both transactions are converted to X lock, and each transaction must wait for the other transaction to release the S lock before it can acquire X lock, so that neither transaction can complete the conversion, and the deadlock occurs.

To avoid this potential deadlock problem, SQL Server uses update locks (U-locks). Only one transaction at a time can obtain U lock for a resource. When the transaction actually modifies the data, it converts the U lock into X lock.

Why DELETE is slow?

Data modification statements such as INSERT, UPDATE, and DELETE combine read and modify operations. Before the statement can perform the required modification operation, it needs to perform a read operation to obtain the data. Therefore, data modification statements typically request S lock and X lock first. For example, an UPDATE statement might modify rows in one table based on a join with another table. In this case, in addition to requesting an update of the X lock on the row, the UPDATE statement also requests a S lock on the row read in the join table.

Any ways we can re-write of optimize this query.

This includes modifying the statement itself to reduce complexity, modifying the table design, and adjusting the index.

If you suspect that blocking is the cause of the problem, it is necessary to understand the characteristics of the blocking itself. For example, at what time of day does blocking occur? How long does each time last? Is it true that the heavier the application load, the more severe the blockage? Or is blocking more likely to occur when running certain tasks? When the blocking occurs, does it disappear automatically, or does SQL Server have to be restarted to resolve it?

Best regards,

Cosmog Hong

Answer 3

you should profile the sub select. also use statistic io to get actual I/o counts. tune this query until its sub second.

once you have tuned this query, you can work on a locking plan for the delete.
