Want to load the table data to excel file using sink in ADF

Question

Hi,

My requirement is, using table data and load in to excel file. how can we achieve this in ADF?

why because excel is not supported as sink in the ADF. Please help me with detail steps how to implement this requirement.

Answer 1

Bommisetty, Rakesh (Hudson IT Consultant)

Hi Rakesh,

The solution is two fold.

1. you can create the file as delimited file (csv) in ADLS (using copy activity or data flow)
2. then use azure function in python to convert csv to xlsx. Here is the code you can use with Az.Function.

import logging
import time
import pandas as pd
import azure.functions as func
from azure.storage.blob import BlobServiceClient
import os

def main(req: func.HttpRequest) -> func.HttpResponse:
    logging.info('Python HTTP trigger function processed a request.')
    filename = req.params.get('name')
    targetFilename = filename.replace('.csv','.xlsx')
    STORAGEACCOUNTURL= 'https://storageacctname.blob.core.windows.net'
    STORAGEACCOUNTKEY= 'SA Key'
    LOCALFILENAME= '/tmp/'+str(filename)

    CONTAINERNAME= 'yourcontainer/yourinputfolder'
    BLOBNAME= str(filename)
    #download from blob
    t1=time.time()
    blob_service_client_instance = BlobServiceClient(account_url=STORAGEACCOUNTURL, credential=STORAGEACCOUNTKEY)
    blob_client_instance = blob_service_client_instance.get_blob_client(CONTAINERNAME, BLOBNAME, snapshot=None)
    with open(LOCALFILENAME, "wb") as my_blob:
        blob_data = blob_client_instance.download_blob()
        blob_data.readinto(my_blob)
    t2=time.time()
    df = pd.read_csv(LOCALFILENAME)
    df.to_excel('/tmp/'+targetFilename,header=True)
    ROOT_DIR = os.path.abspath(os.path.join(os.path.dirname(__file__), '..'))
    print(ROOT_DIR+'/'+LOCALFILENAME)
    container_client = blob_service_client_instance.get_container_client(container='yourcontainer/youroutputfolder')
    with open(file=os.path.join(ROOT_DIR, LOCALFILENAME), mode="rb") as data:
        blob_client = container_client.upload_blob(name=targetFilename, data=data, overwrite=True)
    return func.HttpResponse('success')

What the above code does:

It downloads the csv file from ADLS and converts it to XLSX locally, in az.function root directory and uploads back to ADLS folder.

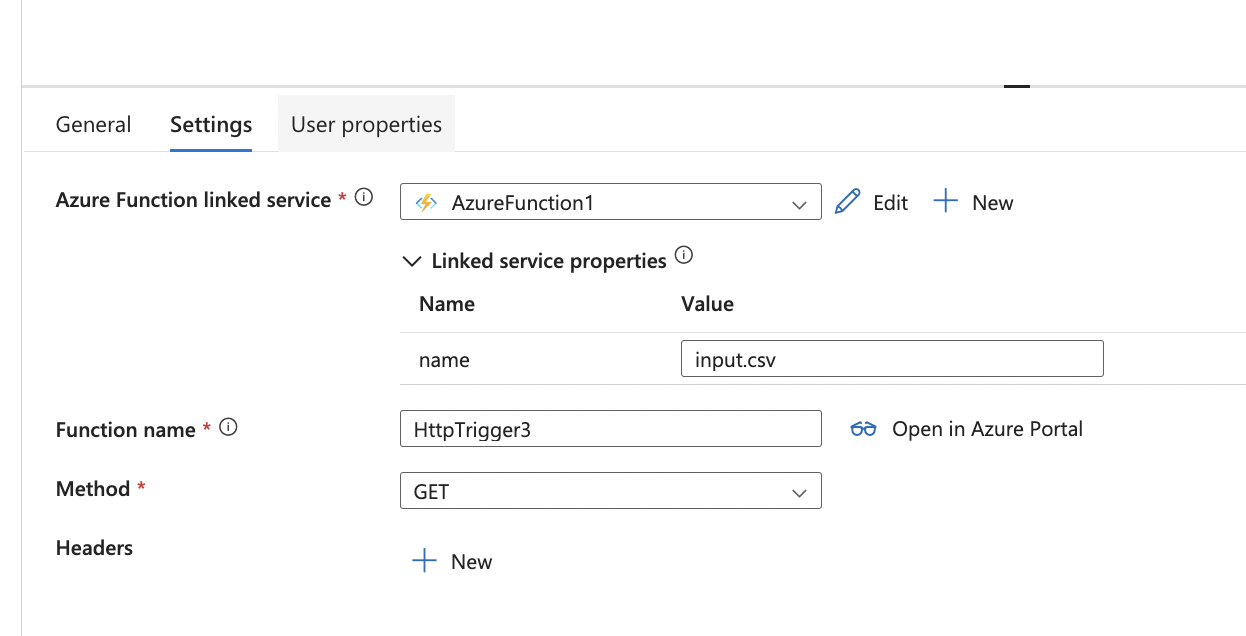

Then, using azure function activity, you can call the function, in my case its HttpTrigger3 and i am passing input.csv as filename

Please let me know if you have questions
