Need to configure distrubuted cahce in existing SharePoint 2019

Question

Need to configure distrubuted cahce in existing SharePoint 2019

sushma Kumari 41

I have setup SharePoint 2019 environment with 1 app , 1 wfe and 1 search server during running SharePoint config wizard. but I forgot about distributed cache service and didn't select any such role for any server. so now How can I configured same in any SharePoint server. Please response asap.

2 answers

Your answer

Answer 1

Xyza Xue_MSFT 30,176 Microsoft External Staff

Hi @sushma Kumari ,

When you plan to implement the Distributed Cache service, consider that the Distributed Cache service can be deployed in two modes: dedicated mode or collocated mode. In dedicated mode, all services other than the Distributed Cache service are stopped on the application server that runs the Distributed Cache service. In collocated mode, the Distributed Cache service runs together with other services on the application server. Dedicated mode is the recommended mode in which to deploy the Distributed Cache service.

Reference:https://learn.microsoft.com/en-us/sharepoint/administration/plan-for-feeds-and-the-distributed-cache-service

When performing the initial configuration of a SharePoint Server farm, perform the following steps in the following order:

If you choose Dedicated mode, first you need to configure another server to implement the Distributed Cache service
Run the Configuration Wizard to join the new server to the server farm. The Distributed Cache service is started on all web servers and application servers in the server farm.
Perform other farm configuration steps as necessary.

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Xyza Xue_MSFT 30,176 Reputation points Microsoft External Staff

2023-06-27T08:16:42.0166667+00:00

We have not received a response from you. Did the reply could help you? If it doesn't work, please let us know the progress.

If the answer is helpful, please click "Accept Answer" and kindly upvote it.
sushma Kumari 41 Reputation points

2023-06-28T08:55:05.1533333+00:00

Thanks for your response. But as I mentioned in my question that we have already created farm and didn't select any server with distributed cache role with app or wfe server. And now we want to configure distributed cache in our sharepoint farm in existing app or wfe server so how we should proceed.
sushma Kumari 41 Reputation points

2023-06-28T08:58:37.6833333+00:00

Hi There ,

Thanks for your response.

But as I mentioned in my question that we have already setup our SharePoint farm with wfe, app and search role and didn't select distrubted cache with any server but now we want to enable cache within existing servers of Sharepoint so how we should proceed.
Xyza Xue_MSFT 30,176 Reputation points Microsoft External Staff

2023-06-28T09:00:25.1633333+00:00

The Distributed Cache service is started on all SharePoint servers at installation time.
sushma Kumari 41 Reputation points

2023-06-28T09:53:42.5366667+00:00

But we didn't select distributed cache role at time of running config wizard so where we can verify where it is started or not and working or not?

Answer 2

Xyza Xue_MSFT 30,176 Microsoft External Staff

Hi @sushma Kumari ,

Verify that the Distributed Cache service is started. To do this, in the SharePoint Central Administration website, click Application Management. In the Service Applications section, click Manage services on server. On the Services on Server page, make sure that the Distributed Cache service is listed, and the status is Started.

It is recommended that you redeploy a new server. When you join a server to an existing farm by using the SharePoint Products Configuration Wizard, select Distributed Cache role.

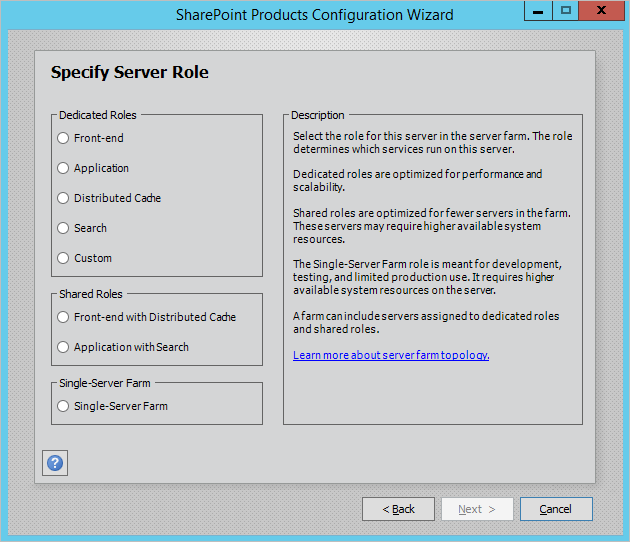

Displays PSConfig dialog with shared roles in SharePoint Server 2016

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

sushma Kumari 41 Reputation points

2023-07-03T07:47:54.33+00:00

Hello,

Service is not listed in CA, I have already verified because at time of configuration wizard , i didn't select any role of distrusted cache but now I want to implement same in existing WFE. So is it possible now to configure cache in existing SharePoint server without added new dedicated server for distributed cache.
Xyza Xue_MSFT 30,176 Reputation points Microsoft External Staff

2023-07-03T07:58:45.37+00:00

You try to run the SharePoint Products Configuration Wizard again in the WFE server to see the result.
sushma Kumari 41 Reputation points

2023-07-03T08:17:44.43+00:00

We have already configured all required services and content migration is in progress with help of ShareGate so I don't have any idea what will impact if we run config wizard again in WFE. and I think second time running config wizard on existing sharepoint server, it will not give option to select role of server.
sushma Kumari 41 Reputation points

2023-07-03T08:22:56.12+00:00

I tried to run command Add-SPDistributedCacheServiceInstance using link https://learn.microsoft.com/en-us/sharepoint/technical-reference/distributed-cache-service-is-not-enabled-in-this-deployment in wfe server after that service is listed in mange services on server.

But it is showing in below image:
sushma Kumari 41 Reputation points

2023-07-03T08:24:42.6766667+00:00
sushma Kumari 41 Reputation points

2023-07-03T08:26:22.79+00:00

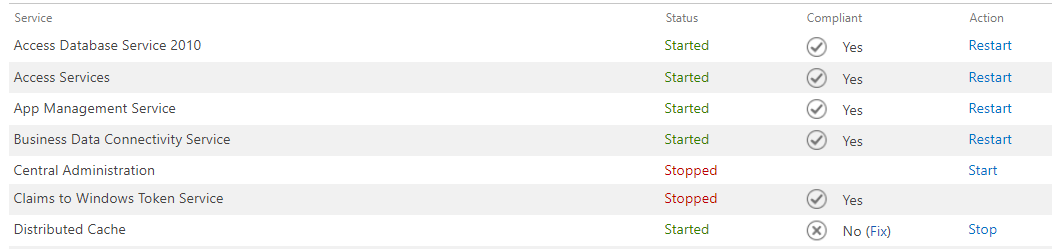

status is not same as other services as you can see below image:
