Visual Studio 17.6.4 ASP.NET Web Application (.NET Framework) wizard

Question

Visual Studio 17.6.4 ASP.NET Web Application (.NET Framework) wizard

DS 0

Hi,

I have upgraded Visual Studio to the latest version and ran the wizard to create a default Web Application (Forms) and the Master page has changed which prevents boot strap working correctly (code behind modals, no gridlines on gridviews, etc)

The new master page is:

<%@ Master Language="C#" AutoEventWireup="true" CodeBehind="Site.master.cs" Inherits="Test1.SiteMaster" %>

<!DOCTYPE html>

<html lang="en">
<head runat="server">
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title><%: Page.Title %> - My ASP.NET Application</title>

    <asp:PlaceHolder runat="server">
        <%: Scripts.Render("~/bundles/modernizr") %>
    </asp:PlaceHolder>
    <webopt:bundlereference runat="server" path="~/Content/css" />
    <link href="~/favicon.ico" rel="shortcut icon" type="image/x-icon" />

</head>
<body>
    <form runat="server">
        <asp:ScriptManager runat="server">
            <Scripts>
                <%--To learn more about bundling scripts in ScriptManager see https://go.microsoft.com/fwlink/?LinkID=301884 --%>
                <%--Framework Scripts--%>
                <asp:ScriptReference Name="MsAjaxBundle" />
                <asp:ScriptReference Name="jquery" />
                <asp:ScriptReference Name="WebForms.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebForms.js" />
                <asp:ScriptReference Name="WebUIValidation.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebUIValidation.js" />
                <asp:ScriptReference Name="MenuStandards.js" Assembly="System.Web" Path="~/Scripts/WebForms/MenuStandards.js" />
                <asp:ScriptReference Name="GridView.js" Assembly="System.Web" Path="~/Scripts/WebForms/GridView.js" />
                <asp:ScriptReference Name="DetailsView.js" Assembly="System.Web" Path="~/Scripts/WebForms/DetailsView.js" />
                <asp:ScriptReference Name="TreeView.js" Assembly="System.Web" Path="~/Scripts/WebForms/TreeView.js" />
                <asp:ScriptReference Name="WebParts.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebParts.js" />
                <asp:ScriptReference Name="Focus.js" Assembly="System.Web" Path="~/Scripts/WebForms/Focus.js" />
                <asp:ScriptReference Name="WebFormsBundle" />
                <%--Site Scripts--%>
            </Scripts>
        </asp:ScriptManager>

        <nav class="navbar navbar-expand-sm navbar-toggleable-sm navbar-dark bg-dark">
            <div class="container">
                <a class="navbar-brand" runat="server" href="~/">Application name</a>
                <button type="button" class="navbar-toggler" data-bs-toggle="collapse" data-bs-target=".navbar-collapse" title="Toggle navigation" aria-controls="navbarSupportedContent"
                    aria-expanded="false" aria-label="Toggle navigation">
                    <span class="navbar-toggler-icon"></span>
                </button>
                <div class="collapse navbar-collapse d-sm-inline-flex justify-content-between">
                    <ul class="navbar-nav flex-grow-1">
                        <li class="nav-item"><a class="nav-link" runat="server" href="~/">Home</a></li>
                        <li class="nav-item"><a class="nav-link" runat="server" href="~/About">About</a></li>
                        <li class="nav-item"><a class="nav-link" runat="server" href="~/Contact">Contact</a></li>
                    </ul>
                    <p class="navbar-text navbar-right">Hello, <asp:LoginName runat="server" />!</p>
                </div>
            </div>
        </nav>
        <div class="container body-content">
            <asp:ContentPlaceHolder ID="MainContent" runat="server">
            </asp:ContentPlaceHolder>
            <hr />
            <footer>
                <p>&copy; <%: DateTime.Now.Year %> - My ASP.NET Application</p>
            </footer>
        </div>
    </form>
    <asp:PlaceHolder runat="server">
        <%: Scripts.Render("~/Scripts/bootstrap.js") %>
    </asp:PlaceHolder></body>
</body>
</html>

it adds an addition </body> tag by default, but even with this removed, it doesn't fix the problem

The old master page (which works) is:

<html lang="en">
<head runat="server">
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Factory Audio</title>

    <asp:PlaceHolder runat="server">
        <%: Scripts.Render("~/bundles/modernizr") %>
    </asp:PlaceHolder>
    <webopt:BundleReference runat="server" Path="~/Content/css" />
    <link href="~/favicon.ico" rel="shortcut icon" type="image/x-icon" />
    <link href="Content/font-awesome.min.css" rel="stylesheet" />
</head>
<body>
    <form runat="server">
        <asp:ScriptManager runat="server">
            <Scripts>
                <%--To learn more about bundling scripts in ScriptManager see https://go.microsoft.com/fwlink/?LinkID=301884 --%>
                <%--Framework Scripts--%>
                <asp:ScriptReference Name="MsAjaxBundle" />
                <asp:ScriptReference Name="jquery" />
                <asp:ScriptReference Name="bootstrap" />
                <asp:ScriptReference Name="WebForms.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebForms.js" />
                <asp:ScriptReference Name="WebUIValidation.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebUIValidation.js" />
                <asp:ScriptReference Name="MenuStandards.js" Assembly="System.Web" Path="~/Scripts/WebForms/MenuStandards.js" />
                <asp:ScriptReference Name="GridView.js" Assembly="System.Web" Path="~/Scripts/WebForms/GridView.js" />
                <asp:ScriptReference Name="DetailsView.js" Assembly="System.Web" Path="~/Scripts/WebForms/DetailsView.js" />
                <asp:ScriptReference Name="TreeView.js" Assembly="System.Web" Path="~/Scripts/WebForms/TreeView.js" />
                <asp:ScriptReference Name="WebParts.js" Assembly="System.Web" Path="~/Scripts/WebForms/WebParts.js" />
                <asp:ScriptReference Name="Focus.js" Assembly="System.Web" Path="~/Scripts/WebForms/Focus.js" />
                <asp:ScriptReference Name="WebFormsBundle" />
                <%--Site Scripts--%>
            </Scripts>
        </asp:ScriptManager>

The bootstrap reference has moved from a Script:Reference to a PlaceHolder,

Any help would be appreciated.

Lan Huang-MSFT 30,186 Reputation points Microsoft External Staff

2023-06-26T09:31:12.02+00:00

Hi @DS,

This should have nothing to do with the VS update, it may be a problem with the code, or it may be a problem with the bootstrap version, maybe you can provide the code of the content page.

PlaceHolder is just a container, bootstrap.js can be used normally.

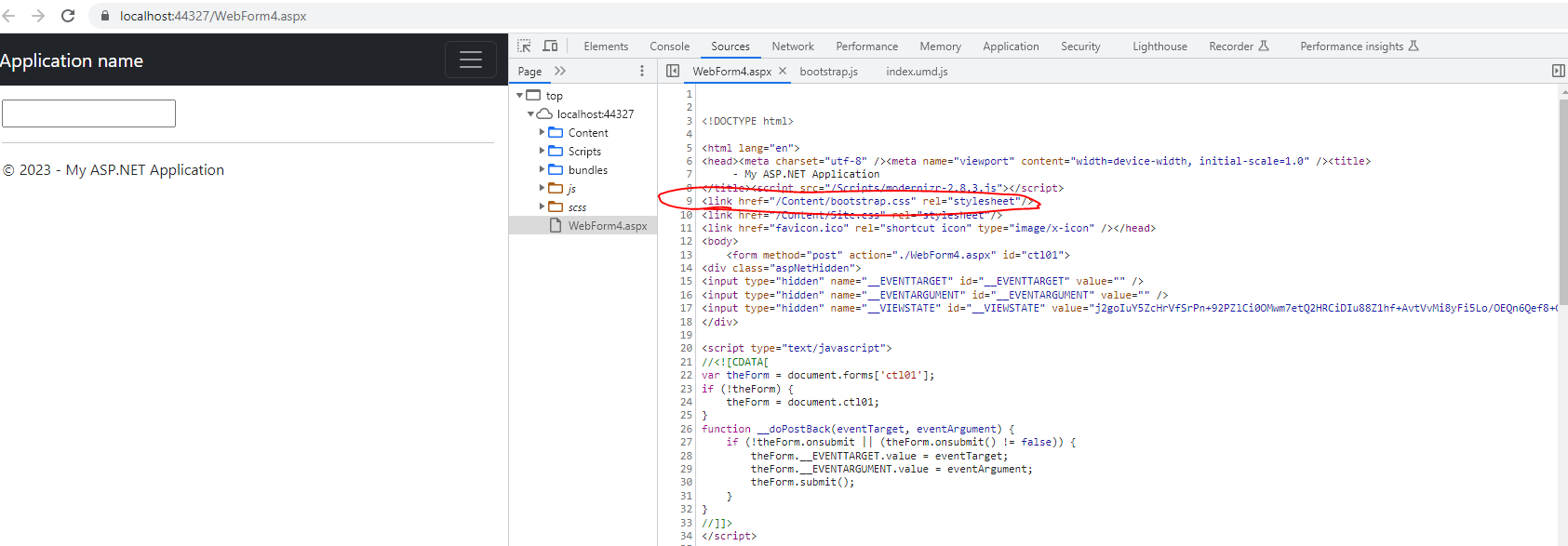

You can view the source code through your browser.

1 answer

Your answer

Lan Huang-MSFT 30,186 Reputation points Microsoft External Staff

2023-06-26T09:31:12.02+00:00

Hi @DS,

This should have nothing to do with the VS update, it may be a problem with the code, or it may be a problem with the bootstrap version, maybe you can provide the code of the content page.

PlaceHolder is just a container, bootstrap.js can be used normally.

You can view the source code through your browser.

Answer 1

I cannot reproduce the problems you've described with the latest Visual Studio version 17.6.4. The Gridview CSS and the modal work as documented in Bootstrap 5.2.

https://getbootstrap.com/docs/5.2/components/modal/

https://getbootstrap.com/docs/5.2/content/tables/

<%@ Page Title="" Language="C#" MasterPageFile="~/Site.Master" AutoEventWireup="true" CodeBehind="ModalEx.aspx.cs" Inherits="WebApplication1.ModalEx" %>
<asp:Content ID="Content1" ContentPlaceHolderID="MainContent" runat="server">
    <!-- Button trigger modal -->
<button type="button" class="btn btn-primary" data-bs-toggle="modal" data-bs-target="#exampleModal">
  Launch demo modal
</button>

<!-- Modal -->
<div class="modal fade" id="exampleModal" tabindex="-1" aria-labelledby="exampleModalLabel" aria-hidden="true">
  <div class="modal-dialog">
    <div class="modal-content">
      <div class="modal-header">
        <h1 class="modal-title fs-5" id="exampleModalLabel">Modal title</h1>
        <button type="button" class="btn-close" data-bs-dismiss="modal" aria-label="Close"></button>
      </div>
      <div class="modal-body">
        ...
      </div>
      <div class="modal-footer">
        <button type="button" class="btn btn-secondary" data-bs-dismiss="modal">Close</button>
        <button type="button" class="btn btn-primary">Save changes</button>
      </div>
    </div>
  </div>
</div>

    <div>
        <asp:GridView CssClass="table" ID="GridView1" runat="server"></asp:GridView>
    </div>
</asp:Content>

namespace WebApplication1
{
    public partial class ModalEx : System.Web.UI.Page
    {
        public class TestData
        {
            public int Id { get; set; }
            public string Name { get; set; }
        }
        protected void Page_Load(object sender, EventArgs e)
        {
            List<TestData> data = new List<TestData>()
            {
                new TestData() { Id=1, Name="Item 1" },
                new TestData() { Id=2, Name="Item 2" },
                new TestData() { Id=3, Name="Item 3" }
            };

            GridView1.DataSource = data;
            GridView1.DataBind();
        }
    }
}
