how to add button(s) in grid layout in xamarin android

Question

Hello

I have a gridview that i fill it using a baseadapter and i use a gridlayout to display.

I would like to add button for each row but not to the header

here the class adapter

class listbirthdateadapter : BaseAdapter<Classdatabirth>
    {
        private Context context;
        private List<Classdatabirth> listbirthdate;
  public listbirthdateadapter(Context thecontext, List<Classdatabirth> Listresult) :base()
        {
            this.context = thecontext;
            this.listbirthdate = Listresult;
        }
        public override Classdatabirth this[int position]
        {
            get { return listbirthdate[position]; }
        }
        public override int Count
        {
            get { return listbirthdate.Count; }
        }
        public override long GetItemId(int position)
        {
            return position;
        }
        public override View GetView(int position, View convertView, ViewGroup parent)
        {
            var item = listbirthdate[position];
            View view = convertView; // re-use an existing view, if one is available
            if (view == null) // otherwise create a new one
            {
               // view = activity.LayoutInflater.Inflate(Resource.Layout.griditem, null);


                LayoutInflater inflater = (LayoutInflater)context.GetSystemService(Context.LayoutInflaterService);
                view = inflater.Inflate(Resource.Layout.tablebirthdate, null);

            }
            else
            {
                view = convertView;
            }
             view.FindViewById<TextView>(Resource.Id.tablenamebirth).Text = item.namebirth;
             view.FindViewById<TextView>(Resource.Id.tablesurname).Text = item.surname;
             view.FindViewById<TextView>(Resource.Id.tabledatebirth).Text = item.datebirth;
             view.FindViewById<TextView>(Resource.Id.tableremain).Text = item.remain;

            if (position == 0)
            {
                view.SetBackgroundResource(Resource.Drawable.itemstat);

            }
             else
            {
                view.SetBackgroundResource(Resource.Drawable.itemmark);
             }

            return view;
        }
    }

and the xml

<?xml version="1.0" encoding="utf-8"?>
<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation= "horizontal"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
     android:background="#ff71216c"
   android:columnCount="4"
   >

    <TextView
        android:id="@+id/tableremain"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

         />

     <TextView
        android:id="@+id/tabledatebirth"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
         android:fontFamily="calibri"
        android:textColor="#ffffffff"
         android:layout_columnWeight= "1"

         />
    <TextView
        android:id="@+id/tablesurname"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

          />
    <TextView
        android:id="@+id/tablenamebirth"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"

        android:layout_columnWeight= "1"
         />
</GridLayout>

Thanks

Answer 1

Hello,

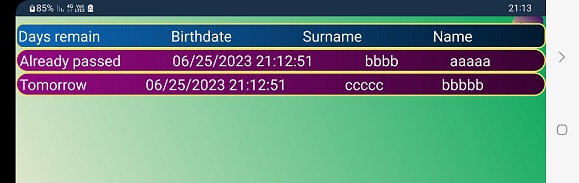

You can display Title and GridView items separately. For example, You can add a Girdlayout( display the Title) above your gridview like following layout. And add button to your tablebirthdate layout.

Because listview have a reuse layout issue, So I recommend you add a Girdlayout( display the Title) above your gridview.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    android:orientation="vertical"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <GridLayout
        android:layout_width="match_parent"
        android:layout_height="30dp"
        android:orientation="horizontal"
        android:id="@+id/gridLayout1"
        android:columnCount="5"
        android:background="#ff71216c"
      >

     <TextView
        android:text="Day remain"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

         />

     <TextView
        android:text="Birthdate"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

         />
    <TextView
        android:text="Surname"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

          />
    <TextView
        android:text="Name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"
         />
        <Button
             android:layout_width="wrap_content"
             android:layout_height="wrap_content"
             android:text="hide"
             android:layout_columnWeight= "1"
             android:visibility="invisible"/>
    </GridLayout>

    <GridView
        android:id="@+id/gridview"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        />

</LinearLayout>

Then you can move the SetBackgroundResource from adapter to the OnCreate method.

           GridLayout gridLayout1 = FindViewById<GridLayout>(Resource.Id.gridLayout1);
            gridLayout1.SetBackgroundResource(Resource.Drawable.itemstat);

Next, you can add button in your tablebirthdate.xml.

<?xml version="1.0" encoding="utf-8"?>
<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation= "horizontal"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#ff71216c"
    android:columnCount="5"
   >

    <TextView
        android:id="@+id/tableremain"
        android:text="test1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

         />

     <TextView
         android:text="test1"
        android:id="@+id/tabledatebirth"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
         android:fontFamily="calibri"
        android:textColor="#ffffffff"
         android:layout_columnWeight= "1"

         />
    <TextView
         android:text="test1"
        android:id="@+id/tablesurname"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"

          />
    <TextView
         android:text="test1"
        android:id="@+id/tablenamebirth"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="22sp"
        android:fontFamily="calibri"
        android:textColor="#ffffffff"
        android:layout_columnWeight= "1"
         />
<Button
        android:id="@+id/button1"
        android:text="add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
         android:layout_columnWeight= "1"/>
</GridLayout>

Best Regards,

Leon Lu

---
