What is the maximum horizontal resolution size recognized by Windows 10?

Question

OS : Windows10 Enterprise(22H2)

HW : Xeon 6226R 2ea, Memory 640GB, GPU RTX A40004ea(3840x216016ea)

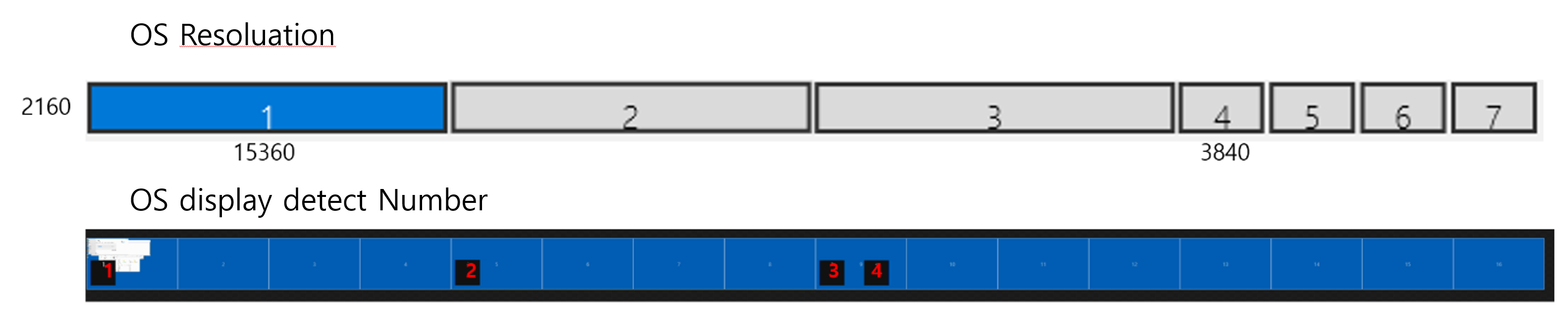

I configured a resolution of 61440x2160 using an Nvidia RTX A4000 card.

When display detect is executed, horizontal resolution up to 46080 is recognized normally

After that it doesn't work normally.

What is the maximum horizontal resolution size supported by window 10?

Answer 1

Hello

Windows does have a hard limit on maximum resolution and overall pixel count. The maximum continuous windows desktop available is up to 32k horizontal pixels by up to 32k vertical pixels with an overall pixel limit of 128 million pixels. However, it’s important to note that these are theoretical limits and the actual limit can be affected by the hardware in use.

In your case, the Nvidia RTX A4000 graphics card should be capable of handling very high resolutions. However, reaching extremely high resolutions like 61440x2160 can be challenging due to several factors:

Driver Support: The graphics card driver must support the desired resolution. Even if the hardware is theoretically capable, a lack of driver support can limit the available resolutions.

Display Capabilities: The connected display or monitor must also support the desired resolution. Monitors have their own maximum resolutions, and if the monitor can't handle the resolution you're setting, it won't work.

Video Output Interfaces: The video output interfaces (e.g., HDMI, DisplayPort) on the graphics card and monitor must support the desired resolution. Some interfaces have limitations on the maximum supported resolution.

Video Memory: Extremely high resolutions require a significant amount of video memory on the graphics card. Ensure that your graphics card has enough VRAM to support the resolution you're trying to achieve.

System Resources: Very high resolutions can be demanding on system resources, including the GPU and CPU. Ensure that your system has sufficient resources to handle the resolution effectively.

In your case, the maximum recognized resolution of 46080x2160 suggests that the combination of your graphics card, driver, and monitor may not support the full 61440x2160 resolution.

Keep in mind that extremely high resolutions are often used in specialized applications, such as video wall setups, medical imaging, or scientific visualization, and may require specific hardware and software configurations to achieve optimal performance.
