HAXM installation in azure vm

Question

HAXM installation in azure vm

Adhith Gopal 10

Hello Team,

I am trying to instance HAXM in my azure vm(v2 d3 instance - hyper-v is installed), but haxm complaints that VMX is not enabled. And when i search as to how to enable vmx every source points that it should be enabled from BIOS. So in azure vm how do i enable VMX.

And is it possible to run android emulator in azure vm v2 d3 or is it not possible.

Sedat SALMAN 14,180 Reputation points MVP

2023-07-04T11:17:57.6033333+00:00
You can follow this article which machine types support VMX on Azure

https://www.nakivo.com/blog/hyper-v-nested-virtualization-on-azure-complete-guide/#:~:text=Using%20the%20Azure%20nested%20virtualization,Hyper%2DV%20VMs%20to%20Azure.

https://cloudlabs.ai/blog/how-to-enable-nested-virtualization-in-microsoft-azure/

I think you selected the correct version but you need to enable VMX on hyperV-VM also

To enable VMX for a Hyper-V VM you can run the following command (https://learn.microsoft.com/en-us/virtualization/hyper-v-on-windows/user-guide/nested-virtualization)

Set-VMProcessor -VMName <VMName> -ExposeVirtualizationExtensions $true
Saim Anjum 0 Reputation points

2023-07-04T11:26:24.84+00:00

To run the Android Emulator on an Azure VM, you need to choose a VM size that supports something called “nested virtualization.” One such size is D3_v3. The v2 D-series, however, does not support this feature. Also, it’s important to note that you don’t need to install Hyper-V.

As for running the Android Emulator on an Azure VM, it is possible, but it only runs on a specific type of agent called the “Hosted macOS agent.”

Hope this helps!
Adhith Gopal 10 Reputation points

2023-07-04T11:27:36.4166667+00:00

@Sedat SALMAN Hello salman, thanks for you response. But i am not creating a vm inside my azure vm(the actual nested case), but i am trying to directly run android emulator inside the azure vm(not nested vm). I get that android emulator itself is an separate vm but for my case i have to install HAXM inside azure vm. When doing this it says VMX enabled - No. So wanted to know how to enable VMX for my root azure vm.

To my knowledge this command - Set-VMProcessor -VMName <VMName> -ExposeVirtualizationExtensions $true is used to enable VMX in nested vm(vm created inside azure vm) kindly correct me if i am wrong.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-04T12:10:37.2866667+00:00

yes you are right
at first, i thought you are trying to install your emulator inside Hyper-V sorry for the misunderstanding

I added a link below

https://learn.microsoft.com/en-us/azure/virtual-machines/acu

here you can see which VMs support VMX three * machines are Intel four * machines are AMD

for example D_v3 or Ds_v3
Adhith Gopal 10 Reputation points

2023-07-04T12:44:31.91+00:00

Thanks again for the information mine is Standard_D2s_v3 and i see in the doc that virtualization is supported but how do i enable this in the vm. I am not able to find any options to enable that or maybe i am missing something. If you know any such options to enable that option do let me know.
Adhith Gopal 10 Reputation points

2023-07-05T06:46:28.33+00:00

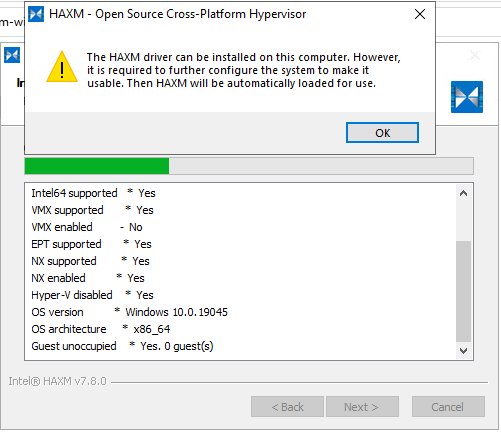

@Prrudram-MSFT Thanks for your response but this does not answer my question, i am attaching screenshots of the error i am facing. So if you see in the image VMX enabled - No, how do i enable this option in my azure vm. And is using bluestacks recommended?
Adhith Gopal 10 Reputation points

2023-07-05T06:47:24.2966667+00:00

@Saim Anjum Thanks for your response, but your comment does not seem to help me out or may be i am missing something.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-05T07:22:02.63+00:00

Hi Adhith

the error is interesting since it should be enabled by default

can you check the following link on how to enable virtualization inside Windows machine

https://www.simplilearn.com/enable-virtualization-windows-10-article
Adhith Gopal 10 Reputation points

2023-07-05T09:02:58.4433333+00:00

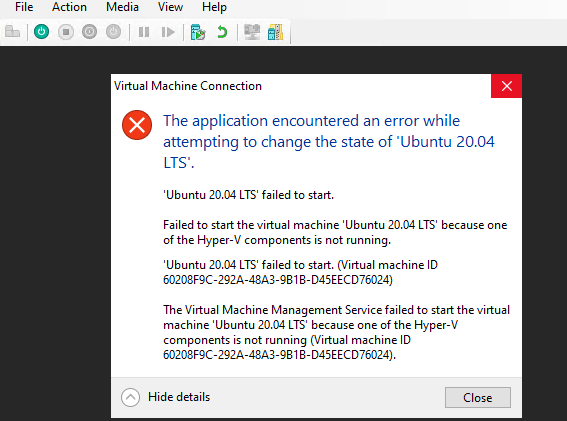

Hi @Sedat SALMAN - Checked that info but those are for physical machines i guess. And now i tried to create a nested vm and creation was successful but trying to run throws an error,

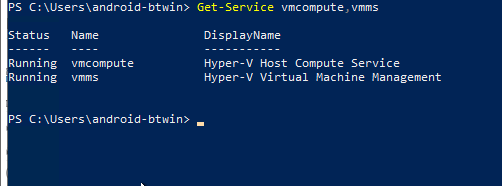

I checked the hyper-V status it is running,

I guess there seems to be some issue with the azure vm maybe i should try with other vm size's.
Adhith Gopal 10 Reputation points

2023-07-05T13:15:43.53+00:00

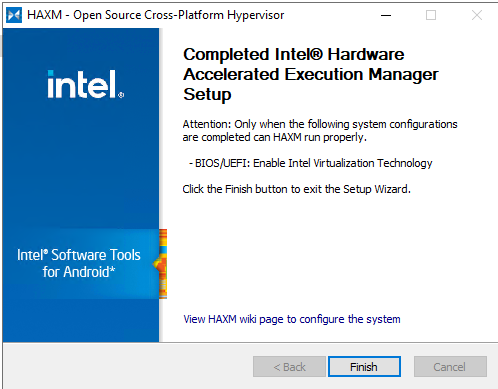

The real issue wrt installing HAXM was because of GEN-2 VM configuration as pointed out by https://stackoverflow.com/questions/76614055/not-able-to-install-haxm-in-azure-vm

Now i was able to install HAXM, but not able to run android emulator :( it says running emulator on nested virtualization it may not work and emulator also is crashing. Any help to solve this issue would be appreciated, i am also trying out different vm configs to see if something works out.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-06T05:39:40.1666667+00:00

I agree with you i thiunk it is azure related problem
Prrudram-MSFT 28,206 Reputation points Moderator

2023-07-24T09:08:45.9+00:00

@Adhith Gopal Did you make any progress. I did some research and found the below thread where a few users had success. Please take a look https://learn.microsoft.com/en-us/answers/questions/291766/can-i-make-android-emulator-run-on-azure-virtual-m

1 answer

Your answer

Sedat SALMAN 14,180 Reputation points MVP

2023-07-04T11:17:57.6033333+00:00

You can follow this article which machine types support VMX on Azure

https://www.nakivo.com/blog/hyper-v-nested-virtualization-on-azure-complete-guide/#:~:text=Using%20the%20Azure%20nested%20virtualization,Hyper%2DV%20VMs%20to%20Azure.

https://cloudlabs.ai/blog/how-to-enable-nested-virtualization-in-microsoft-azure/

I think you selected the correct version but you need to enable VMX on hyperV-VM also

To enable VMX for a Hyper-V VM you can run the following command (https://learn.microsoft.com/en-us/virtualization/hyper-v-on-windows/user-guide/nested-virtualization)

Set-VMProcessor -VMName <VMName> -ExposeVirtualizationExtensions $true
Saim Anjum 0 Reputation points

2023-07-04T11:26:24.84+00:00

To run the Android Emulator on an Azure VM, you need to choose a VM size that supports something called “nested virtualization.” One such size is D3_v3. The v2 D-series, however, does not support this feature. Also, it’s important to note that you don’t need to install Hyper-V.

As for running the Android Emulator on an Azure VM, it is possible, but it only runs on a specific type of agent called the “Hosted macOS agent.”

Hope this helps!
Adhith Gopal 10 Reputation points

2023-07-04T11:27:36.4166667+00:00

@Sedat SALMAN Hello salman, thanks for you response. But i am not creating a vm inside my azure vm(the actual nested case), but i am trying to directly run android emulator inside the azure vm(not nested vm). I get that android emulator itself is an separate vm but for my case i have to install HAXM inside azure vm. When doing this it says VMX enabled - No. So wanted to know how to enable VMX for my root azure vm.

To my knowledge this command - Set-VMProcessor -VMName <VMName> -ExposeVirtualizationExtensions $true is used to enable VMX in nested vm(vm created inside azure vm) kindly correct me if i am wrong.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-04T12:10:37.2866667+00:00

yes you are right
at first, i thought you are trying to install your emulator inside Hyper-V sorry for the misunderstanding

I added a link below

https://learn.microsoft.com/en-us/azure/virtual-machines/acu

here you can see which VMs support VMX three * machines are Intel four * machines are AMD

for example D_v3 or Ds_v3
Adhith Gopal 10 Reputation points

2023-07-04T12:44:31.91+00:00

Thanks again for the information mine is Standard_D2s_v3 and i see in the doc that virtualization is supported but how do i enable this in the vm. I am not able to find any options to enable that or maybe i am missing something. If you know any such options to enable that option do let me know.
Adhith Gopal 10 Reputation points

2023-07-05T06:46:28.33+00:00

@Prrudram-MSFT Thanks for your response but this does not answer my question, i am attaching screenshots of the error i am facing. So if you see in the image VMX enabled - No, how do i enable this option in my azure vm. And is using bluestacks recommended?
Adhith Gopal 10 Reputation points

2023-07-05T06:47:24.2966667+00:00

@Saim Anjum Thanks for your response, but your comment does not seem to help me out or may be i am missing something.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-05T07:22:02.63+00:00

Hi Adhith

the error is interesting since it should be enabled by default

can you check the following link on how to enable virtualization inside Windows machine

https://www.simplilearn.com/enable-virtualization-windows-10-article
Adhith Gopal 10 Reputation points

2023-07-05T09:02:58.4433333+00:00

Hi @Sedat SALMAN - Checked that info but those are for physical machines i guess. And now i tried to create a nested vm and creation was successful but trying to run throws an error,

I checked the hyper-V status it is running,

I guess there seems to be some issue with the azure vm maybe i should try with other vm size's.
Adhith Gopal 10 Reputation points

2023-07-05T13:15:43.53+00:00

The real issue wrt installing HAXM was because of GEN-2 VM configuration as pointed out by https://stackoverflow.com/questions/76614055/not-able-to-install-haxm-in-azure-vm

Now i was able to install HAXM, but not able to run android emulator :( it says running emulator on nested virtualization it may not work and emulator also is crashing. Any help to solve this issue would be appreciated, i am also trying out different vm configs to see if something works out.
Sedat SALMAN 14,180 Reputation points MVP

2023-07-06T05:39:40.1666667+00:00

I agree with you i thiunk it is azure related problem
Prrudram-MSFT 28,206 Reputation points Moderator

2023-07-24T09:08:45.9+00:00

@Adhith Gopal Did you make any progress. I did some research and found the below thread where a few users had success. Please take a look https://learn.microsoft.com/en-us/answers/questions/291766/can-i-make-android-emulator-run-on-azure-virtual-m

Answer 1

Prrudram-MSFT 28,206 Moderator

@Adhith Gopal

You might as well can check these links for help

https://www.technocyrex.com/2021/06/how-to-run-andriod-emulators-in-azure.html

https://stackoverflow.com/questions/30191202/is-there-any-way-that-i-can-make-android-emulator-run-on-azure-virtual-machine

If this does answer your question, please accept it as the answer as a token of appreciation.
