Protect JSON formatting in SharePoint lists when making the fields inline editable

Question

I am having issues when trying to use JSON to format my SharePoint lists.

I am able to apply graphical formatting but this formatting disappears when I try to also make the field inline editable.

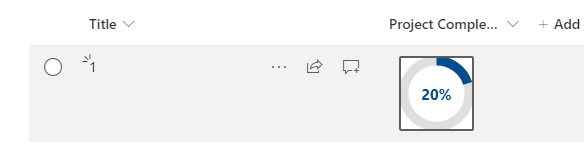

I am thinking I am putting my inline edit JSON in the wrong space but am not sure. As you can see below, I have a circular graphic that disappears when I try to make the field editable.

Any help would be greatly appreciated!

Answer 1

Hi @Nicole Junk,

Thanks for the detailed description.

There is nothing wrong with your whole JSON, your inline editable property should be in the front so that it's working for the whole column. Here is my modified JSON. I added "inlineEditField" in the third line.

{
	"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
   "elmType": "div",
   "inlineEditField": "@currentField",
   The next JSON stays the same as yours
}

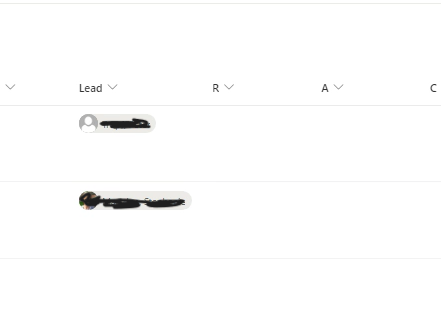

Here is my test result:

After the value is changed, the graphical formatting can be displayed normally.

In addition, if the problem persists after you make the changes, try clearing your browser cache and checking again.

---
