MRTK Spatial Awareness System

Question

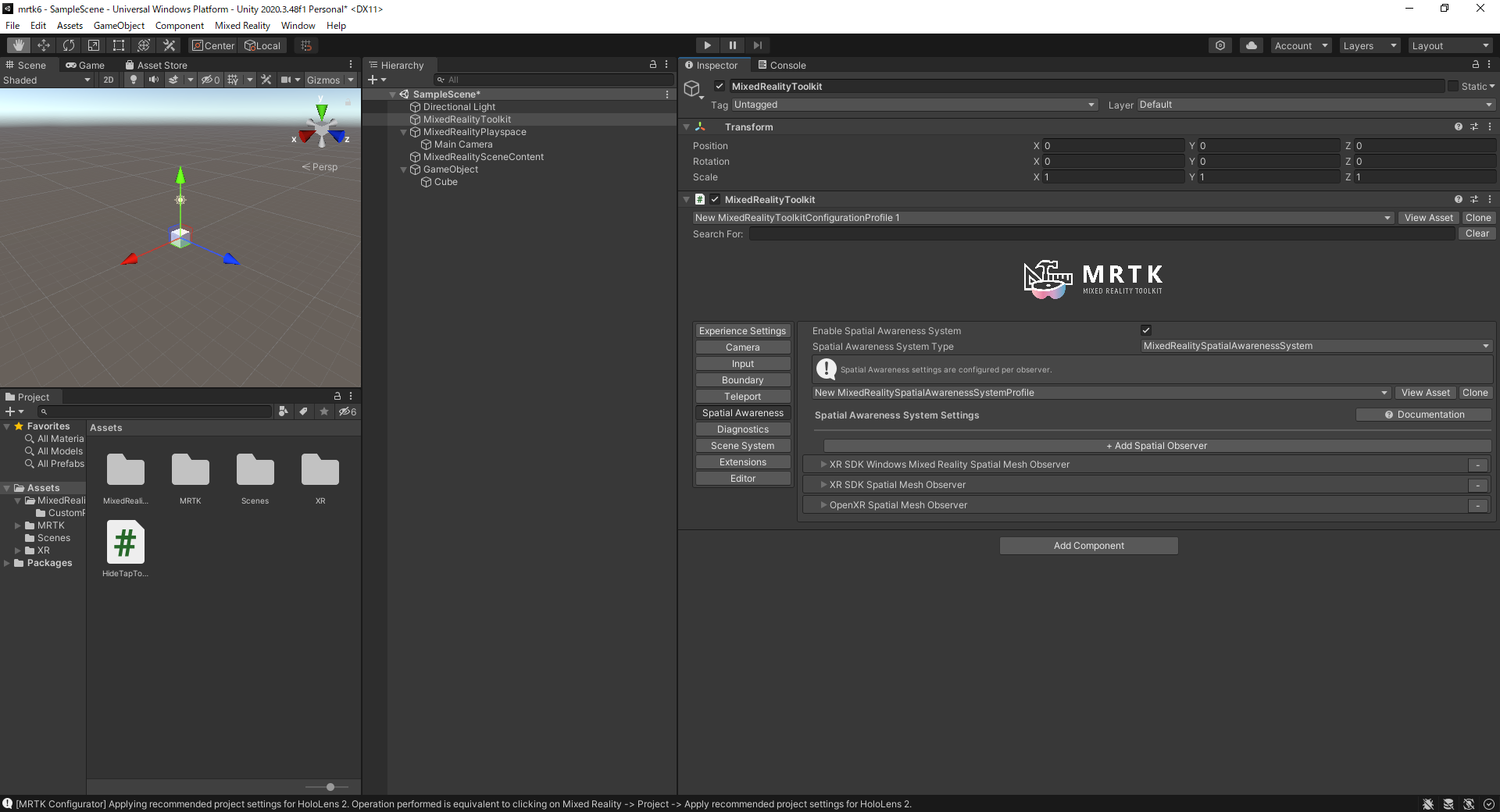

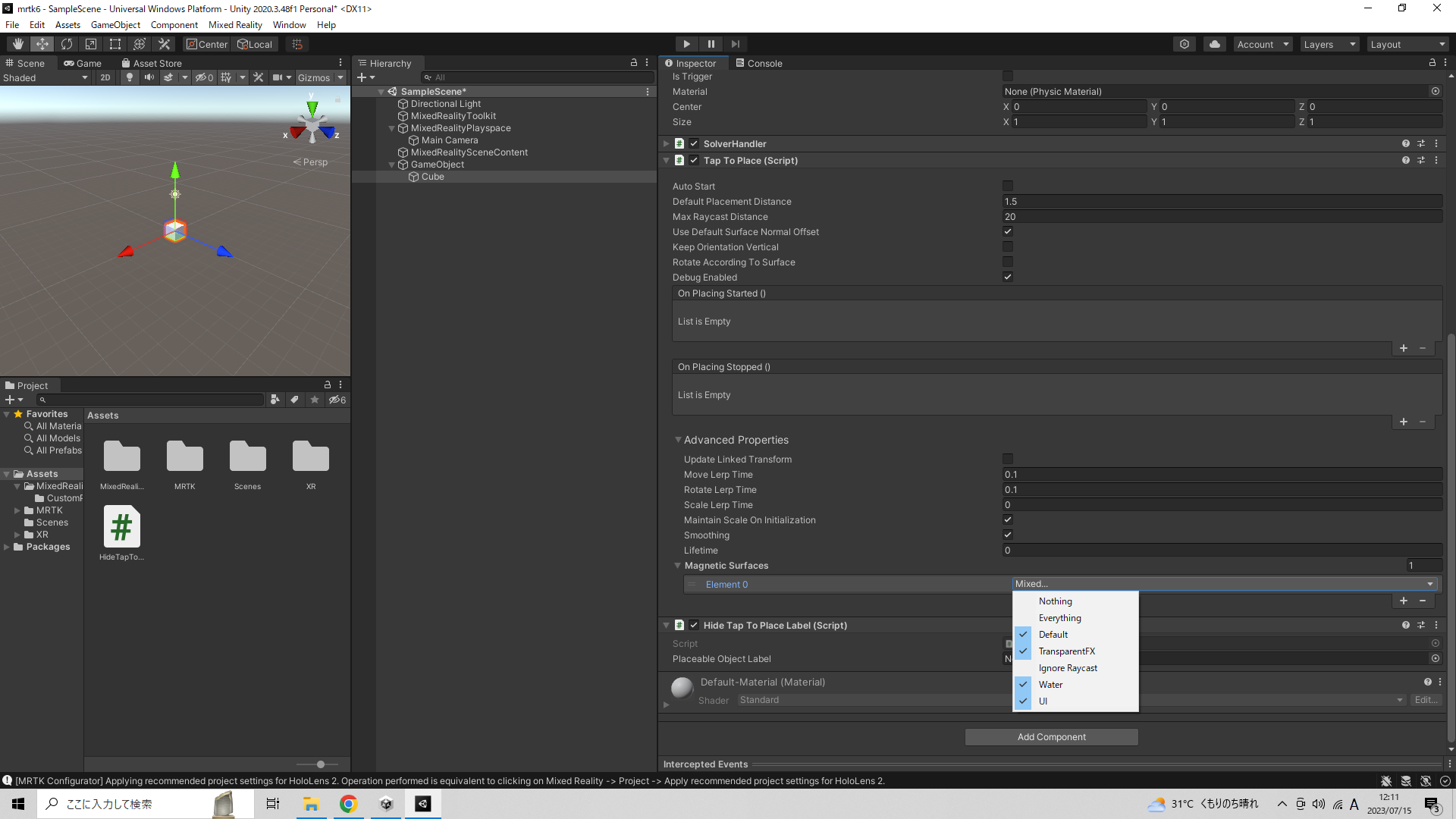

We are currently building an environment for HoloLens2 using MRTK and have made the Spatial Awareness System available by cloning MRTK. However, the Spatial Awareness System is not selected in the "tap to place" setting for the magnetic surface of the created cube component. The URL of the video I referred to is attached below. I have followed these settings, but if there are any missing parts or solutions, please let me know.

https://youtu.be/v0-BACt3c_o

Answer 1

Hello, Welcome to Microsoft Q&A,

By default, MRTK will reserve layer 31 for Spatial Awareness. Please refer to Configuring mesh observers for device - MRTK 2 | Microsoft Learn. If there is no Spatial Awareness in Unity Layers you can try to add it manually or re-import MRTK.

---
