Extract elements in an array of complex object in Azure Data Factory dataflow

Question

Hello, in a json document there's a field items, which is an array of complex object

{
	"id": 1234,
	"items": [
        {
            "id": 1,
            "name": "A",
            "owners": [
                "Bob",
                "Steve"
            ]
        },
        {
            "id": 2,
            "name": "B",
            "owners": [
                "Mike"
            ]
        },
        {
            "id": 3,
            "name": "A",
            "owners": [
                "Bob",
				"Mike"
            ]
        }
    ]
}

In the ADF dataflow, I would like to extract items.name and items.owners into separate arrays and distinct the values in the new arrays. So in the output, there will be two new array fields:

{
	"id": 1234,
	"itemNames": ["A", "B"],
	"itemOwners": ["Bob", "Steve", "Mike"]
}

I tried the flatten activity in dataflow but it unrolls the items object into individual rows, which is not what I expect. I also tried to add mapping in DerivedColumns activity as the screenshot, but items.name turns out to be a string instead of an array. What would be the best way to exact all the item names inside the items array? Any suggestions would be appreciated! Thank you!

Answer 1

Hi Zixuan Li ,

Thankyou for using Microsoft Q&A platform and thanks for posting your question here.

As per my understanding , you want to transform the json data using mapping dataflow. Please let me know if that is not the case.

To achieve the desired result, you just need a flatten transformation and an aggregate transformation.

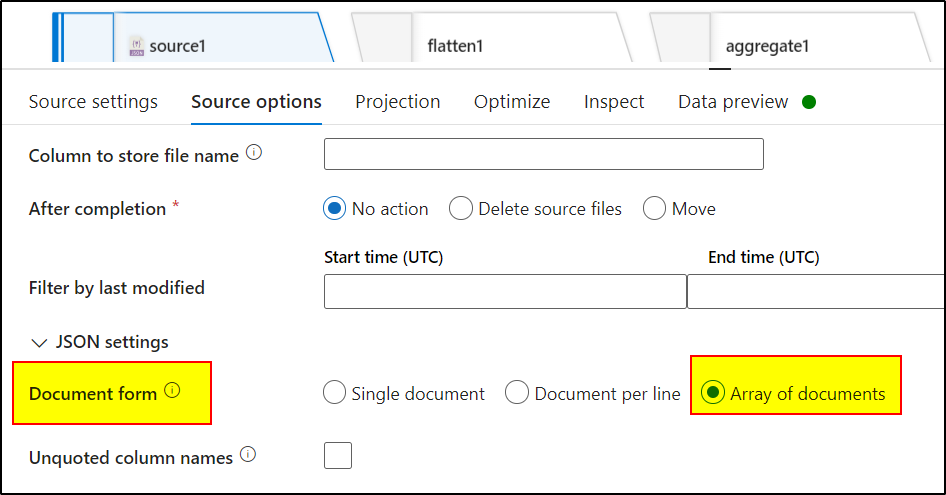

• First of all, in source transformation , select document form as 'array of documents' under json settings in source option.

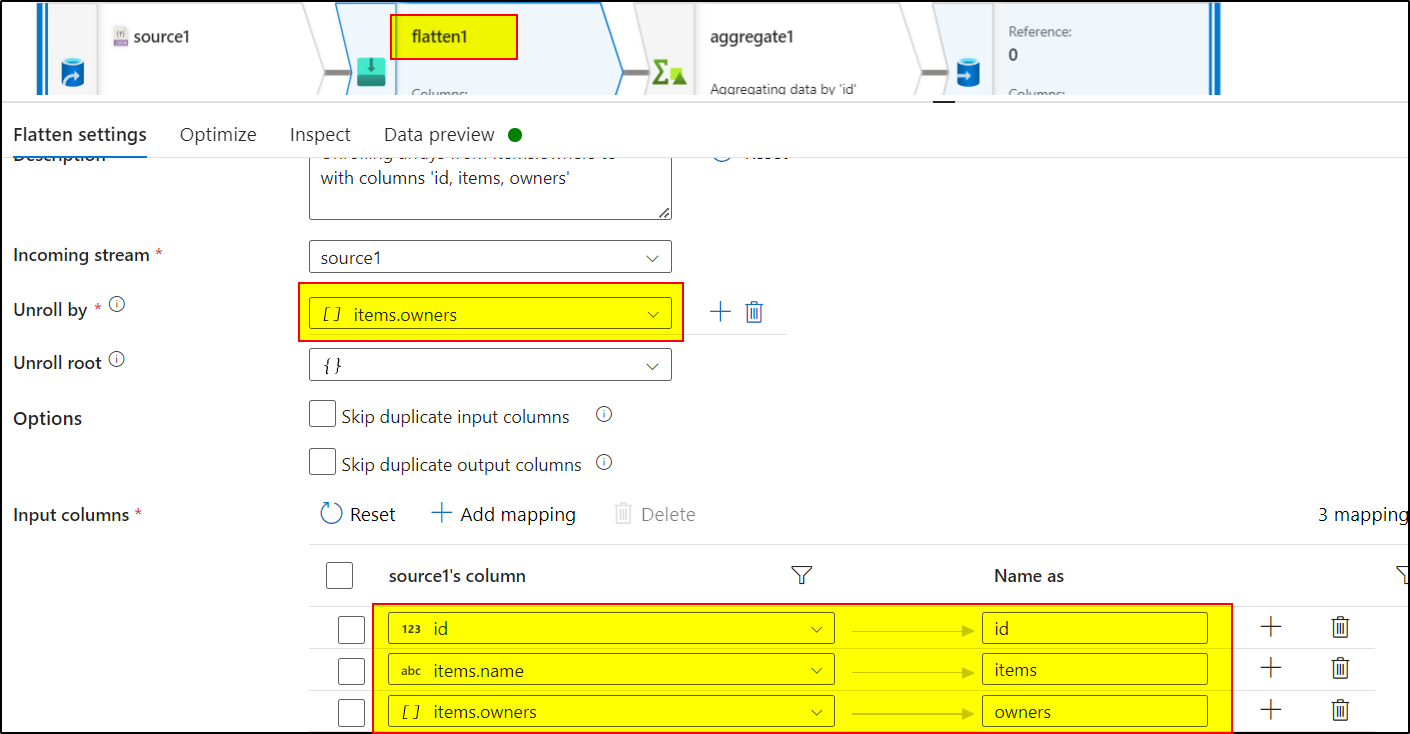

• Now, use a flatten transformation to convert the json data into tabular format

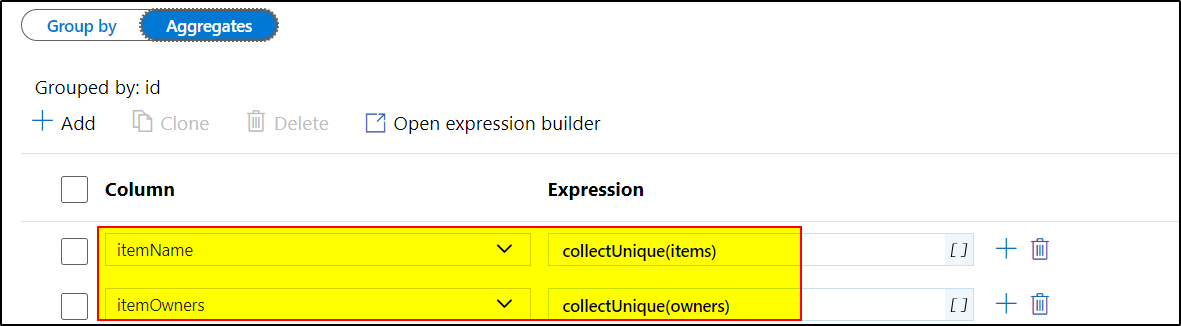

• Use aggregate transformation to group by 'id' and in aggregates tab, create two columns 'itemNames' : collectUnique(items) and 'itemOwners': collectUnique(owners)

• Now load the data using sink transformation in json file.

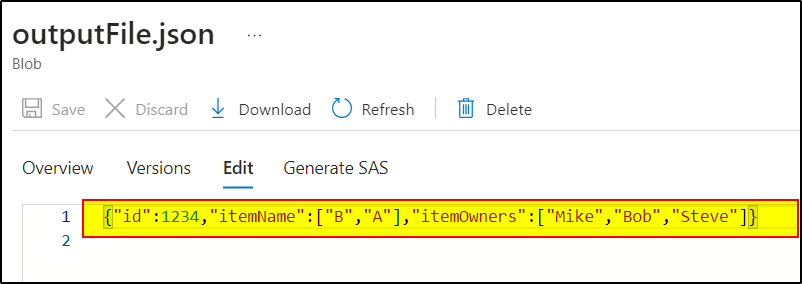

Look at the output file:

Hope it helps. Please accept the answer if it's helpful. Thankyou
