I am having a problem with File Upload device sample

Viraj Kamat 40

Hello , I have followed the instructions as mentioned in Microsoft documentation for uploading a file. https://learn.microsoft.com/en-us/samples/azure-samples/iot-central-file-upload-device/iotc-file-upload-device/

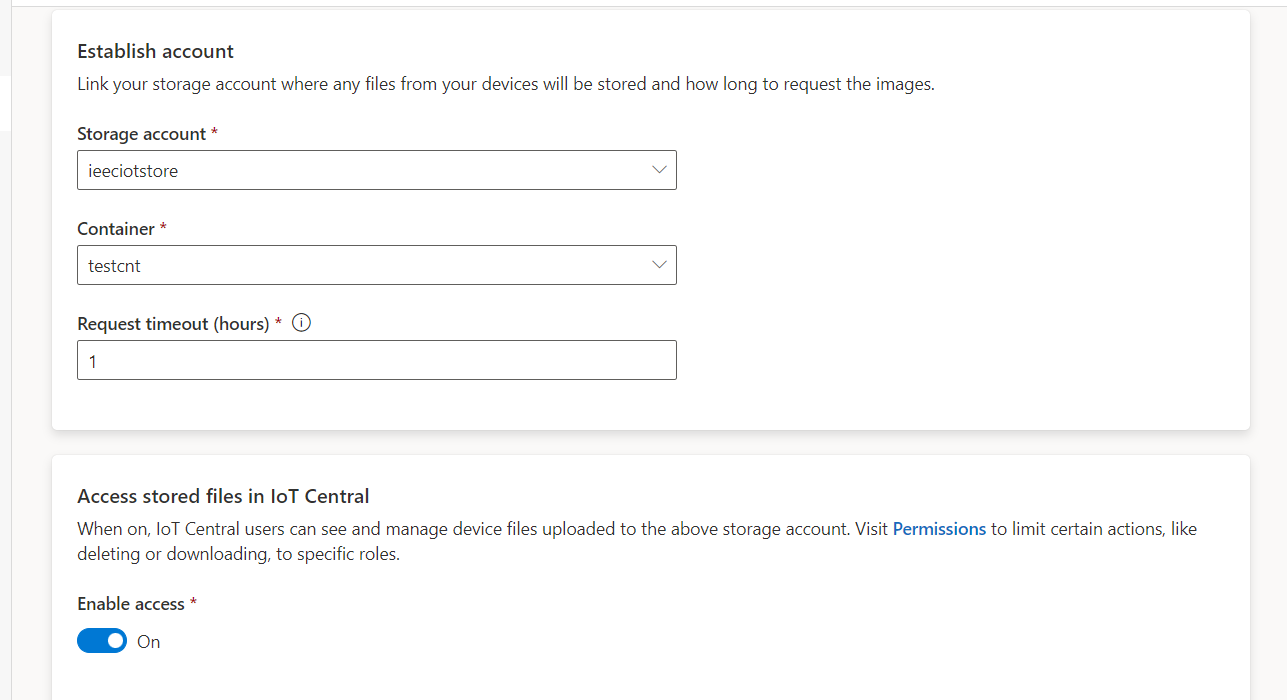

The sample program is also working and sending telemetry data to the device instance on IoT Central. On pressing RUN the datafile.json file is also getting uploaded to the storage account. I can see the new files in a container in the Azure Storage Account container. In the Device file storage section in IoT Central I have added configured the cloud storage and mention all necessary details. It is showing "Your cloud storage is properly configured" message and I have enabled access.

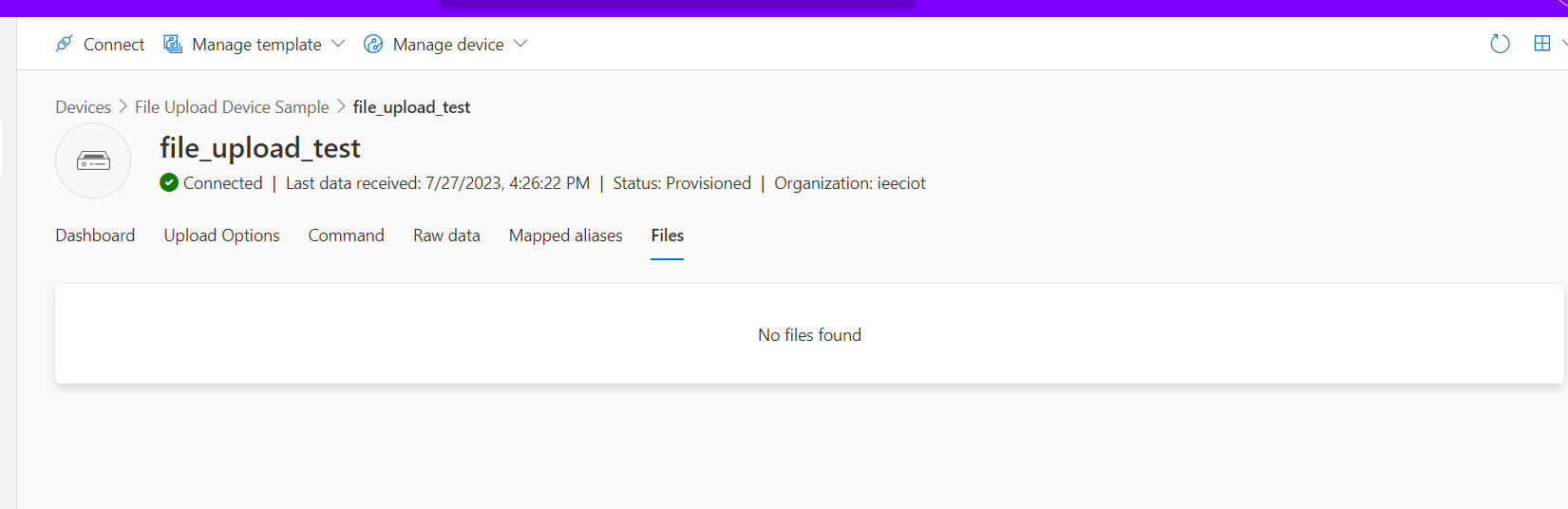

Despite all this in the Files section it is showing 'No files found'. Can someone tell me the way forward?

User's image

AshokPeddakotla-MSFT 27,401 Reputation points

2023-07-31T13:36:03.9766667+00:00

Viraj Kamat Greetings!

Despite all this in the Files section it is showing 'No files found'. Can someone tell me the way forward?

Can you double check and confirm if the file is uploaded to the correct container in the Azure Storage Account with same name?

Also, To enable users to view and manage uploaded files inside IoT Central, set Enable access to On.

If not enabled, set Enable access to On.

See Manage users and roles in your IoT Central application > Managing devices for more details.

Let me know if that solves your issue or have any further queries.
AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-08T10:18:47.49+00:00

Viraj Kamat Just checking to see if you had a chance to review the latest response.

Do let us know if that helps or have any other queries.
Viraj Kamat 40 Reputation points

2023-08-09T09:47:50.4933333+00:00

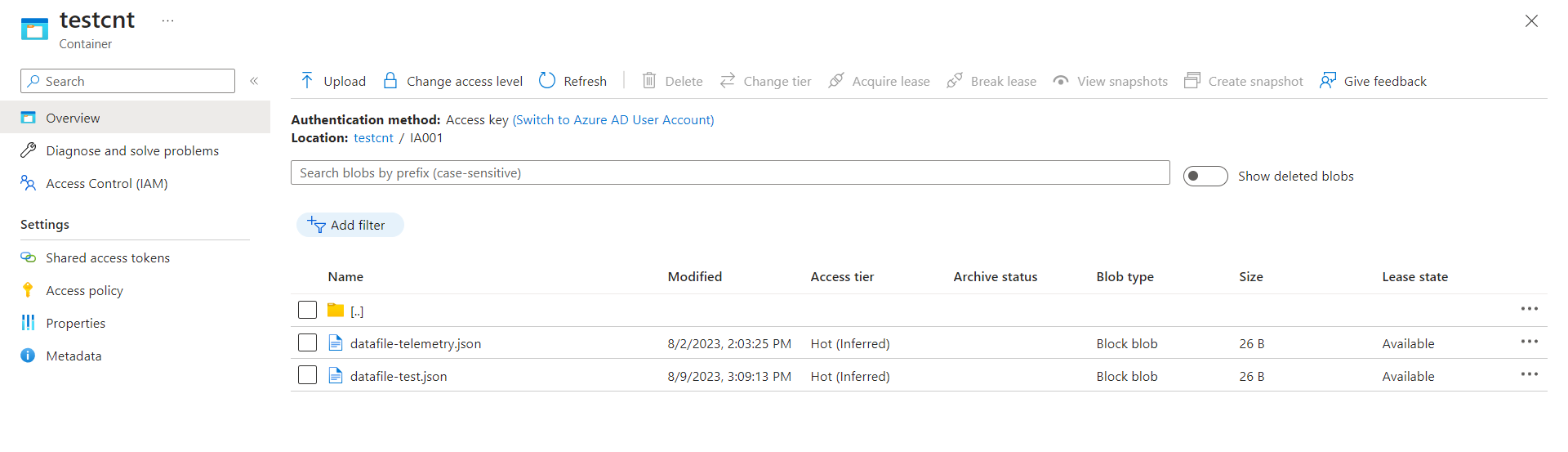

Hi Ashok , sorry for the delay in response.Thank You for your comment. I did not get notified about your comment earlier somehow. I have uploaded the file to the same container as mentioned in IoT Central application.
I am attaching the pics here.
AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-11T03:15:30.64+00:00

Viraj Kamat Let me check from my end and update you.
Viraj Kamat 40 Reputation points

2023-08-16T07:10:06.0066667+00:00

Hello Ashok, is there any update on the issue?
Viraj Kamat 40 Reputation points

2023-08-17T06:20:37.5766667+00:00

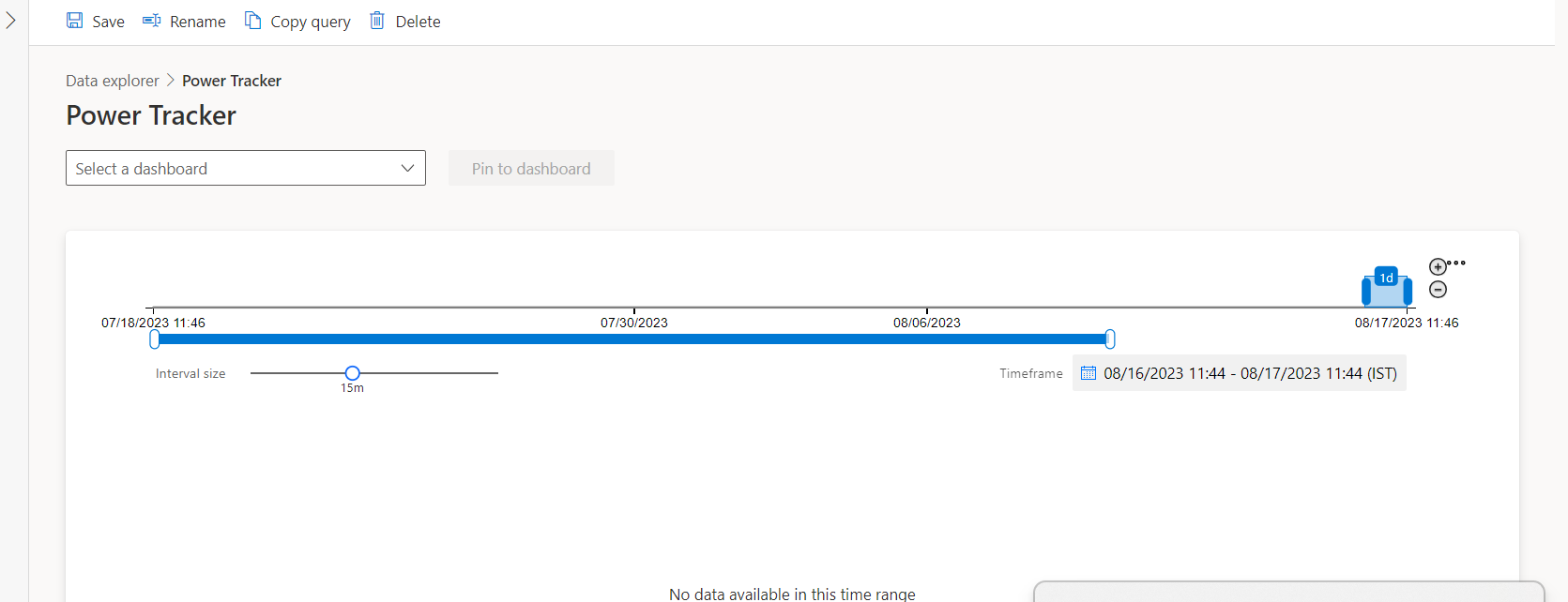

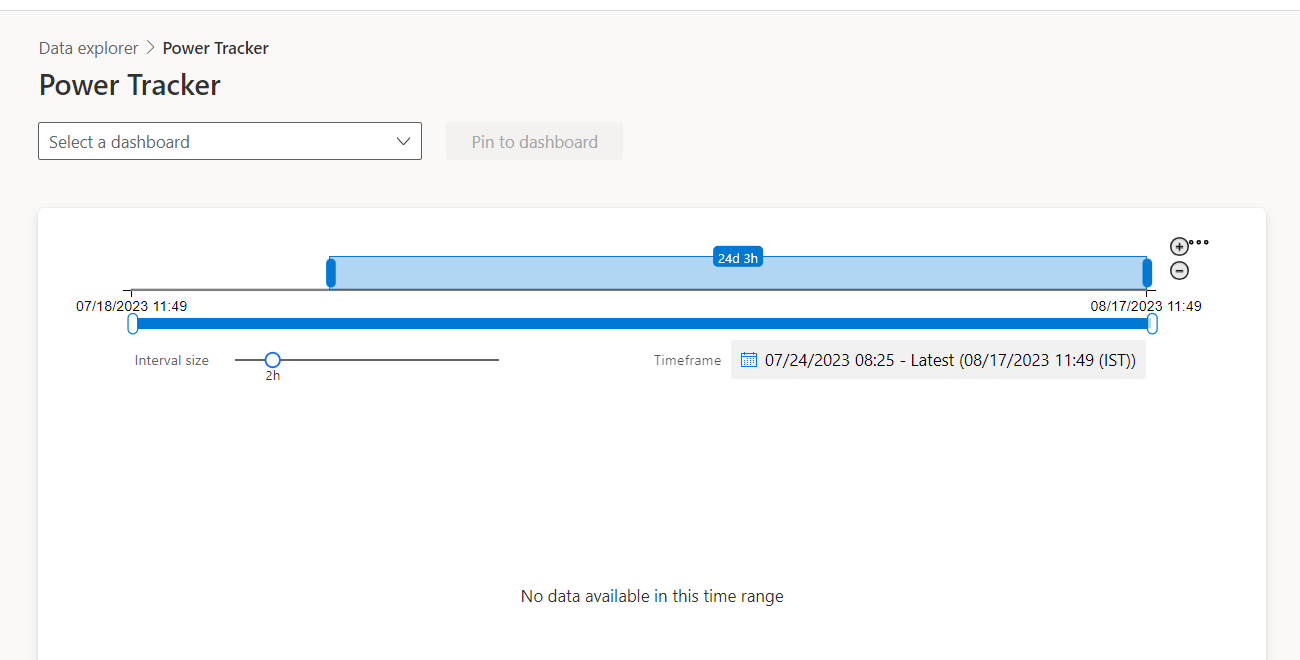

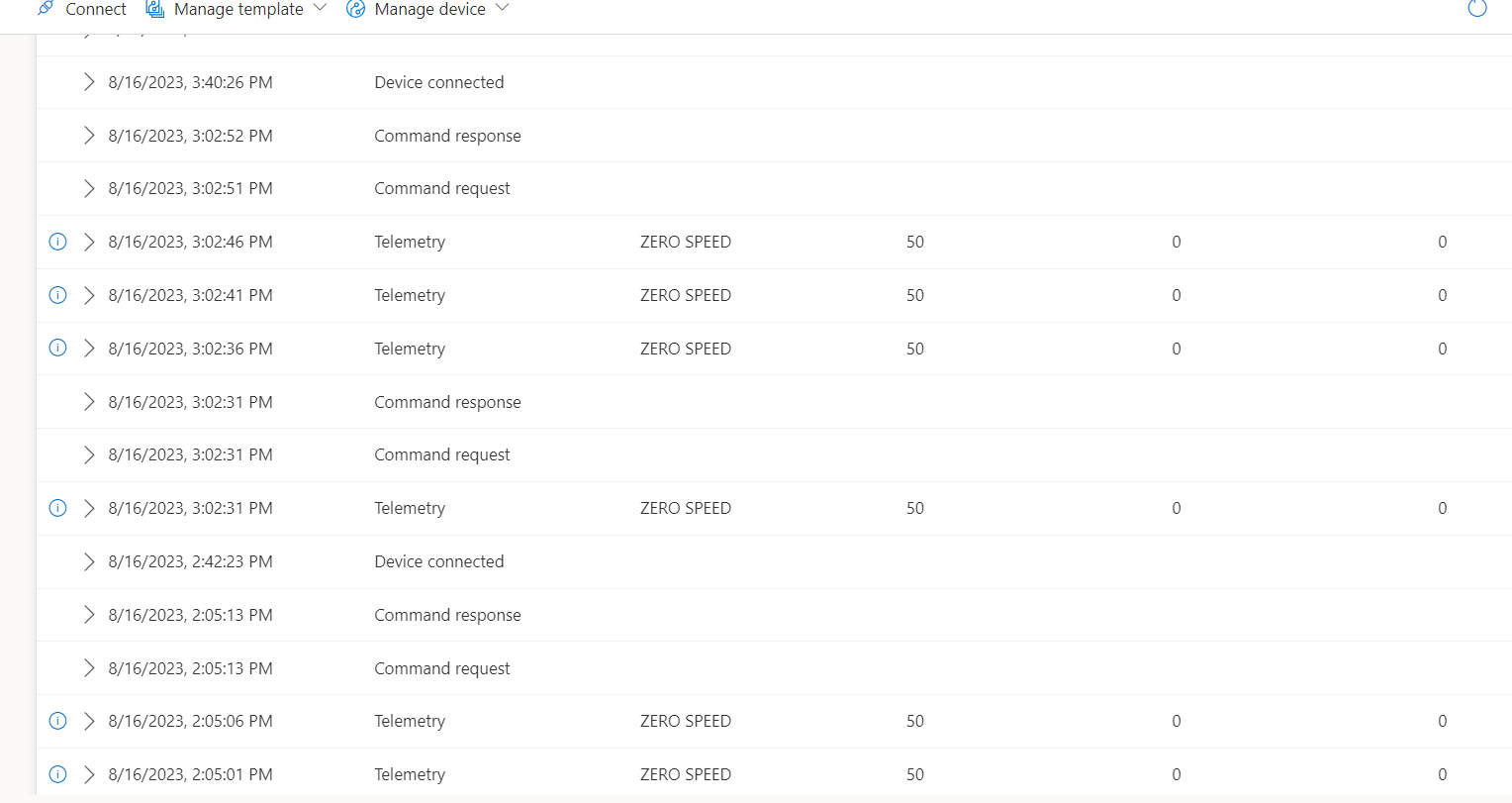

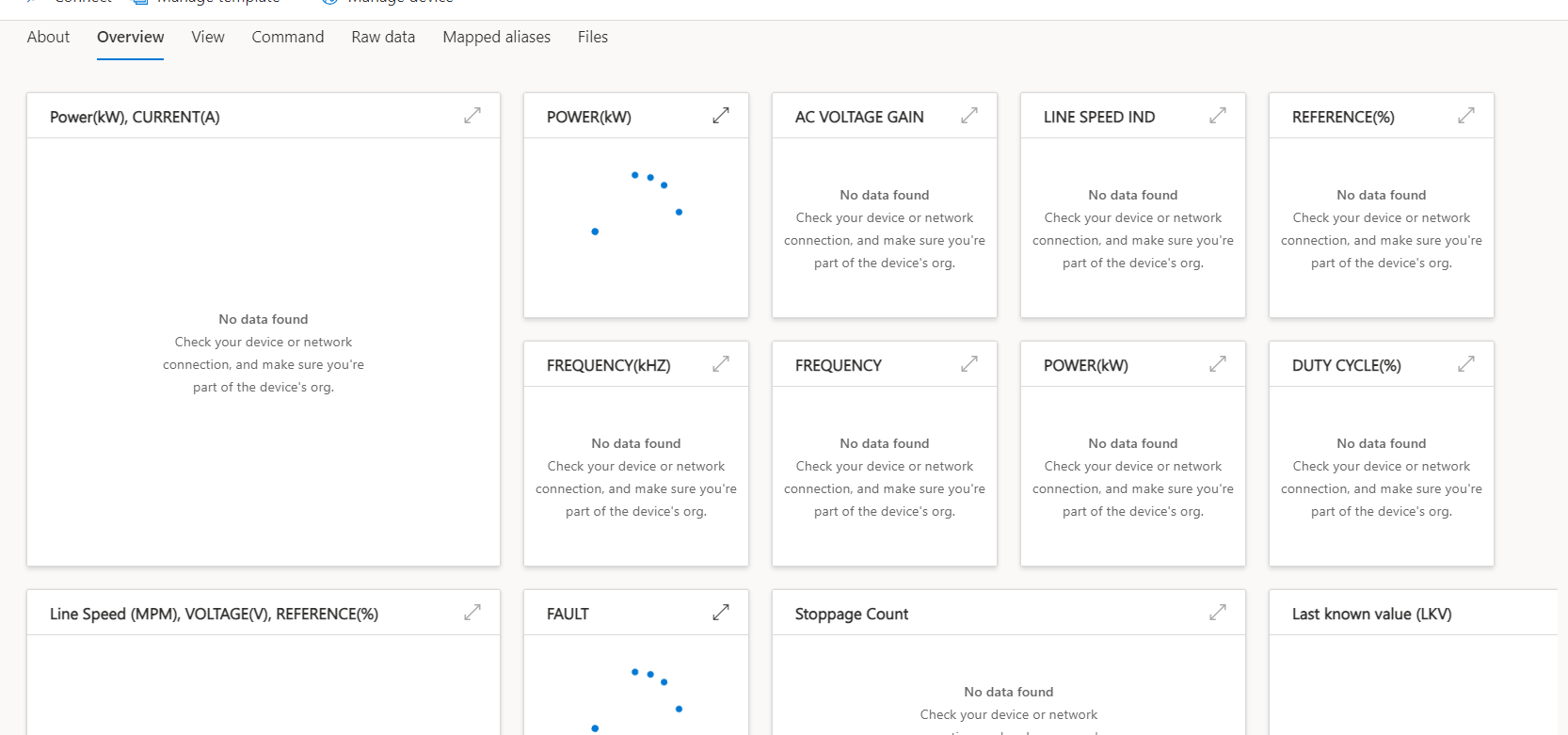

Hello Ashok, I am having another issue. I am unable to see the data in widgets form on any of the dashboard pages. Even the data explorer page is showing no historical data. There has been quite a lot of data incoming on the dashboard for the last week. Until two days ago, I was able to see all historic data, and able to plot graphs on the data explorer page, but since yesterday, it is saying no data. Raw data is visible for all devices. Please help in this issue also.
AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-17T07:59:52.6733333+00:00

Viraj Kamat

Regarding first issue, I'm still waiting for an update from the team.

Regarding the latest issue:
Could you share the region in which your resource is deployed?

Are you seeing any details related to this issue on Azure Service Health page?
Viraj Kamat 40 Reputation points

2023-08-17T11:02:00.22+00:00

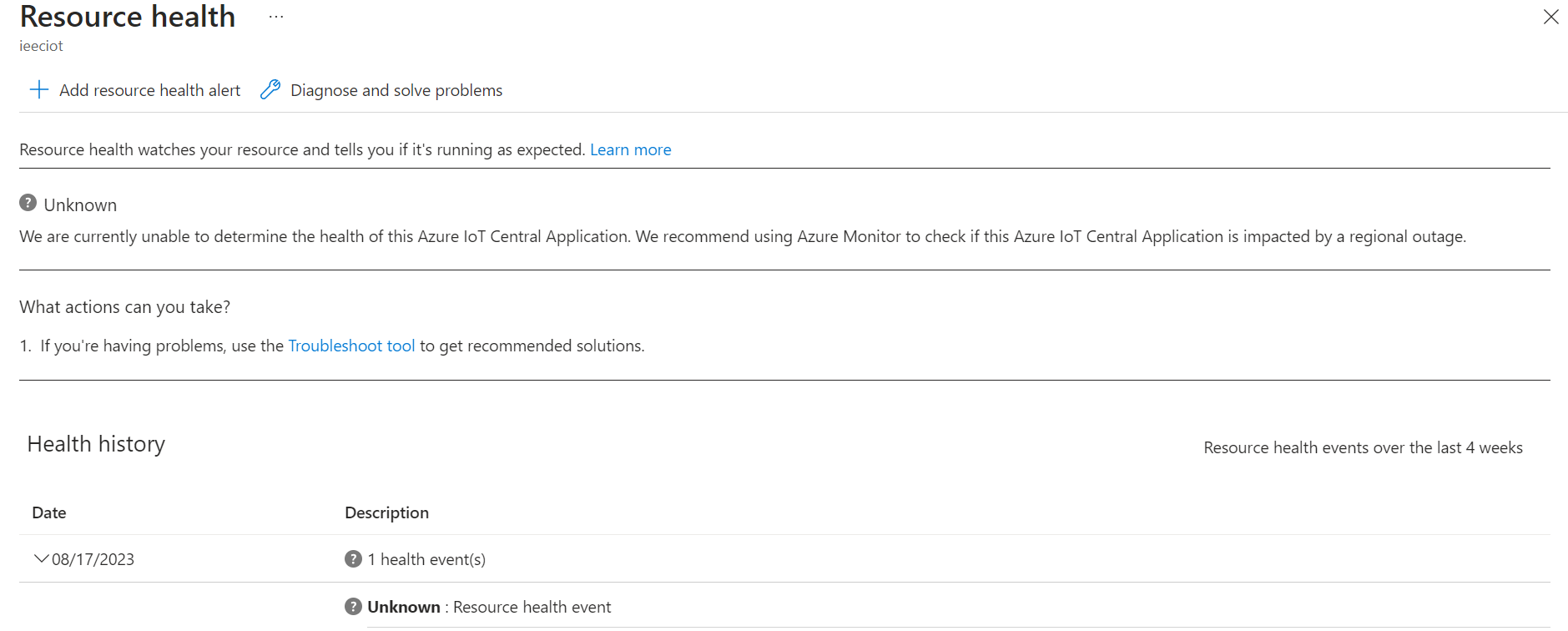

Hello Ashok, the resource is deployed in location South East Asia. Resource Heath at the moment cannot be determined. Although the service issues shows none.
AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-18T03:36:01.5233333+00:00

Viraj Kamat Thanks for the details. I have notified to the respective team take a look into the issue. Please stay tuned for further updates.
AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-25T01:32:28.71+00:00

Viraj Kamat Did you get a chance to see below response?

Regarding the other issue you have reported related to dashboards:

IoT Central team has identified a bug from our side and released a quick fix on production yesterday. The issue should be resolved now.

Please validate the dashboard from your end and let us know if you still run into any issues. Thanks!

Do let me know if that helps or have any other queries.

If the suggestions answers your query, do click Accept Answer and Yes for was this answer helpful. So that we can close this thread.
Viraj Kamat 40 Reputation points

2023-08-25T08:47:09.47+00:00

Hello Ashok, thank you and the team for resolving the production bug regarding dashboard issue. It is now resolved. Unfortunately the File Upload Issue is not yet resolved. I am commenting below on your answer. Please check.

Accepted answer

AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-24T16:32:42.2733333+00:00

Viraj Kamat Thanks for waiting so long on this issue.
After reviewing the issue, I was able to reproduce the same and found that you are using different name than your deviceid for the container folder name.

The files must be uploaded to a folder with the same name as the device ID. This is by design.

Since the IoT Device SDK uploads the files for each device into their own folder and the files view within IoT Central is per device.

If you are following the doc, and files should uploaded by the device SDK under the device id folder in the Storage account.

I would suggest, you please check below and let me know if you have any further queries.

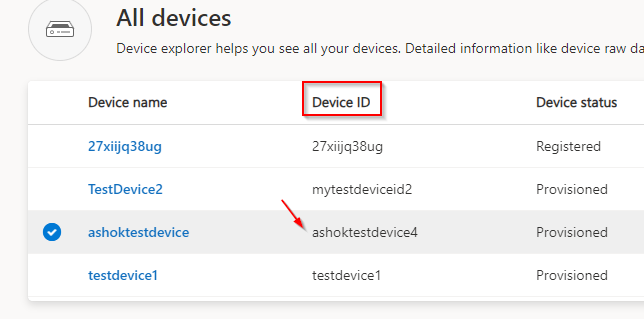

My DeviceID is ashoktestdevice4 as shown below.

In your case, make sure you are using the correct names. I see two different names configured there while providing storage account details.

I have followed the same and able to see the files.

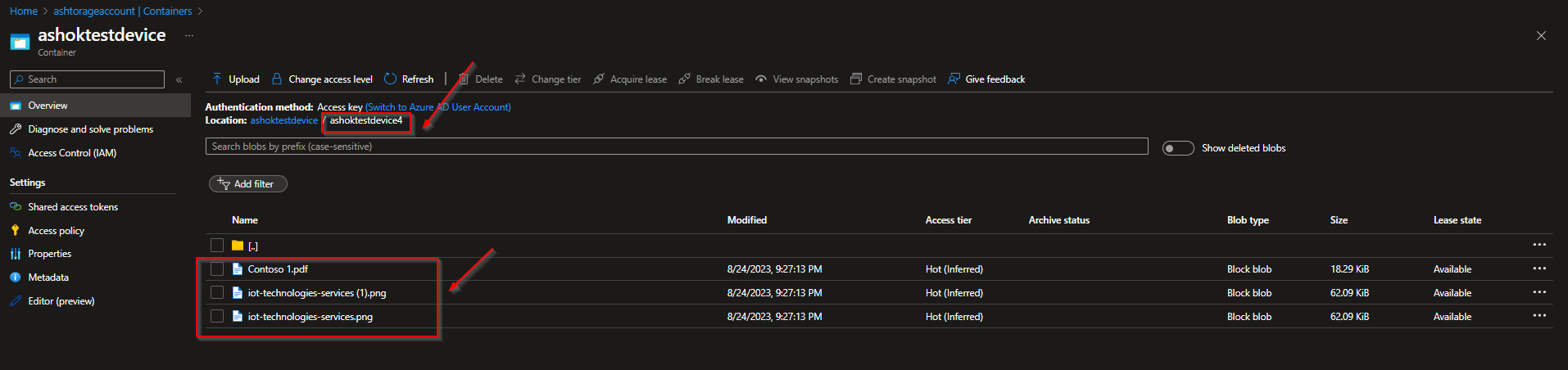

Storage Account:

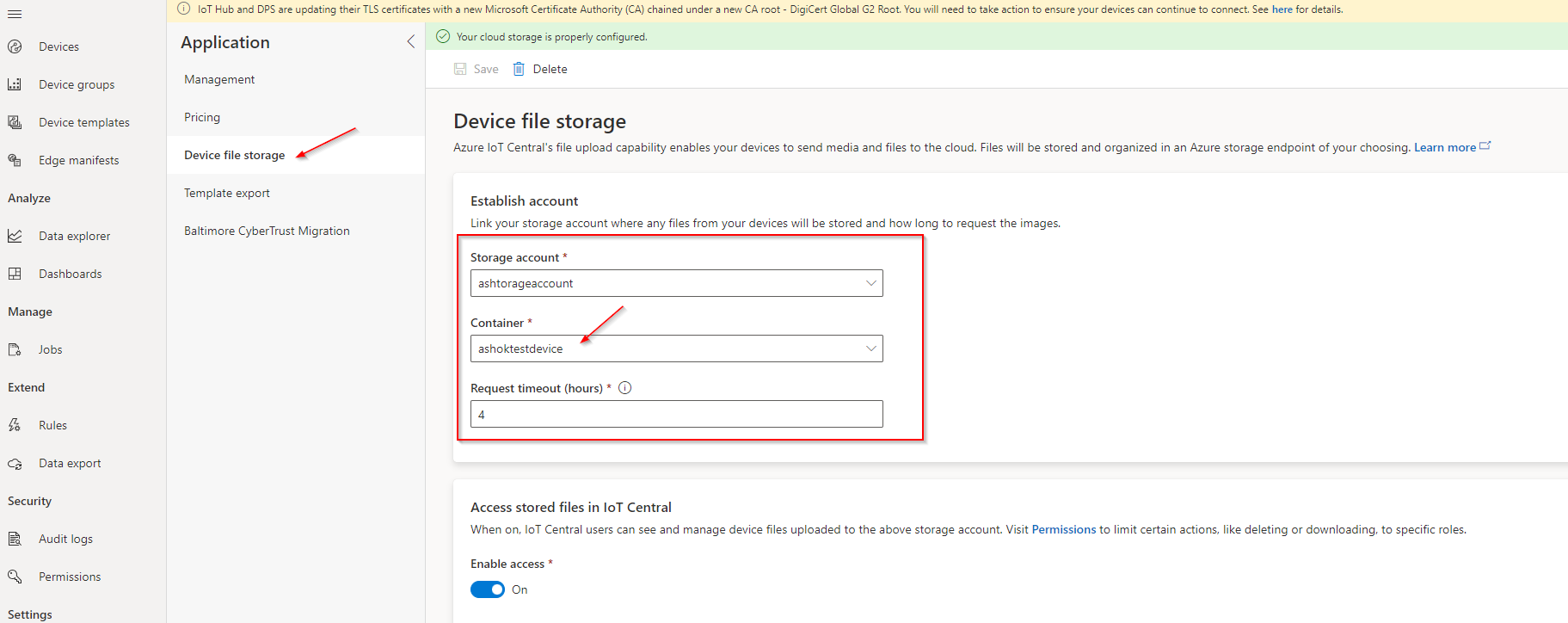

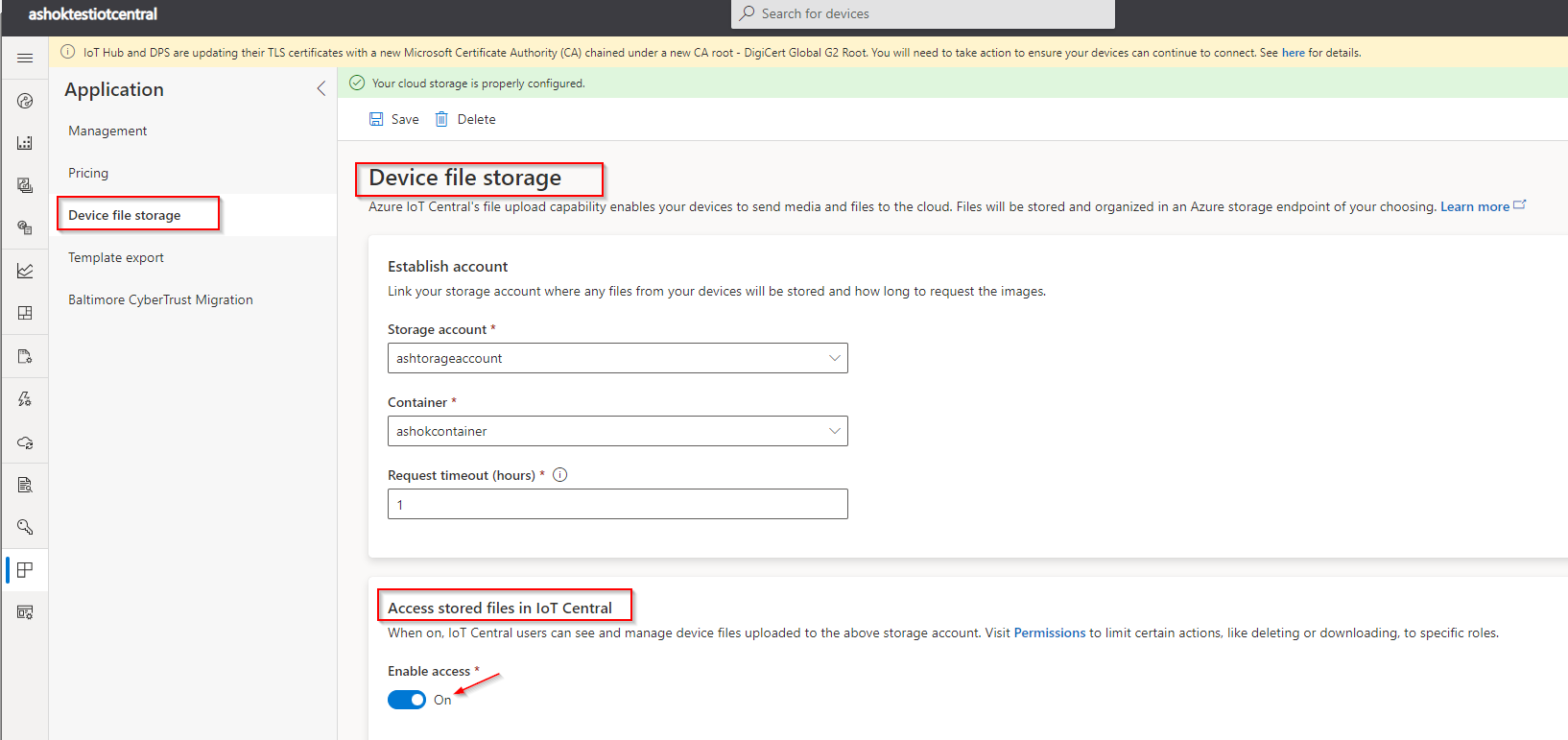

Configuration of the Device File Storage:

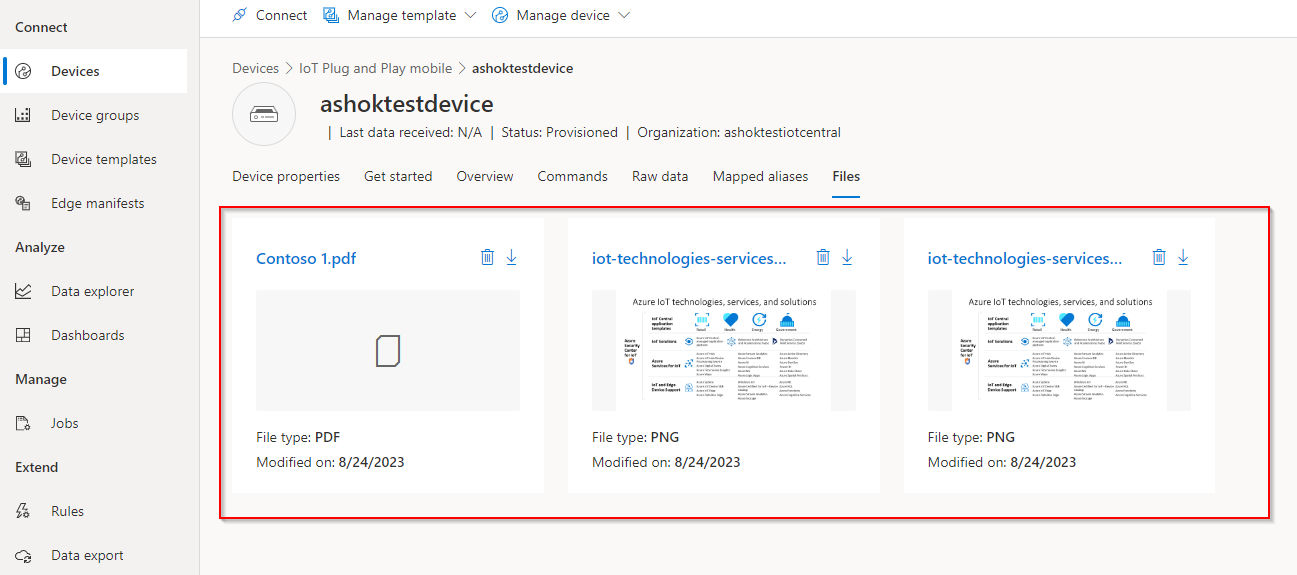

Final Result:

Do let me know if that helps or have any other queries.

If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further queries do let us know.
Please sign in to rate this answer.

2 people found this answer helpful.
Viraj Kamat 40 Reputation points

2023-08-25T09:16:14.8133333+00:00

Hello Ashok, Thank You for your efforts in trying to resolve my problem. Unfortunately it doesn't seem that my issue has been resolved. Please check and correct if you find a mistake.

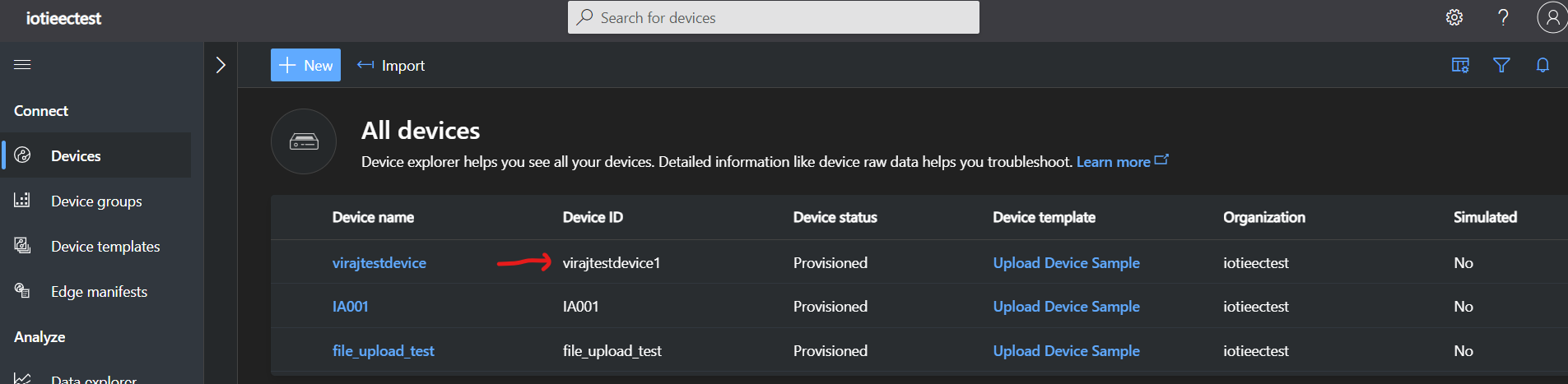

Device Id:

I have set device id as virajtestdevice1 and device name as virajtestdevice, simlar to what you have done.

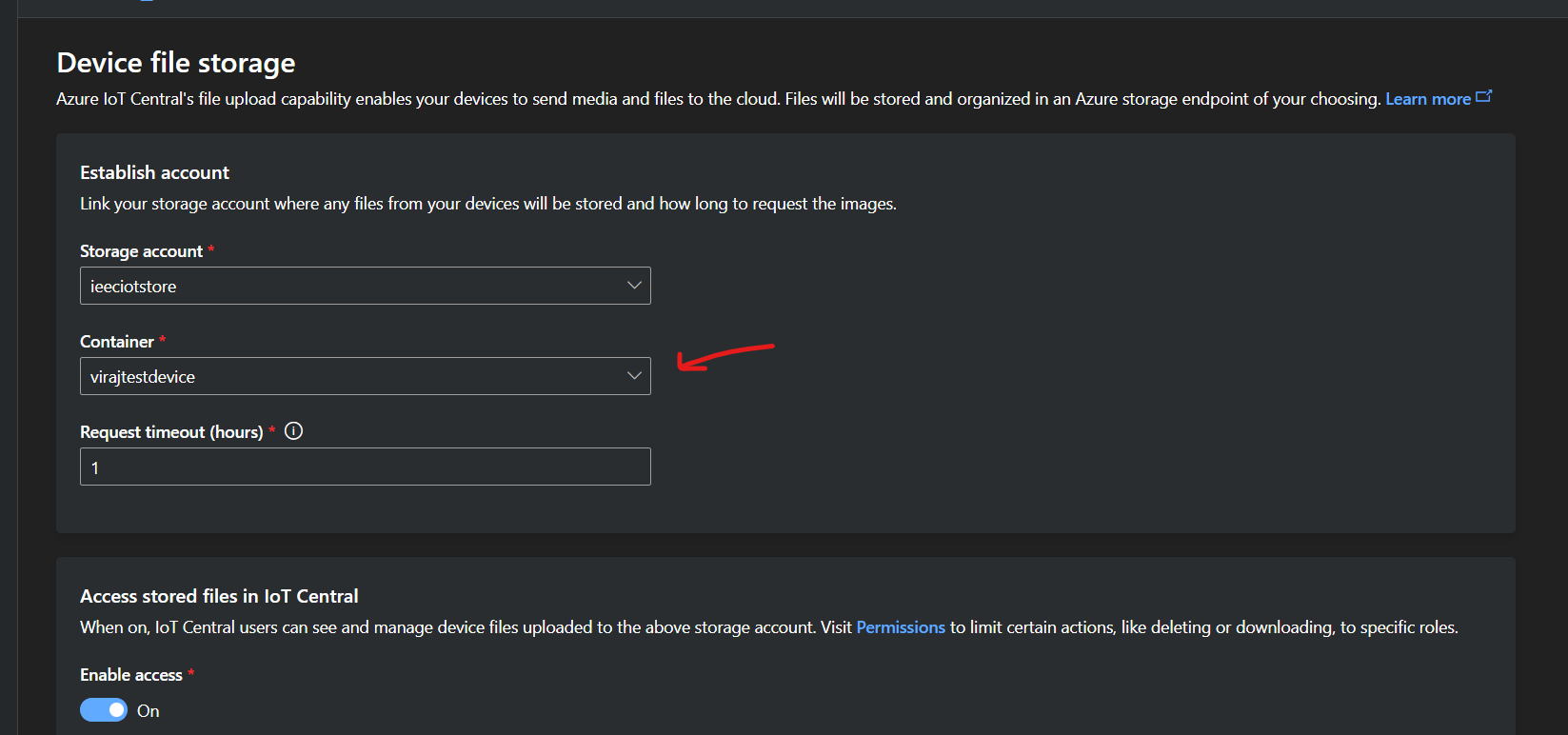

Device File Storage:

I have given the container name, same as the device name virajtestdevice, like you - ashoktestdevice (device name)

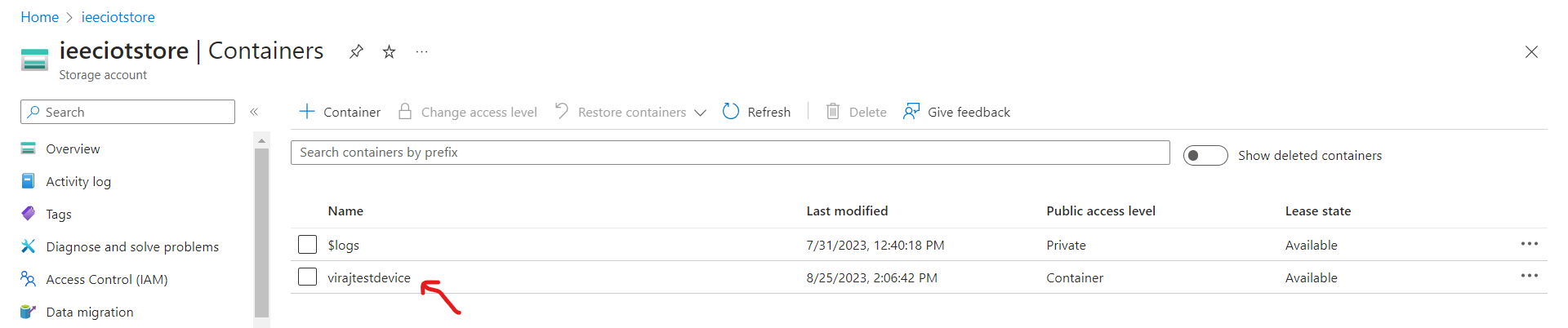

Container :

Container can be seen in Azure storage account.

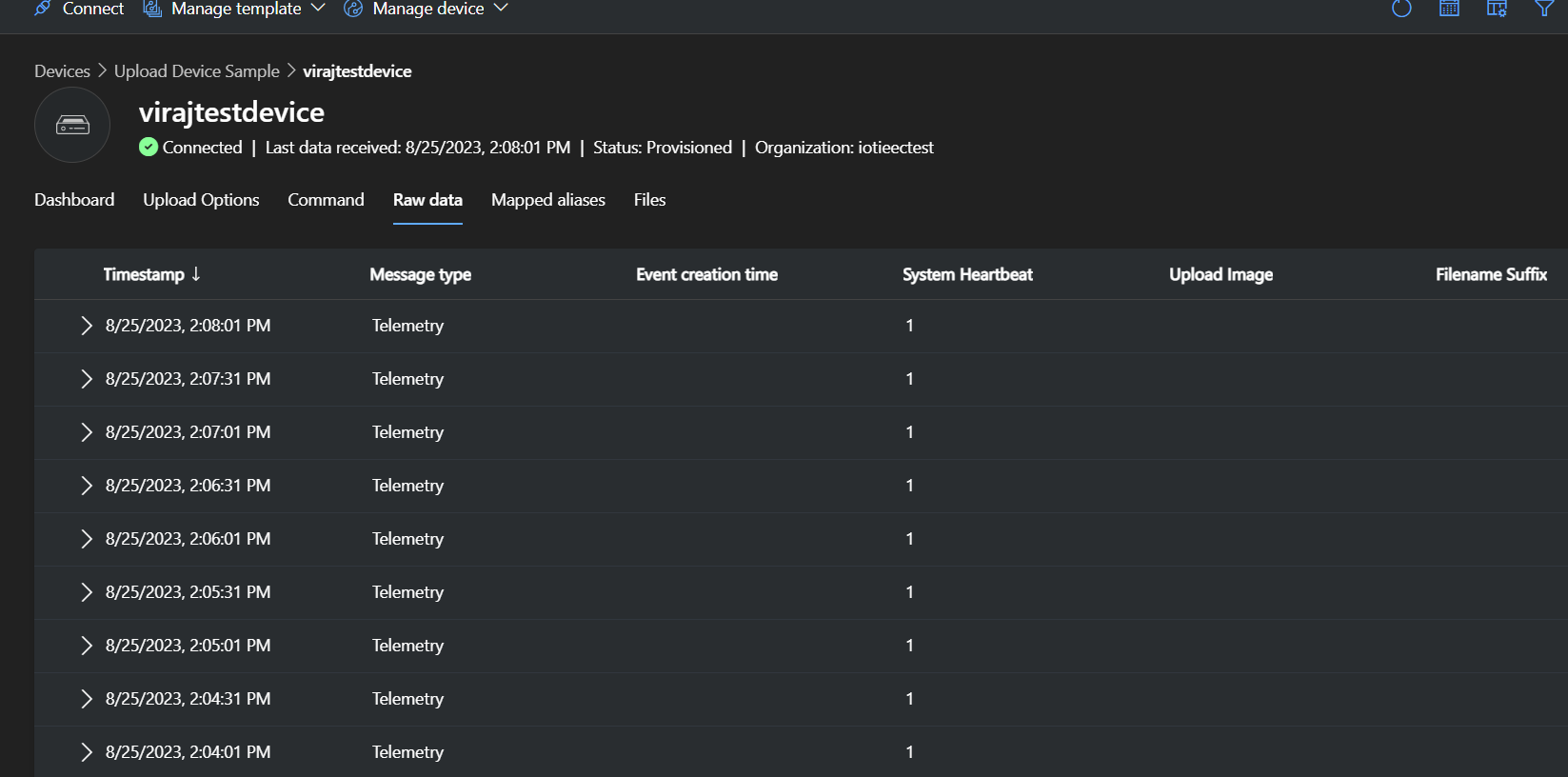

FileUploadSample code :

File Upload is working, and telemetry data can be seen.

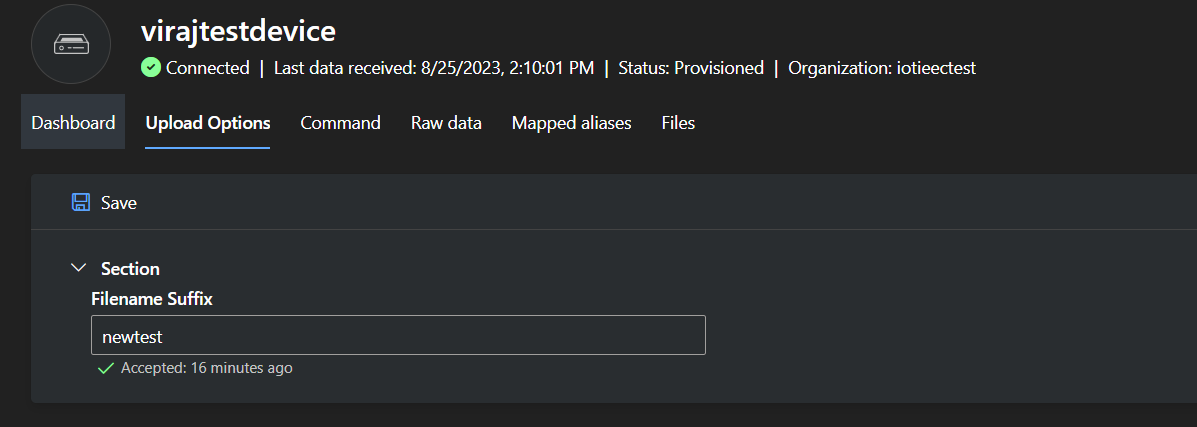

Filename Suffix:

The filename - newtest has been suffixed to datafile.

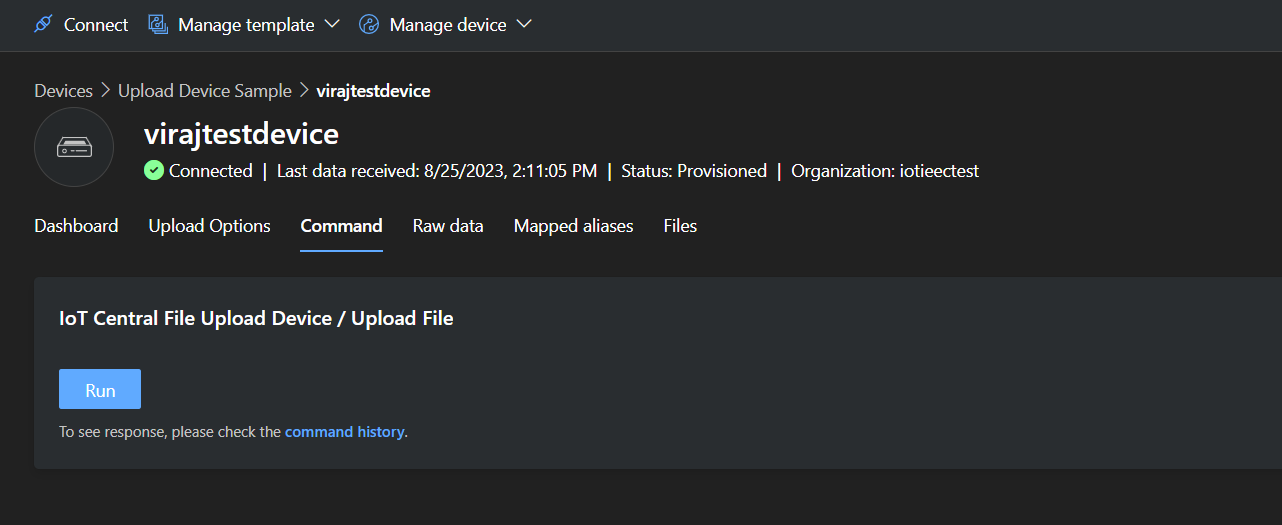

File Upload Command:

File Upload Run command has been implemented. This creates a folder in the container with name same as the device Id.

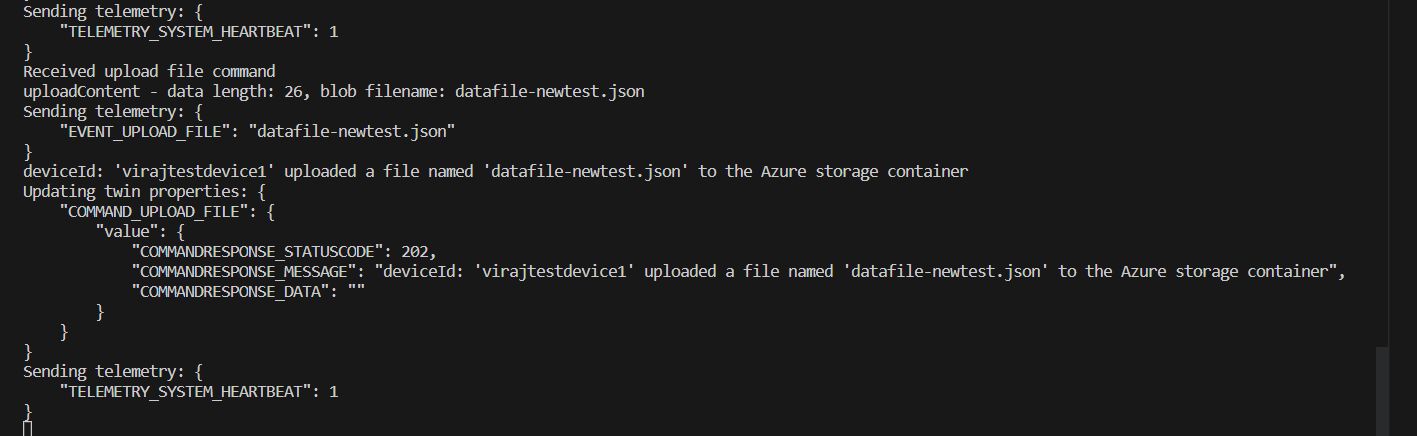

VSCode Terminal:

The VSCode terminal reflects the file upload action successful.

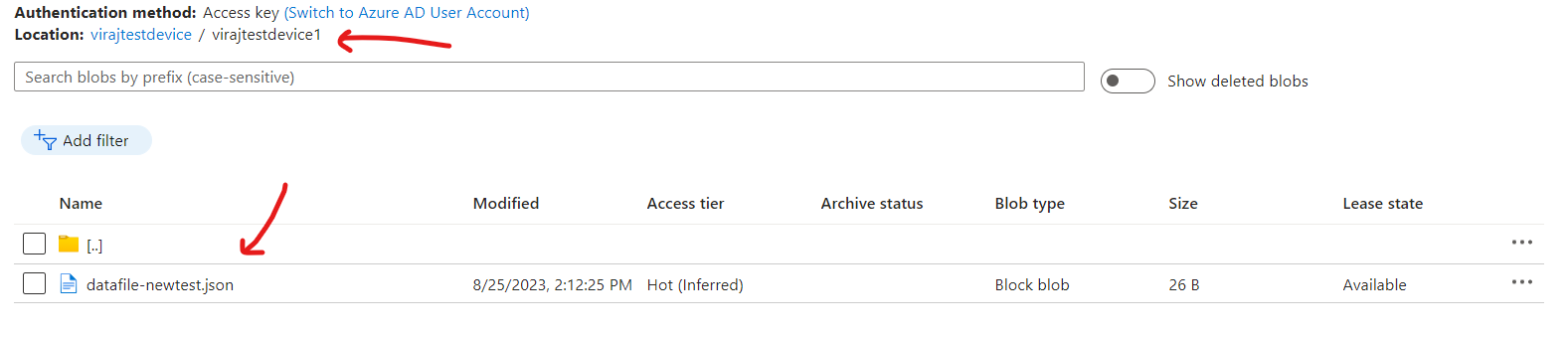

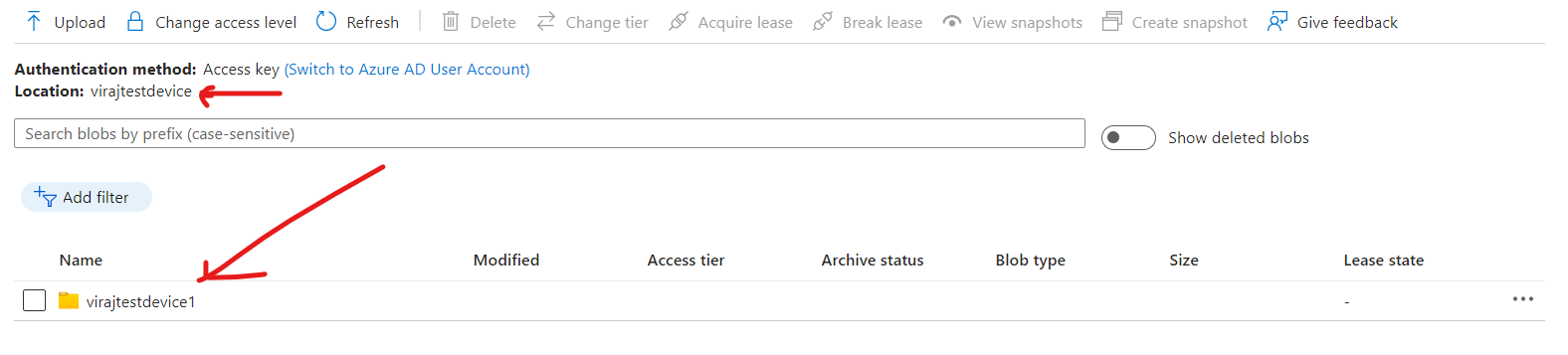

File Upload Successful in Azure Storage Account:

File Upload with newtest suffix is uploaded in location virajtestdevice/virajtestdevice1.

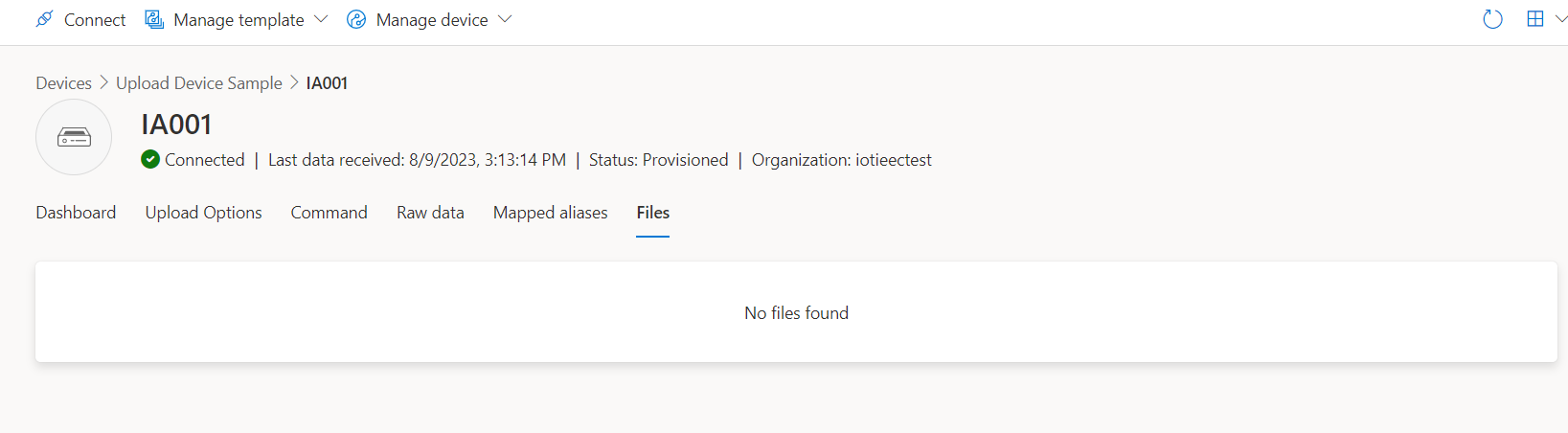

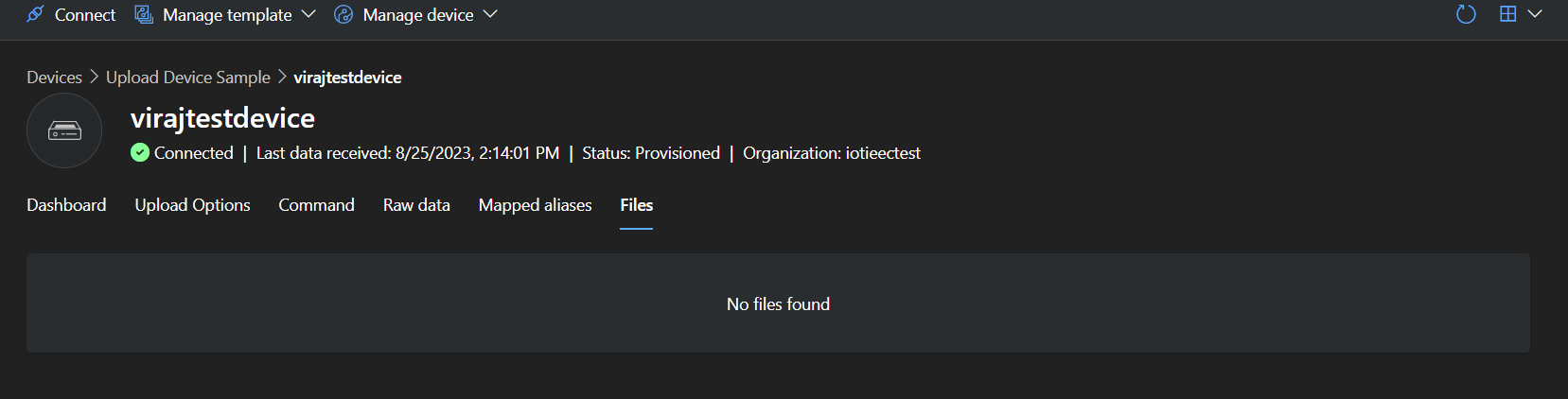

Final Result:

Unfortunately, I am still not able to see any file in the files section. Please do tell me if I have made any mistake in this process. Thanks

Viraj Kamat 40 Reputation points

2023-08-25T09:18:36.84+00:00

I also tried creating another application and another storage account, but it still did not work.

AshokPeddakotla-MSFT 27,401 Reputation points

2023-08-25T09:22:38.19+00:00

Viraj Kamat Can you send me an email at azcommunity@microsoft.com with the below details, so that we can work closely on this matter.

Thread URL: Link to this thread.

Azure Subscription ID:

Email Subject : Attn Ashok

Viraj Kamat 40 Reputation points

2023-08-25T09:35:37.0933333+00:00

Hello Ashok, I have sent you the email, please check.
