AROCKIA TAGORE I Thanks for posting your question in Microsoft Q&A. This is still a limitation as per current design and you can refer https://techcommunity.microsoft.com/t5/azure-paas-blog/azure-api-management-limitation-workaround-return-404-instead-of/ba-p/1588413 doc and adjust the policy code in the error handling section (for all Operations/single API/All APIs) as below.

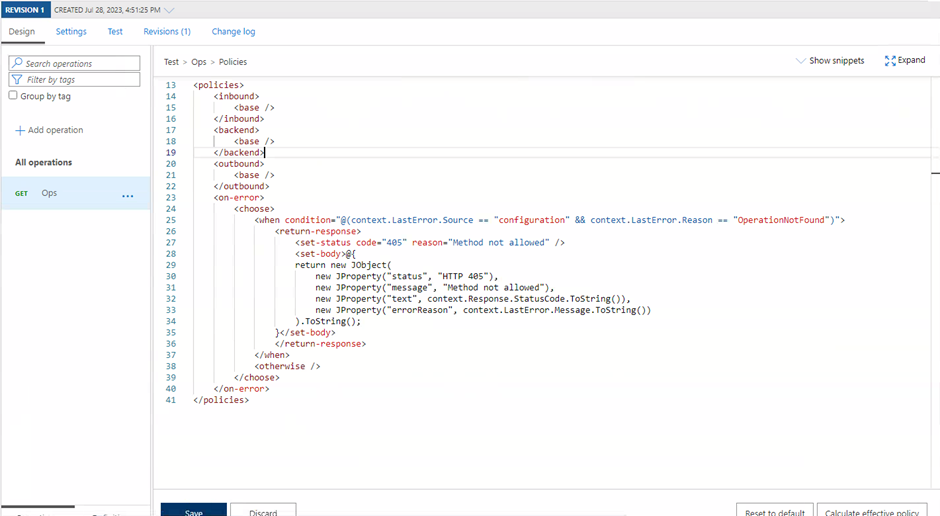

Policy snippet: (from the doc; validated in my APIM)
<choose>
<when condition="@(context.LastError.Source == "configuration" && context.LastError.Reason == "OperationNotFound")">
<return-response>
<set-status code="405" reason="Method not allowed" />
<set-body>@{
return new JObject(
new JProperty("status", "HTTP 405"),
new JProperty("message", "Method not allowed"),
new JProperty("text", context.Response.StatusCode.ToString()),
new JProperty("errorReason", context.LastError.Message.ToString())
).ToString();
}</set-body>
</return-response>
</when>
<otherwise />
</choose>
Note: The workaround above has a limitation that it will show 405 also when the request URL is not found.
I hope this helps and let me know if you have any questions.
If you found the answer to your question helpful, please take a moment to mark it as "Yes" for others to benefit from your experience. Or simply add a comment tagging me and would be happy to answer your questions.
