There is no data except header in csv file (after using Structure as Field list)

Question

This is a new issue after previous posts/developments that I posted/developed:

Thank you for all your previous help by the way.

https://learn.microsoft.com/en-us/answers/questions/1338303/how-to-get-structure-from-field-list-in-azure-data

https://learn.microsoft.com/en-us/answers/questions/1341207/what-is-purpose-of-parameter-its-default-value-@it

Here is what I am trying to do:

1. Look thru all csv files in the folderA.
2. Compare structure of all files with one reference file (let's say that they have same columns).
3. If structure matches, then copy those files that met the condition from folderA to folderB.

So, below is the architecture of my pipelines:

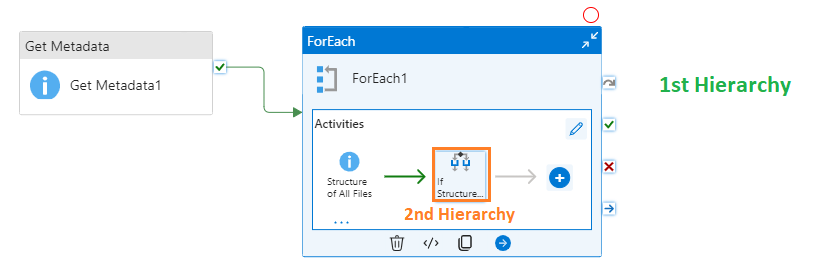

1st Hierarchy

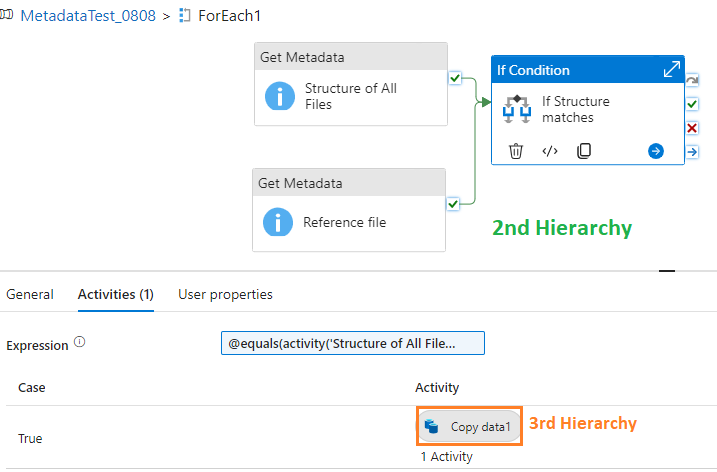

2nd Hierarchy:

@

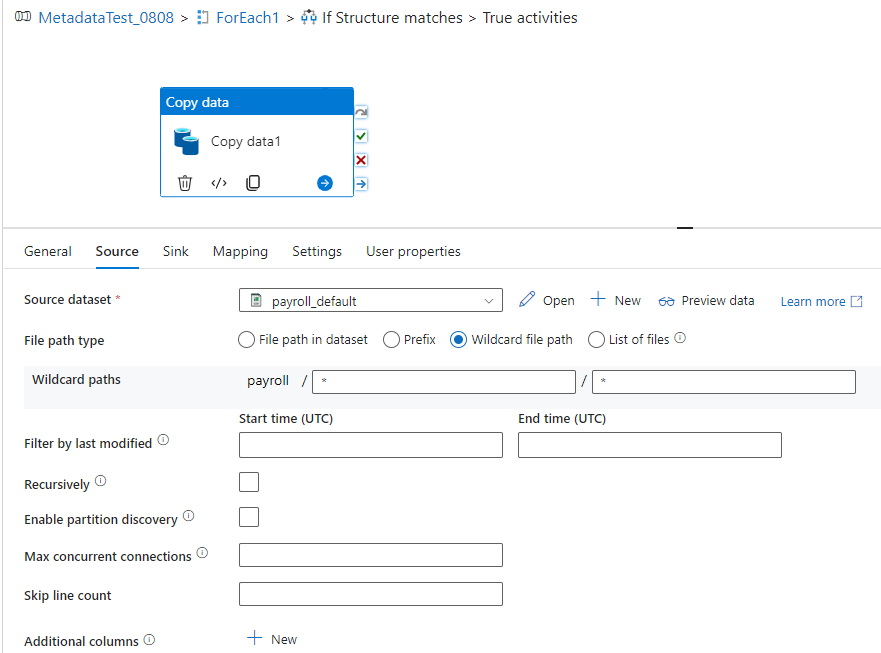

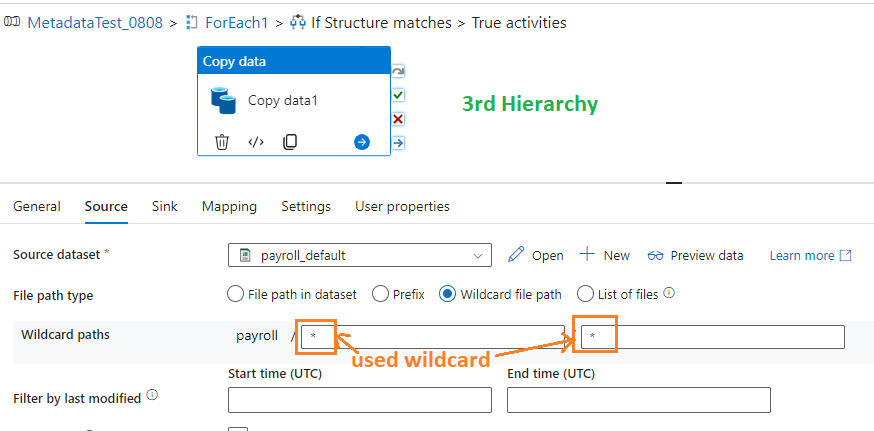

3rd Hierarchy:

Now, the issue is, after all csv files that met the condition are copied folderB, there is no data (empty) inside each csv file except header.

I am not sure why it has the header only.

Only my logic is that the reference file only has a header (because I was trying to make sure only qualified csv files have certain Structure (like having same columns)).

But, what I am trying to do is just copying file csv files (with data).

How do I just copy the whole files (with data)? Where do I configure?

I thought copy data is literally just copying data as they have from Source.

Thank you again.

Answer 1

Hey, just for some clarification and good design purpose,

As you are just copying files from 1 location to another, you should ideally use Binary dataset.

So can you update your source and sink within copy activity to binary dataset, execute your pipeline and confirm whether you are still facing the issue?
Based on your result, we can debug why that issue is happening w.r.t delimited dataset
