I can't Install SCCM Agent using Client Push Installation As Shown
So I tried To Install The Agent Manually And it's installed With Code 0 As Shown

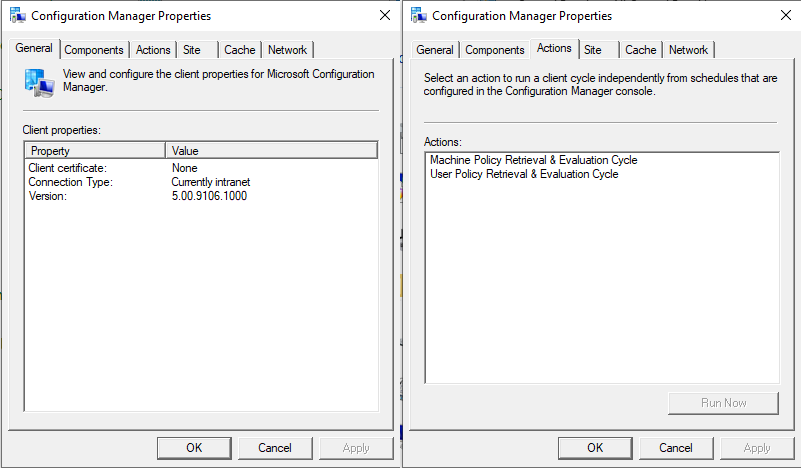

But It's Not Connected With SCCM Server And In Control Panel As Shown
Anything in clientidmanagerstartup log? Is the client reporting registered? Did you use the relevant and complete parameters while installing the agent manually? Has client push worked in the past? Have you checked the server side logs?
Anything in clientidmanagerstartup log?
i don't know where can i find this log
Is the client reporting registered?
Not Yet
Did you use the relevant and complete parameters while installing the agent manually?
I just install it by using Client Folder with cmd line ccmsetup.exe /install
Has client push worked in the past?
This is the first Time to work on SCCM
Have you checked the server side logs?

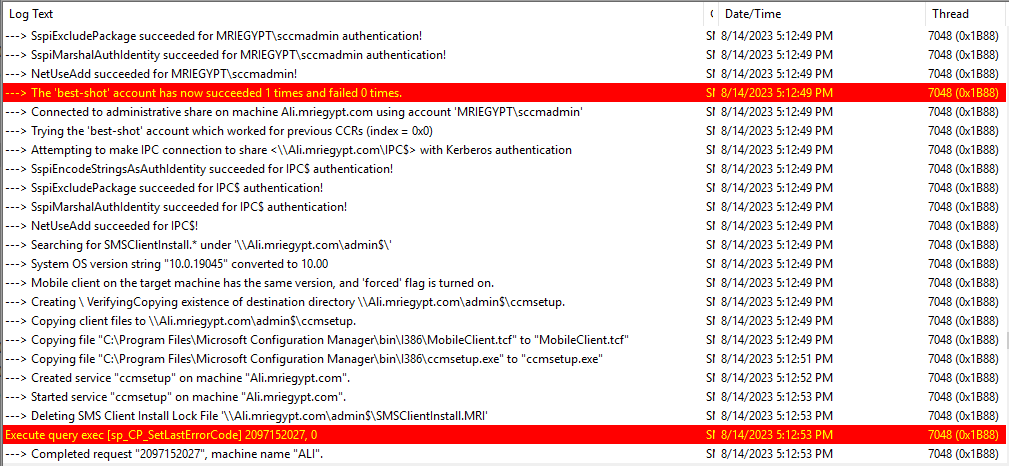

yes and This Screen shot
Hello Ali,
Based on the ccmsetup log shared above, you have to double check your boundaries and boundary groups then run a manual install with setting the necessary parameters.
You can refer to my following blog post to create a boundary as an IP address range related to your clients then assign the DP/MP to the boundary group:
For manual client install:
Regards,
Youssef Saad | Blog: https://youssef-saad.blogspot.com/ | LinkedIn
okay I will try
hello @Youssef Saad ,

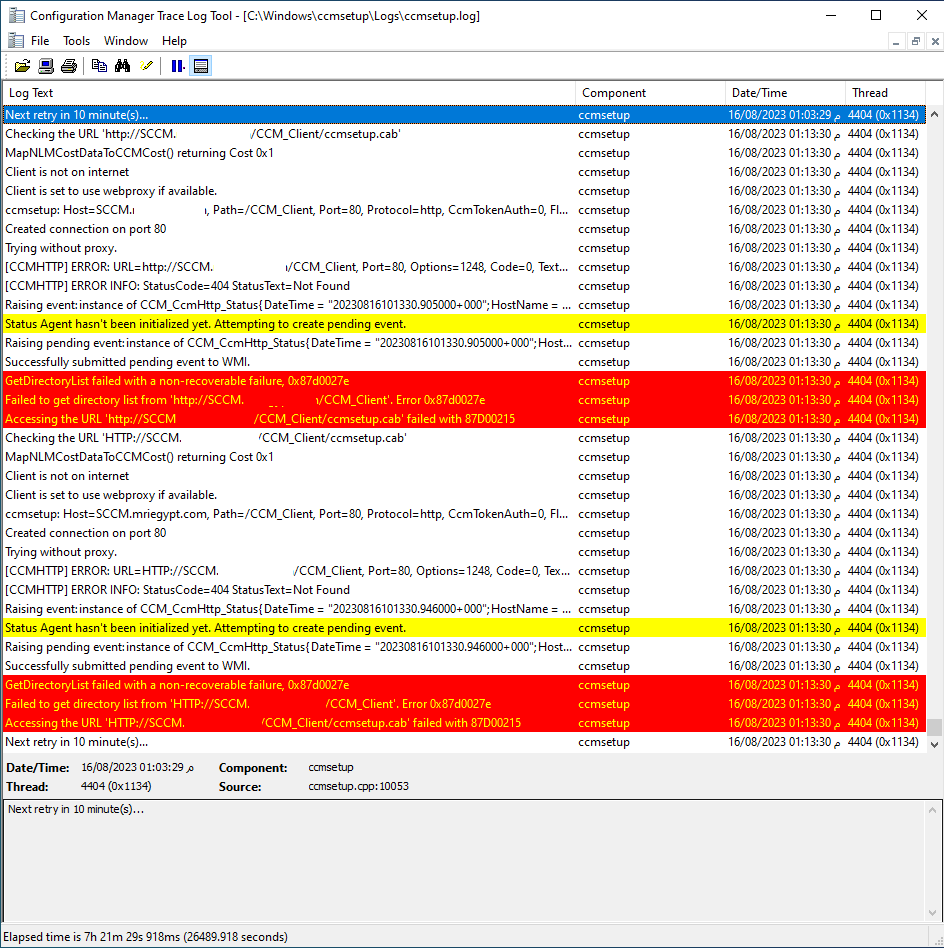

i delete my boundary, boundary group then create it again and tried to install agent again but as shown in ccmsetup log

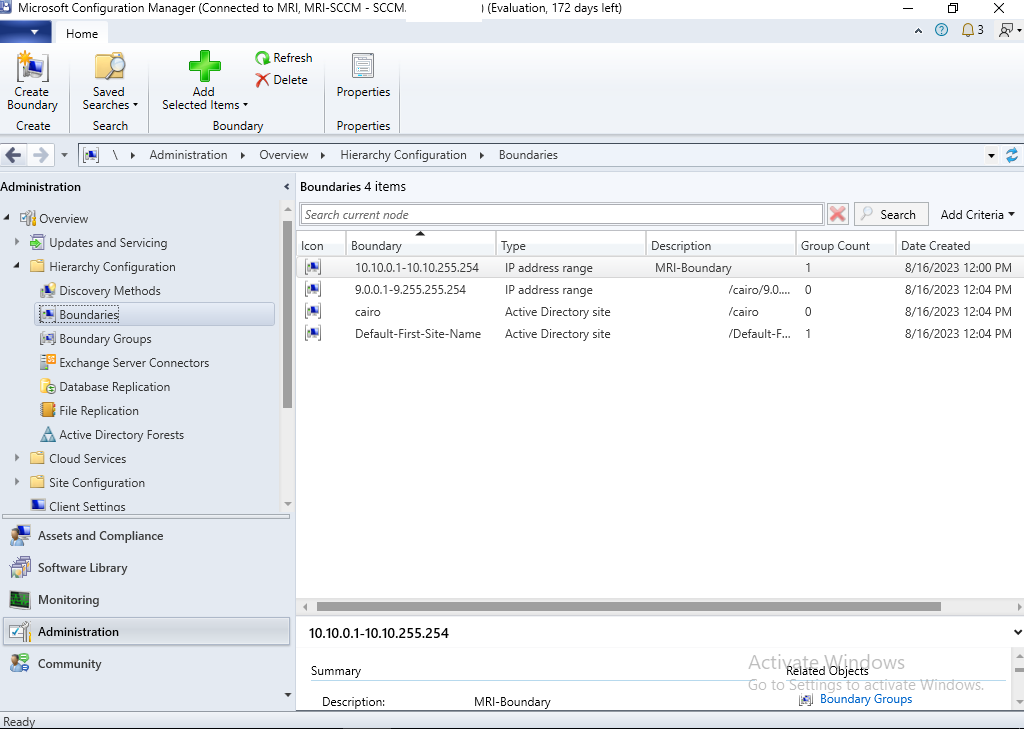

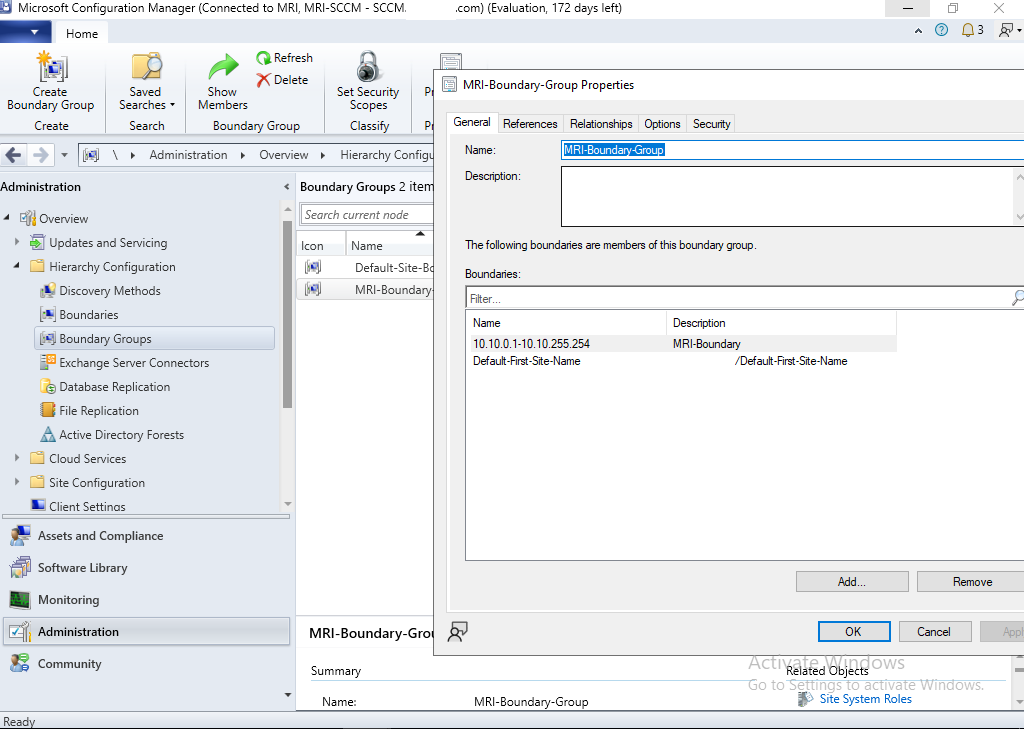

and this screen of my boundary and boundary group

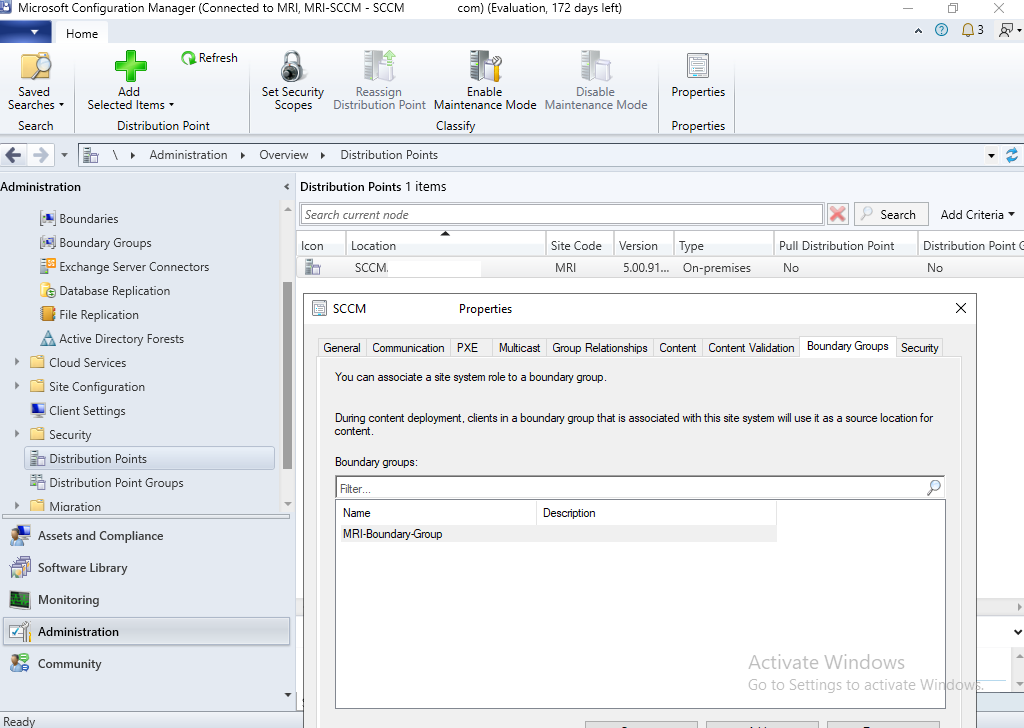

and this is my DP
Do you have any AV or firewall on the client machine? If yes, disable it and try again.
Make sure that you have access to the MP on port 80.
Regards,
Youssef Saad | Blog: https://youssef-saad.blogspot.com/ | LinkedIn
dear @Youssef Saad
I have kaspersky, i disabled it but no change yet
also i have fortigate firewall for all network
Make sure that you have access to the MP on port 80.
how to do that ?
