Windows 10 | Unidentified and Unauthenticated network

Question

Hello,

Laptop HP ELITEBOOK 840 G7 SILVER is connected to "Monitor with inbuilt USB-C Dock" [ThinkVision P24h-2L] using "USB C Type" cable.

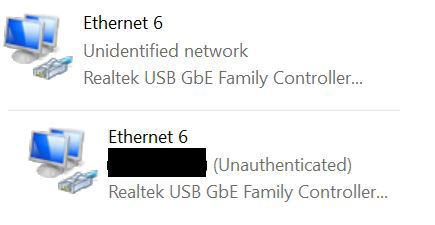

Inbuilt Ethernet adaptor is disabled. It is trying to get IP address and going into Unidentified state. It receives IP Address after sometime.

It went into Unauthenticated state.

Updated all the Windows Updates, ethernet driver of "Monitor with inbuilt USB-C Dock" [ThinkVision P24h-2L].

Please let me know what are the other steps to perform to solve the issue.

"Monitor with inbuilt USB-C Dock" [ThinkVision P24h-2L] is connected to other "HP ELITEBOOK 840 G7 SILVER" laptop using "USB C Type" cable and it receives IP address.

Answer 1

Hello

Thank you for your question and reaching out.

1. Verify your DC's DHCP reservations and leases. Reduce the number of entries you have for the problematic machines to just one for each. Then on those machines, execute ipconfig /release && ipconfig /renew.

Remove the network adapters from Device Manager before reinstalling the NICs by scanning for new hardware.

2. Reset the default settings for your Windows Firewall profiles: Click "Restore Default Policy" after launching wf.msc.
3. Turn off every firewall completely. Run wf.msc, select "Windows Firewall Properties", and set the Firewall state for each profile tab (Domain, Private, Public) to "Off" to configure Windows Firewall.
4. Try to Assign static ip address and change switch port of this computer to different one.
