When configuring the 'Analyze Document for Prebuilt or Custom models (v3.0 API)' in the Logic Apps Designer it requires a model id Model Identifier modelId True string Prebuilt modelIds: prebuilt-read, prebuilt-layout, prebuilt-document, prebuilt-businessCard, prebuilt-idDocument, prebuilt-invoice, prebuilt-receipt, prebuilt-tax.us.w2, prebuilt-vaccinationCard, prebuilt-healthInsuranceCard.us. Custom modelId format - [a-zA-Z0-9][a-zA-Z0-9._~-]{1,63}. Unique model name. I enter the name of my custom classification model, but when I execute the logic app it can never find the model.

@Steve Gostling Thanks for reaching out. As per the error the model was not found. Can you please navigate to your project setting and validate what the service resource you have specified and use the endpoint URL and account key for the same resource. As per the screenshot I can see that you are using the right Model identifier name but please confirm if the connection string is for the same resource that you have configured as I was able to reproduce the issue if I use the incorrect endpoint/string for my model that I have created. The other reason I could think about would be using a different version other than v3.0 as documented here as it specifically calls out v3.0 API and no other.

How do I configure an Azure logic app to call a custom classification model

Steve Gostling 0

When configuring the 'Analyze Document for Prebuilt or Custom models (v3.0 API)' in the Logic Apps Designer it requires a model id

Model Identifier	modelId	True	string	Prebuilt modelIds: prebuilt-read, prebuilt-layout, prebuilt-document, prebuilt-businessCard, prebuilt-idDocument, prebuilt-invoice, prebuilt-receipt, prebuilt-tax.us.w2, prebuilt-vaccinationCard, prebuilt-healthInsuranceCard.us. Custom modelId format - [a-zA-Z0-9][a-zA-Z0-9._~-]{1,63}. Unique model name.

I enter the name of my custom classification model, but when I execute the logic app it can never find the model.

Yuvaraj Madheswaran 390 Reputation points

2023-08-21T17:16:35.6+00:00

Hi Steve Gostling,

Please find the documentation about triggering the custom models as below,

https://learn.microsoft.com/en-us/azure/ai-services/document-intelligence/tutorial-logic-apps?view=doc-intel-3.1.0&pivots=workflow-onedrive

Can you please cross verify the connection properties of the custom models?
Steve Gostling 0 Reputation points

2023-08-22T23:58:03.9933333+00:00

My connection properties are shown below, along with my model classifier id of 'classificationmodel1'. I specify 'classificationmodel1' as the model identifier, but the action fails with 'model not found' as shown below.
Ceylan Soygul Oz 0 Reputation points

2023-08-24T14:37:27.1566667+00:00

Hello,

I've encountered the same issue and unfortunately haven't been able to find a solution yet.

1 answer

MayankBargali-MSFT 69,946 Reputation points

2023-08-30T05:22:37.8833333+00:00

@Steve Gostling Thanks for reaching out.

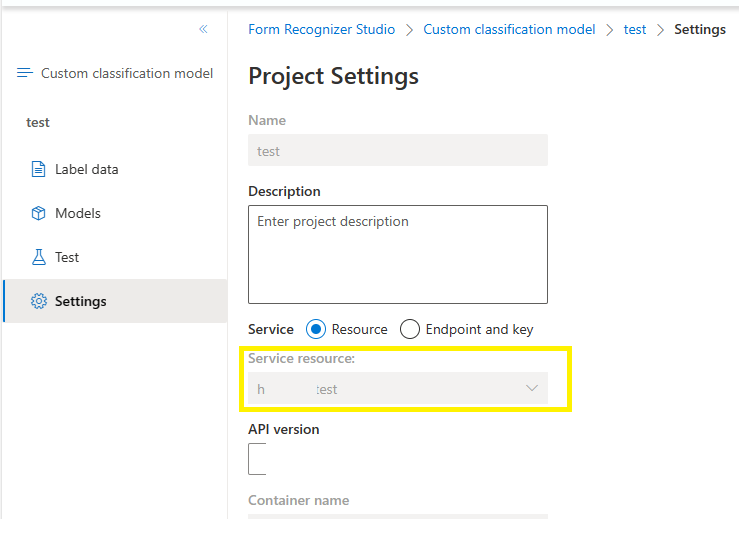

As per the error the model was not found. Can you please navigate to your project setting and validate what the service resource you have specified and use the endpoint URL and account key for the same resource.

As per the screenshot I can see that you are using the right Model identifier name but please confirm if the connection string is for the same resource that you have configured as I was able to reproduce the issue if I use the incorrect endpoint/string for my model that I have created.

The other reason I could think about would be using a different version other than v3.0 as documented here as it specifically calls out v3.0 API and no other.
Please sign in to rate this answer.
Ceylan Soygul Oz 0 Reputation points

2023-08-30T14:27:28.8933333+00:00

Thanks very much for your answer. I have reconfigured everything, but the issue remains the same when I call the model through the logic app. Furthermore, when attempting to select regions such as North Europe or UK South so on, I find that I am unable to choose a different version within the studio; I am only able to select version 3.1. Additionally, the document link you provided above is not working.

Steve Gostling 0 Reputation points

2023-08-30T18:45:01.53+00:00

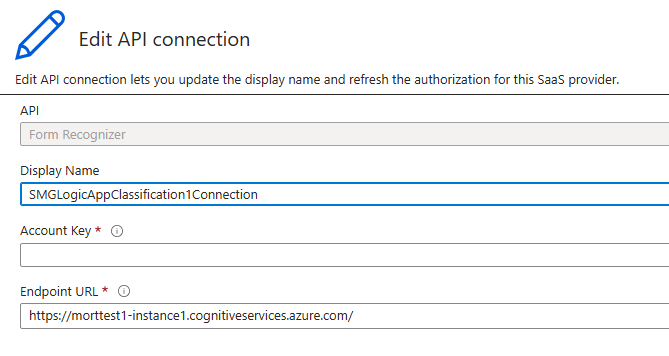

My service resource is set to 'MortTest1-Instance1' and Logic app form recognizer connection URL and API key is set correctly

MayankBargali-MSFT 69,946 Reputation points

2023-08-31T16:54:05.32+00:00

@Steve Gostling Thanks for the confirmation. Let me check it again with the custom classification model. Can you confirm the region of your logic app and service resource that you have configured.

Steve Gostling 0 Reputation points

2023-08-31T18:26:28.7666667+00:00

The region is 'East US'

MayankBargali-MSFT 69,946 Reputation points

2023-09-04T03:18:14.8866667+00:00

@Steve Gostling Thanks you. Let me test and get back to you.
