Azure Speech To Text: How to get Recognized speech in continuous recognition?

Question

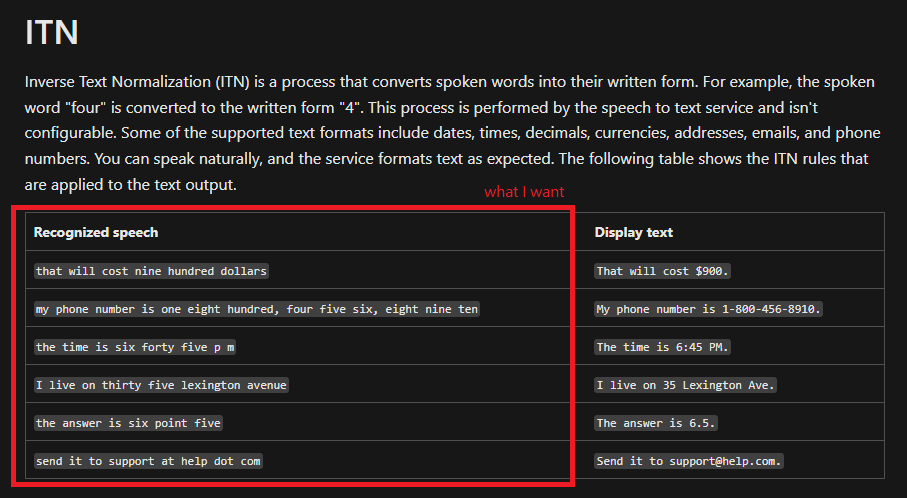

Hello, I have a requirement in my app that the response from the speech-to-text need to be Recognized speech**.**

Such as , Instead of receiving "I have 100 apples.", I want to get the response like this "I have one hundred apples."

However, I can only get the "ITN" results, even though I've already set the output formate into "detailed".

Here is my code:

I used the continuous recognition and the wav file was downloaded through url.

val speechConfig: SpeechConfig = SpeechConfig.fromSubscription(azureKey, azureRegion)
speechConfig.speechRecognitionLanguage = lang
speechConfig.outputFormat = OutputFormat.Detailed // Here!! I used the Detailed format

val fileByteArray = downloadFun(url)
val ps = AudioInputStream.createPushStream(AudioStreamFormat.getWaveFormatPCM(samplesPerSecond, bitsPerSample, channels))

val audioInput  = AudioConfig.fromStreamInput(ps)
val speechRecognizer = SpeechRecognizer(speechConfig, audioInput)

val stopTranslationWithFileSemaphore: Semaphore = Semaphore(0)

speechRecognizer.recognized.addEventListener { _: Any?, e: SpeechRecognitionEventArgs ->
	if (e.result.reason == ResultReason.RecognizedSpeech) {
		println(e.result) // Here!!!! I can only get the ITN result
	}
}

...[other codes]

speechRecognizer.startContinuousRecognitionAsync().get();
ps.write(fileByteArray)
ps.close()
stopTranslationWithFileSemaphore.acquire()

speechRecognizer.stopContinuousRecognitionAsync().get()
speechRecognizer.close()
audioInput.close()

Answer 1

Hello @yujing , Thanks for using Microsoft Q&A Platform.

I hope you are looking something similar to lexical format output. You can refer to this code to display the detailed recognition results as per your requirement: https://github.com/Azure-Samples/cognitive-services-speech-sdk/blob/0b66f2ad693f7f6840221f98d61f524813e96d0a/samples/python/console/speech_sample.py#L98

def speech_recognize_once_from_file_with_detailed_recognition_results():
    """performs one-shot speech recognition with input from an audio file, showing detailed recognition results
    including word-level timing """
    # <SpeechRecognitionFromFileWithDetailedRecognitionResults>
    speech_config = speechsdk.SpeechConfig(subscription=speech_key, region=service_region)

    # Ask for detailed recognition result
    speech_config.output_format = speechsdk.OutputFormat.Detailed

    # If you also want word-level timing in the detailed recognition results, set the following.
    # Note that if you set the following, you can omit the previous line
    #   "speech_config.output_format = speechsdk.OutputFormat.Detailed",
    # since word-level timing implies detailed recognition results.
    speech_config.request_word_level_timestamps()

    audio_config = speechsdk.audio.AudioConfig(filename=weatherfilename)

    # Creates a speech recognizer using a file as audio input, also specify the speech language
    speech_recognizer = speechsdk.SpeechRecognizer(
        speech_config=speech_config, language="en-US", audio_config=audio_config)

    # Starts speech recognition, and returns after a single utterance is recognized. The end of a
    # single utterance is determined by listening for silence at the end or until a maximum of 15
    # seconds of audio is processed. It returns the recognition text as result.
    # Note: Since recognize_once() returns only a single utterance, it is suitable only for single
    # shot recognition like command or query.
    # For long-running multi-utterance recognition, use start_continuous_recognition() instead.
    result = speech_recognizer.recognize_once()

    # Check the result
    if result.reason == speechsdk.ResultReason.RecognizedSpeech:
        print("Recognized: {}".format(result.text))

        # Time units are in hundreds of nanoseconds (HNS), where 10000 HNS equals 1 millisecond
        print("Offset: {}".format(result.offset))
        print("Duration: {}".format(result.duration))

        # Now get the detailed recognition results from the JSON
        json_result = json.loads(result.json)

        # The first cell in the NBest list corresponds to the recognition results
        # (NOT the cell with the highest confidence number!)
        print("Detailed results - Lexical: {}".format(json_result['NBest'][0]['Lexical']))
        # ITN stands for Inverse Text Normalization
        print("Detailed results - ITN: {}".format(json_result['NBest'][0]['ITN']))
        print("Detailed results - MaskedITN: {}".format(json_result['NBest'][0]['MaskedITN']))
        print("Detailed results - Display: {}".format(json_result['NBest'][0]['Display']))

        # Print word-level timing. Time units are HNS.
        words = json_result['NBest'][0]['Words']
        print("Detailed results - Word timing:\nWord:\tOffset:\tDuration:")
        for word in words:
            print(f"{word['Word']}\t{word['Offset']}\t{word['Duration']}")

        # You can access alternative recognition results through json_result['NBest'][i], i=1,2,..

    elif result.reason == speechsdk.ResultReason.NoMatch:
        print("No speech could be recognized: {}".format(result.no_match_details))
    elif result.reason == speechsdk.ResultReason.Canceled:
        cancellation_details = result.cancellation_details
        print("Speech Recognition canceled: {}".format(cancellation_details.reason))
        if cancellation_details.reason == speechsdk.CancellationReason.Error:
            print("Error details: {}".format(cancellation_details.error_details))
    # </SpeechRecognitionFromFileWithDetailedRecognitionResults>

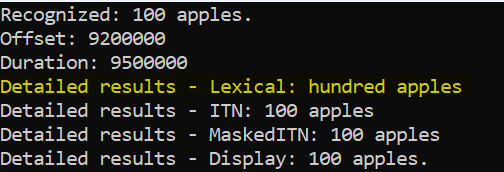

I have reproduced the above code and here is the sample output:

I hope this helps.

Regards,
Vasavi
