Web App Tcpping

Handian Sudianto 6,096

Hello,

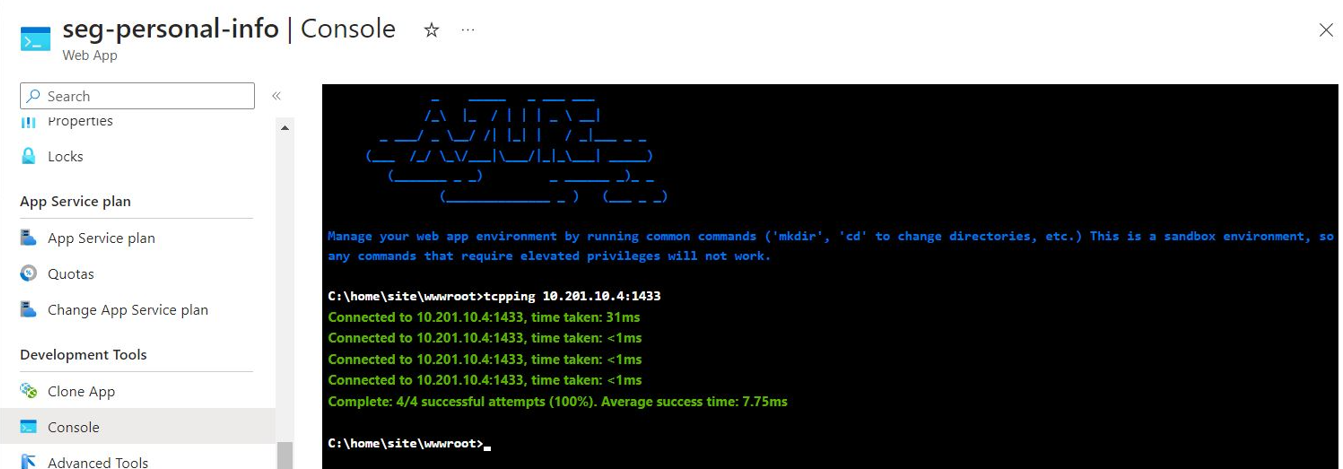

I have web app called 'seg-personal-info', then i do tcpping from this app console to DB server 10.201.10.4 and the tcpping is connected

User's image

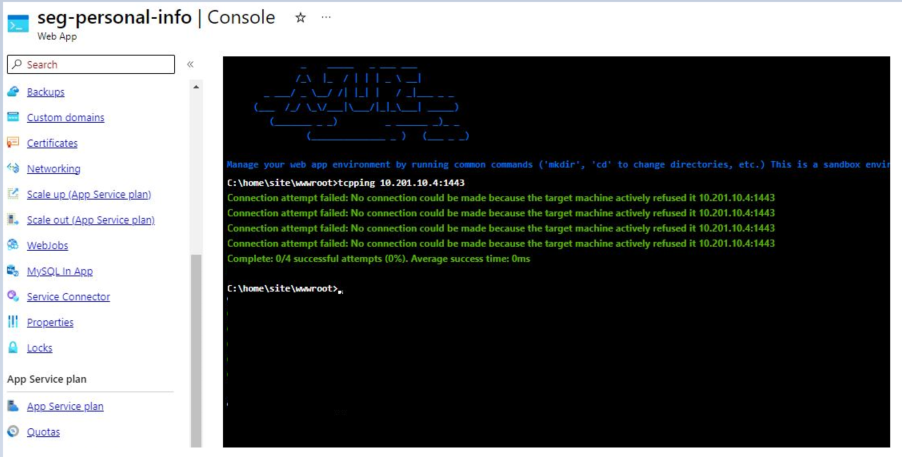

My colleague do same thing but why he get 'connection attempt failed'?

User's image

VenkateshDodda-MSFT 24,951 Reputation points Microsoft Employee Moderator

2023-08-29T11:38:48.13+00:00
@Handian Sudianto Thanks for reaching out to Microsoft Q&A, apologize for any inconvenience caused on this.

Based on the information shared, I understood that establishing the tcp connection between the app and endpoint is failing. Below are some of the possible reasons for run time connection failures.

Service might not be available, please check the status of your endpoint server.

Endpoint firewall blocks Web App or Function App's IP address, please check the IP restriction or application-level firewall.

The traffic was blocked by Network Security Group or Firewall, please check your NSG or/and Firewall configuration if there is any.

The traffic was routed to a wrong destination, please check your User Defined Route Table if there is any.

The endpoint is an Azure Resource in a VNet in a different region.

Hope this helps. Do let me know if you are still facing the issue.
Handian Sudianto 6,096 Reputation points

2023-08-29T11:42:48.32+00:00

Hello,

Connection between the app and endpoint is failing yes but for some account.

Ilogim to azure portal with my account, the tcpping is ok. But when my colleage login to azure portal, the tcpping is failed.
Deleted

This comment has been deleted due to a violation of our Code of Conduct. The comment was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.

Accepted answer

0 additional answers

Your answer

VenkateshDodda-MSFT 24,951 Reputation points Microsoft Employee Moderator

2023-08-29T11:38:48.13+00:00

@Handian Sudianto Thanks for reaching out to Microsoft Q&A, apologize for any inconvenience caused on this.

Based on the information shared, I understood that establishing the tcp connection between the app and endpoint is failing. Below are some of the possible reasons for run time connection failures.

Service might not be available, please check the status of your endpoint server.

Endpoint firewall blocks Web App or Function App's IP address, please check the IP restriction or application-level firewall.

The traffic was blocked by Network Security Group or Firewall, please check your NSG or/and Firewall configuration if there is any.

The traffic was routed to a wrong destination, please check your User Defined Route Table if there is any.

The endpoint is an Azure Resource in a VNet in a different region.

Hope this helps. Do let me know if you are still facing the issue.
Handian Sudianto 6,096 Reputation points

2023-08-29T11:42:48.32+00:00

Hello,

Connection between the app and endpoint is failing yes but for some account.

Ilogim to azure portal with my account, the tcpping is ok. But when my colleage login to azure portal, the tcpping is failed.
Deleted

This comment has been deleted due to a violation of our Code of Conduct. The comment was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.

Answer 1

TP 124.7K Volunteer Moderator

Hi,

In second screenshot, incorrect port (1443 instead of 1433) is specified. Please have your colleague re-test using correct port.

Thanks.

-TP

Handian Sudianto 6,096 Reputation points

2023-08-30T23:20:46.99+00:00

Hi

yes you right, thanks.
