JSON string into SQL transaction table

Question

Hi,

I have a json string i want to push the data from json string into transaction table.

below is the json string

DECLARE @json NVARCHAR(MAX)
SET @json =
  N'[{
	"HTable": {
      "HID": "H1001",
      "HDate": "22/08/2023"
    },
    "CTable": {
      "ID": C1001
      "Amount": 200,
      "ETable": {
        "EID": "E1001",
        "EType": "EType1"
      },
      "DTable": [
        {
          "ID": "D1001",
          "Code": "DType1"
        },
        {
          "ID": "D1002",
          "Code": "DType2"
        }
      ],
      "ATable": [
        {
          "ID": "A1001",
          "Code": ACode1,
          "OTable": {
			"ID": "O1001",
            		"Type": "OType1"
          	},
          "OTable": {
			"ID": "O1002",
            		"Type": "OType2"
          	}
        },
        {
          "ID": "A1002",
          "Code": "ACode2"
        }
      ]
    }
  }
]'

below is my table structure.

create table ##HTable (HID nvarchar(50), HDate DateTime, CID nvarchar(50), CAmt decimal(18,2), EID nvarchar(50), EType nvarchar(50))

insert into ##HTable values ('H1001','2023-08-22','C1001', 200, 'E1001', 'EType1')

create table ##DTable (CID nvarchar(50), DID nvarchar(50), DType nvarchar(50))

insert into ##DTable values ('C1001', 'D1001', 'DType1');

insert into ##DTable values ('C1001', 'D1002', 'DType2');

create table ##ATable (CID nvarchar(50), AID nvarchar(50), ACode nvarchar(50))

insert into ##ATable values ('C1001','A1001','ACode1');

insert into ##ATable values ('C1001','A1002','ACode2');

create table ##OTable (CID nvarchar(50), AID nvarchar(50), OID nvarchar(50), OType nvarchar(50))

insert into ##OTable values ('C1001','A1001','O1001','OType1');

insert into ##OTable values ('C1001','A1001','O1002','OType2');

select * from ##HTable

select * from ##DTable

select * from ##ATable

select * from ##OTable

drop table ##HTable

drop table ##DTable

drop table ##ATable

drop table ##OTable

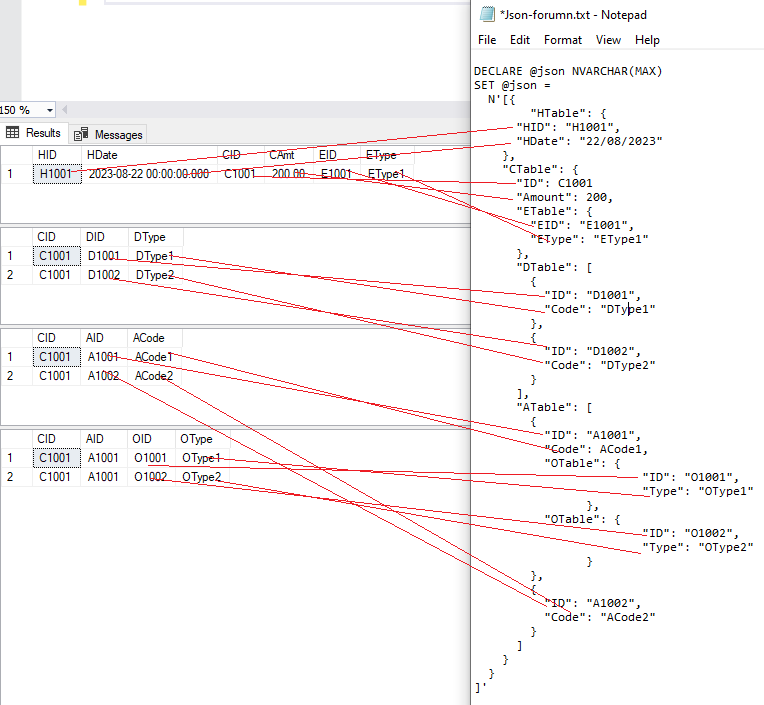

i want to map like below screen shot

Thanks in Advance

Kasim

Answer 1

Hi @kasim mohamed ,

To retrieve values from a JSON there are several built-in functions you may use. Check this link for more information.

To get you started, here are some examples, I also added a corrected json (there were some quotes missing).

DECLARE @json NVARCHAR(MAX)
SET @json =
  N'[{
	"HTable": {
      "HID": "H1001",
      "HDate": "22/08/2023"
    },
    "CTable": {
      "ID": "C1001",
      "Amount": 200,
      "ETable": {
        "EID": "E1001",
        "EType": "EType1"
      },
      "DTable": [
        {
          "ID": "D1001",
          "Code": "DType1"
        },
        {
          "ID": "D1002",
          "Code": "DType2"
        }
      ],
      "ATable": [
        {
          "ID": "A1001",
          "Code": "ACode1",
          "OTable": {
			"ID": "O1001",
            		"Type": "OType1"
          	},
          "OTable": {
			"ID": "O1002",
            		"Type": "OType2"
          	}
        },
        {
          "ID": "A1002",
          "Code": "ACode2"
        }
      ]
    }
  }
]'

When you just want a single value and do not have a JSON array you can use:

INSERT INTO ##HTable (HID )
SELECT	JSON_VALUE(value,'$.HTable.HID')
FROM	OPENJSON(@json)

When you are working with arrays, you will come up with something like this:

INSERT INTO ##DTable (CID)
SELECT  JSON_VALUE(DTable.value,'$.ID')
FROM	OPENJSON(@json)
CROSS APPLY OPENJSON(value,'$') main
CROSS APPLY OPENJSON(main.value,'$.DTable') DTable

Hope this will help you.

Kind regards,

Wilko

---
