Can I use winUI 3 class library to WPF ?

Question

Can I use winUI 3 class library to WPF ?

mehmet yılmaz 20

I want to port my wpf app to uno platform because of uno compatible with winUI 3 xaml. So it will be easy to porting to uno. Can I use winUI 3 class library to WPF ?

2 answers

Your answer

Answer 1

Hui Liu-MSFT 48,676 Microsoft External Staff

Hi,@mehmet yılmaz . Welcome Microsoft Q&A.

You could use a WinUI 3 class library in a WPF application, but with certain considerations.

WinUI 3 is targets Windows App SDK, while WPF is a separate framework with its own set of controls and runtime. While WinUI 3 and WPF share some common XAML concepts, they are not directly interchangeable.

And WinUI 3 is part of the Windows App SDK—so, naturally, a WinUI 3 app can use the other Windows App SDK features and APIs, as well. For how you can use Windows App SDK APIs (and Windows Runtime APIs) in a WPF app, you could refer to the document Use the Windows App SDK in a WPF app.

Here are a few points to consider:

UWP Control Compatibility: If you're using WinUI 3 controls in a UWP app, the Uno Platform should provide good compatibility. However, if you're looking to use WinUI 3 controls in a WPF app, you might run into issues because WPF and UWP have different application models, layout systems, and runtime environments.

WPF and Uno Platform: While Uno Platform aims to bring UWP features to other platforms, including WPF might not be a straightforward process. It's best to consult the Uno Platform documentation and resources to understand their compatibility and recommended practices for different scenarios.

Porting to Uno Platform: If your goal is to port your WPF app to Uno Platform for cross-platform compatibility, you'll likely need to adapt your UI code, as well as any platform-specific features or APIs you're using. While some code and XAML might be reusable, there might still be platform-specific adjustments required.

WinUI 3 and WPF: If you want to use WinUI 3 controls in a WPF app, it might be more practical to look for equivalent controls or solutions that are native to WPF.

If the response is helpful, please click "Accept Answer" and upvote it.

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

mehmet yılmaz 20 Reputation points

2023-08-31T06:27:21.27+00:00

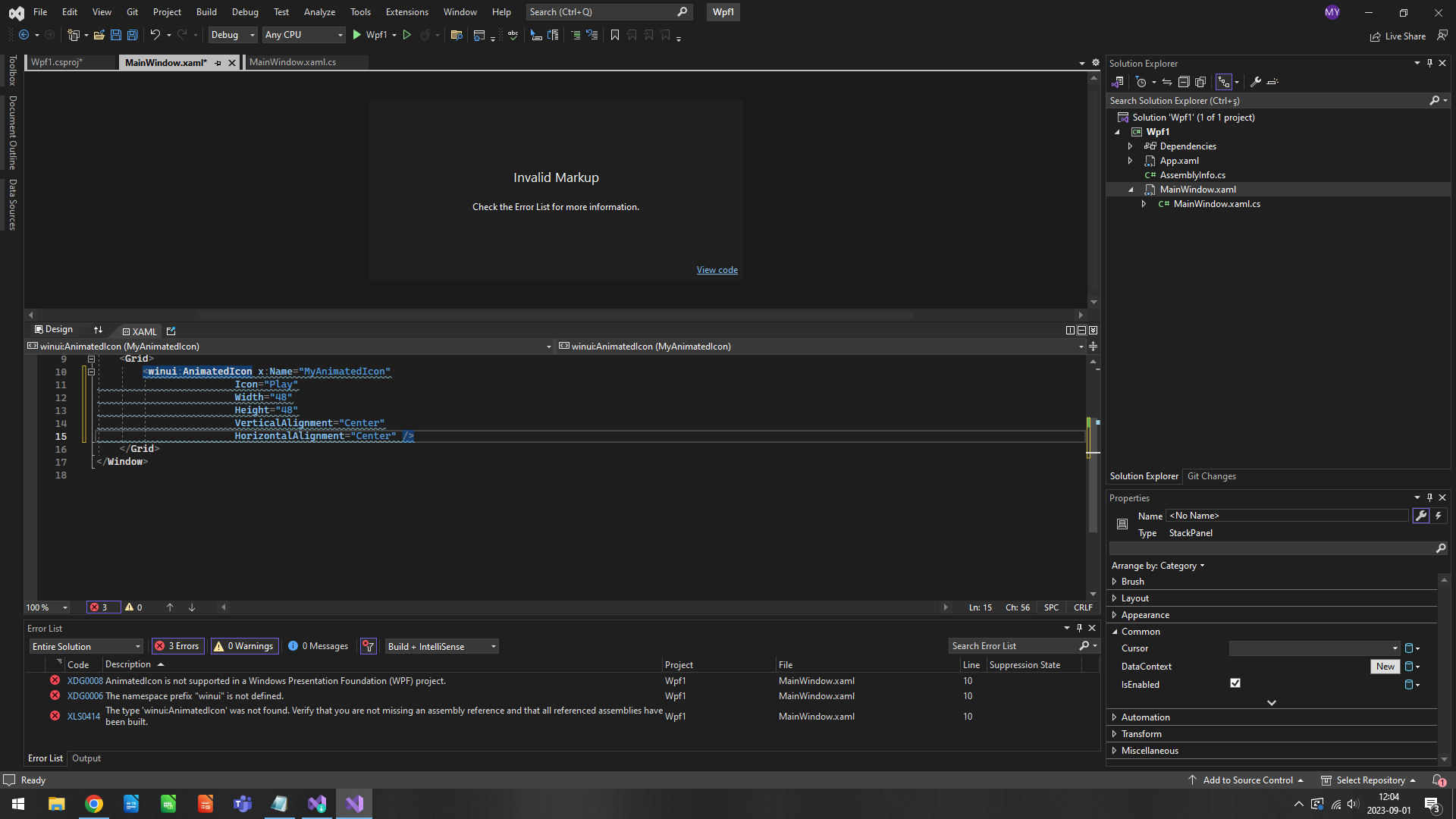

when I try using winUI3 custom control in wpf xaml, I got this issue = "the type 'winui:CustomControl1' was not found and also the name 'CustomControl1' does not exist in the namespace ". I reference winUI3 class library .dll to wpf project. I added windowsApp sdk package, targetframework to project file and so on. But it does not work. Thanks a lot for your answering by the way.
Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff

2023-08-31T07:18:10.1666667+00:00

Hi,@mehmet yılmaz .

When trying to use a WinUI 3 custom control in a WPF XAML file and encountering the error message you mentioned, there are a few potential reasons for this issue:

Namespace Mismatch: Ensure that you have correctly referenced the WinUI 3 class library and that you are using the correct namespace in your XAML file

Assembly Reference: Make sure that the WinUI 3 class library assembly (.dll) is referenced correctly in your WPF project. You can do this by right-clicking on References in your WPF project, selecting "Add Reference," and then selecting the WinUI 3 class library.

Using the Correct Namespace Prefix: In your XAML, make sure you're using the correct prefix for the WinUI 3 controls. The prefix is typically defined in your XAML namespace declarations.

Check Visual Studio Version: Ensure that you are using a compatible version of Visual Studio that supports WinUI 3 development for WPF projects. Some features might not work properly if you're using an outdated version.

Verify Target Framework: Make sure that your WPF project is targeting a compatible framework version for WinUI 3. Check if the target framework version matches the version supported by the WinUI 3 controls you're trying to use.

Build and Clean Solution: Sometimes, issues like this can be resolved by performing a clean build of your solution. Try cleaning the solution and rebuilding it to see if that resolves the issue.

Restart Visual Studio: Occasionally, Visual Studio might have some caching issues. Try restarting Visual Studio to see if that helps.

Namespace Naming: Ensure that there are no conflicts with namespaces and class names between your WPF project and the WinUI 3 class library.

If there are still problems, could you share with me a minimal sample project that can reproduce the problem for analysis?
mehmet yılmaz 20 Reputation points

2023-08-31T08:24:30.3766667+00:00

First of all, which one is winUI 3 and winUI2. When I open the visual studio to create a new project, I see WinUI 3 desktop app. Is that WinUI 3 right? What is winUI 2? is that nuget package and what is that name in nuget manager? And how can share my wpf app to you
Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff

2023-08-31T09:51:15.04+00:00

Hi,@mehmet yılmaz . For the steps to create a WinUI 3 project, you could check out the documentation Create your first WinUI 3 (Windows App SDK) project. You can upload the sample project to GitHub and share its link with me.
mehmet yılmaz 20 Reputation points

2023-08-31T10:17:06.53+00:00

@Hui Liu-MSFT

so, how can I use winUI 2? I will share with you tomorrow because I am not available for now.
Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff

2023-09-01T06:42:35.3033333+00:00
Hi,@mehmet yılmaz .

Not quite sure what your problem is exactly.

Here are two scenarios about using winUI 3 class library in WPF:

Use the Windows App SDK in a WPF app

After my testing, the winui3 control can be used in WPF in this case.

Use XAML Islands to host a UWP XAML control in a C# WPF app

You could check which one is more suitable for your requirement. Then I can follow up and analyze it on a case-by-case basis.

It is best to share with me a sample that can reproduce the problem to analyze the problem if there is still a problem.
mehmet yılmaz 20 Reputation points

2023-09-01T08:38:58.9166667+00:00

I want to run my wpf app on linux. So, I have some options such as using Uno Platform, Avalonia, Avalonia XPF.. So, I thought that If I use WinUI 3 class library I mean winUI 3 controls, xaml something like that, the porting process will be easy to manage. Conclusion, I need to use control which is made by winUI 3 in WPF app.
Deleted

This comment has been deleted due to a violation of our Code of Conduct. The comment was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.
mehmet yılmaz 20 Reputation points

2023-09-01T09:04:59.86+00:00

@Hui Liu-MSFT in the link https://learn.microsoft.com/en-us/windows/apps/windows-app-sdk/wpf-plus-winappsdk This topic doesn't cover the process of migrating your WPF app to WinUI 3. When I try to use winui element i got this issue.

Answer 2

Castorix31 90,681

If you want to use WinUI 3 controls inside a WPF app, you can now use XAML Islands, which has just been released : https://learn.microsoft.com/en-us/windows/apps/windows-app-sdk/stable-channel#xaml-islands-no-longer-experimental

I uploaded a sample in WPF/C# : WPF_XAML_Islands_WinUI3
