bulleted/number list format in *.rtf file in WPF RichTextBox is disordered

Scott Q-0525 121 Reputation points
2023-09-08T02:15:14.3+00:00

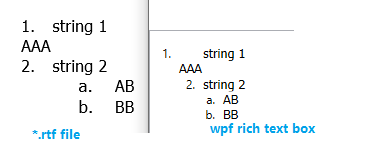

See below format in *.rft file, after load the *.rft file into WPF RichTextBox, the formats are disordered.

  1. string 1 AAA
  2. string 2
  • AB
  • BB

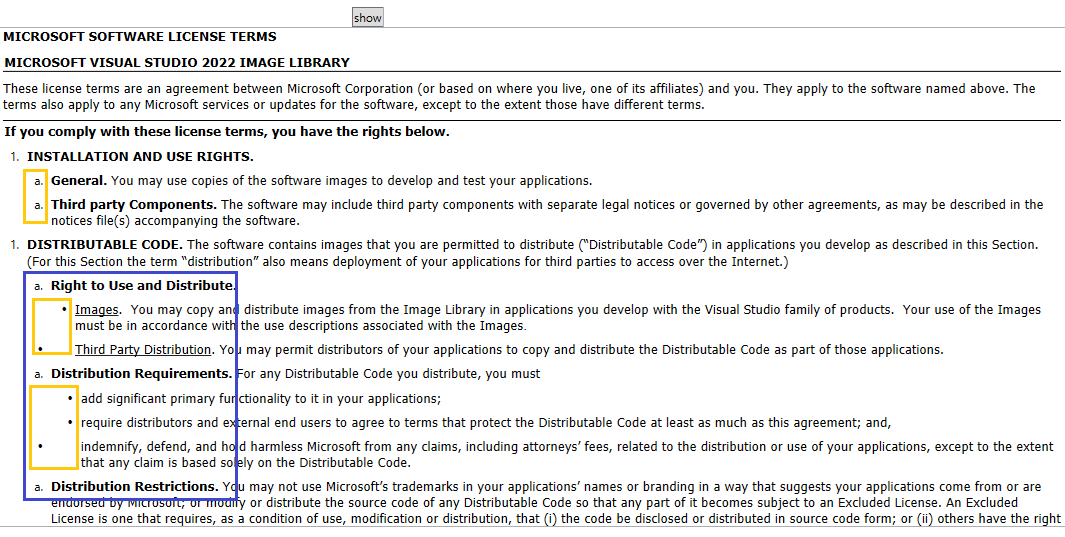

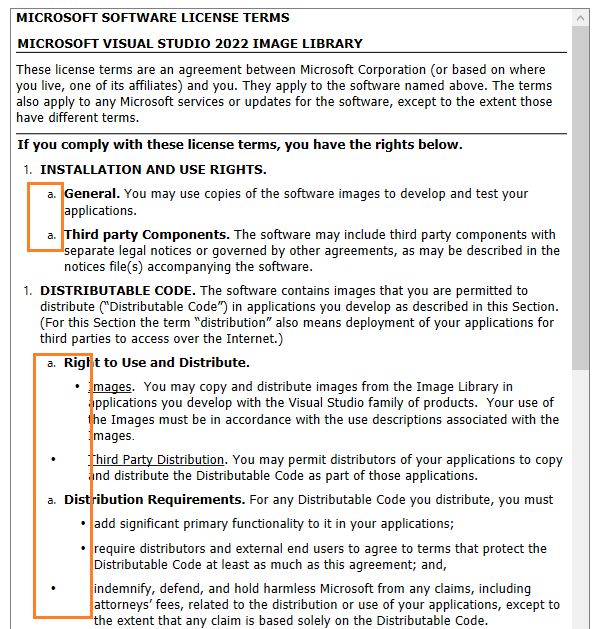

After load into RichTextBox, or using TextRange.Save to a new *.rtf again.

RichTextBox

The source codes:

 var file = @"D:\my.rtf";
 this.myTestRichTextBox.Document = new FlowDocument();
 using (var stream = File.OpenRead(file))
 {
     var textRange = new TextRange(myTestRichTextBox.Document.ContentStart, myTestRichTextBox.Document.ContentEnd);
    textRange.Load(stream, DataFormats.Rtf);

 }

Thanks

ScottQ

Developer technologies | Windows Presentation Foundation
Developer technologies | C#
{count} votes

1 answer

Sort by: Most helpful
  1. Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff
    2023-09-08T09:45:44.2366667+00:00

    Hi,@Scott Q-0525. You could try the following code:


    <StackPanel>

            <Button Content="show" HorizontalAlignment="Left" Margin="355,60,0,0" VerticalAlignment="Top" Click="Button_Click_1"/>

            <RichTextBox Name="myTestRichTextBox"  AcceptsReturn="True"  Height="100">
                <FlowDocument>
                    <Paragraph>
                        <Run Text="RichTextBox"/>
                    </Paragraph>
                </FlowDocument>
            </RichTextBox>


        </StackPanel>



      string filePath = "C:\\...\\example.rtf";



            private void Button_Click_1(object sender, RoutedEventArgs e)
            {

                    TextRange range;
                    System.IO.FileStream fStream;
                        range = new TextRange(myTestRichTextBox.Document.ContentStart, myTestRichTextBox.Document.ContentEnd);
                        fStream = new System.IO.FileStream(filePath, System.IO.FileMode.OpenOrCreate);
                        range.Load(fStream, System.Windows.DataFormats.Rtf);

                        fStream.Close();



            }

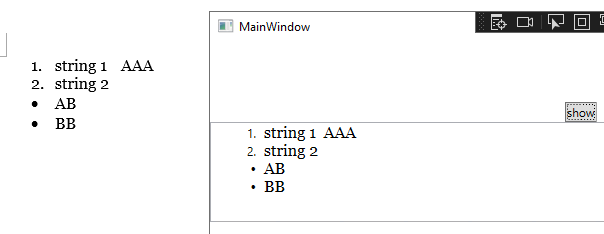

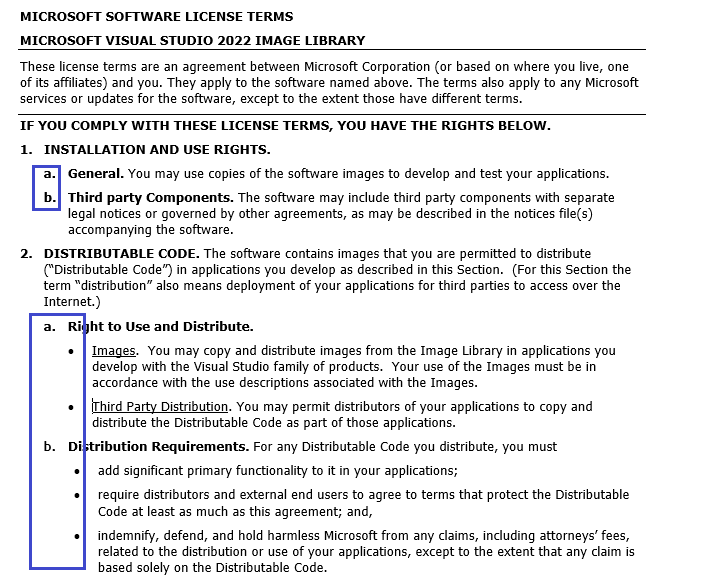

    The result:

    enter image description here


    If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
