How to pass WEBHOOKDATA parameter value in Azure automation Runbook

Question

Hi,

Could you please help me out to pass WEBHOOKDATA parameter value in Azure Automation Runbook.

for testing using the below code to display the webhookdata parameter value on testpane

Param

(

  [parameter (Mandatory=$false)]

  [object]$WebhookData

)

Write-Output $WebhookData

Write-Output $WebhookData.WebhookName

Write-Output $WebhookData.RequestHeader

Write-Output $WebhookData.RequestHeader.header1

Write-Output $WebhookData.RequestBody

Please let me know in which format I have to pass this parameter value at runtime in runbook.

Also use this parameter through C# code also.

Regards

GGarg

Answer 1

Hi @Gaurav Garg ,

As explained here, for the WebhookData parameter in the UI for testing in Test pane of the runbook, you must pass the data in JSON object with carriage returns and newline characters, so it matches the format that is passed in from a webhook.

For example, pass the following sample JSON object in the UI for the WebhookData parameter for a sample runbook shared below.

{"WebhookName":"mywebhook","RequestBody":"[\r\n {\r\n "ResourceGroup": "rg01",\r\n "Name": "vm01"\r\n },\r\n {\r\n "ResourceGroup": "rg02",\r\n "Name": "vm02"\r\n }\r\n]"}

param
(
    [Parameter (Mandatory=$true)]
    [object] $WebhookData
)

# Logic to allow for testing in Test pane
if (-Not $WebhookData.RequestBody) {
    $WebhookData = (ConvertFrom-Json -InputObject $WebhookData)
    Write-Output "test1 $WebhookData"
    Write-Output "test2"
    Write-Output $WebhookData.RequestBody
    Write-Output "test3"
    Write-Output $WebhookData.RequestHeader
    Write-Output "test4"
    Write-Output $WebhookData.RequestHeader.header1
}

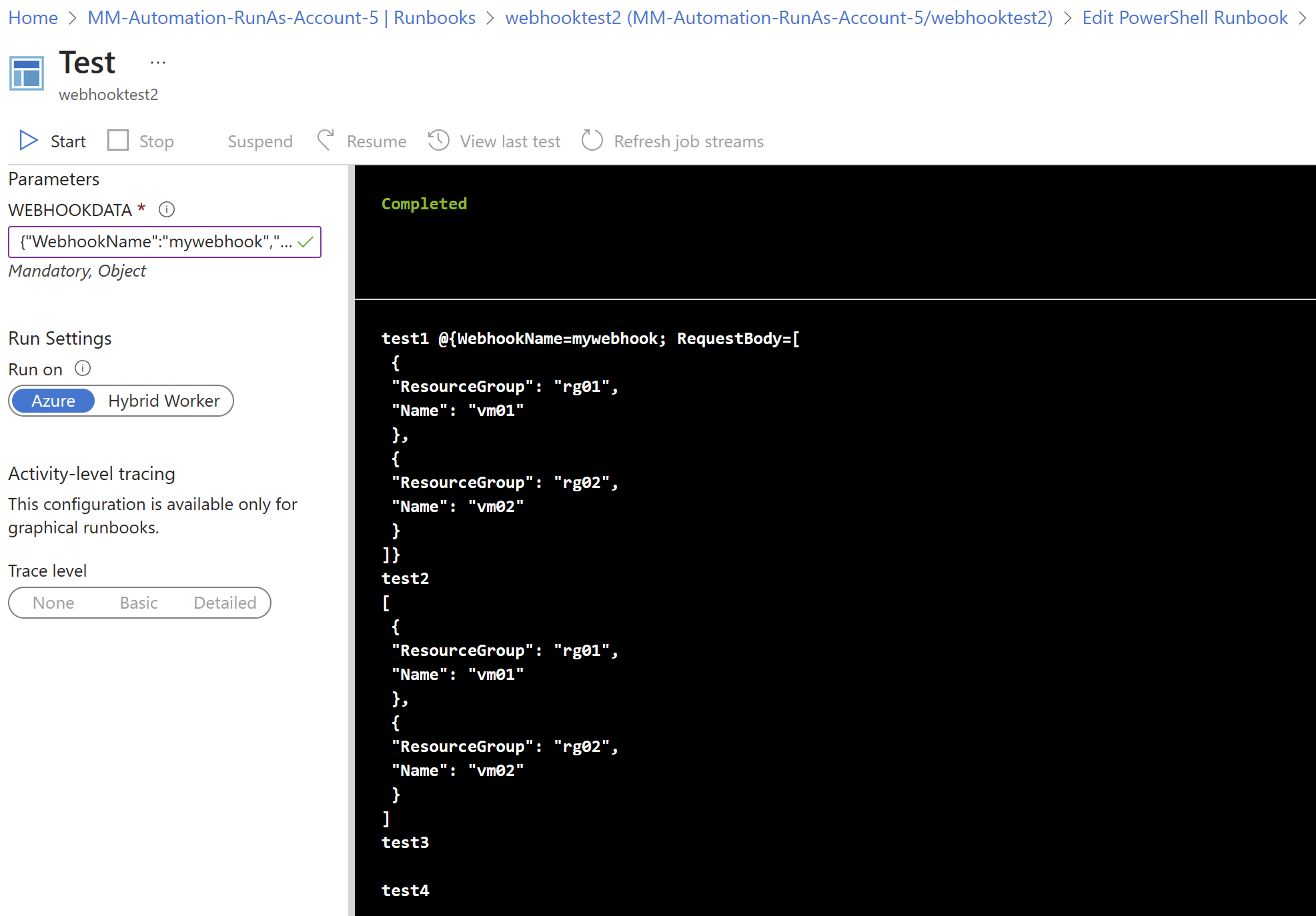

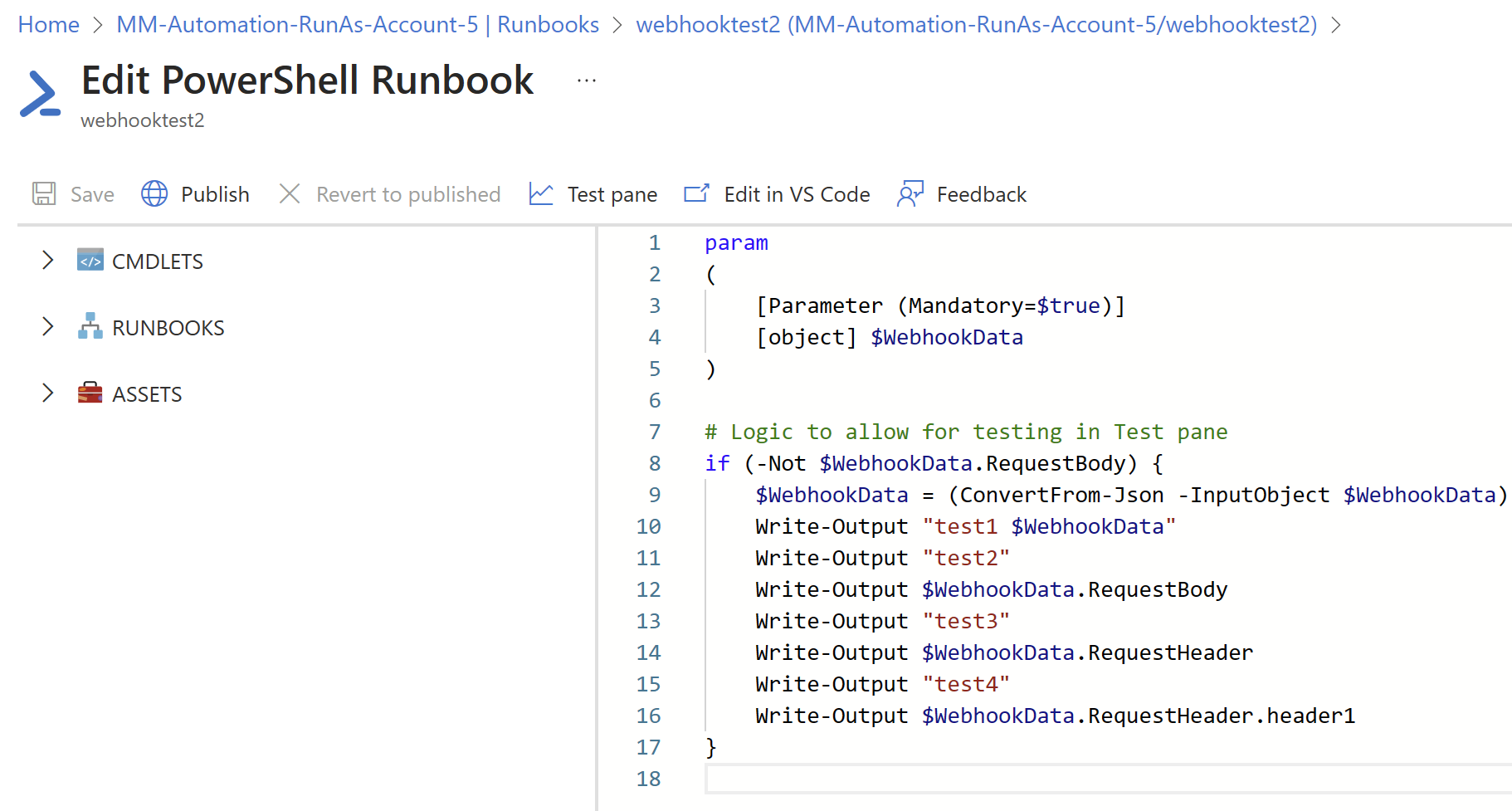

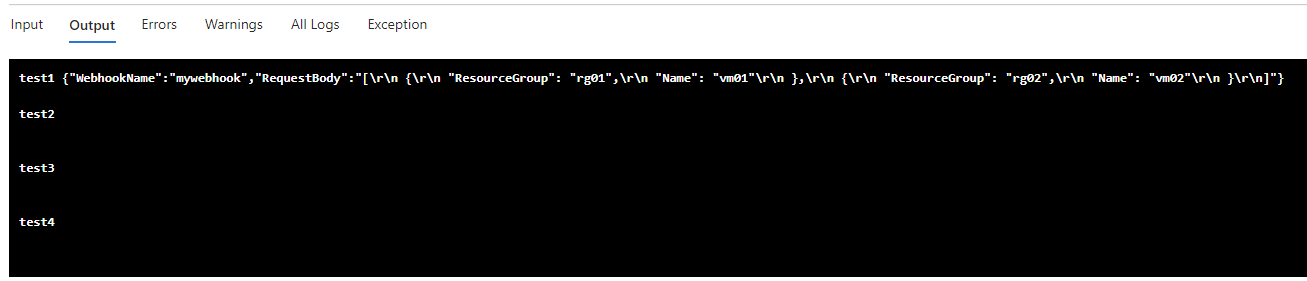

For illustration, check below screenshots of runbook execution and output. Note that in this example RequestHeader and header1 under RequestHeader is not showing any output as the input JSON object doesn't have those related details. So, based on the use case you might have to provide input JSON object in the required format with carriage returns and newline characters, so it matches the format that is passed in from a webhook.

In the real-time scenario, request body of the incoming POST request of webhook parameter can keep any data formatting such as string, JSON, XML, or form-encoded. The runbook must be written to work with the data format that is expected.

Answer 2

UPDATED

Moral of the story - you need to check if input is an object (how it will appear coming from webhook) or a string (how it will appear coming from the UI). If it's a string, use ConvertFrom-Json to get an object.

Passing the below JSON to the UI will work.

{"WebhookName":"mywebhook","RequestBody":[{"ResourceGroup": "rg01","Name": "vm01"},{"ResourceGroup": "rg02","Name": "vm02"}]}

---

Tested with your script and JSON input. It does not function the same.

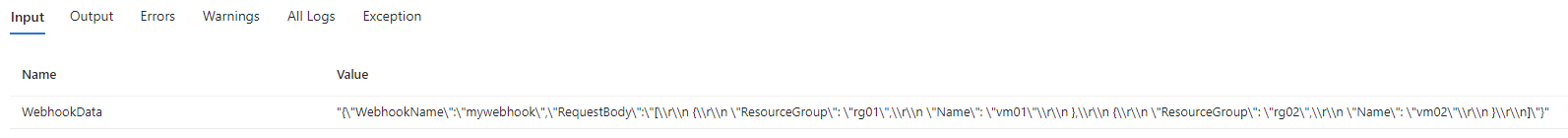

Input JSON

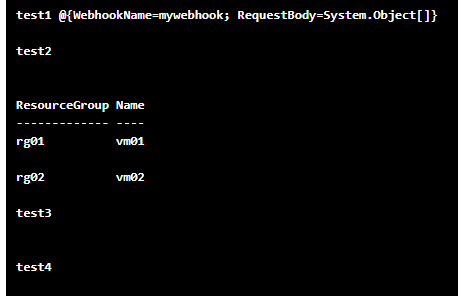

Output

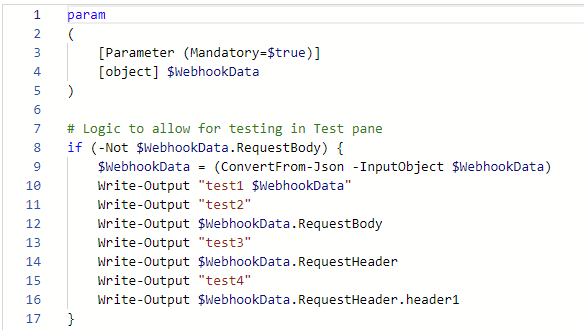

Script copied from your post
