WPF custom animation thread

Question

Hello,

I have a small simple WPF application (I am learing by doing).

I made some custom drawing on a Canvas declared in XAML, by using code in the corresponding C# file.

Now I want to access the canvas from another thread to be able to apply geometric transformations to it and its contents.

But because the main thread owns the Canvas object, I cannot assign transformations to it.

Is there a specific way of being able to change the Canvas from other threads ?

Thanks,

Regards

Answer 1

Hi,@Daniel Santos . Welcome Microsoft Q&A. To access the canvas from another thread to be able to apply geometric transformations to it and its contents, you can try referring to the following code. If you still face the problem, please share with me the complete code that can reproduce your problem to analyze.

xaml:

  <StackPanel>

        <Canvas Name="canvas" Height="200">
            <!--<Path x:Name="path" Stroke="Black" StrokeThickness="1" Data="19 39 ,20 60,"  Fill="Black" />-->
            <Polygon Points="15.3 19 10.2 8 0, 19 0.2, 18 10.3 1" Fill="Navy"></Polygon>

        </Canvas>
        <Button x:Name="btn" Content="thread" Click="btn_Click"/>
    </StackPanel>

codebedhind:

 public partial class MainWindow : Window
    {
        private Dispatcher uiDispatcher = Dispatcher.CurrentDispatcher;

        public MainWindow()
        {
            InitializeComponent();
        }
        void ApplyTransformationFromAnotherThread()
        {
            ScaleTransform scaleTransform = new ScaleTransform(2.0, 2.0);


            uiDispatcher.Invoke(() =>
            {

                Canvas myCanvas = canvas;


                myCanvas.RenderTransform = scaleTransform;
            });
        }

        private void btn_Click(object sender, RoutedEventArgs e)
        {
            ApplyTransformationFromAnotherThread();
        }
    }

Update:

 private int originX = 50;
        private int originY = 50;
        private int incrementX = 20;
        private int incrementY = 20;
        private int countX = 7;
        private int countY = 7;
        private int currentAngle = 0;
        private int rotateIncrement = 10;
        private RotateTransform rotateTransform;

        public MainWindow()
        {
            InitializeComponent();

            // Create and configure your canvas on the UI thread
            Canvas canvas = drawboard;
            rotateTransform = new RotateTransform();
            rotateTransform.CenterX = originX + 4 * incrementX;
            rotateTransform.CenterY = originY + 4 * incrementY;
            canvas.RenderTransform = rotateTransform;

            for (int xindex = 0; xindex < countX; xindex++)
            {
                for (int yindex = 0; yindex < countY; yindex++)
                {
                    Control cross11 = new Control();
                    cross11.Template = (ControlTemplate)canvas.FindResource("crosshairs");
                    Canvas.SetTop(cross11, originY + yindex * incrementY);
                    Canvas.SetLeft(cross11, originX + xindex * incrementX);
                    canvas.Children.Add(cross11);
                    cross11.Name = "cross_" + xindex + "_" + yindex;
                }
            }

            // Start a DispatcherTimer to update the rotation
            DispatcherTimer timer = new DispatcherTimer();
            timer.Interval = TimeSpan.FromMilliseconds(100); // Adjust the update interval as needed
            timer.Tick += Timer_Tick;
            timer.Start();
        }

        private void Timer_Tick(object sender, EventArgs e)
        {
            // Update the rotation angle on each tick
            currentAngle += rotateIncrement;
            rotateTransform.Angle = currentAngle;
        }

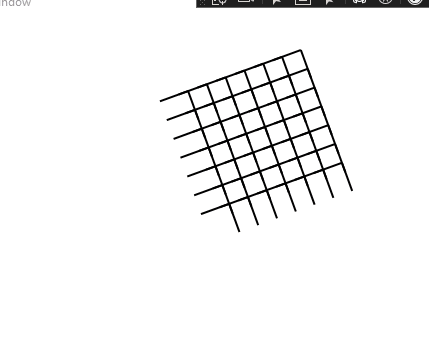

The result:

---
