How to bind Command in ContextMenuItem

Question

Thanks to @Hui Liu-MSFT and @Peter Fleischer (former MVP) ,now I am able to operate my TreeView and do Drag&Drop on it. Also I can ONLY display ContextMenu by right click on the first level of TreeViewItem, which is required. You can see the current situation in the gif.

Now I am facing an issue that I want to bind command to each of the ContextMenuItem. I tried lots of solution online but they all don't work in my case. Since I am not using RelayCommand but command class, I fail to find a proper solution.

XAML:

<TreeView Name="templateTreeview" ItemsSource="{Binding TreeViewSource}" FontSize="14"
AllowDrop="True" Margin="5,5,5,10">
    <i:Interaction.Behaviors>
        <local:TreeViewDragDropBehavior />
    </i:Interaction.Behaviors>
    <TreeView.ItemContainerStyle>
        <Style TargetType="{x:Type TreeViewItem}">
            <Setter Property="IsExpanded" Value="True" />
        </Style>
    </TreeView.ItemContainerStyle>
    <TreeView.Resources>
        <HierarchicalDataTemplate DataType="{x:Type local:ViewItem}" ItemsSource="{Binding Path=ViewItems}">
            <StackPanel Orientation="Horizontal">
                <TextBlock Text="{Binding Path=ItemName}" Margin="0,0,10,0" />
            </StackPanel>
        </HierarchicalDataTemplate>
        <ContextMenu x:Key="FirstLevelContextMenu" Focusable="False">
            <MenuItem Header="1.5A0" Focusable="False"></MenuItem>
            <MenuItem Header="A0" Focusable="False"></MenuItem>
            <MenuItem Header="A1" Focusable="False"></MenuItem>
            <MenuItem Header="A2" Focusable="False"></MenuItem>
            <MenuItem Header="A3" Focusable="False"></MenuItem>
            <MenuItem Header="A4" Focusable="False"></MenuItem>
        </ContextMenu>
    </TreeView.Resources>
</TreeView>

MainViewModel:

public class MainViewModel
{
    public ObservableCollection<ViewItem> ListBoxSource { get; set; }
    public ObservableCollection<ViewItem> TreeViewSource { get; set; }
    private ICommand ShowContextMenuCommand;

    public MainViewModel()
    {
        ListBoxSource = new ObservableCollection<ViewItem>();
        TreeViewSource = new ObservableCollection<ViewItem>();

        for (int i = 1; i < 20; i++) ListBoxSource.Add(new ViewItem($"ListBoxItem {i}"));

        ViewItem defaultView = new ViewItem("Root", 1);
        TreeViewSource.Add(defaultView);
        for (int i = 1; i < 10; i++) defaultView.ViewItems.Add(new ViewItem($"TreeViewItem {i}"));

        ShowContextMenuCommand = new ShowContextMenuCommand(this);
    }
}

CommandBase：

 public abstract class CommandBase : ICommand
 {
     public event EventHandler CanExecuteChanged;

     public virtual bool CanExecute(object parameter) => true;

     public abstract void Execute(object parameter);

     protected void OnCanExecutedChanged()
     {
         CanExecuteChanged?.Invoke(this, new EventArgs());
     }
 }

ShowContexxtMenuCommand:

public class ShowContextMenuCommand : CommandBase
{
    private readonly MainViewModel _viewModel;

    public ShowContextMenuCommand(MainViewModel viewModel)
    {
        _viewModel = viewModel;
    }

    public override void Execute(object parameter)
    {
    }
}

TreeVieewDragDropBehavior:

public class TreeViewDragDropBehavior : Behavior<UIElement>
{
    // for saving TreeViewItem to drag
    private TreeViewItem draggedTVI = null;
    private TreeViewItem lastClickedItem = null;

    protected override void OnAttached()
    {
        base.OnAttached();

        AssociatedObject.PreviewMouseLeftButtonDown += PreviewMouseLeftButtonDown;
        AssociatedObject.MouseMove += tv_MouseMove;
        AssociatedObject.DragOver += tv_DragOver;
        AssociatedObject.Drop += Tv_Drop;
        AssociatedObject.DragLeave += tv_DragLeave;
        AssociatedObject.PreviewMouseRightButtonDown += AssociatedObject_PreviewMouseRightButtonDown;
    }

    private void AssociatedObject_PreviewMouseRightButtonDown(object sender, MouseButtonEventArgs e)
    {
        if (e.RightButton == MouseButtonState.Pressed)
        {
            TreeViewItem tvi = FindAnchestor<TreeViewItem>((DependencyObject)e.OriginalSource);
            if (tvi != null)
            {
                if (lastClickedItem != null && !lastClickedItem.Equals(tvi))
                {

                    lastClickedItem.Background = Brushes.White;

                }
                if (FindTreeLevel(tvi) == 0)
                {


                    // Display the context menu for first-level items
                    ContextMenu contextMenu = tvi.FindResource("FirstLevelContextMenu") as ContextMenu;
                    if (contextMenu != null)
                    {
                        contextMenu.PlacementTarget = tvi;
                        contextMenu.IsOpen = true;
                    }


                }

                tvi.Background = Brushes.MediumPurple;
                lastClickedItem = tvi;
            }
        }
    }

    // save TreeViewItem to drag
    private void PreviewMouseLeftButtonDown(object sender, MouseButtonEventArgs e)
    {
        draggedTVI = FindAnchestor<TreeViewItem>((DependencyObject)e.OriginalSource);
    }

    // start Drag&Drop when mouse is moved and there's a saved TreeViewItem
    private void tv_MouseMove(object sender, MouseEventArgs e)
    {
        if (draggedTVI != null)
        {
            // Find the data behind the TreeViewItem
            ViewItem dragData = draggedTVI.DataContext as ViewItem;

            // Initialize the drag & drop operation
            DragDrop.DoDragDrop(draggedTVI, dragData, DragDropEffects.Move);
            // reset saved TreeViewItem
            draggedTVI = null;
        }
    }

    // highlight target
    private void tv_DragOver(object sender, DragEventArgs e)
    {
        TreeViewItem tvi = FindAnchestor<TreeViewItem>((DependencyObject)e.OriginalSource);
        if (tvi != null) tvi.Background = Brushes.MediumPurple;
    }

    private void Tv_Drop(object sender, DragEventArgs e)
    {
        if (sender is TreeView)
        {
            MainViewModel vm = (sender as TreeView).DataContext as MainViewModel;

            // check for data
            if (!e.Data.GetDataPresent(typeof(ViewItem))) return;
            // store the drop target
            ViewItem targetItem = (e.OriginalSource as TextBlock)?.DataContext as ViewItem;
            if (targetItem == null) return;
            ViewItem data = (ViewItem)e.Data.GetData(typeof(ViewItem));

            //if drag from ListBox to TreeView
            if (draggedTVI == null)
            {

                    ViewItem viewItemToInsert = new ViewItem(data.ItemName);
                    targetItem.ViewItems.Add(viewItemToInsert);

            }
            else if (!targetItem.Equals(draggedTVI.DataContext as ViewItem))
            {
                DeleteViewNodeFromSource(vm.TreeViewSource, data);
                targetItem.ViewItems.Add(data);
            }
        }

        // reset background on target TreeViewItem
        TreeViewItem tvi = FindAnchestor<TreeViewItem>((DependencyObject)e.OriginalSource);
        if (tvi != null) tvi.Background = Brushes.White;
    }

    // reset background on leaved possible target TreeViewItem
    private void tv_DragLeave(object sender, DragEventArgs e)
    {
        TreeViewItem tvi = FindAnchestor<TreeViewItem>((DependencyObject)e.OriginalSource);
        if (tvi != null) tvi.Background = Brushes.White;
    }

    // Helper to search up the VisualTree
    private static T FindAnchestor<T>(DependencyObject current) where T : DependencyObject
    {
        do
        {
            if (current is T) return (T)current;
            current = VisualTreeHelper.GetParent(current);
        } while (current != null);
        return null;
    }

    private void DeleteViewNodeFromSource(ObservableCollection<ViewItem> viewItems, ViewItem viewItem)
    {
        foreach (ViewItem vi in viewItems)
        {
            if (vi.Equals(viewItem))
            {
                viewItems.Remove(vi);
                break;
            }
            else
                DeleteViewNodeFromSource(vi.ViewItems, viewItem);
        }
    }
    private int FindTreeLevel(DependencyObject control)
    {
        var level = -1;
        if (control != null)
        {
            var parent = VisualTreeHelper.GetParent(control);
            while (!(parent is TreeView) && (parent != null))
            {
                if (parent is TreeViewItem)
                    level++;
                parent = VisualTreeHelper.GetParent(parent);
            }
        }
        return level;
    }
}

ViewItem:

public class ViewItem
{
    public string ItemName { get; set; }
    public ObservableCollection<ViewItem> ViewItems { get; } = new ObservableCollection<ViewItem>();
    public int IsVisible { get; set; }

    public ViewItem()
    { }

    public ViewItem(string name, int IsVisible = 0)
    {
        this.ItemName = name;
        this.IsVisible = IsVisible;
    }
}

Could someone helps me to bind the command? As long as the command is fired once the options in ContextMenu clicked is.

Answer 1

Hi,@BabyHai. Welcome Microsoft Q&A. For the problem of bind the command to TreeViewItem, you could try to refer to the following code.

 <TreeView Name="templateTreeview"       Grid.Column="1"
                  ItemsSource="{Binding TreeViewSource}" Width="200" FontSize="14" AllowDrop="True" Margin="5,5,5,10">
            <i:Interaction.Behaviors>
                <local:TreeViewDragDropBehavior />
            </i:Interaction.Behaviors>
            <TreeView.ItemContainerStyle>
                <Style TargetType="{x:Type TreeViewItem}">
                    <Setter Property="IsExpanded" Value="True" />

                </Style>

            </TreeView.ItemContainerStyle>

            <TreeView.Resources>
                <HierarchicalDataTemplate DataType="{x:Type local:ViewItem}" ItemsSource="{Binding Path=ViewItems}">
                    <StackPanel Orientation="Horizontal">

                        <TextBlock x:Name="MyControl" Text="{Binding Path=ItemName}" Margin="0,0,10,0" />
                    </StackPanel>

                </HierarchicalDataTemplate>
                <ContextMenu x:Key="FirstLevelContextMenu" Focusable="False">
                     <MenuItem Header="1.5A0" Focusable="False" Command="{Binding DataContext.A01Command, RelativeSource={RelativeSource AncestorType={x:Type TreeView}}}" CommandParameter="{Binding }" />
                    <MenuItem Header="Ctx1" Focusable="False" Command="{Binding DataContext.Ctx1Command, RelativeSource={RelativeSource AncestorType={x:Type TreeView}}}" CommandParameter="{Binding}" />
                    <MenuItem Header="Ctx2" Focusable="False" Command="{Binding DataContext.ContextMenuItemCommand, RelativeSource={RelativeSource AncestorType={x:Type TreeView}}}" CommandParameter="{Binding}" />
                    <MenuItem Header="Ctx3" Focusable="False" Command="{Binding DataContext.ContextMenuItemCommand, RelativeSource={RelativeSource AncestorType={x:Type TreeView}}}" CommandParameter="{Binding}" />

                </ContextMenu>
            </TreeView.Resources>
        </TreeView>

Codebedhind:

 public class MainViewModel
    {
        public ObservableCollection<ViewItem> ListBoxSource { get; set; }
        public ObservableCollection<ViewItem> TreeViewSource { get; set; }

        public RelayCommand A01Command { get; private set; }
        public RelayCommand Ctx1Command { get; private set; }
        public MainViewModel()
        {
           ...
            A01Command = new RelayCommand(ExecuteA01Command);
            Ctx1Command = new RelayCommand(ExecuteCtx1Command);

        }

        private void ExecuteA01Command(object parameter)
        {
            if (parameter is ViewItem viewItem)
            {

                MessageBox.Show($"Clicked on '{viewItem.ItemName}'");
            }

        }
        private void ExecuteCtx1Command(object parameter)
        {
            other action
        }


    }

RelayCommand:

    {
        private readonly Action<object> _execute;
        private readonly Predicate<object> _canExecute;

        public RelayCommand(Action<object> execute)
            : this(execute, null)
        {
        }

        public RelayCommand(Action<object> execute, Predicate<object> canExecute)
        {
            if (execute == null)
                throw new ArgumentNullException("execute");
            _execute = execute;
            _canExecute = canExecute;
        }

        public bool CanExecute(object parameter)
        {
            return _canExecute == null ? true : _canExecute(parameter);
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }

        public void Execute(object parameter)
        {
            _execute(parameter);
        }
    }

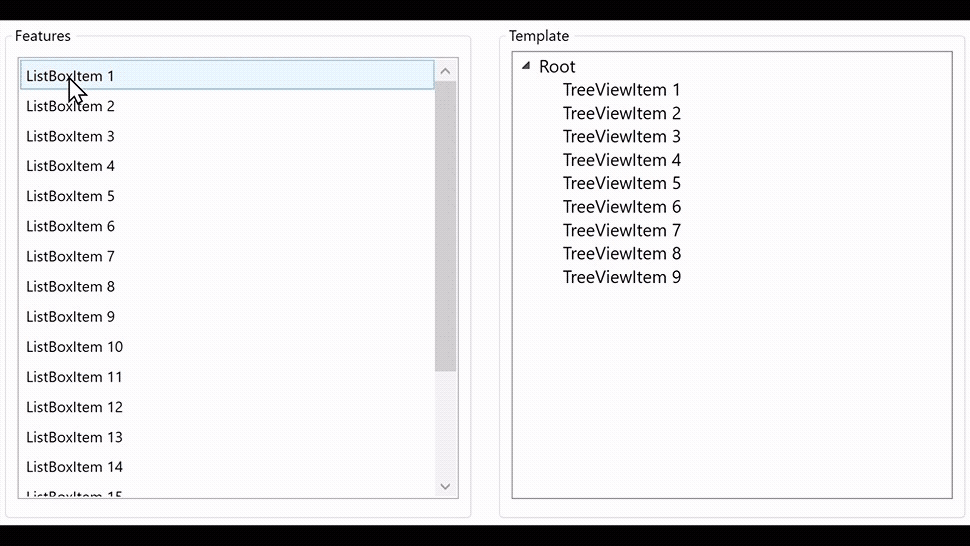

The result:

---
