WPF Tabcontrol Resizing Issue

Pratham Jain 281 Reputation points
2023-09-25T16:12:14.4066667+00:00

Hi All, I have a Tabcontrol inside grid which is inside WPF page. I want Tabcontrol to resize to complete width and height of page. I have set grid height and width to "*" and horizontalalignment and verticalalignment of tabcontrol to "stretch" but not able to achieve the same. Please advise how can I achieve the same ASAP. Regards,Pratham

Developer technologies Windows Presentation Foundation
{count} votes

Accepted answer
  1. Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff
    2023-09-26T05:39:51.7133333+00:00

    Hi,@Pratham Jain.Welcome Microsoft Q&A.

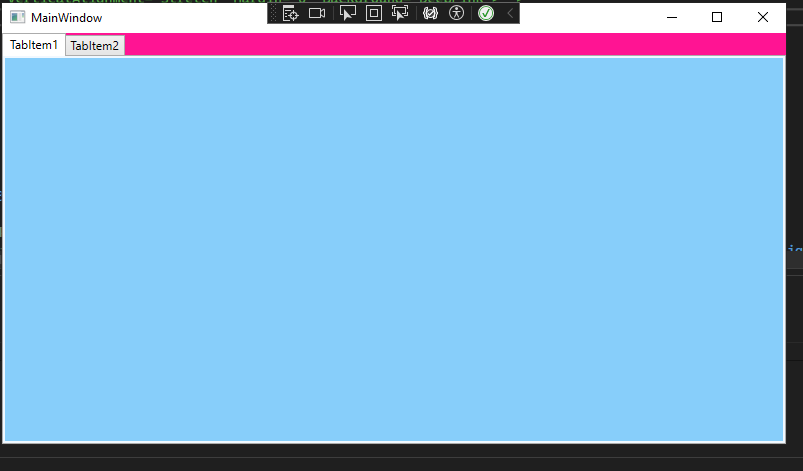

    I tested it with the following code and it works fine. You could try to refer to the following code.

    <Page x:Class="TabControlDemo.Page1"
         ...
          d:DesignHeight="450" d:DesignWidth="800"
          Title="Page1">

        <Grid HorizontalAlignment="Stretch" VerticalAlignment="Stretch" Margin="0">
            <Grid.RowDefinitions>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*"/>
            </Grid.ColumnDefinitions>

            <TabControl HorizontalAlignment="Stretch" VerticalAlignment="Stretch" Background="AliceBlue">
                <TabItem Header="item1"/>
                <TabItem Header="item2"/>
                <!-- TabItems go here -->
            </TabControl>
        </Grid>
    </Page>



    MainWindow.xaml:


    <Window x:Class="TabControlDemo.MainWindow"

            Title="MainWindow" Height="450" Width="800">
        <Grid>
            <Frame x:Name="MainFrame" NavigationUIVisibility="Hidden"/>
        </Grid>
    </Window>



    MainWindow.xaml.cs:


     public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();
                MainFrame.Navigate(new Uri("Page1.xaml", UriKind.Relative));
            }
        }




    If you still have issues, please show sample code that reproduces your issue and screenshots describing actual and expected results.


    If the response is helpful, please click "Accept Answer" and upvote it.

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.


2 additional answers

Sort by: Most helpful
  1. Viorel 122.5K Reputation points
    2023-09-25T17:54:07.96+00:00

    If the grid does not have columns and rows, then it should work without additional attributes:

    <Page . . .>
        <Grid>
            <TabControl>
               . . .
            </TabControl>
        </Grid>
    </Page>

    0 comments No comments

  2. Pratham Jain 281 Reputation points
    2023-09-27T03:49:53.1866667+00:00

    Hi @Hui Liu-MSFT ,

    I have referred the code you have shared but it's not working for me. So, I have updated my code to below to make it work:

    <Grid>
    <Grid.RowDefinitions>
    <RowDefinition Height="*"></RowDefinition>     </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
    <ColumnDefinition Width="*"></ColumnDefinition>     </Grid.ColumnDefinitions>
    <TabControl>
    <TabItem Header="TabItem1">
    <Grid Height="{Binding Path=ActualHeight, RelativeSource={RelativeSource FindAncestor, AncestorType=Grid}}" Width="{Binding Path=ActualWidth, RelativeSource={RelativeSource FindAncestor, AncestorType=Grid}}">
    .......
    .......
    </Grid>
    </TabItem>

    </TabControl>


    Please let me know if there is any other better way.

    Regards,

    Pratham
